SKU:  SP-2CL183

Square LED Headlight 7x6 5x7 Chrome Reflector Sealed Beam Replacement


Update the Look of your Ride

7x6 (also known as 5x7) Sealed beam replacement LED lamp with OCTILUMEN 8 High output 3W LED provide impressive light output.
Perfect for vehicles with single headlamp on each side.

    Description

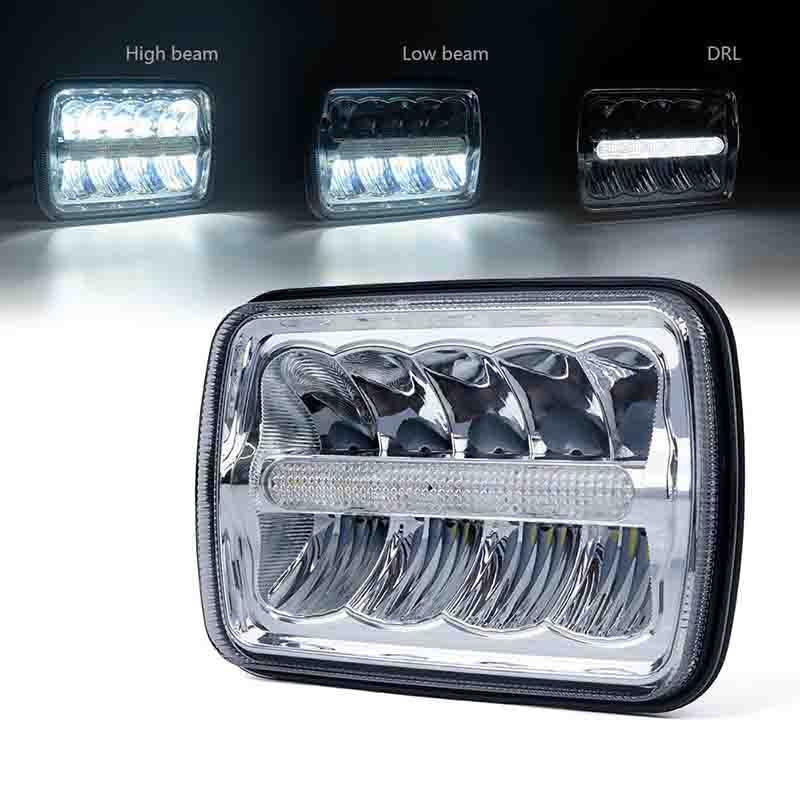

    Multi Beam - Low beam and high beam with DRL Center strip
    20W Low beam (1800 Lumens) / 35W High beam (3700 Lumens)
    8x High Efficiency Dual Side emitting diodes + 1x Center DRL
    3W DRL Light 180 Lumens)
    6000-6500K Cool White Output
    9V-32V DC Input Voltage
    Die-Cast Aluminum Alloy Housing in Black with high heat disapation
    High Grade PC Coated Lens with 96% Transparency
    UV-Cured Chrome finish for durability
    30,000 Hours lifetime

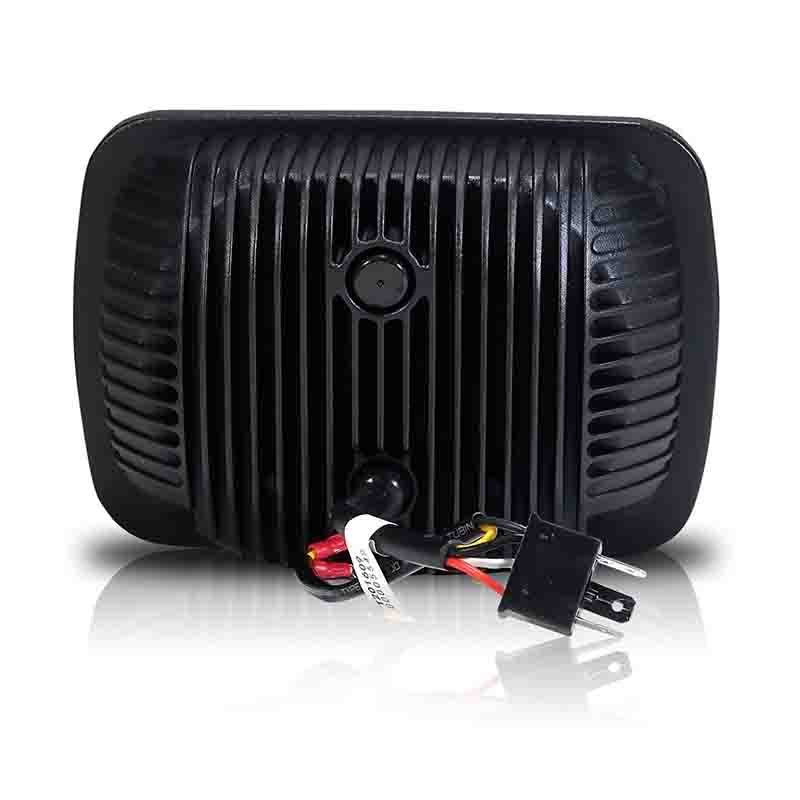

    H4 Plug with 2 wires DRL connection

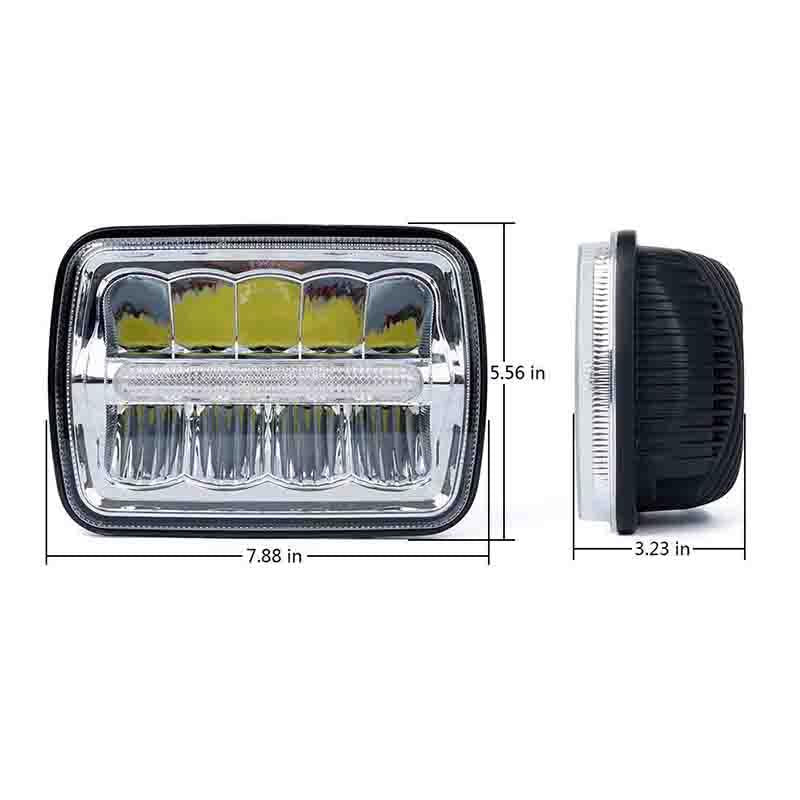

    7.8 x 5.6 inches
    Low weight at 1lb 11oz each
    OCTILUMEN Technology produces superior lumen output over conventional direct emitting headlight configurations



    How is it Wired

    Warning to Toyota Owners

    Toyota switches the Ground instead of the Low / High Beam 12V+.
    Relays are needed, not included to make these lamps work on some Toyota. There are video's online that show how this is done.
    If you want these to work on a Toyota and only have low beam function, you will need to swap out the Low beam and Ground pin on our headlamp.



    Fitment: H6014 / H6052 / H6054 / 6054

    Packing Includes: 2pcs 5x7 Headlight
