Overview

Ditch outdated pod lights and upgrade to a lighting system engineered for real off-road performance. Introducing the Hyper Series 5" LED Pod Lights—a high-output, multi-function lighting solution that blends advanced beam engineering, distinctive styling, and trail-proven durability in a compact footprint.

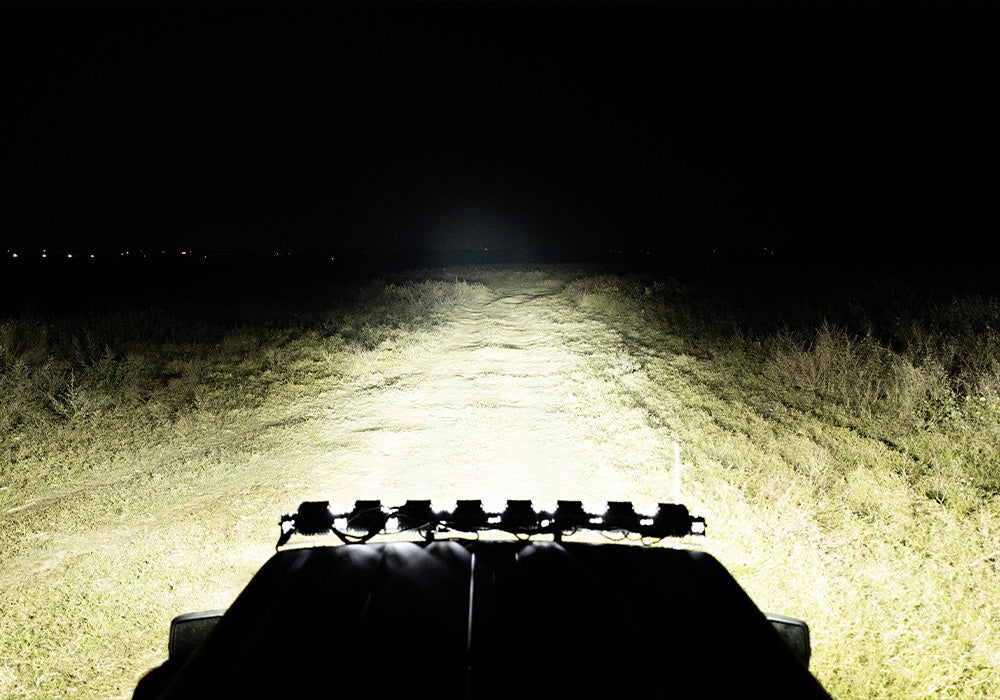

Built around a triple-chamber optical structure, Hyper5 delivers powerful forward projection combined with diffused peripheral illumination. The engineered circular beam pattern enhances long-distance visibility while maintaining comfortable, evenly distributed light across the driving field.

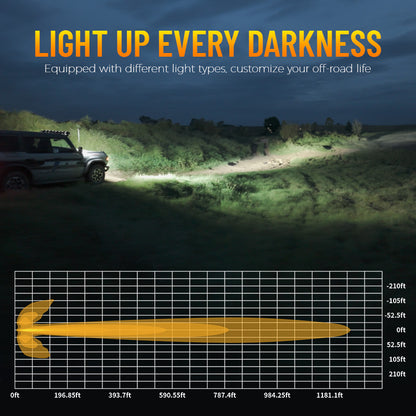

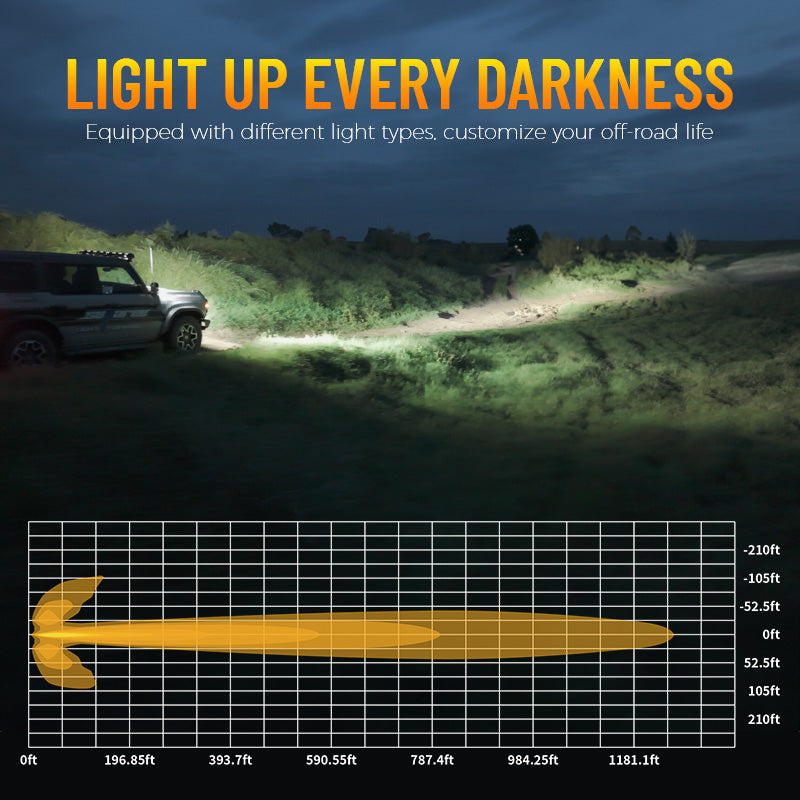

Producing up to 4558 lumens per pair, these pods generate 530 lux at 10 meters and reach a lighting distance of 360 meters (1 lux). A wide 150° usable beam spread ensures improved situational awareness across trails, terrain edges, and obstacles.

Integrated white / amber dual-color DRL enhances both visibility and styling. Combined with IP68/IP69K protection, oversized heat sinks, and plug-and-play installation, Hyper5 is built for drivers who demand performance without compromise.

Key Features

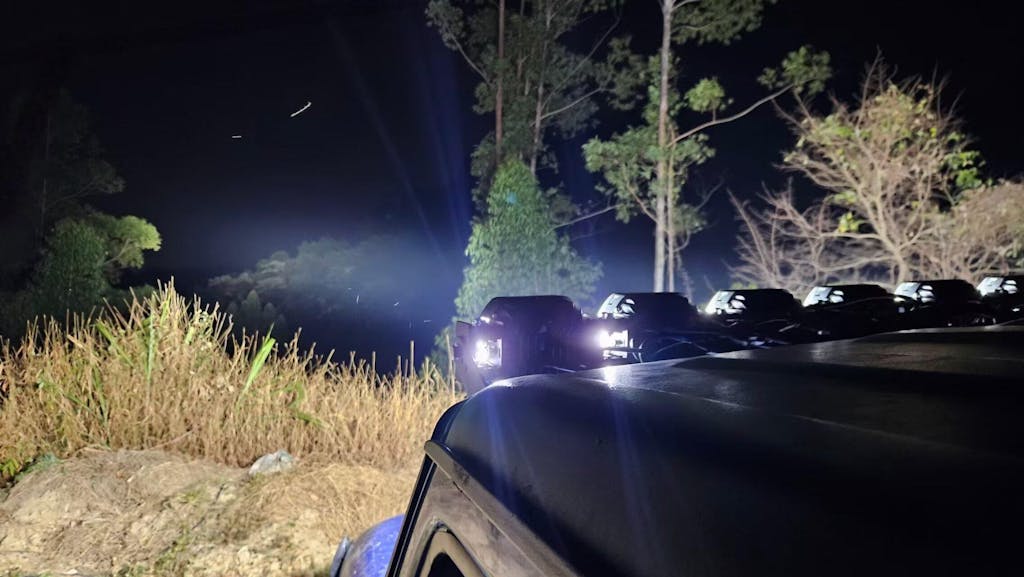

Forward + Side Beam Integration

Combines long-range forward projection with side flood lighting to expand peripheral visibility and reduce blind spots on technical trails.

Triple-Chamber Optical Design

Distinctive internal structure enhances beam layering, delivering both focused distance and diffused near-field illumination.

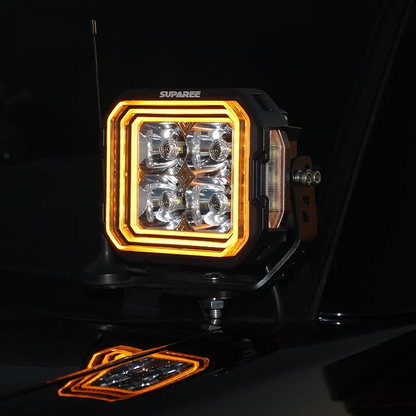

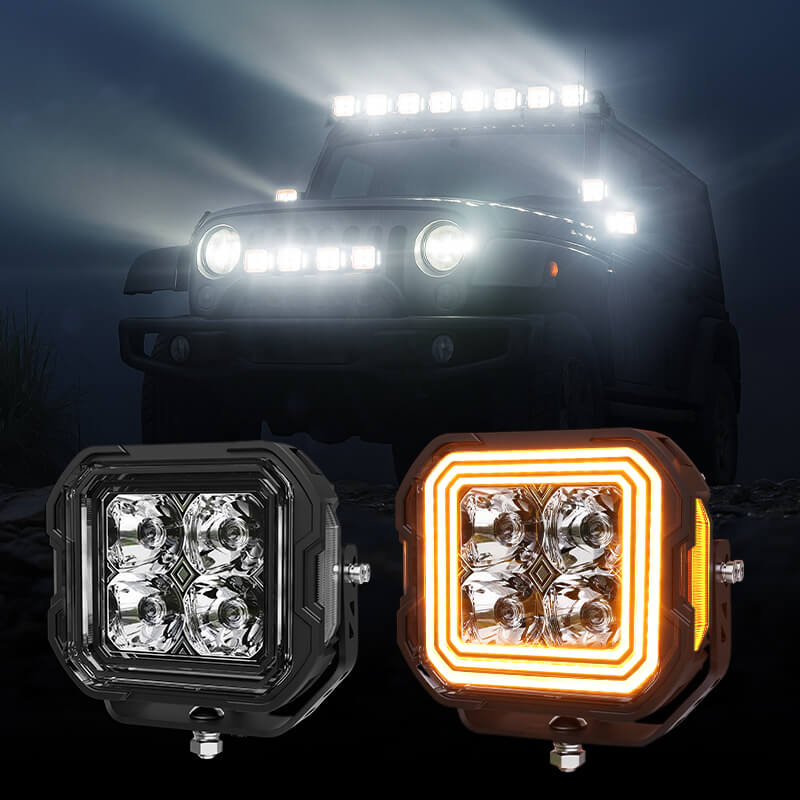

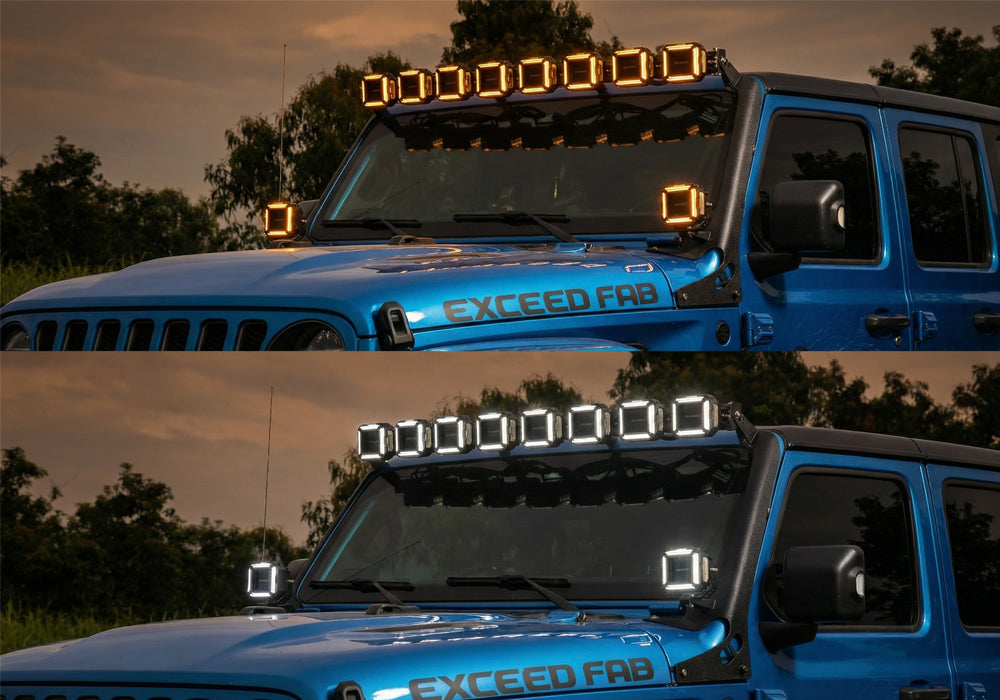

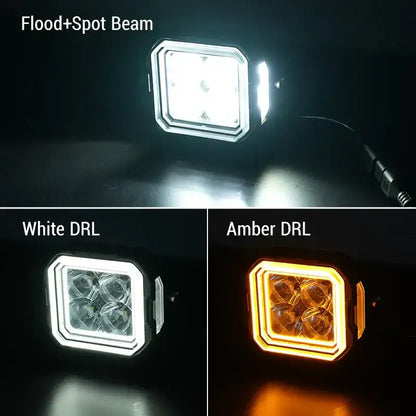

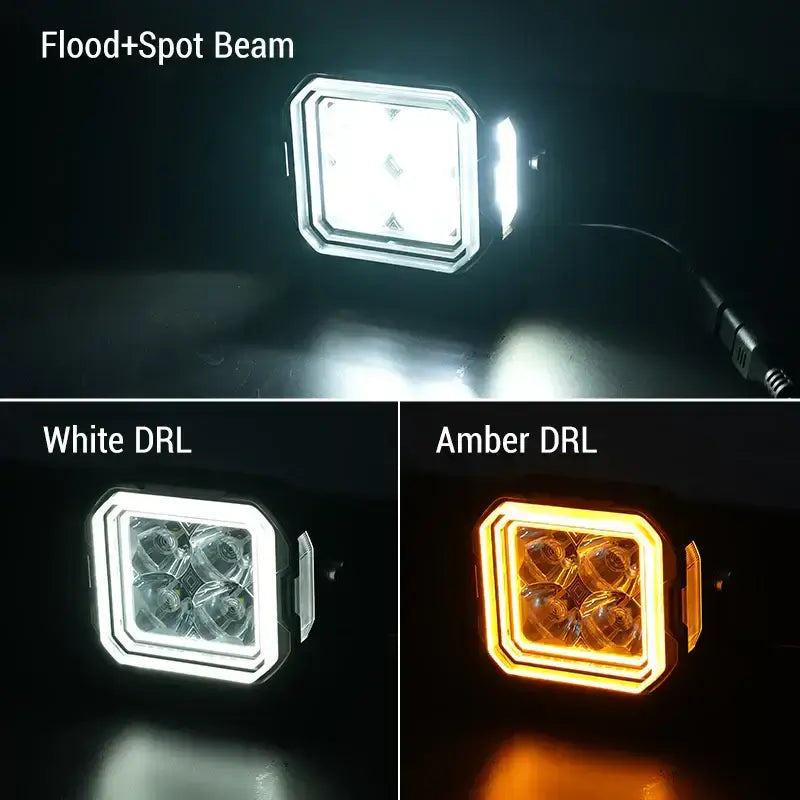

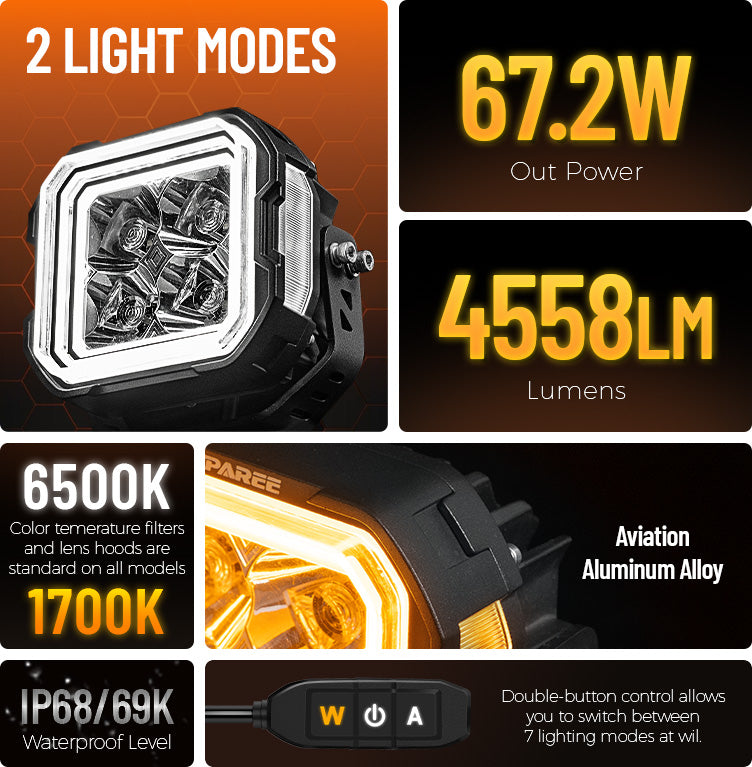

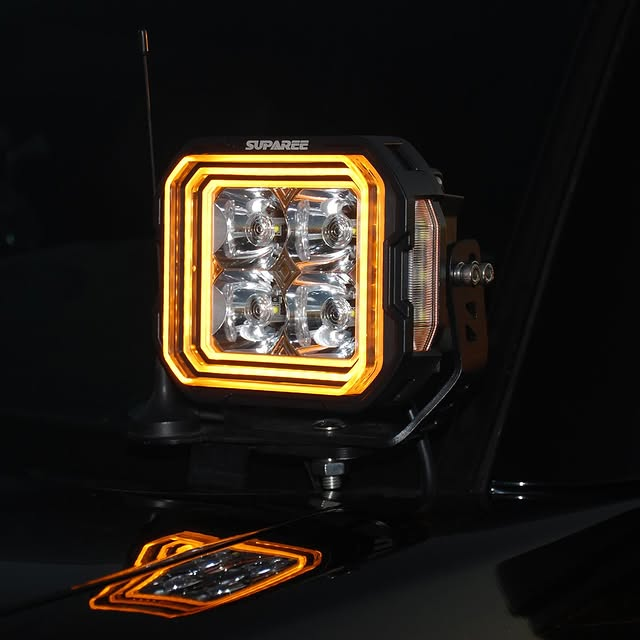

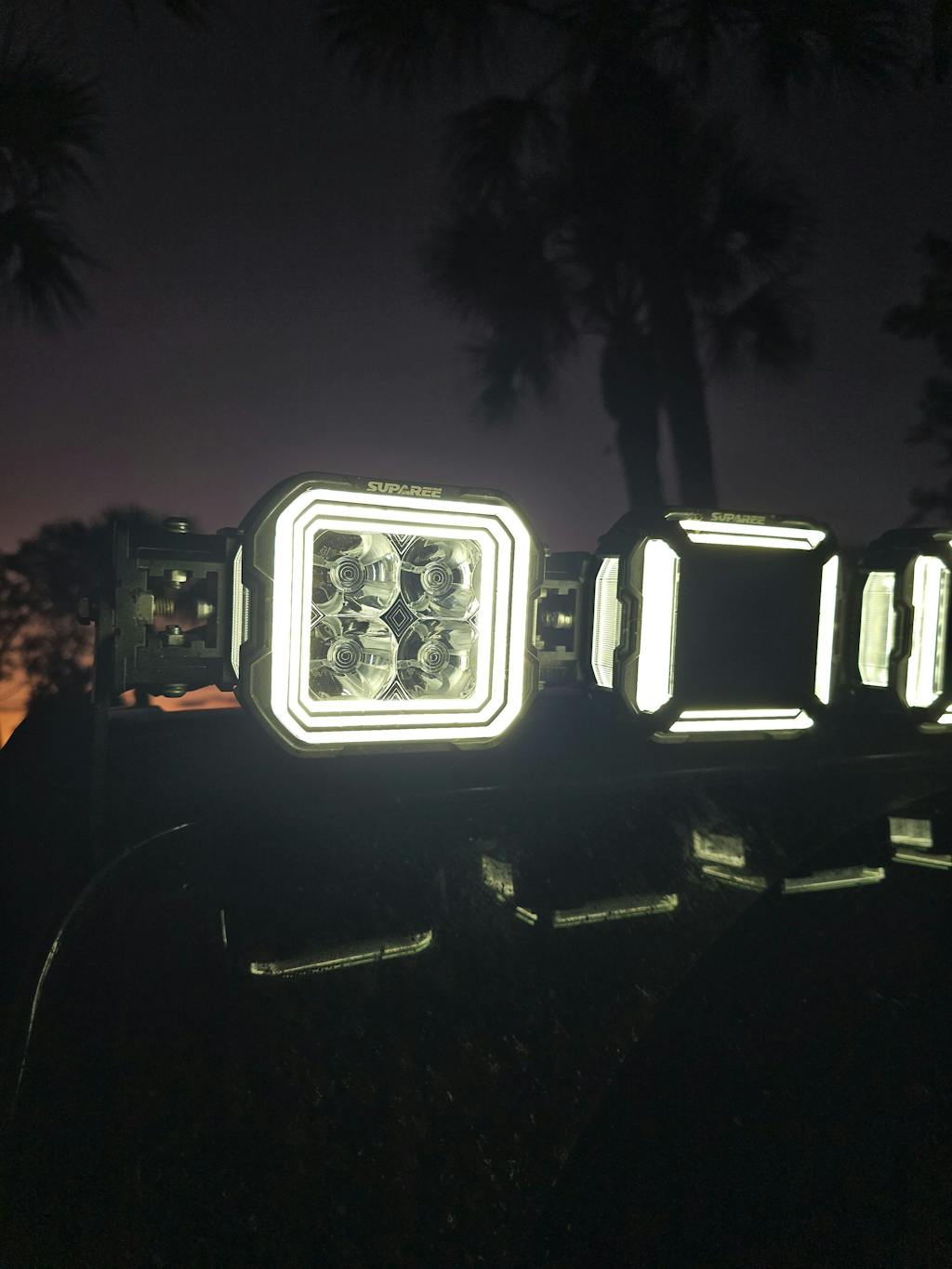

Switchable White / Amber DRL

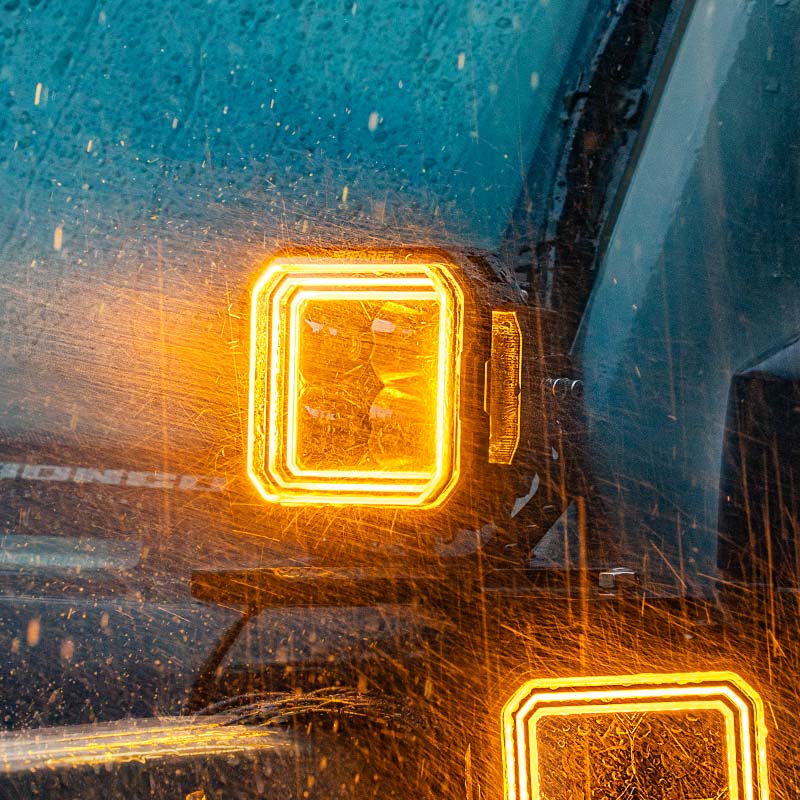

Dual-color daytime running lights improve visibility in varying environments—white for daily driving, amber for dust, fog, rain, and snow.

150° Wide Usable Beam

Engineered beam spread increases trail awareness beyond the forward driving line.

Replaceable Lens Covers

Includes clear, amber, and black covers for functional and visual customization.

Lighting Performance

• Total Output: 4558 Lumens (Pair)

• Beam Pattern: Spot + Side Flood

• Beam Angle: 150°

• Lighting Distance: 1 lux @ 360 m (1181 ft)

• 10 m Illumination: 530 lux

• Peak Beam Intensity: 132,144 candela

• Color Temperature:

  • 6500K (Clear)

  • 3700K (Amber Cover)

LED Configuration

• Forward Lighting: 4 × Luminus® 12W LEDs

• Side Lighting: 6 × Luminus® 10W LEDs (3 per side)

• DRL: Dual-color 3030 LEDs (White / Amber)

Construction & Durability

Engineered for extreme off-road environments, Hyper5 combines structural strength with advanced thermal management.

• Housing: ADC12 powder-coated cast aluminum

• Bezel: Powder-coated aluminum

• Lens: Hard-coated polycarbonate

• Housing Color: Matte Black

• Heat Sink Cooling Area: 94,800 mm²

• Lifespan: 50,000 hours

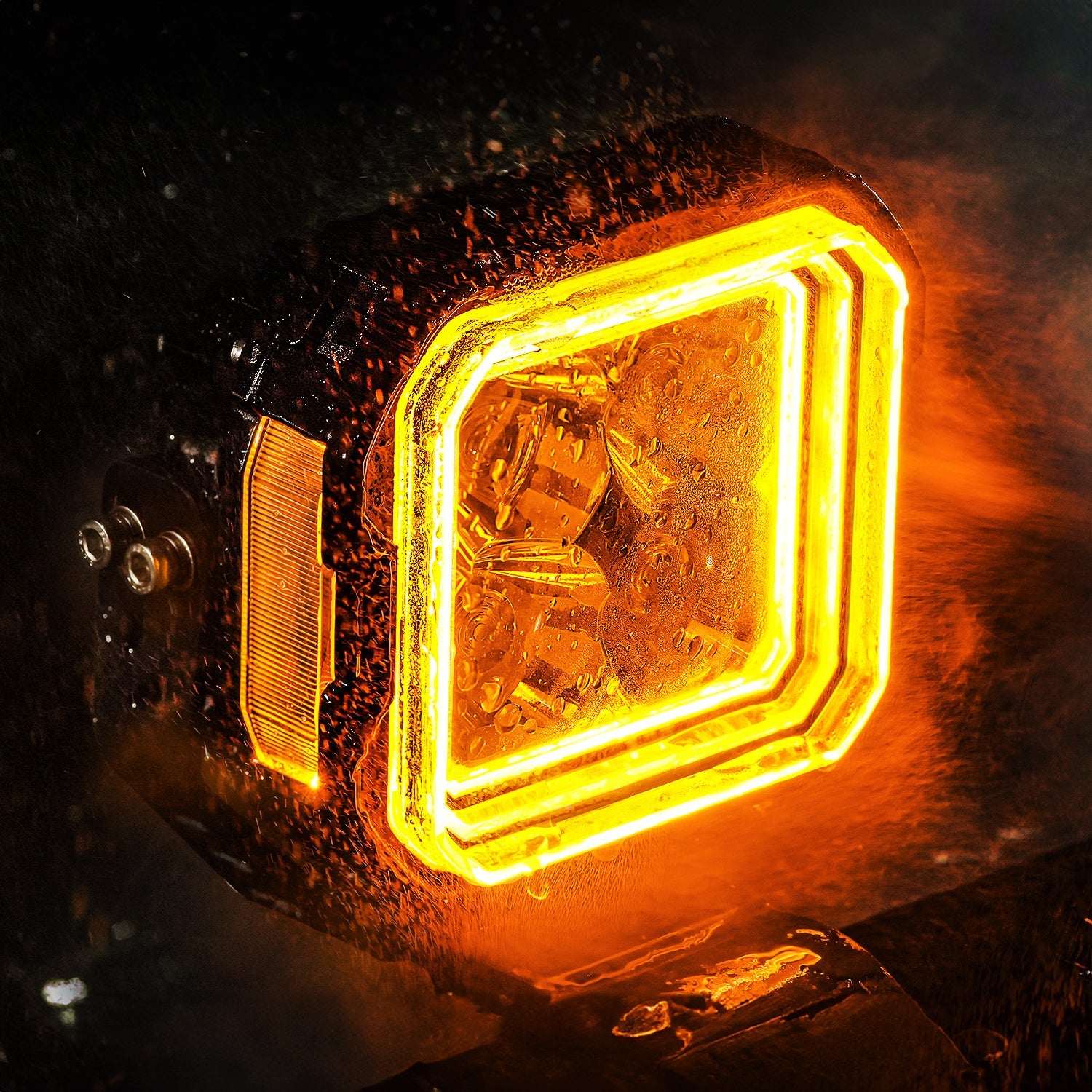

Environmental Protection

• Waterproof Rating: IP68 / IP69K

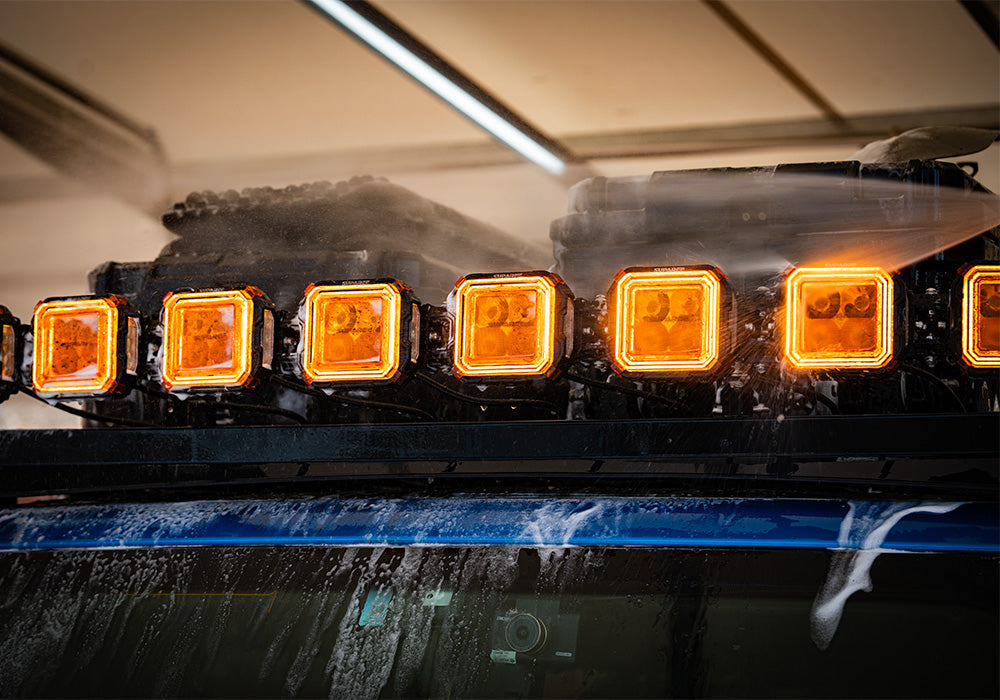

• Submersible & pressure washable

• Operating Temperature: -40℉ to 149℉

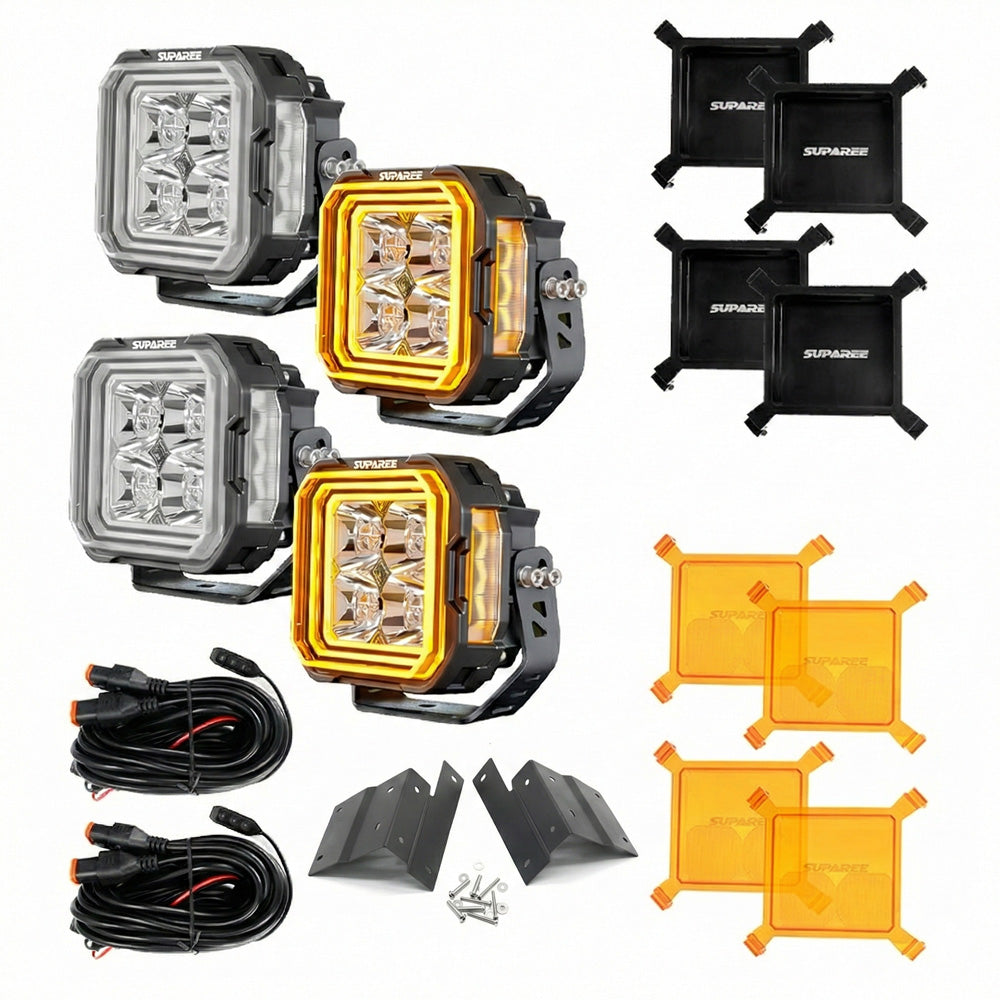

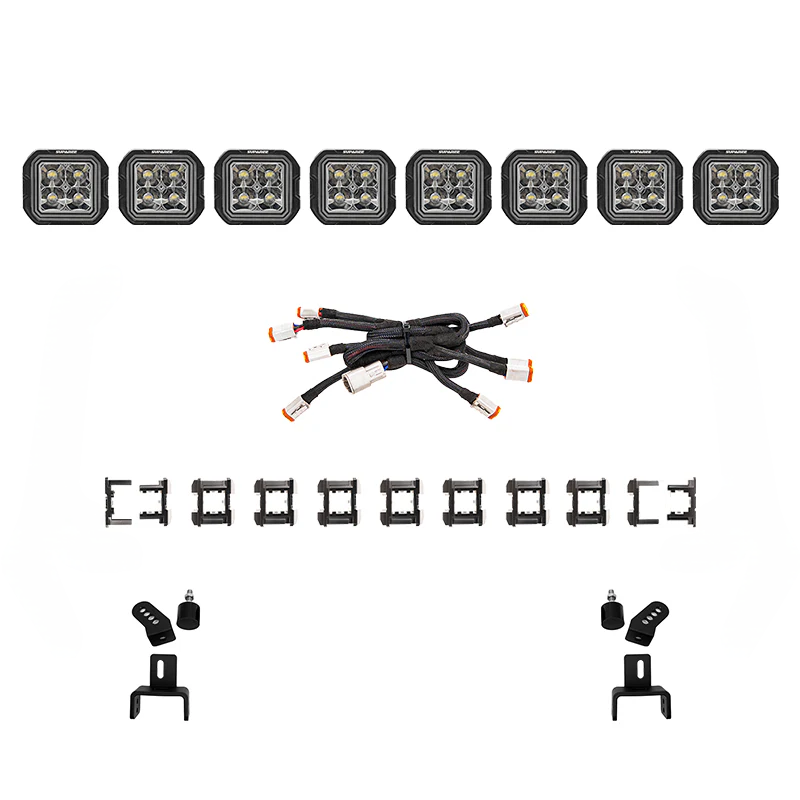

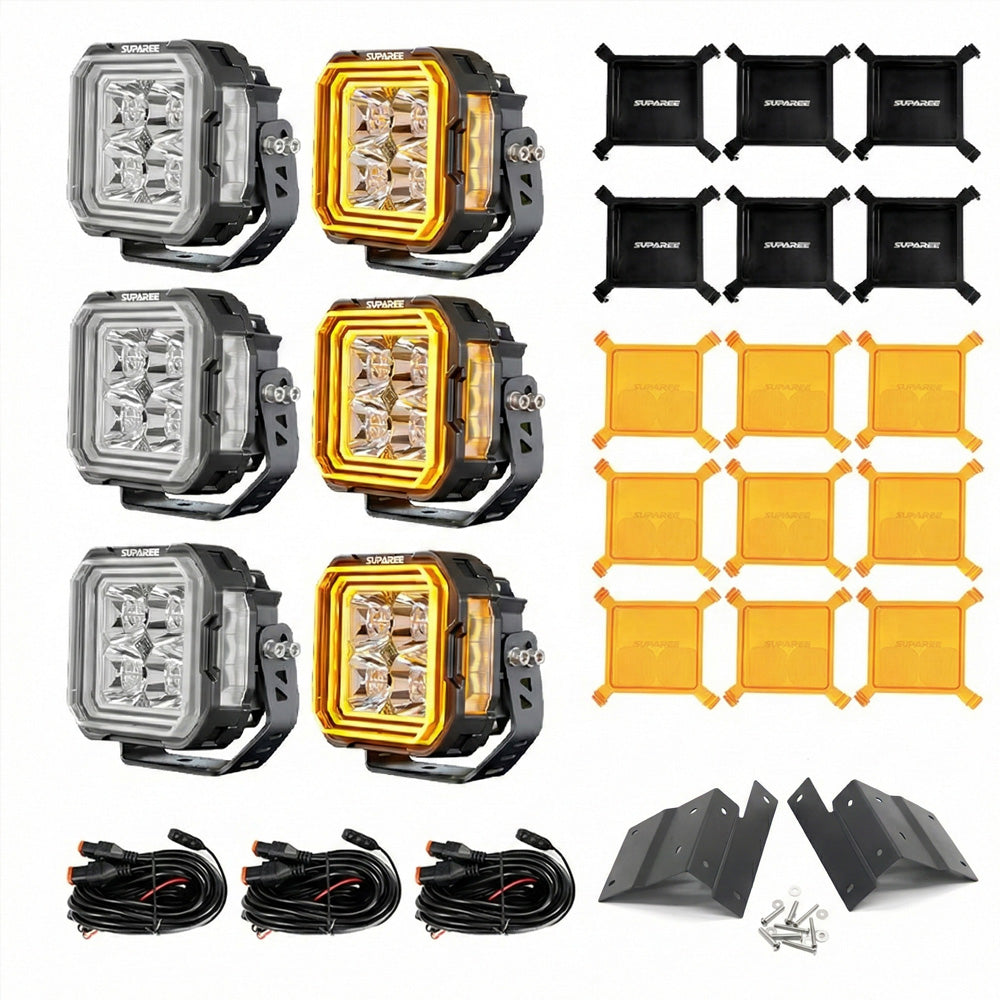

What’s Included

• Hyper Series 5" LED Pods ×2

• Stainless steel mounting brackets ×2

• Mounting hardware kit

• Black lens covers ×2

• Amber lens covers ×2

• Plug-and-play wiring harness ×1

• Installation manual ×1

Specifications

General

• Product Size: 5" Pod Light

• Fitment: Universal

• Sold As: Pair

Electrical

• Wattage: 140W per light

• Voltage: 12V / 24V DC

• Connector: DT Plug

• Terminal Type: Mating connector

• Harness Length: 9.8 ft

Wiring

• Main Wire: 2 × 1.0 mm²

• Red/Black: 2 × 0.35 mm²

• Yellow/White: 2 × 0.35 mm²

• Branch Wire:

  • 2 × 0.72 mm² Red/Black

  • 2 × 0.35 mm² White/Yellow

• Wire Material: Silicone insulated

Fitment

Universal fit for trucks, Jeeps, SUVs, UTVs, and off-road builds.

Common applications:

• Jeep Wrangler JL / JT

• Jeep Gladiator

• Tacoma / 4Runner

• Ford F-150 / Ranger

• Overland & expedition rigs

Warranty & Compliance

• Warranty: 5-Year Limited Warranty

• Certifications:CE、FCC、RoHS、EMC

Manufactured in a professional automotive lighting facility with strict quality testing and compliance validation.

Ideal Applications

Hyper5 is built for multi-scenario use, including:

• Off-roading & rock crawling

• Overlanding & trail driving

• Work sites & construction zones

• Camping & expedition travel

• Rescue & emergency lighting

• Agriculture & forestry operations

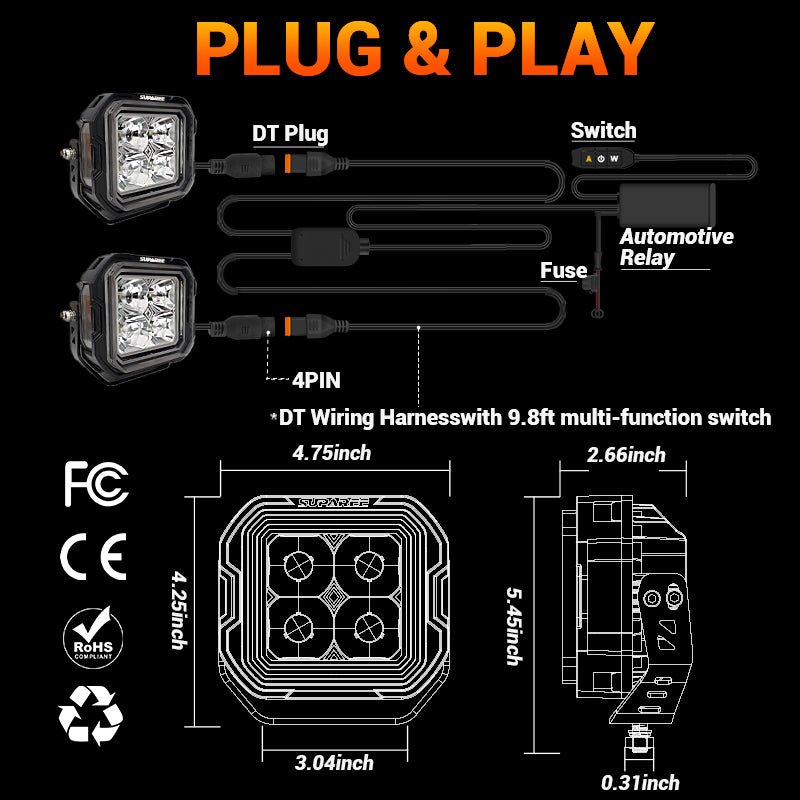

Installation

Designed for fast, reliable installation without complex modification.

• Plug-and-play wiring system

• DT connectors

• Relay & fuse integrated harness

• Adjustable stainless steel mounting brackets

• Multi-position mounting flexibility

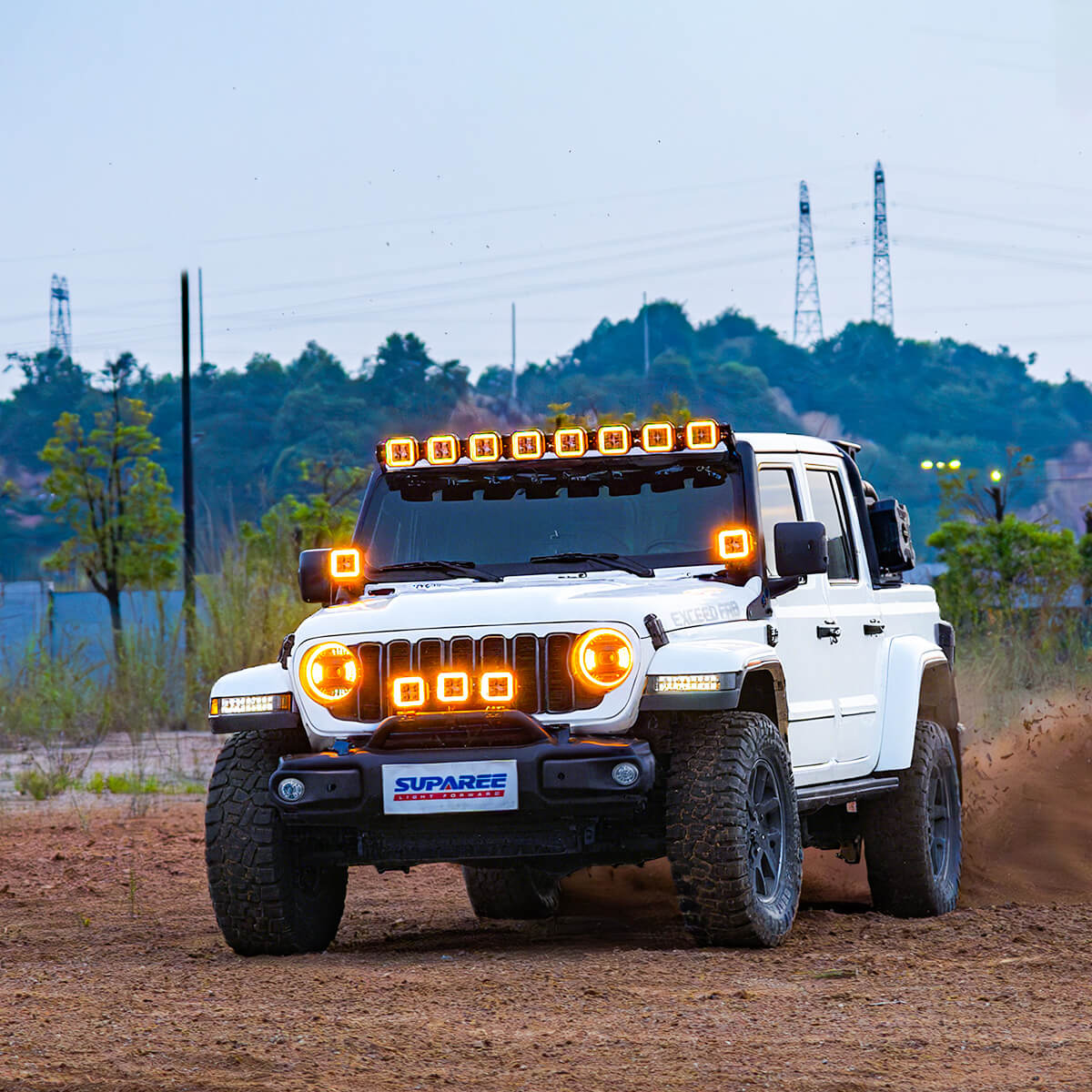

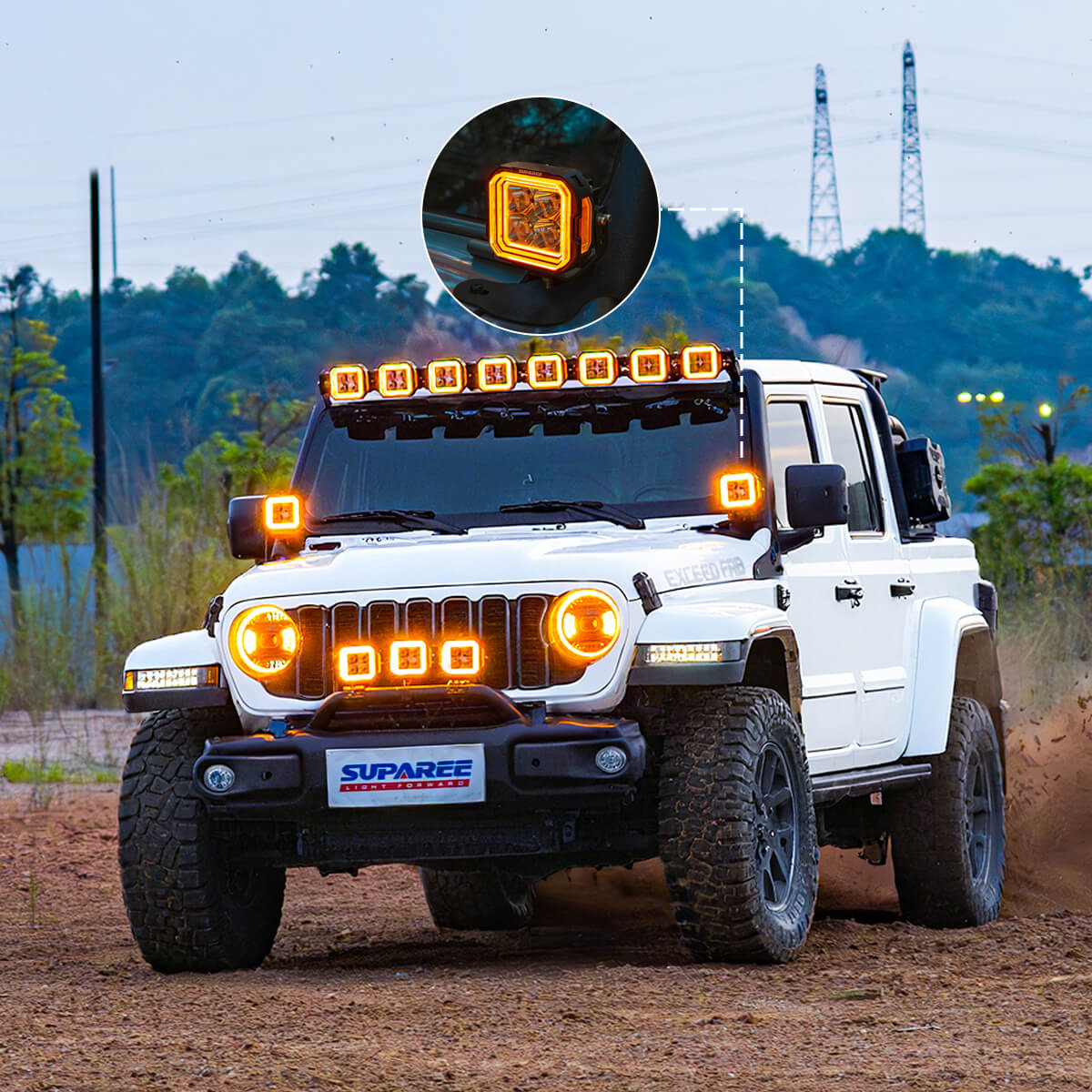

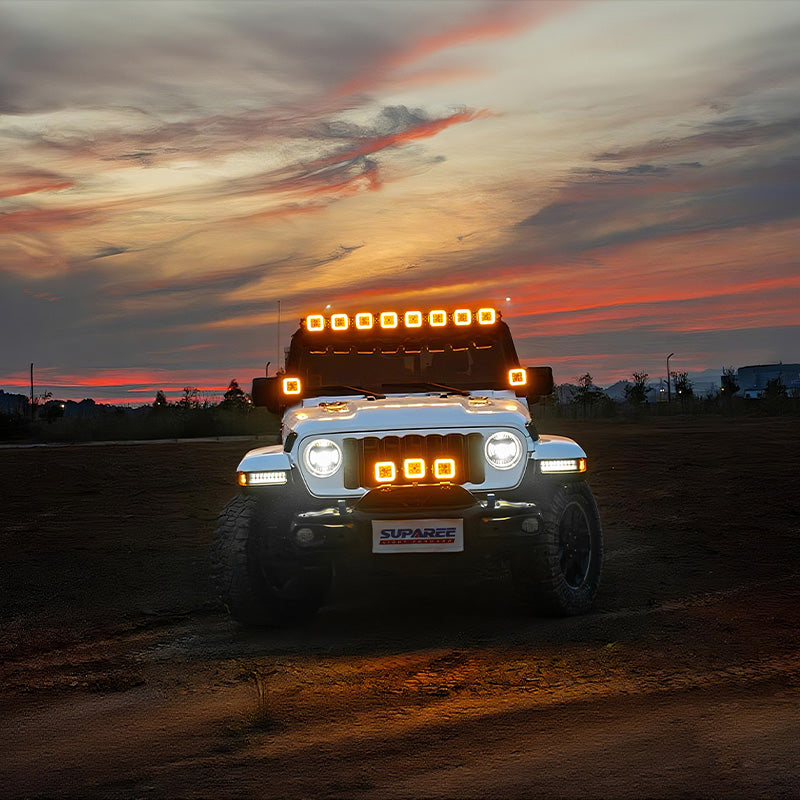

Mounting locations include:

• Bumper

• A-pillar / Ditch light position

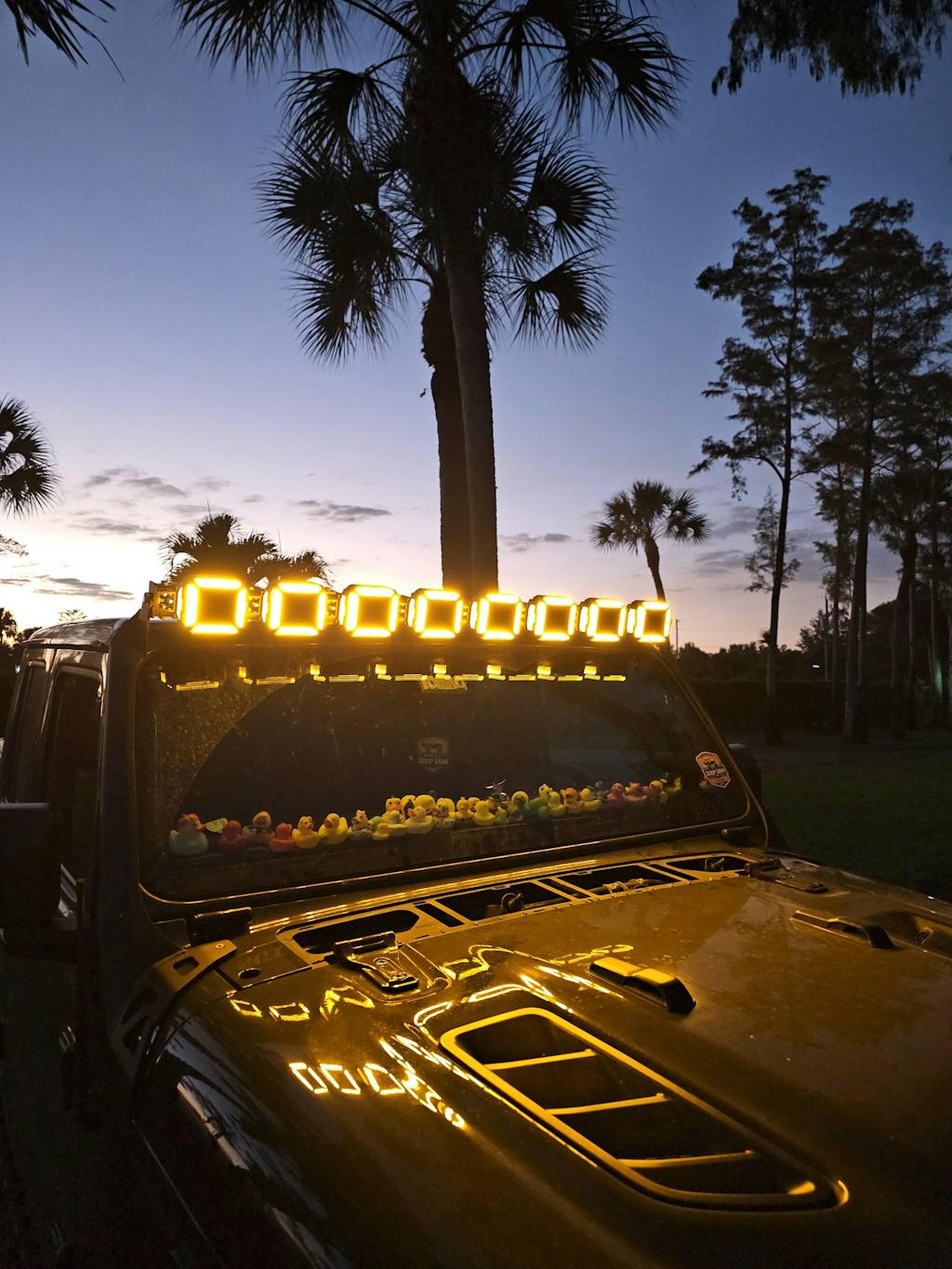

• Roof rack

• Bull bar / Light bar setups
