5 Inch LED Pod Lights White + Amber Dual-Mode for Jeep Wrangler JL/ Gladiator JT

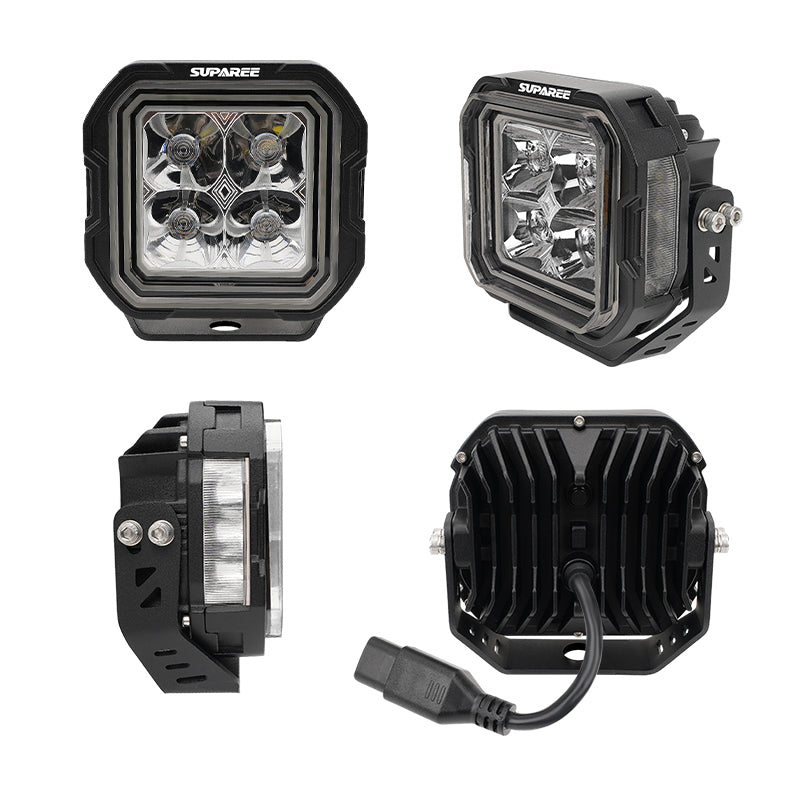

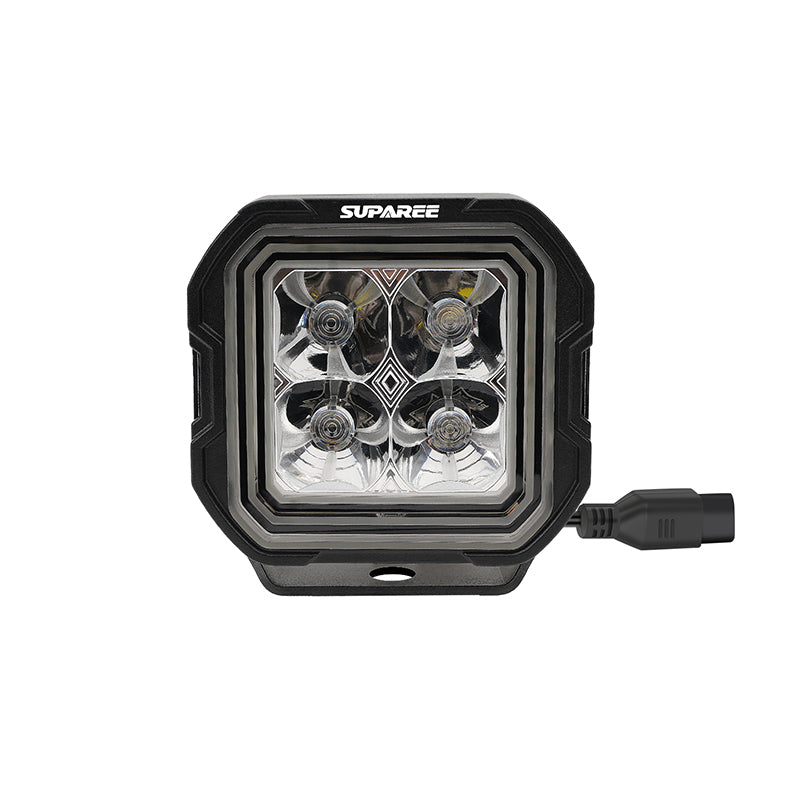

Hyper Series 5" LED Pod Lights – Overview

Upgrade from outdated pod lights to the Hyper Series 5" LED Pod Lights, engineered for real off-road performance. Compact yet powerful, they combine advanced beam engineering, trail-tested durability, and distinctive styling.

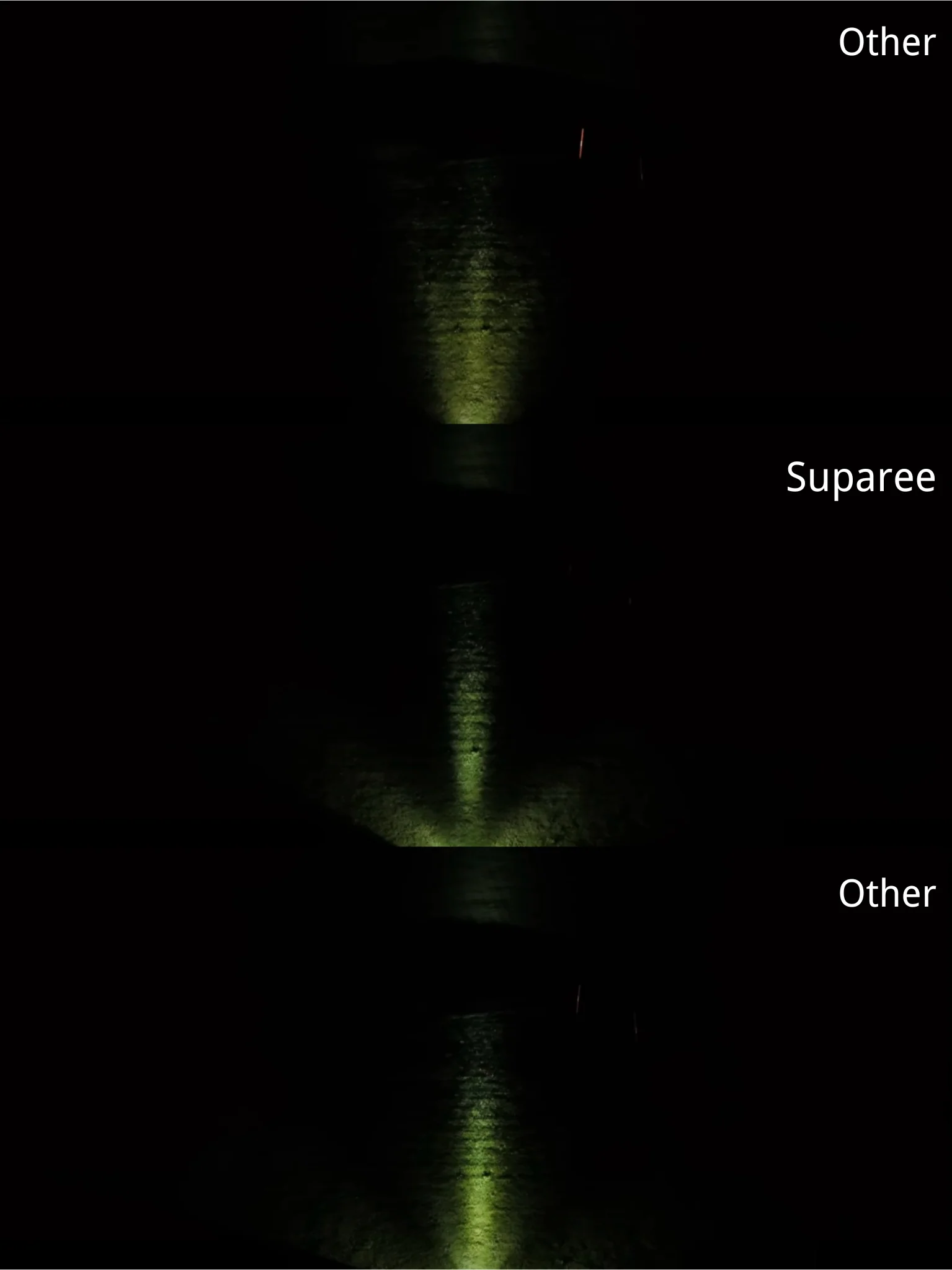

Triple-chamber optical design delivers forward projection + diffused peripheral light. Produces up to 9200 lumens per pair, 530 lux at 10 meters, and 360 meters lighting distance (1 lux). 150° beam spread improves trail awareness.

Integrated white/amber dual-color DRL enhances visibility and styling. IP68/IP69K waterproofing, oversized heat sinks, and plug-and-play installation ensure performance without compromise.

Key Features

• Forward + Side Beam Integration: Long-range forward projection + side flood for reduced blind spots.

• Triple-Chamber Optical Design: Focused distance + diffused near-field illumination.

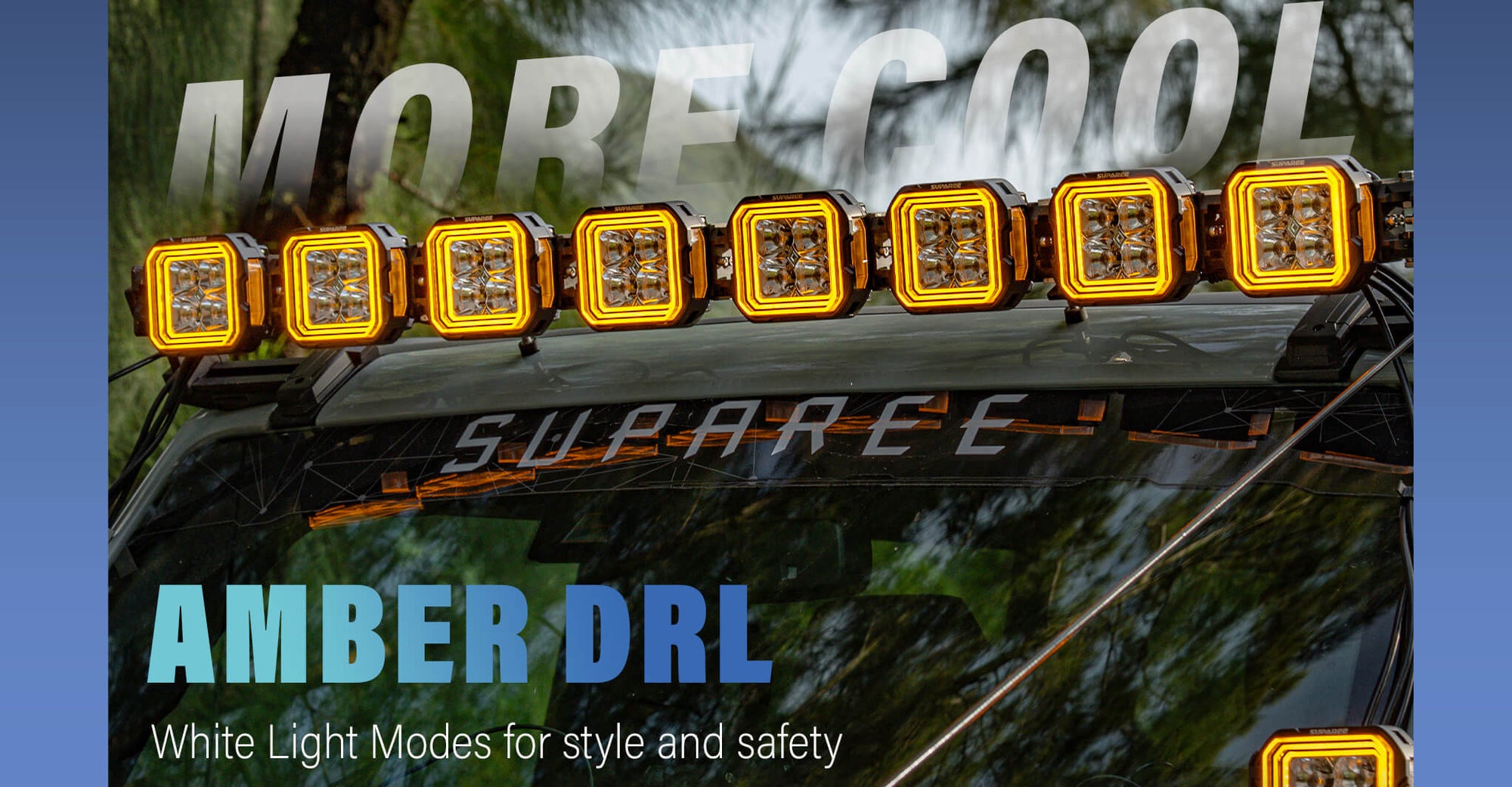

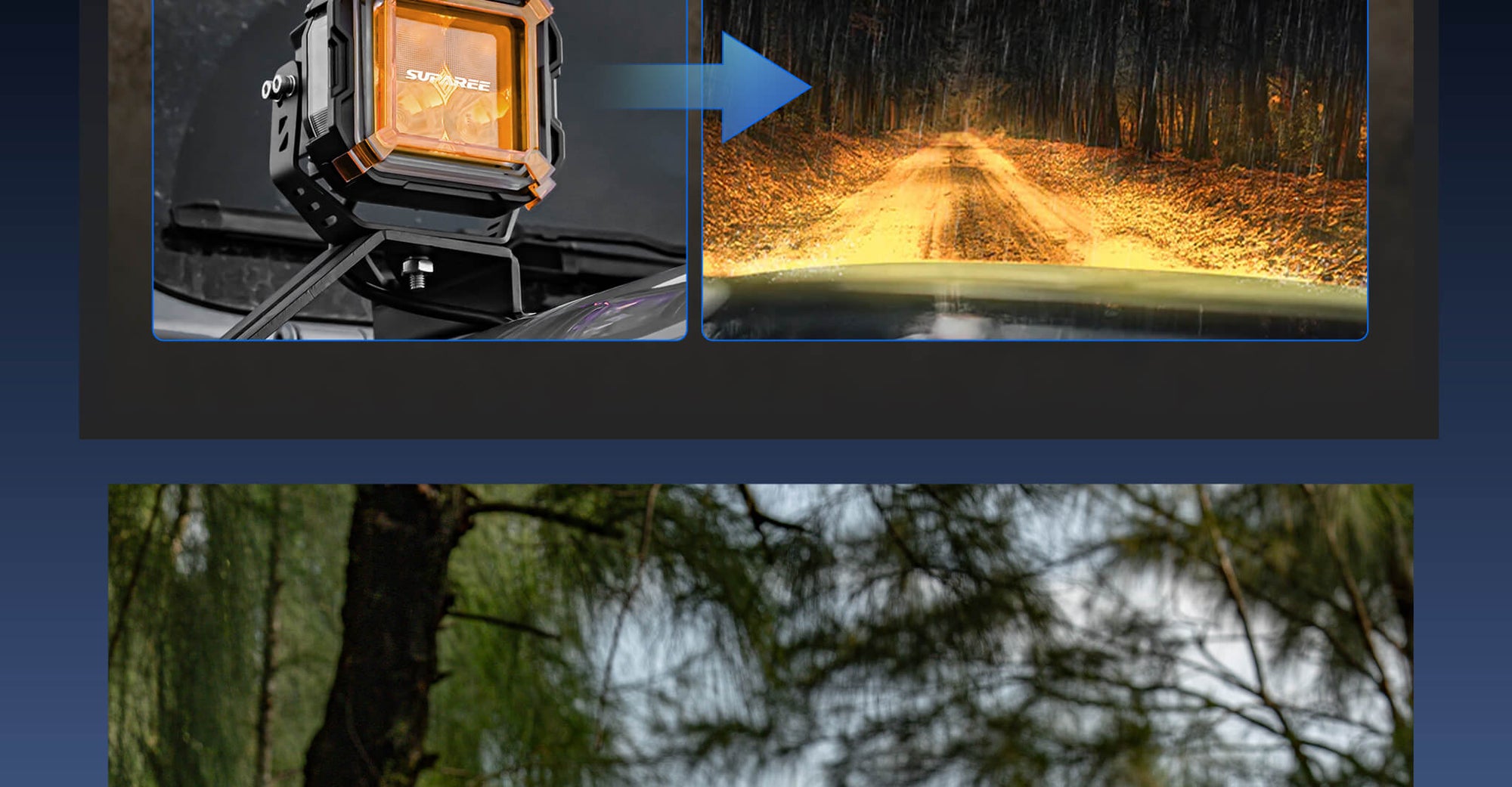

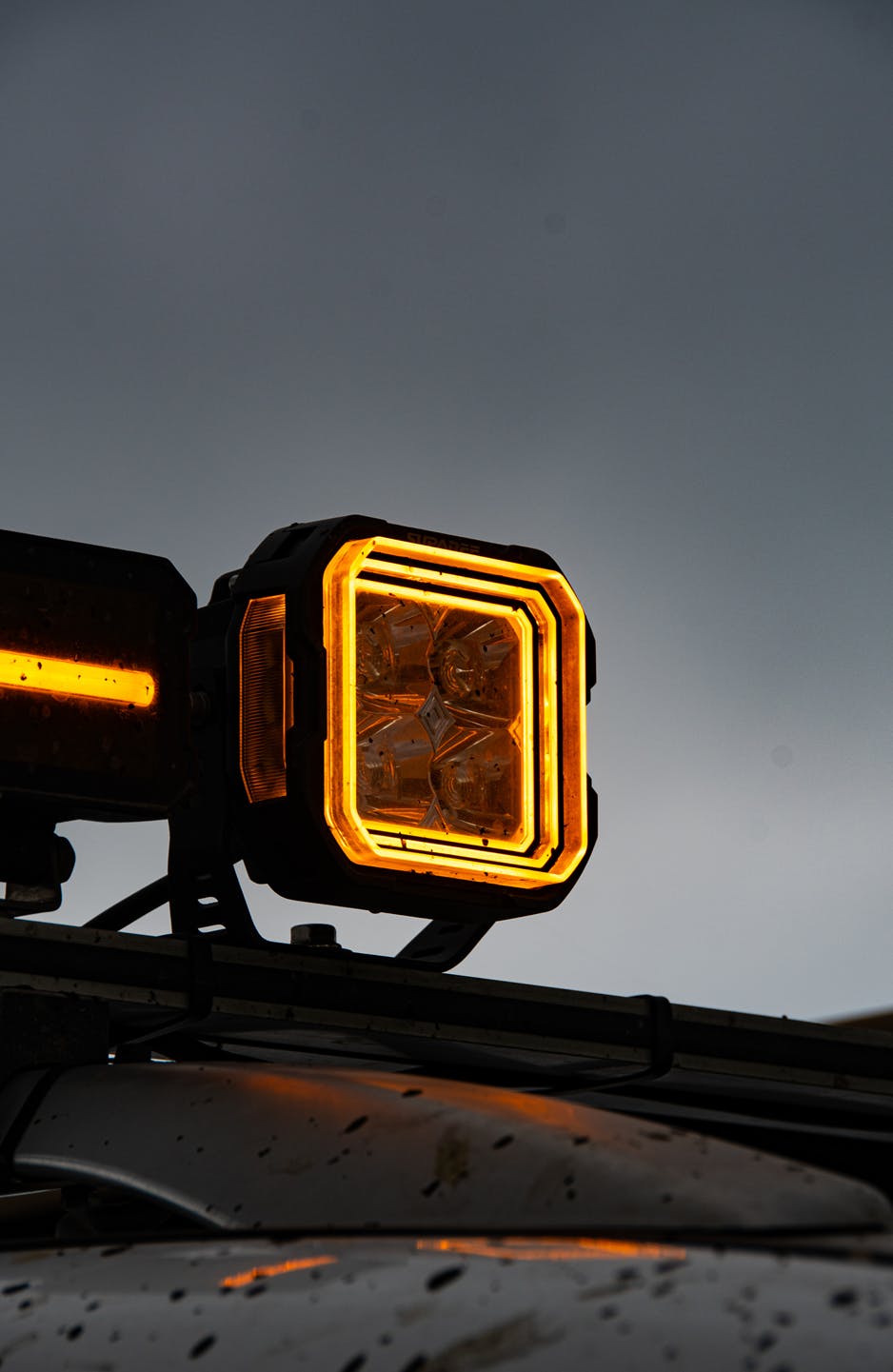

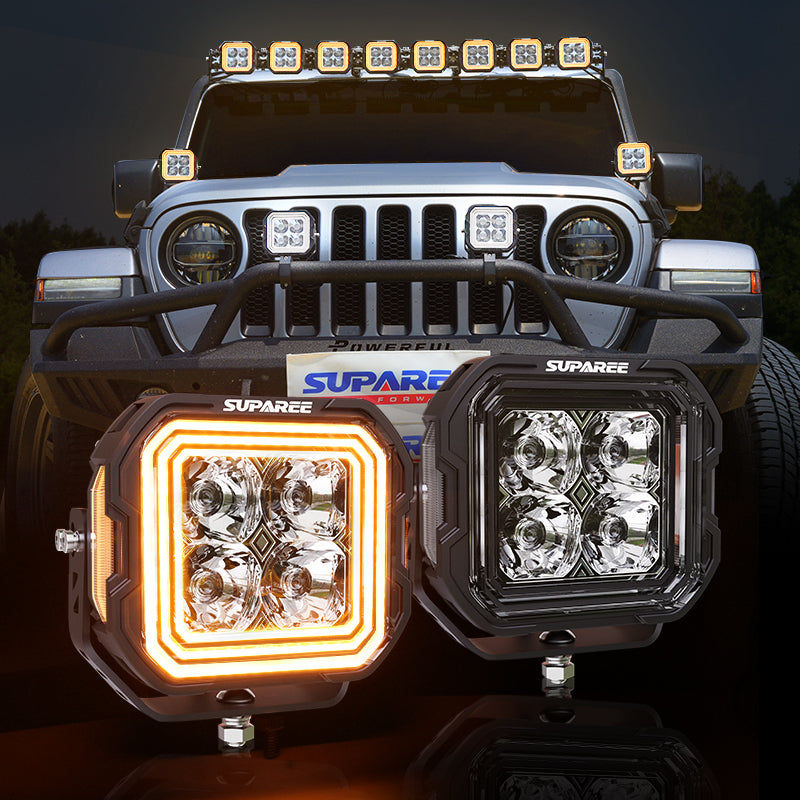

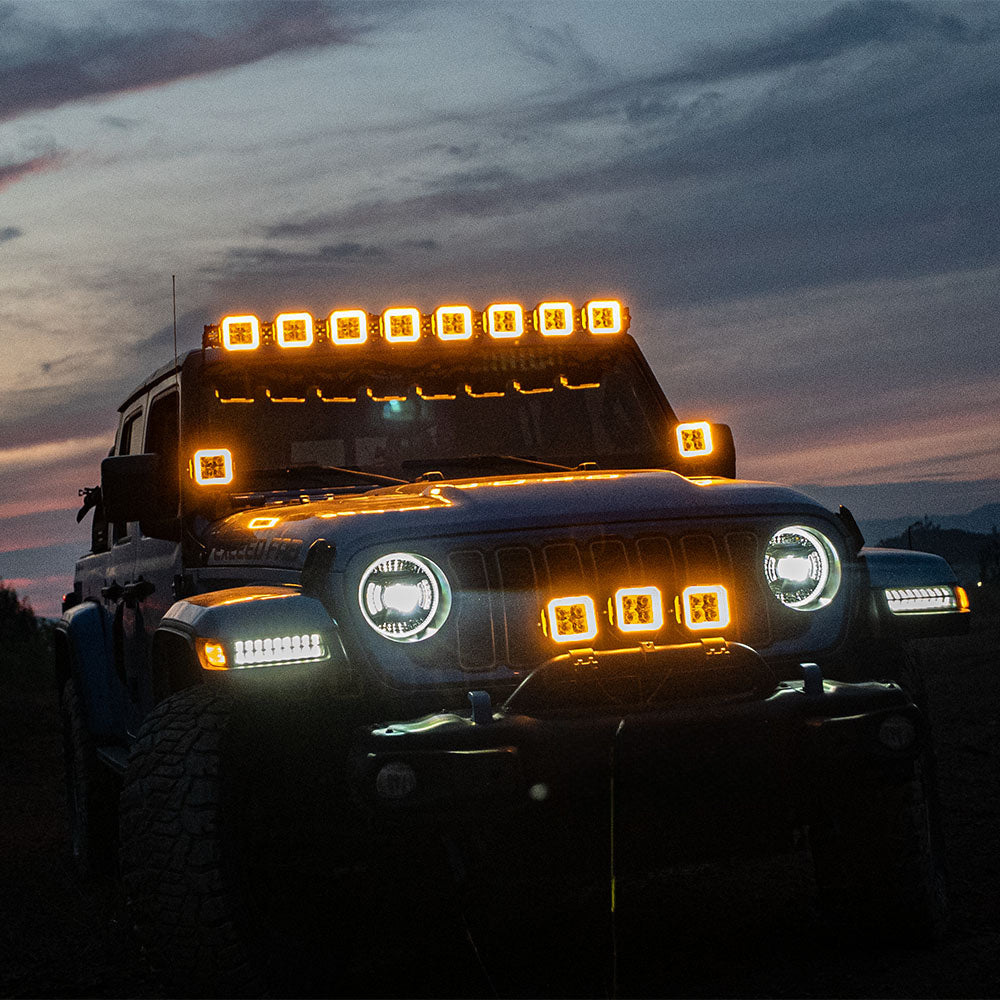

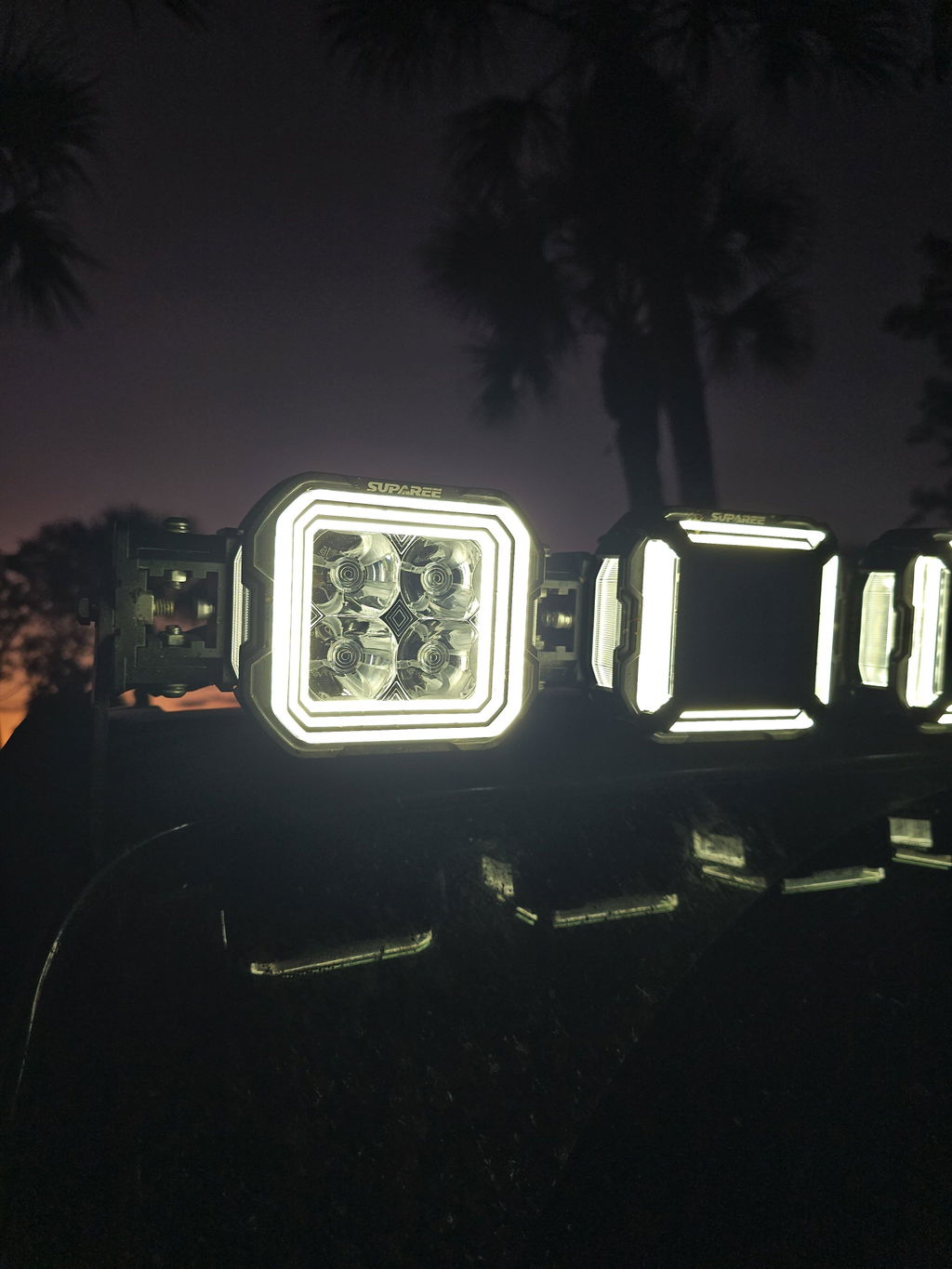

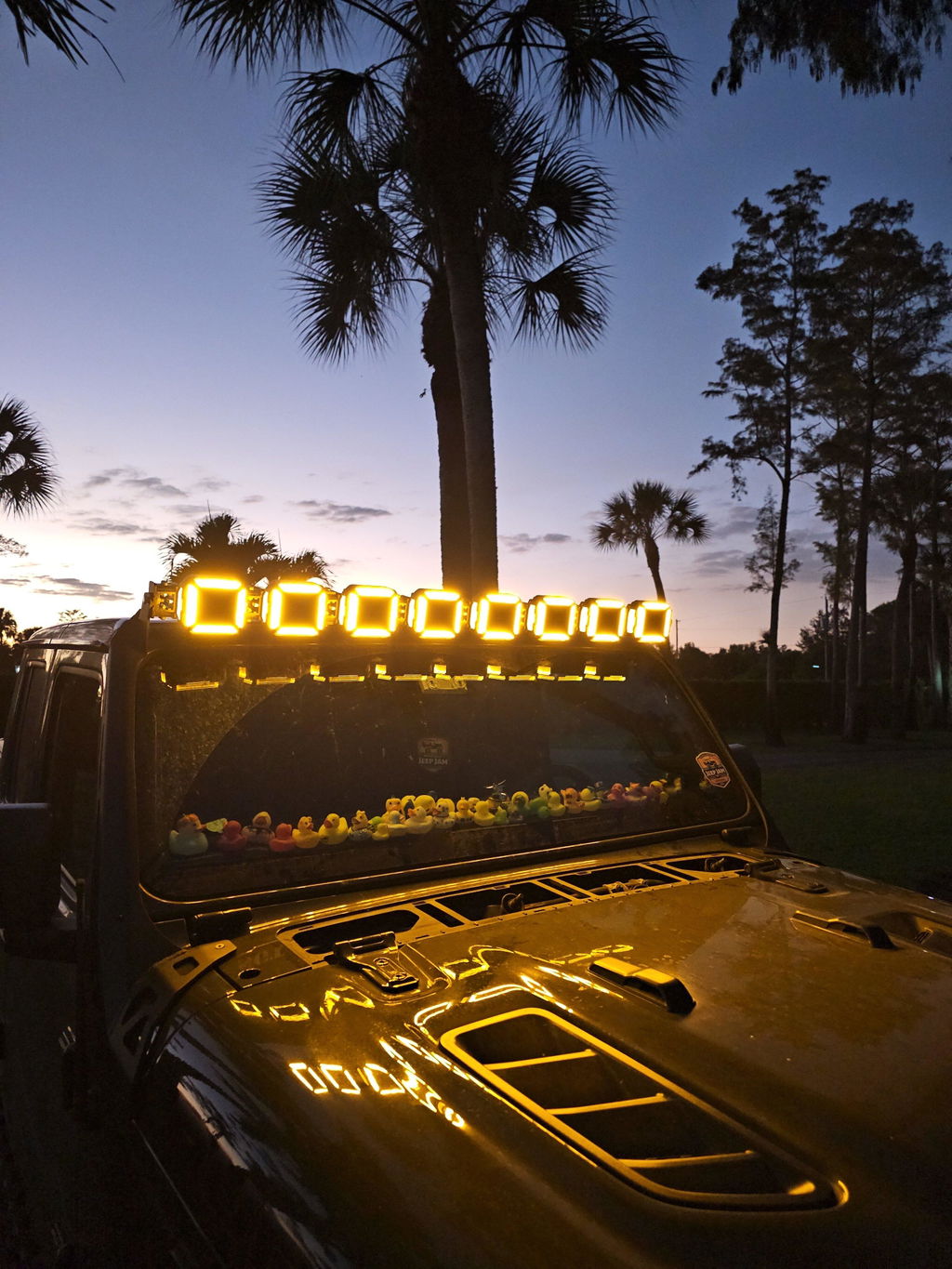

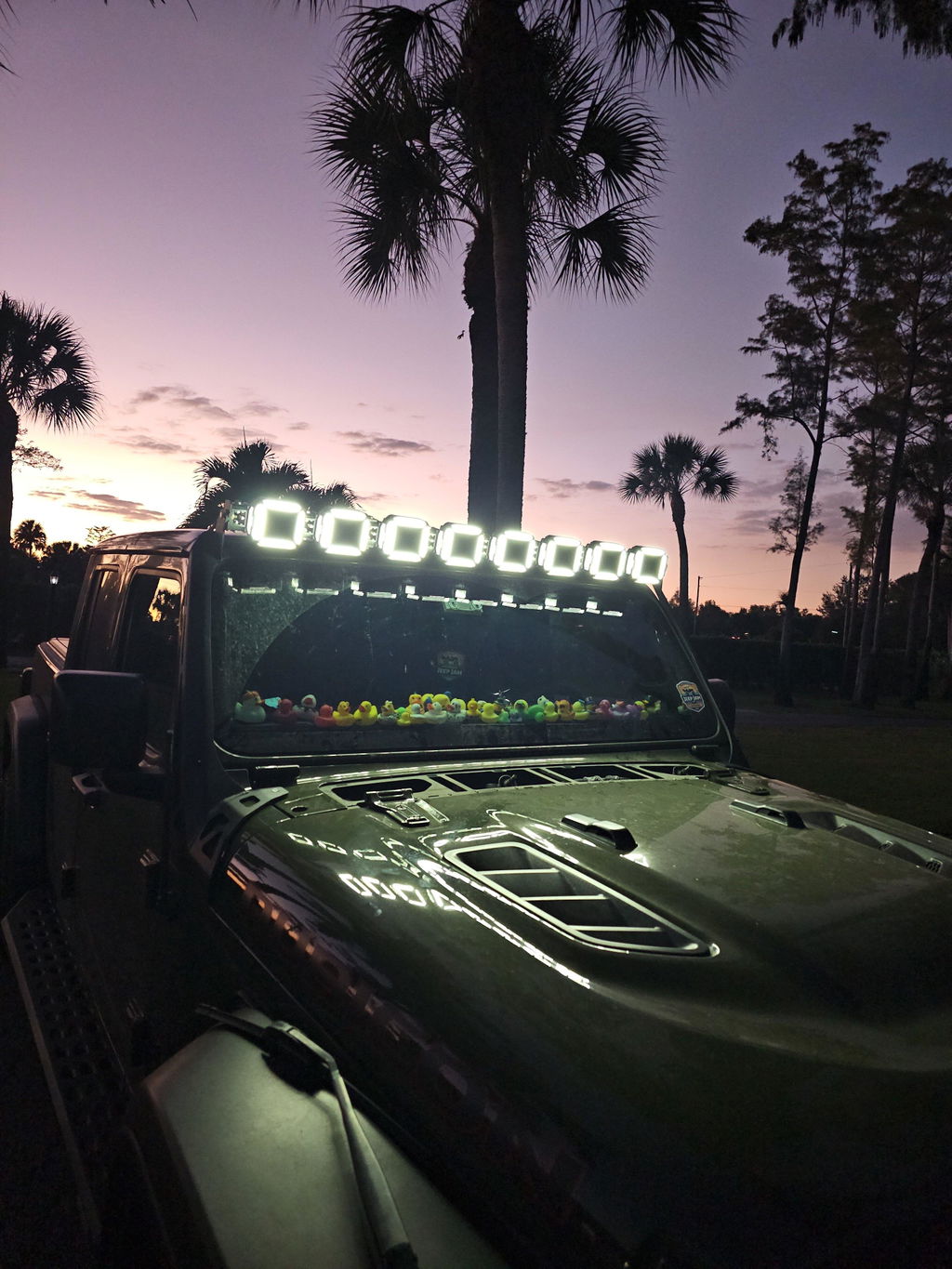

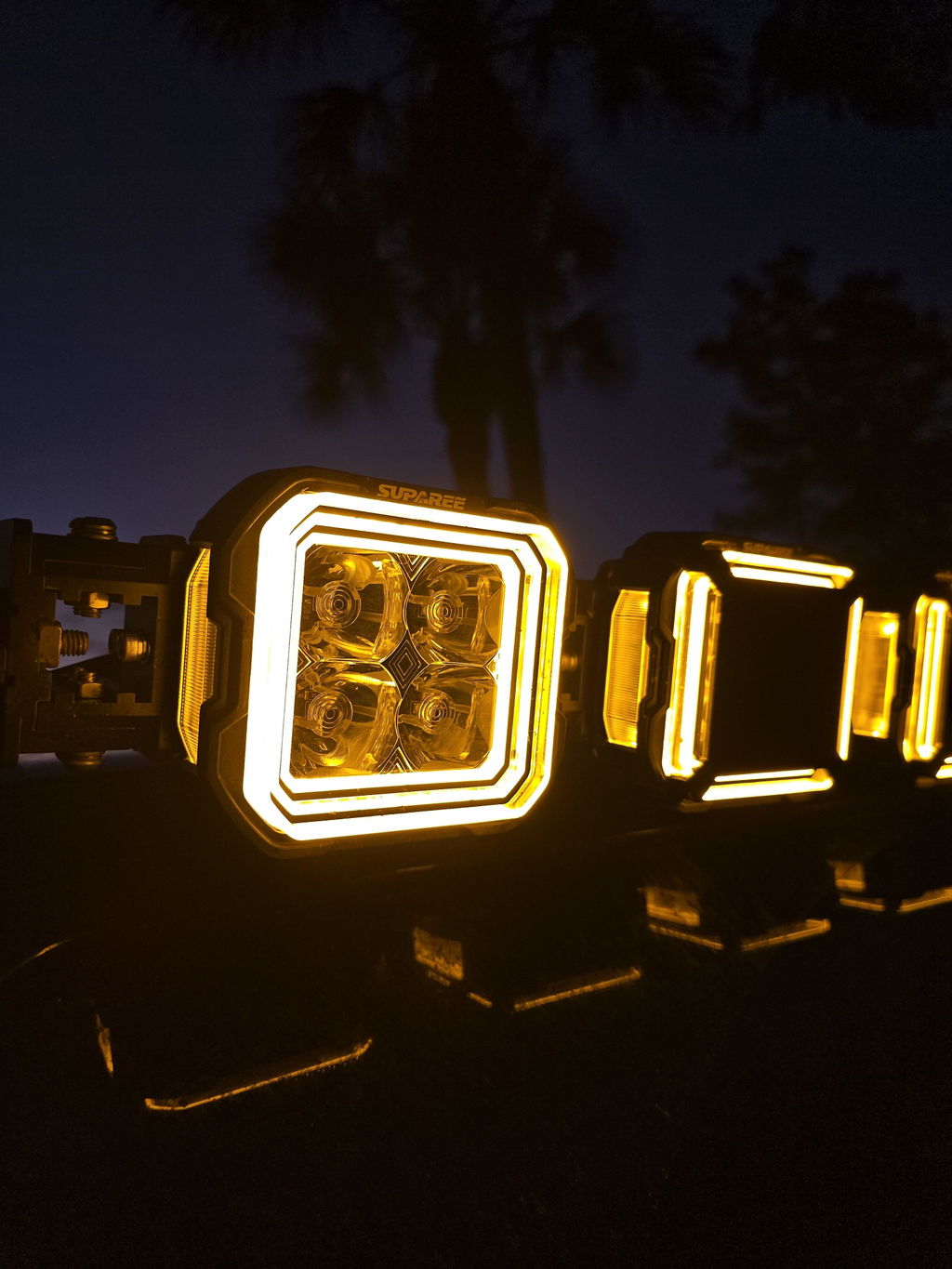

• Switchable White/Amber DRL: White for daily, amber for dust, fog, rain, snow.

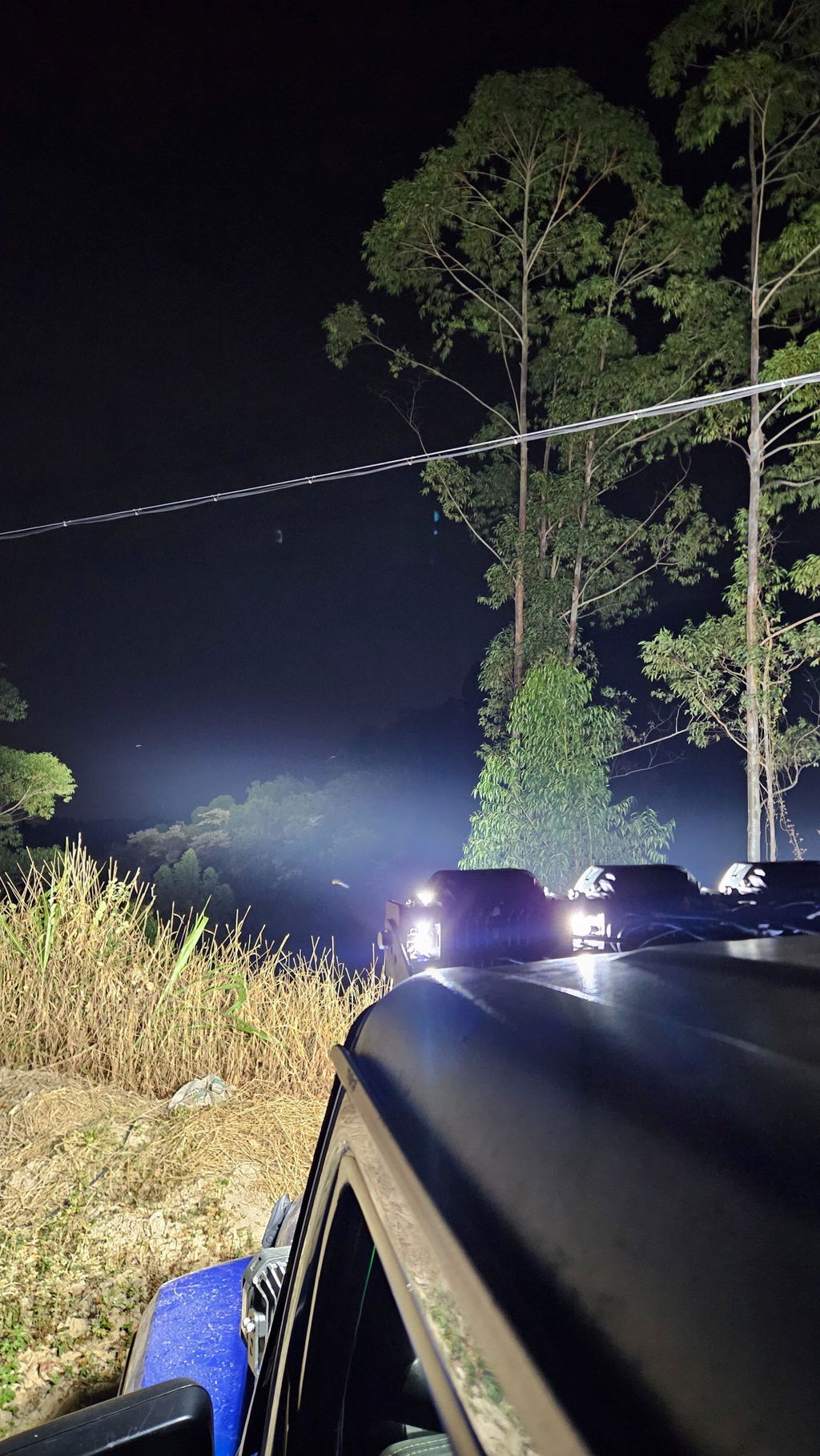

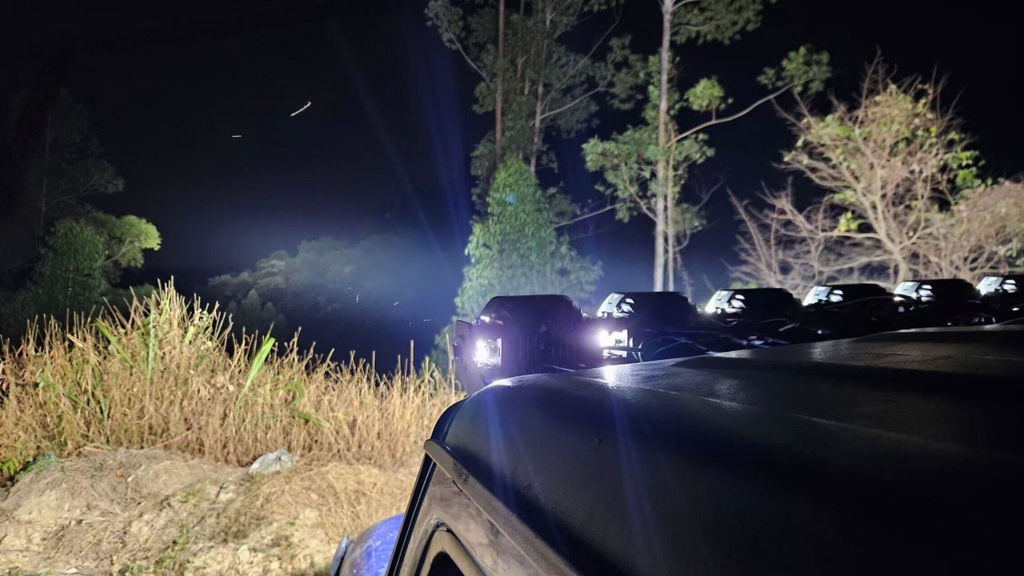

• 150° Wide Usable Beam: Greater awareness beyond forward driving line.

• Replaceable Lens Covers: Clear, amber, and black covers for customization.

Lighting Performance

• Total Output: 9200 Lumens (Pair)

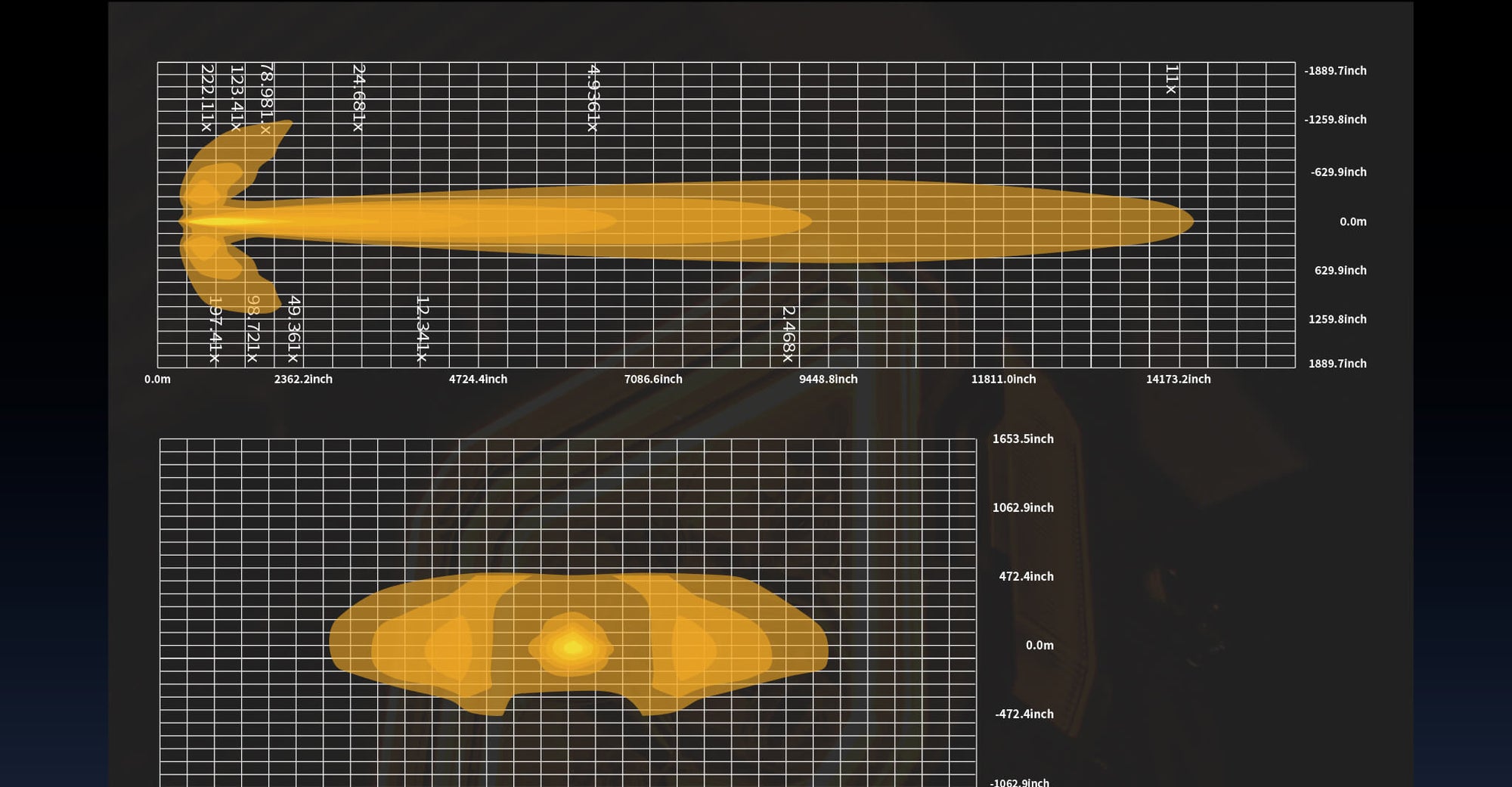

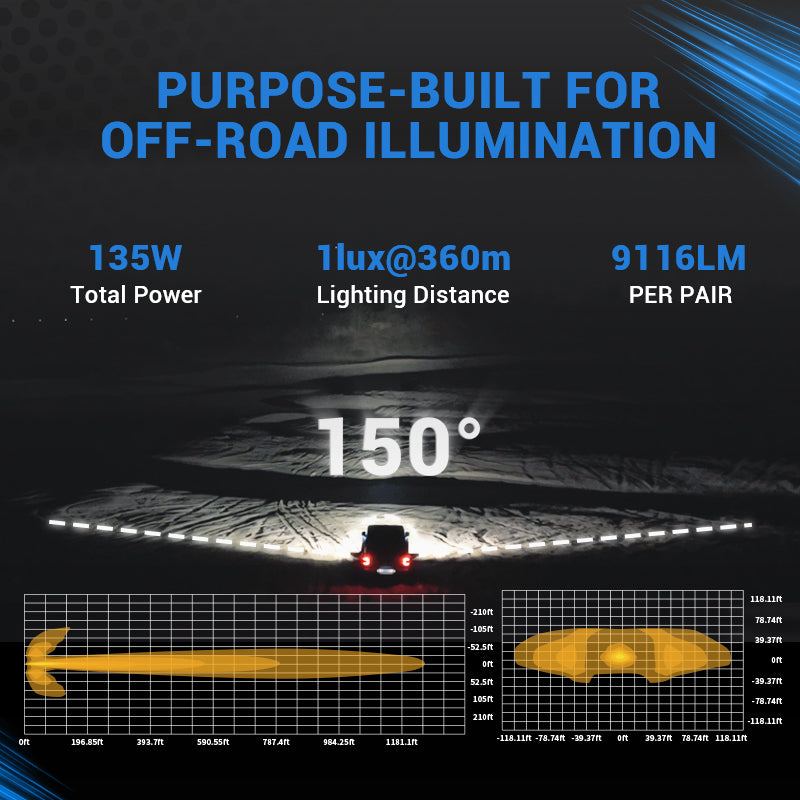

• Beam Pattern: Spot + Side Flood

• Beam Angle: 150°

• Lighting Distance: 1 lux @ 360 m (1181 ft)

• 10 m Illumination: 530 lux

• Peak Beam Intensity: 132,144 candela

• Color Temperature: 6500K (Clear), 3700K (Amber Cover)

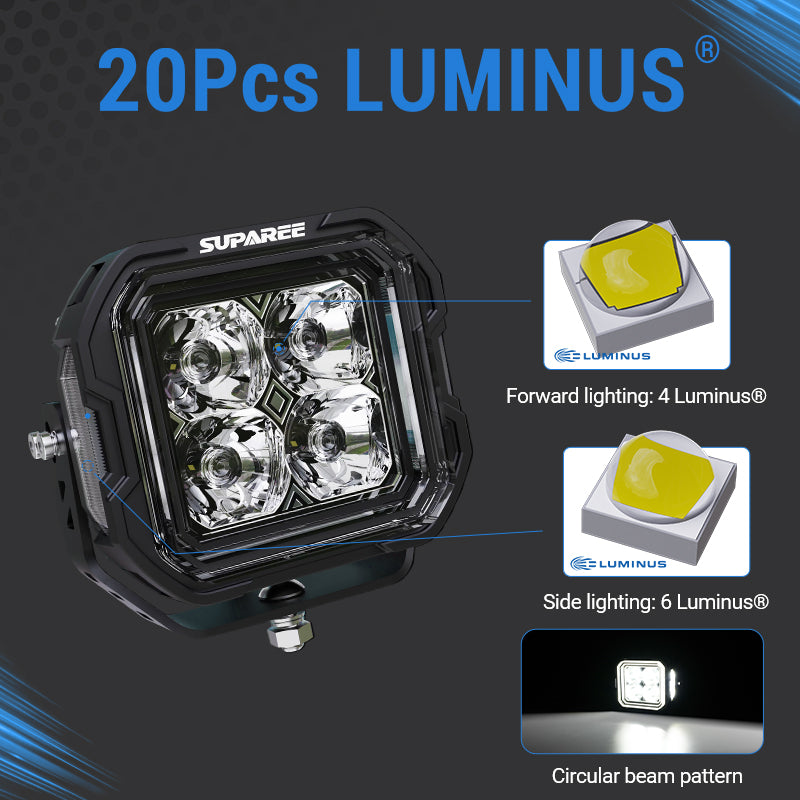

LED Configuration:

• Forward: 4 × 12W LEDs

• Side: 6 × 10W LEDs (3 per side)

• DRL: Dual-color 3030 LEDs (White/Amber)

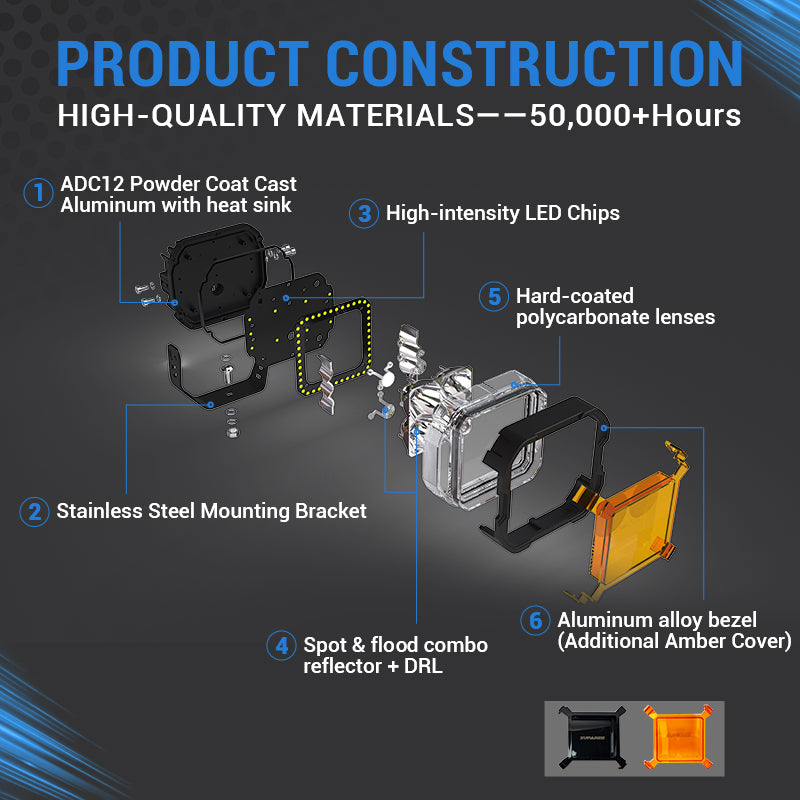

Construction & Durability

• Housing: ADC12 powder-coated cast aluminum

• Bezel: Powder-coated aluminum

• Lens: Hard-coated polycarbonate

• Housing Color: Matte Black

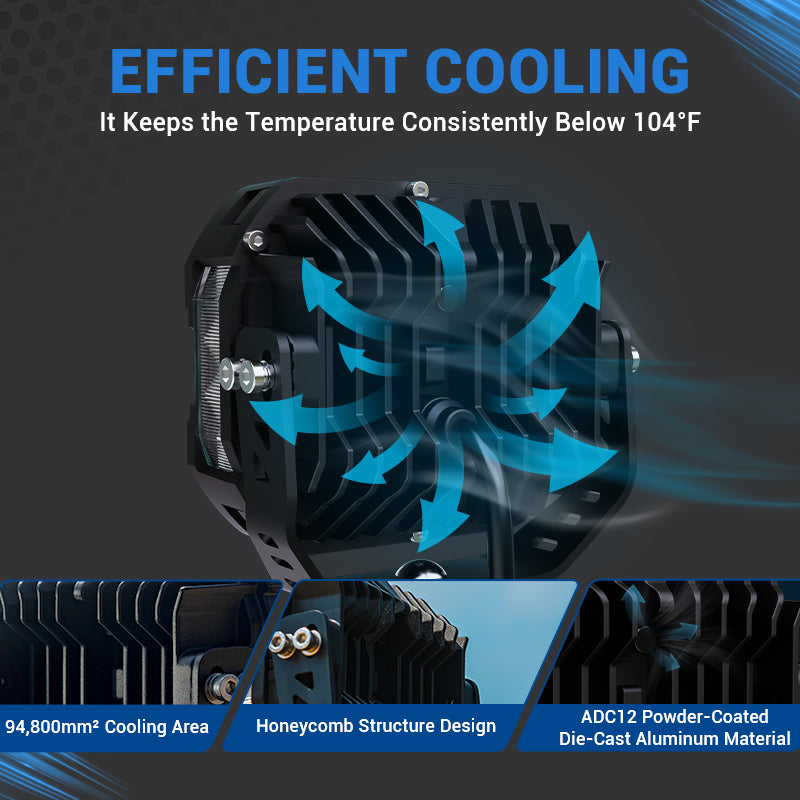

• Heat Sink Area: 94,800 mm²

• Lifespan: 50,000 hours

Environmental Protection:

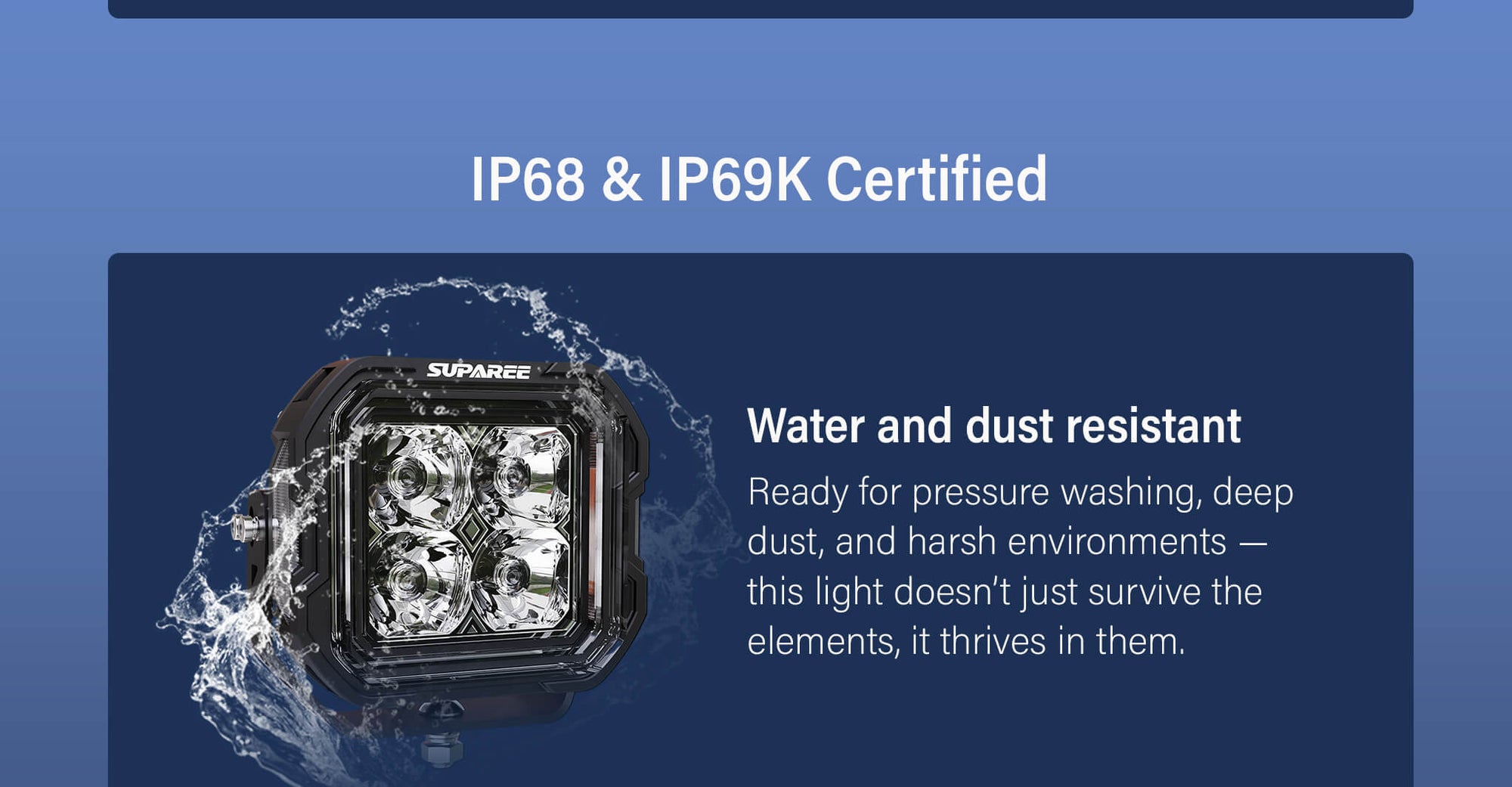

• Waterproof: IP68/IP69K, submersible & pressure washable

• Operating Temp: -40℉ to 149℉

What’s Included

• Hyper Series 5" LED Pods ×2

• Stainless steel mounting brackets ×2

• Mounting hardware kit

• Black lens covers ×2

• Amber lens covers ×2

• Plug-and-play wiring harness ×1

• Installation manual ×1

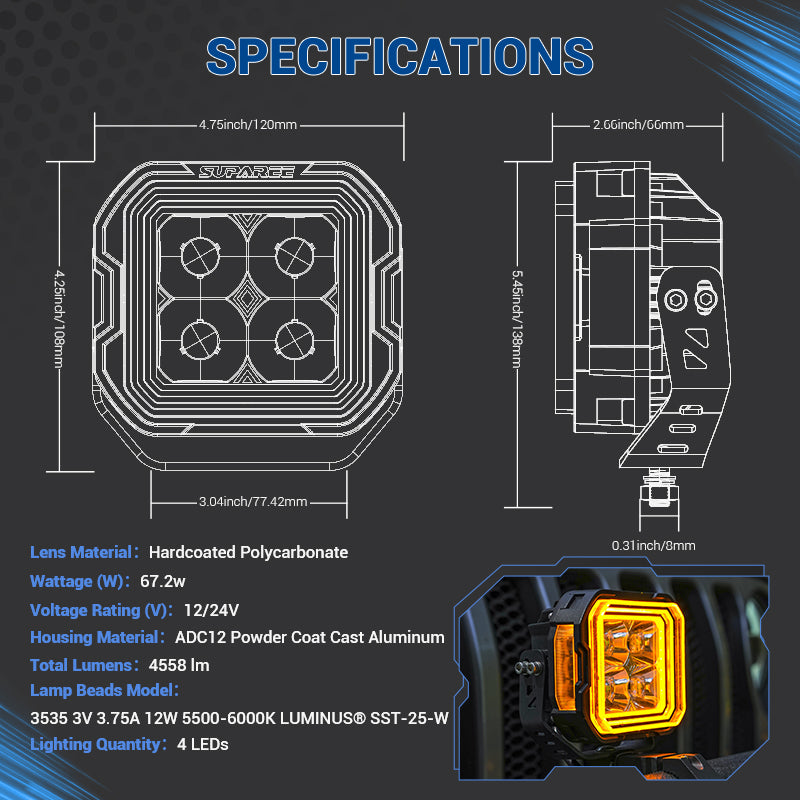

Specifications

General:

• Product Size: 5" Pod Light

• Fitment: Universal

• Sold As: Pair

Electrical:

• Wattage: 140W per light

• Voltage: 12V / 24V DC

• Connector: DT Plug

• Terminal Type: Mating connector

• Harness Length: 9.8 ft

Wiring:

• Main Wire: 2 × 1.0 mm²

• Red/Black: 2 × 0.35 mm²

• Yellow/White: 2 × 0.35 mm²

• Branch Wire: 2 × 0.72 mm² Red/Black, 2 × 0.35 mm² White/Yellow

• Wire Material: Silicone insulated

Fitment:

• Universal fit for trucks, Jeeps, SUVs, UTVs, off-road builds

• Common applications: Jeep Wrangler JL/JT, Jeep Gladiator, Tacoma/4Runner, Ford F-150/Ranger, Overland rigs

Warranty & Compliance

• Warranty: 5-Year Limited Warranty

• Certifications: CE, FCC, RoHS, EMC

• Manufactured in professional automotive lighting facility with strict testing

Ideal Applications

• Off-roading & rock crawling

• Overlanding & trail driving

• Work sites & construction zones

• Camping & expedition travel

• Rescue & emergency lighting

• Agriculture & forestry operations

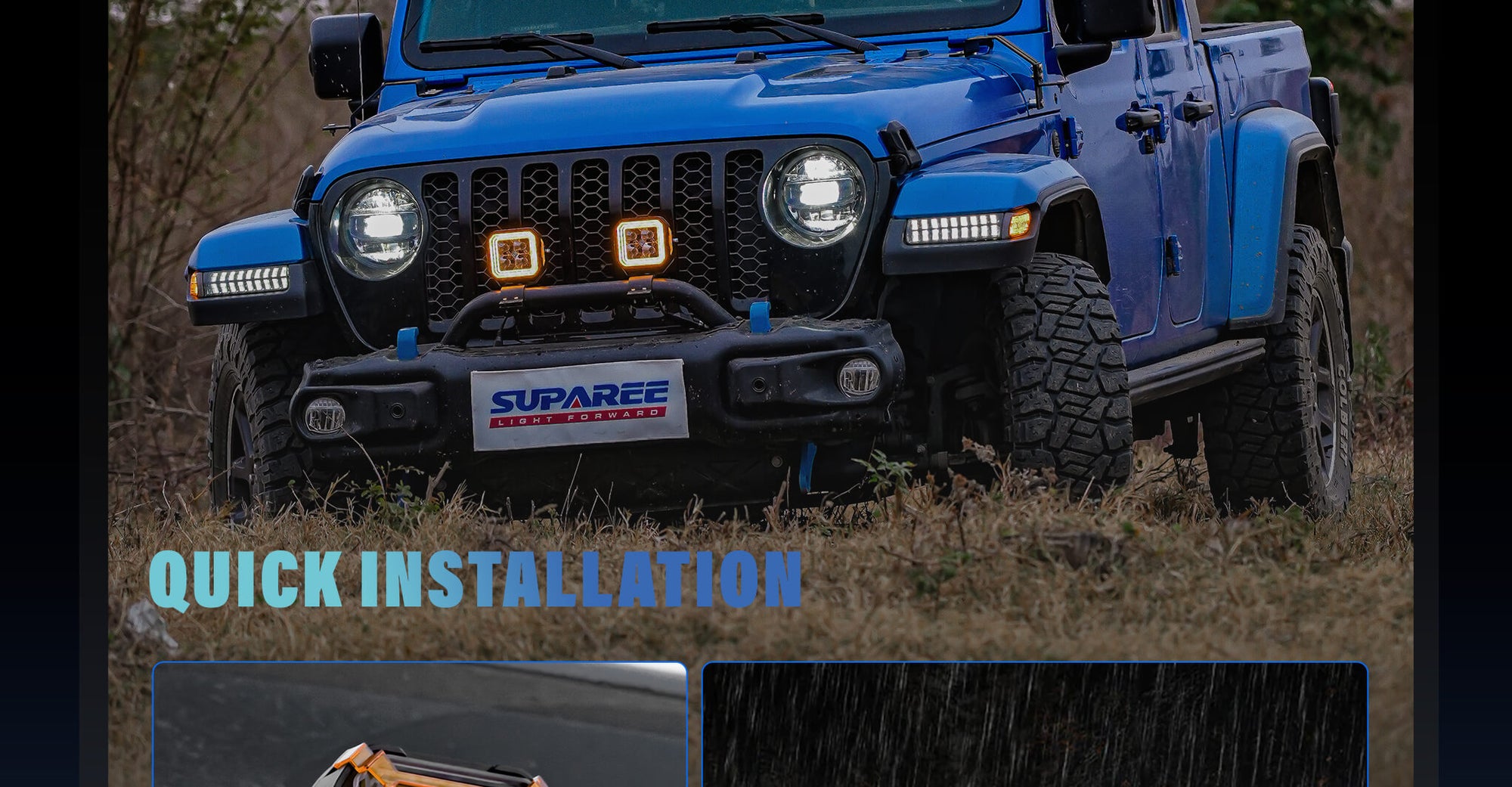

Installation

• Plug-and-play wiring system with DT connectors

• Relay & fuse integrated harness

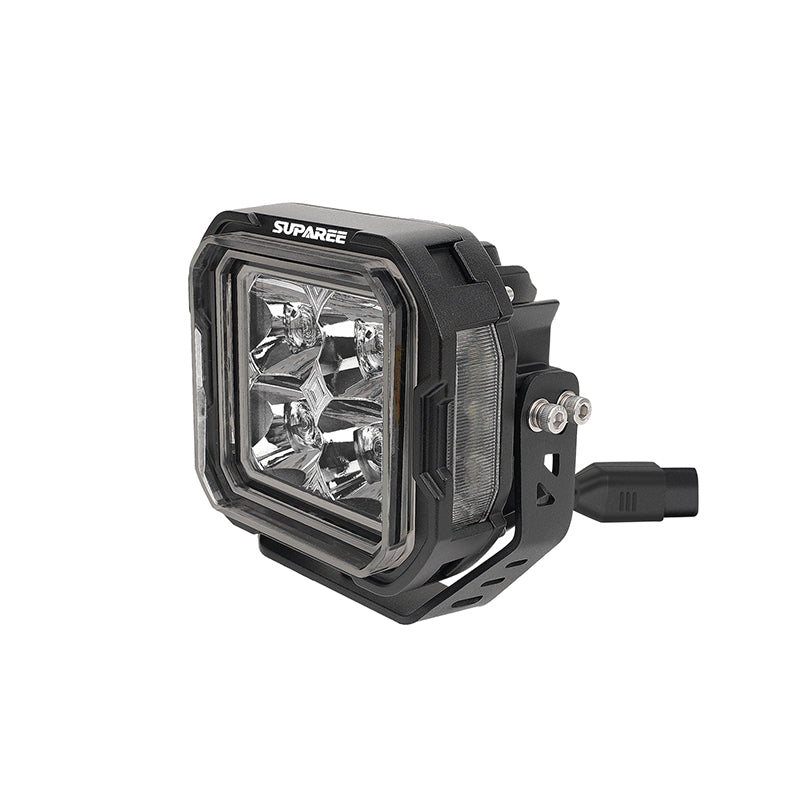

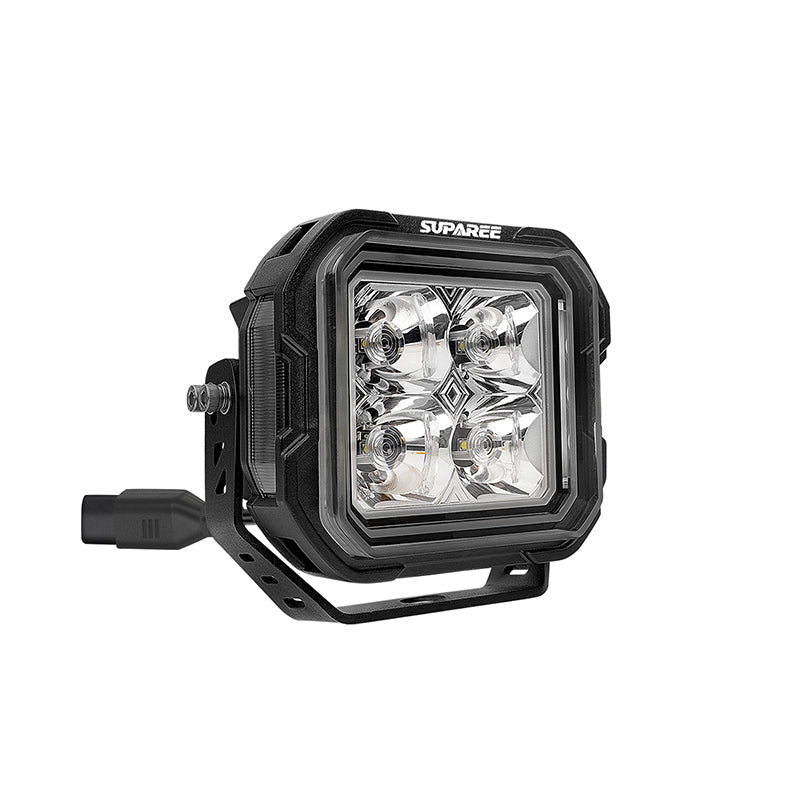

• Adjustable stainless steel mounting brackets

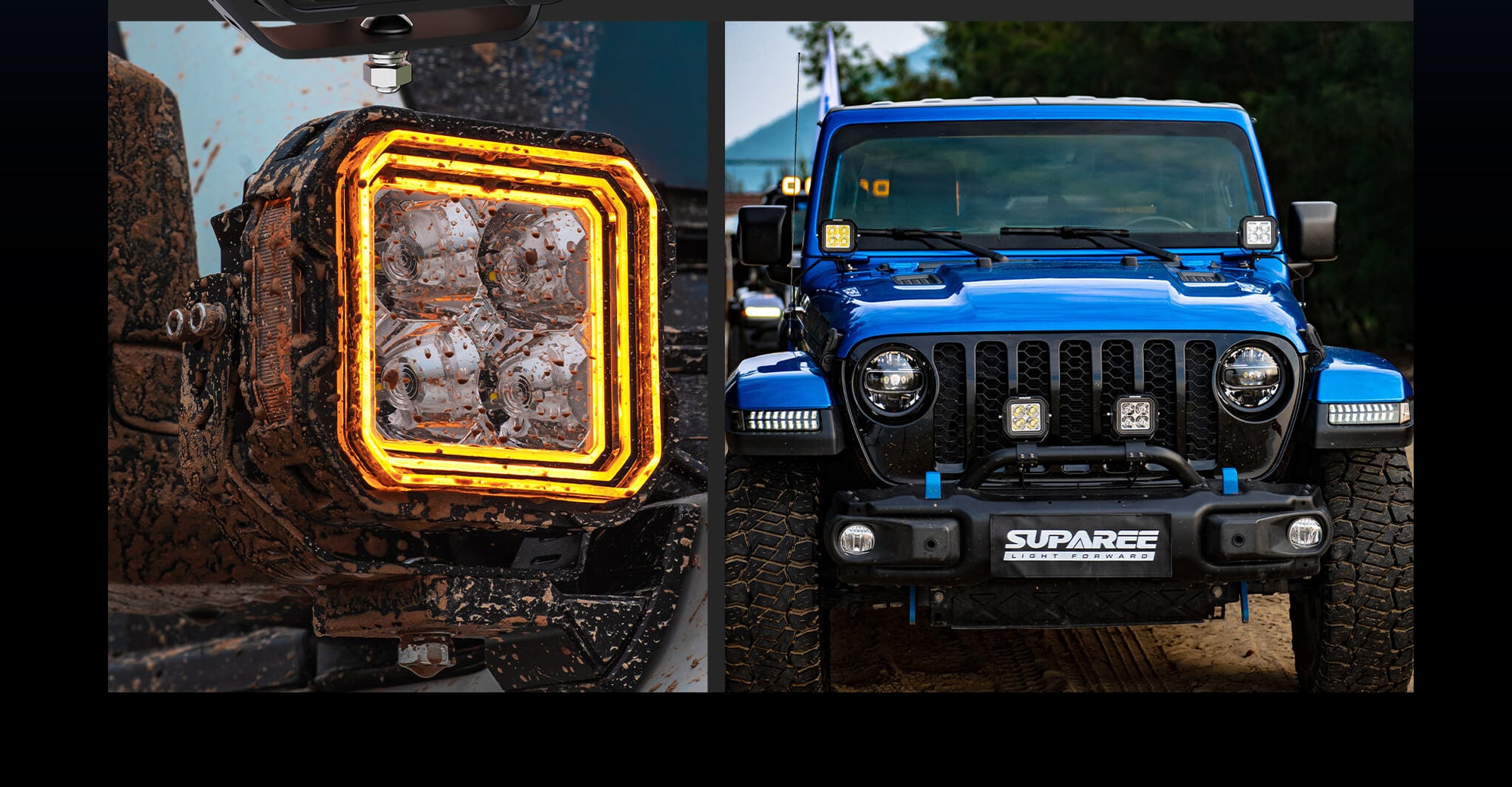

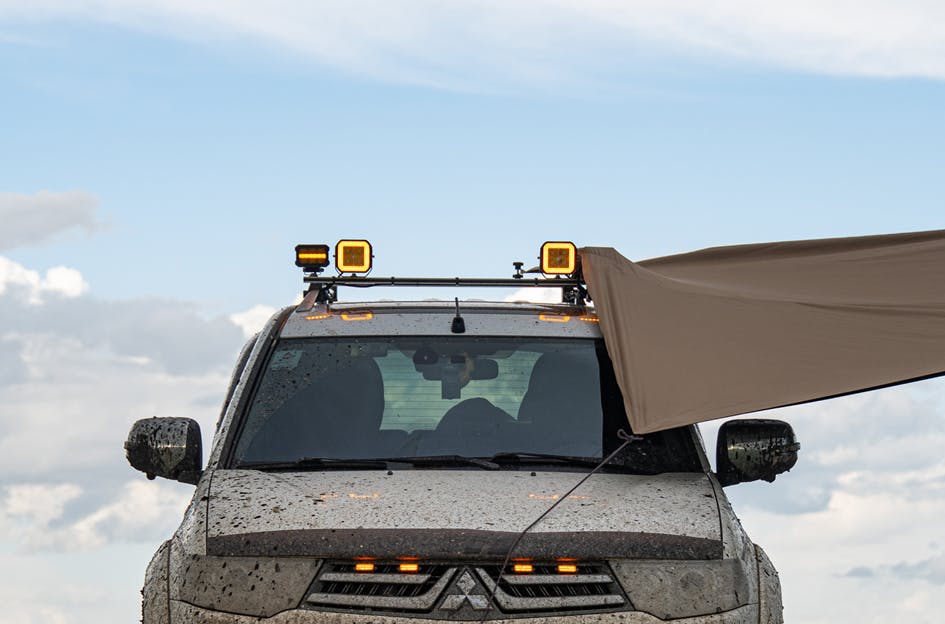

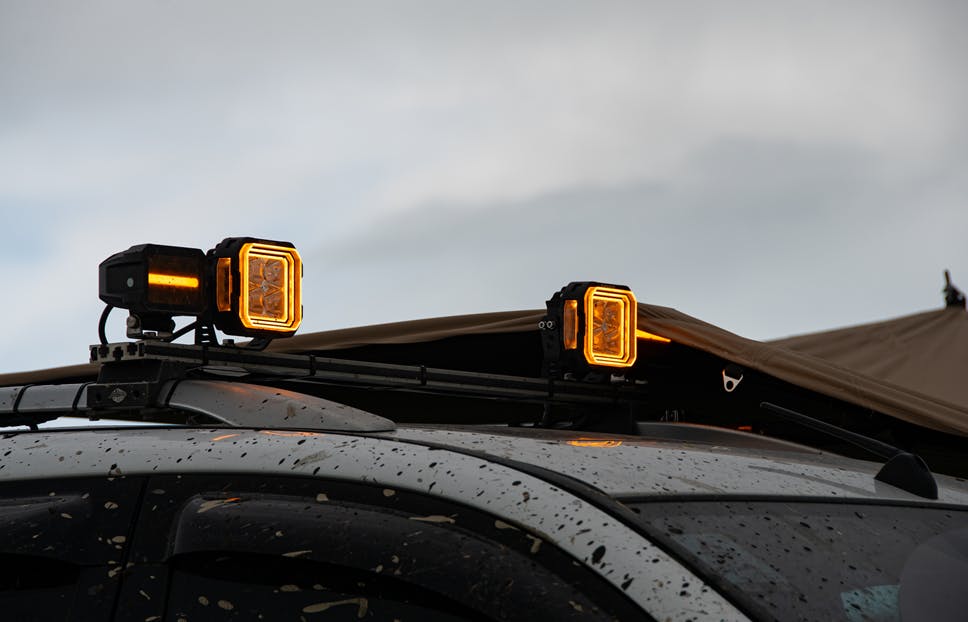

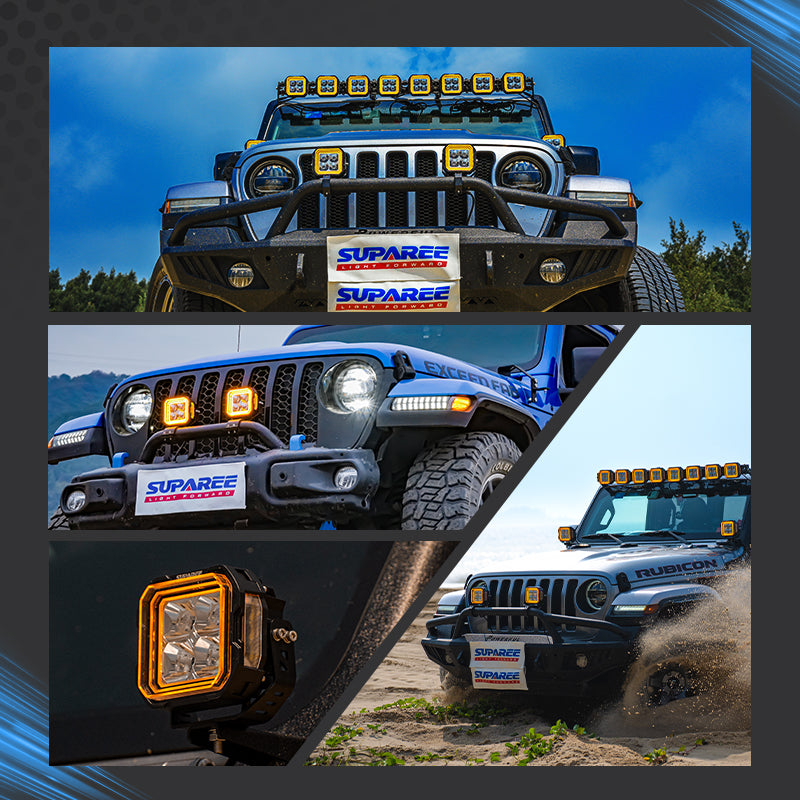

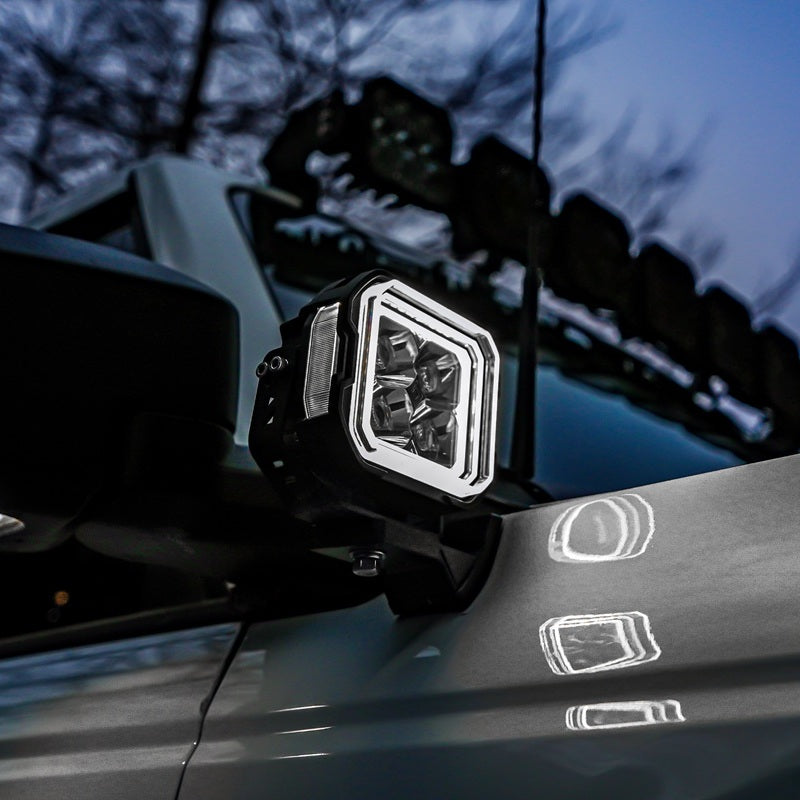

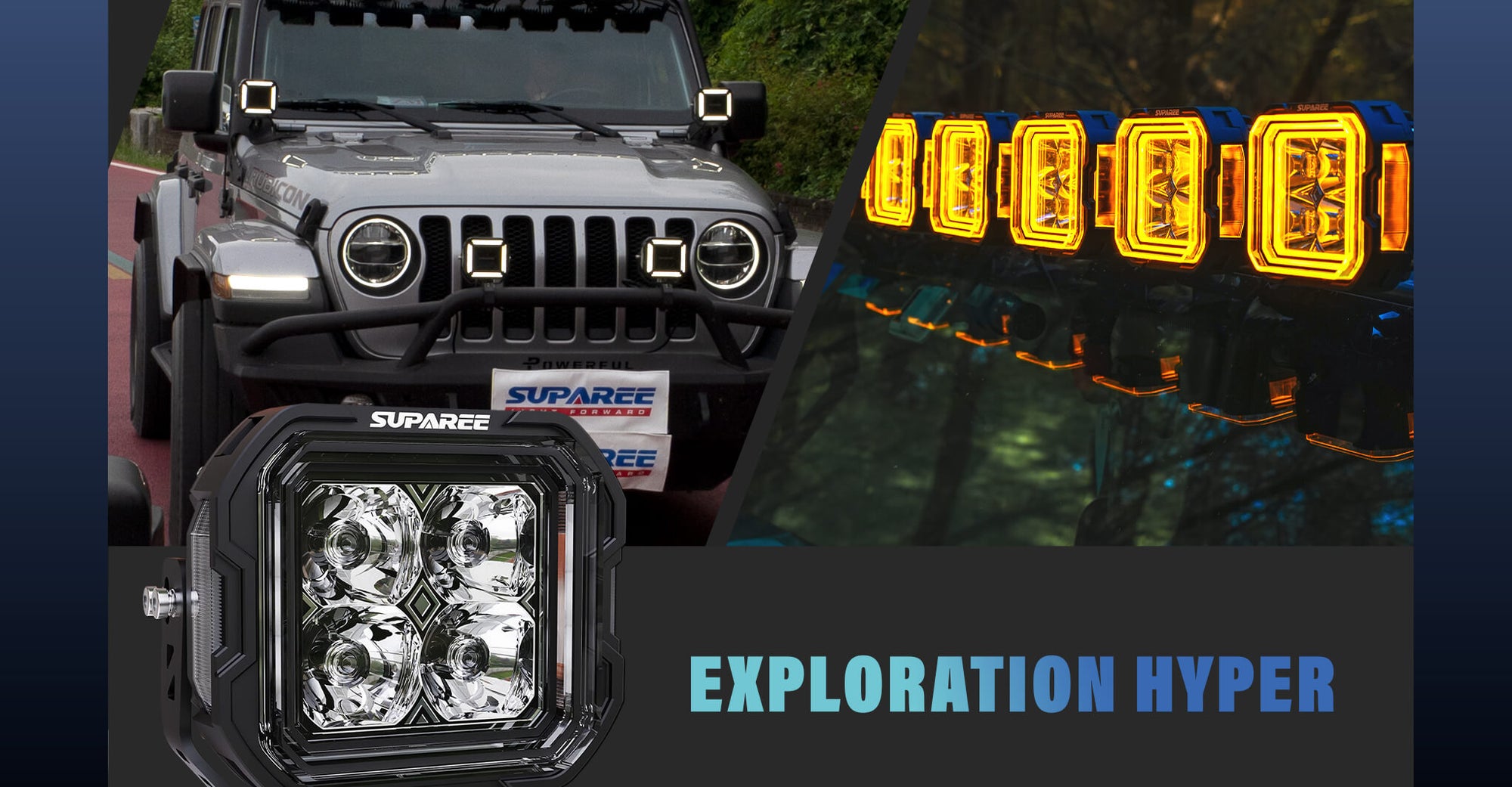

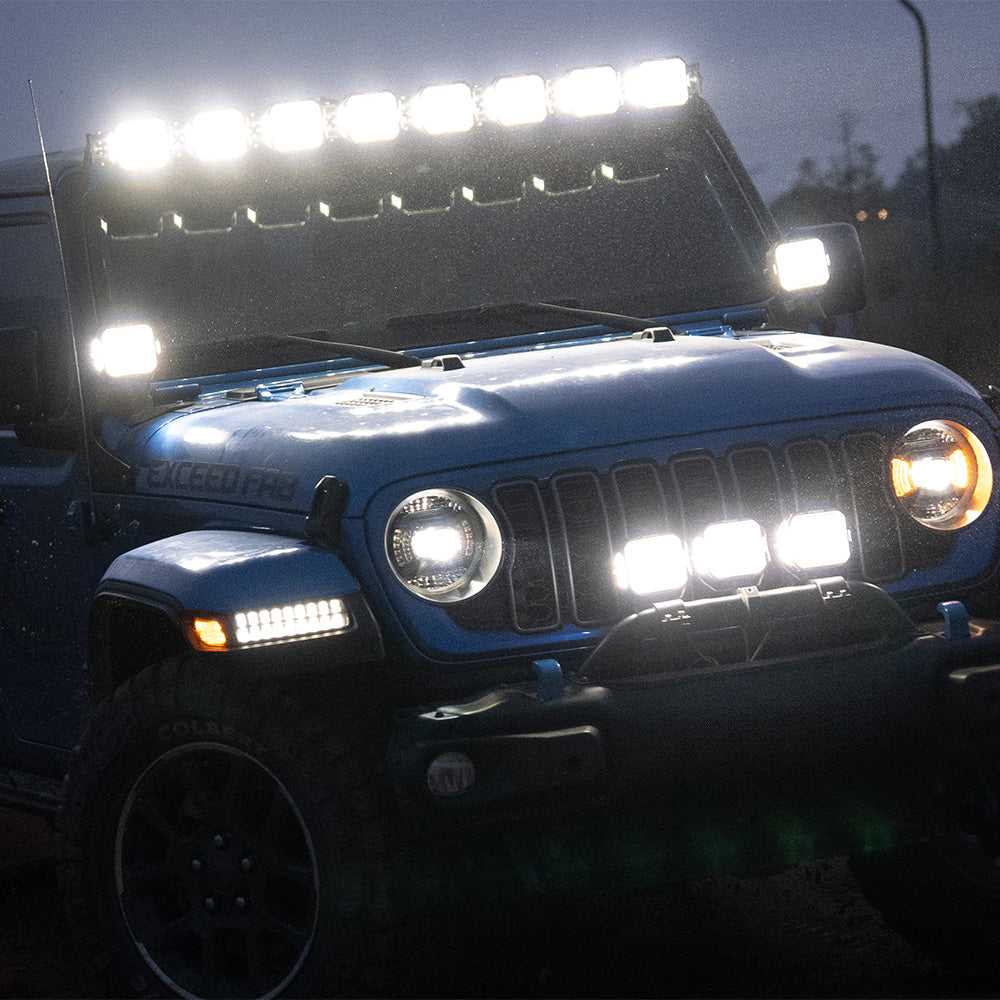

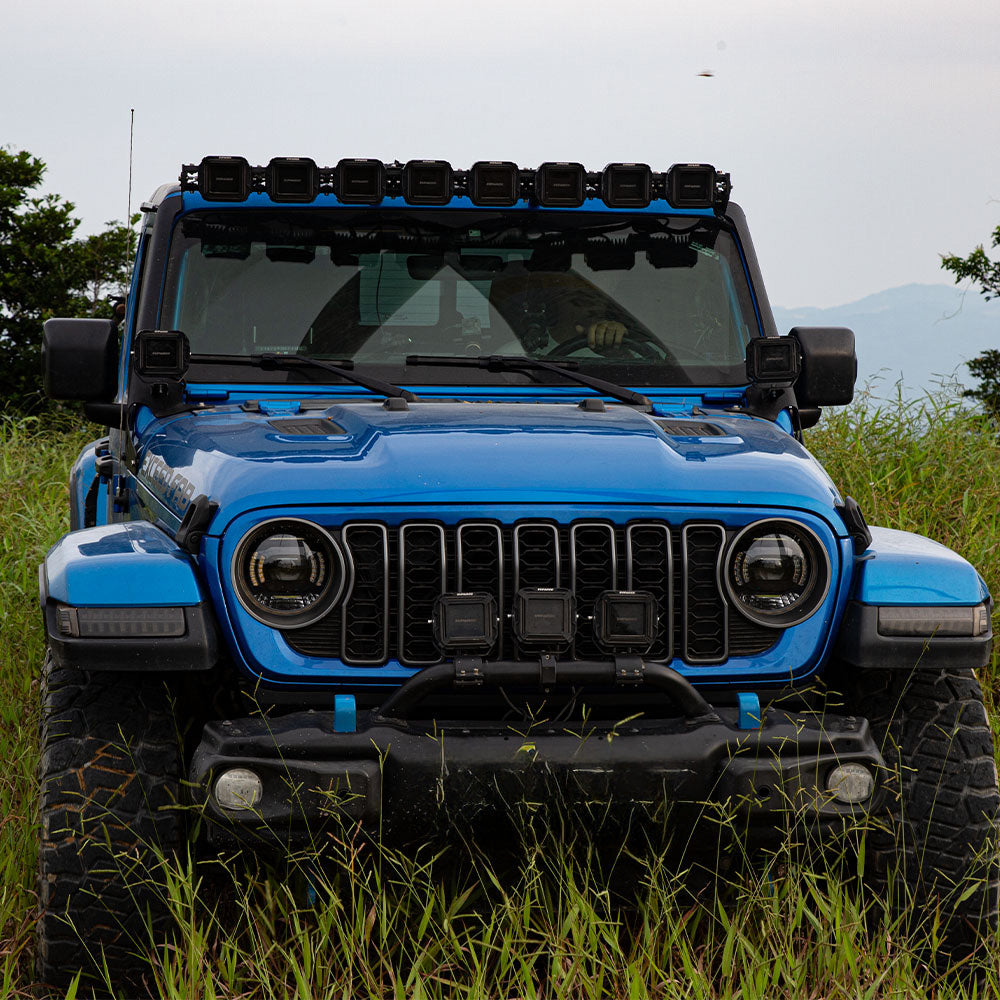

• Multi-position mounting: bumper, A-pillar/ditch light, roof rack, bull bar/light bar setups

• Fast, reliable installation without complex modifications
