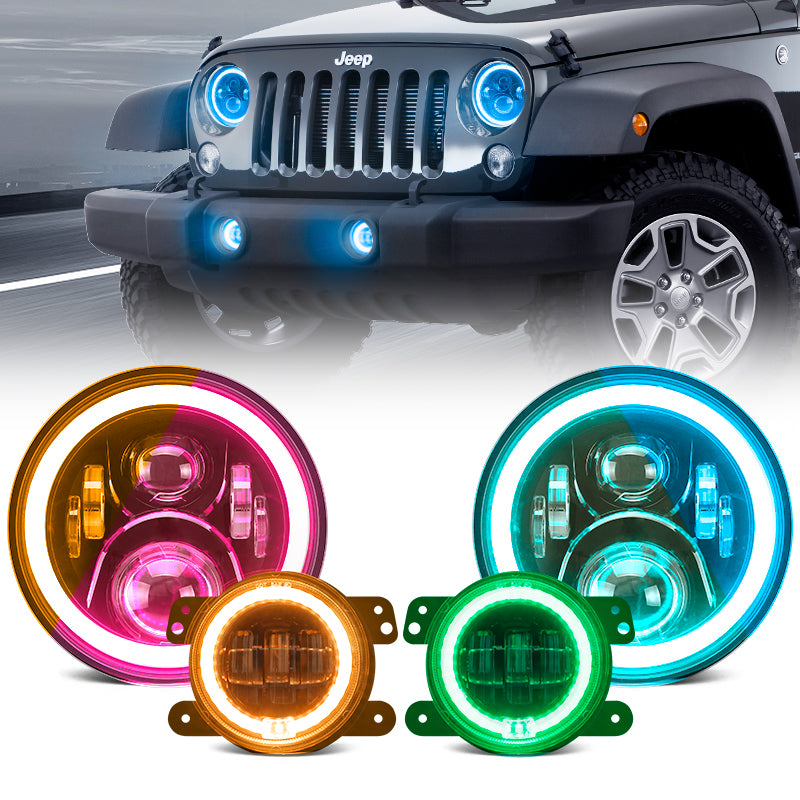

LED RGB Color Changing Halo Headlights with Amber Turn Signal + Fog Light Kit Combo For 2007-2018 Jeep Wrangler JK
SP-CL199
Regular price
$219.99
Sale price
$219.99
Regular price
$314.27
Unit price
per
Couldn't load pickup availability
RGB Halo Headlight + Fog Kit
Headlights / Fogs7″ / 4″2 of each included
RGB Halo Effects16M Colors
155 Modes
155 Modes
Headlight High Beam8,000 lm/kit6000K White
Halo ControlApp + RemoteShared RGB control
DRL / Turn SignalWhite / Amber
Fog-Light ProtectionIP68 Sealed
Headlight PlugsH4 / H13RGB / turn wiring required
Wrangler Fitment2007–2018
JK / JKU
JK / JKU
Free US ShippingOver $79.99 · contiguous US
Fast DeliveryTiming varies by location & stock
2-Year WarrantyQuality defects · terms apply
30-Day ReturnsReturn postage + 15% or higher restocking fee
LED FACTORY MARTJK RGB HALO SERIES
2007–2018 WRANGLER JK / JKU
Classic round.
Your kind
of color.
RGB halo headlights. Matching fog lights. White illumination for the drive, and a coordinated color signature for your next Jeep meet.
Explore the color- THE COMPLETE LOOK
- 2 + 2 lights 7-inch heads + 4-inch fogs
- YOUR PALETTE
- 16M colors 155 dynamic lighting modes
- THE CONTROL
- One app All four halos together
- THE ROAD LIGHT
- White + amber High / low, DRL and turn
For 2007–2018 JK / JKU, 2-door and 4-door. Check the platform & bumper ↗
Explore your kit, one chapter at a time.
01 / ROAD LIGHTINGLight for every drive.White high / low · DRL + amber turn · Matching fogs+

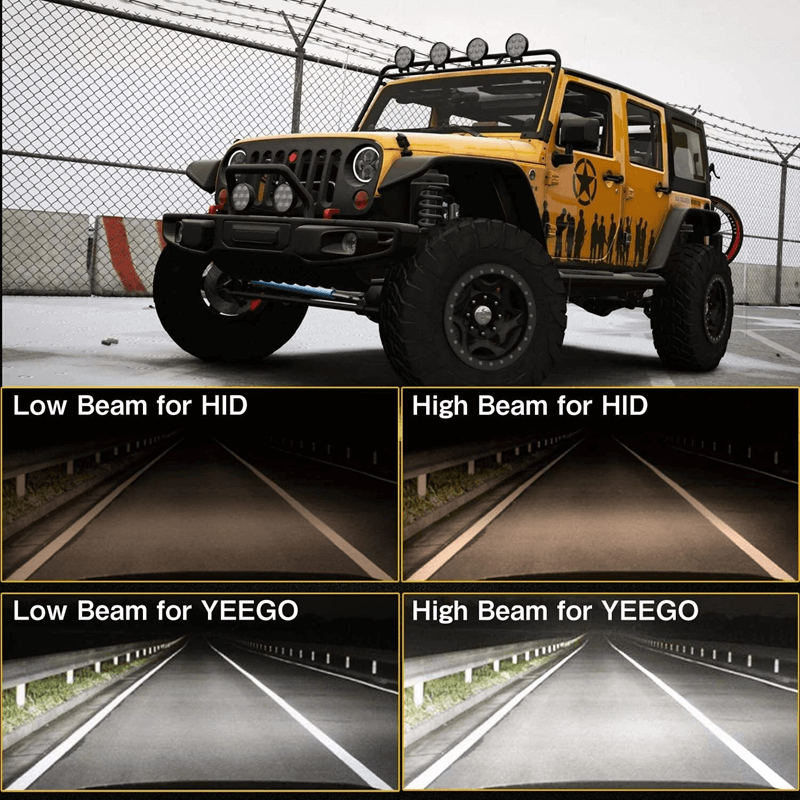

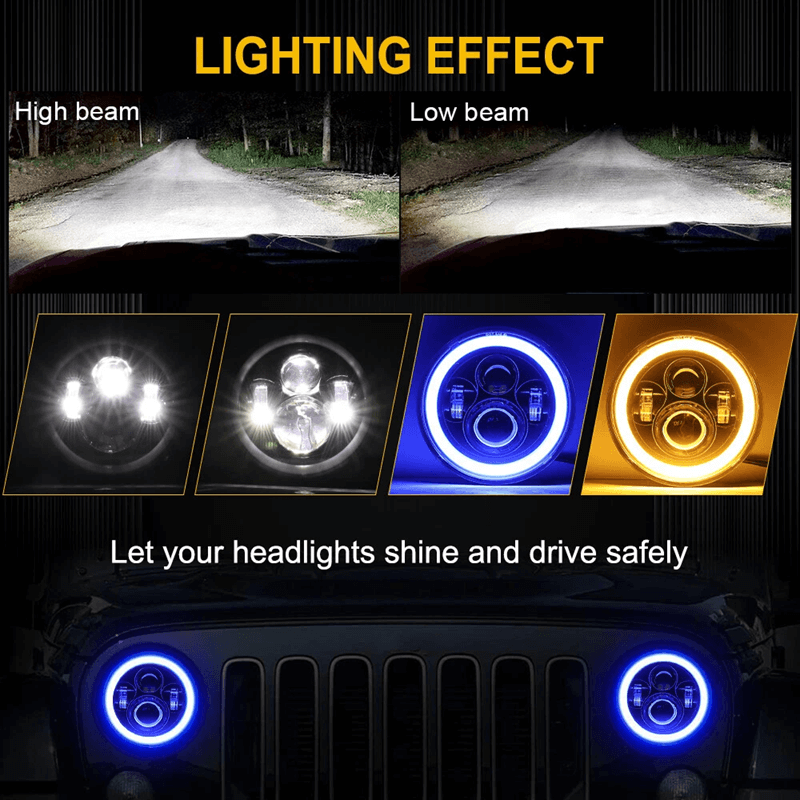

01 / LIGHTING FOR THE DRIVE AHEAD
Put the light
where you need it.

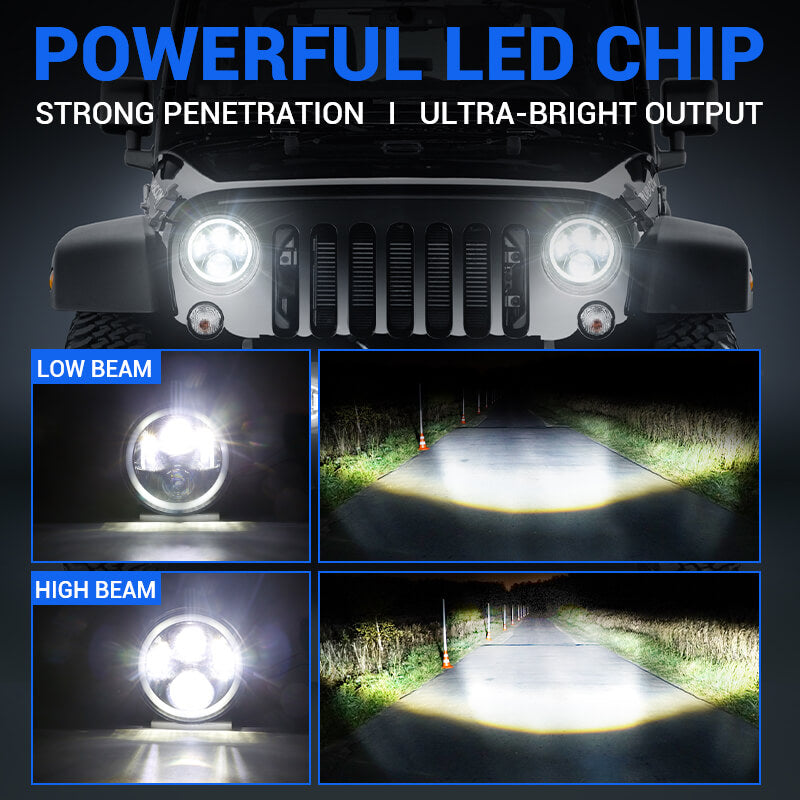

6000K white LEDs and projector optics shape the low beam across the road and focus the high beam ahead.
8,000lm / headlight kit
Advertised high-beam output
5,000lm / headlight kit
Advertised low-beam output

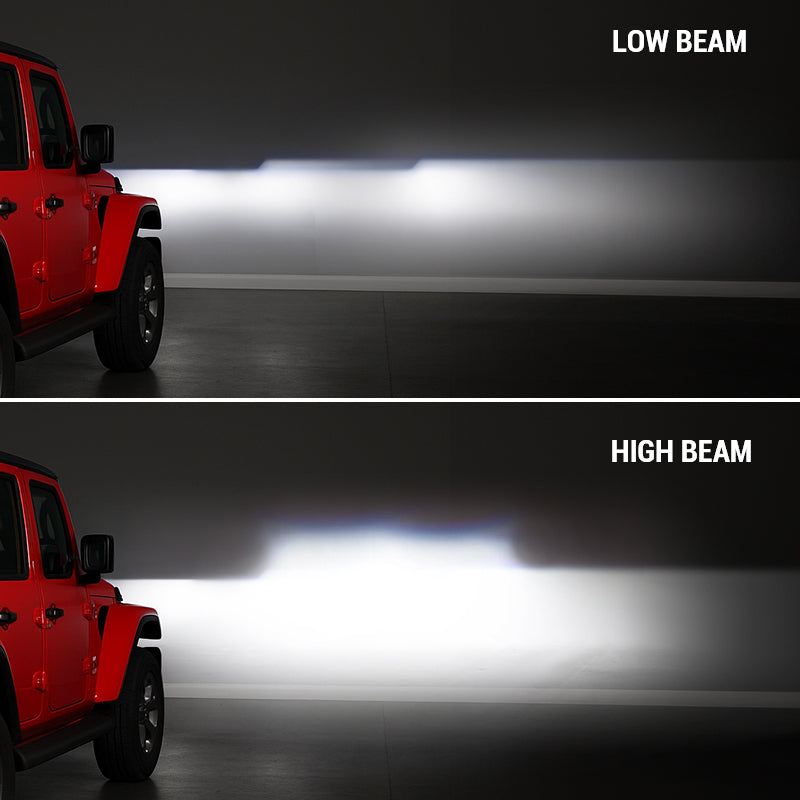

- A defined low-beam pattern.Aim correctly for usable road light and reduced glare.
- High beam for open, dark stretches.Use when road and traffic conditions allow.

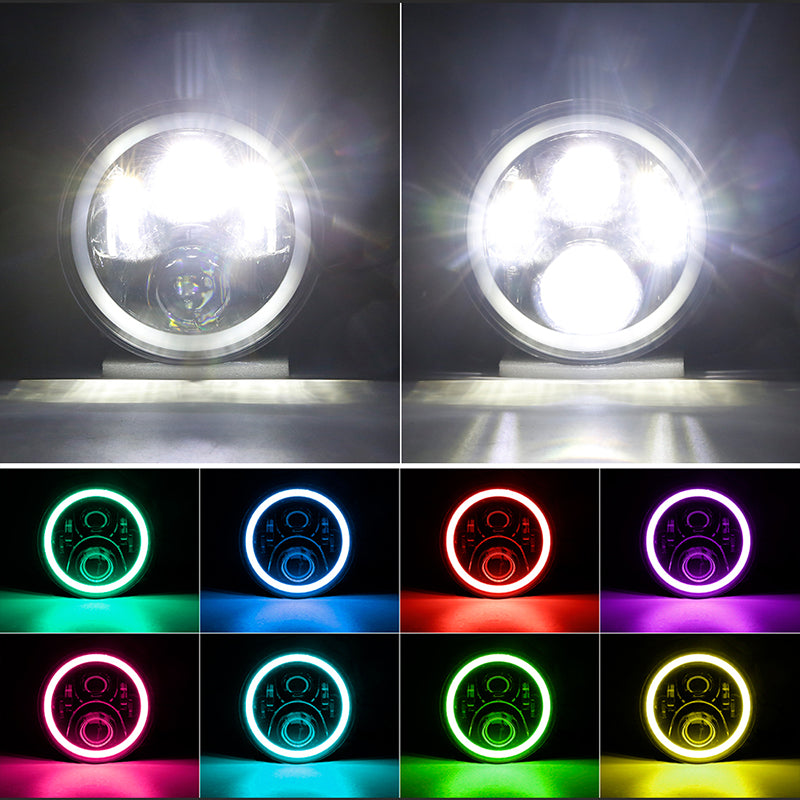

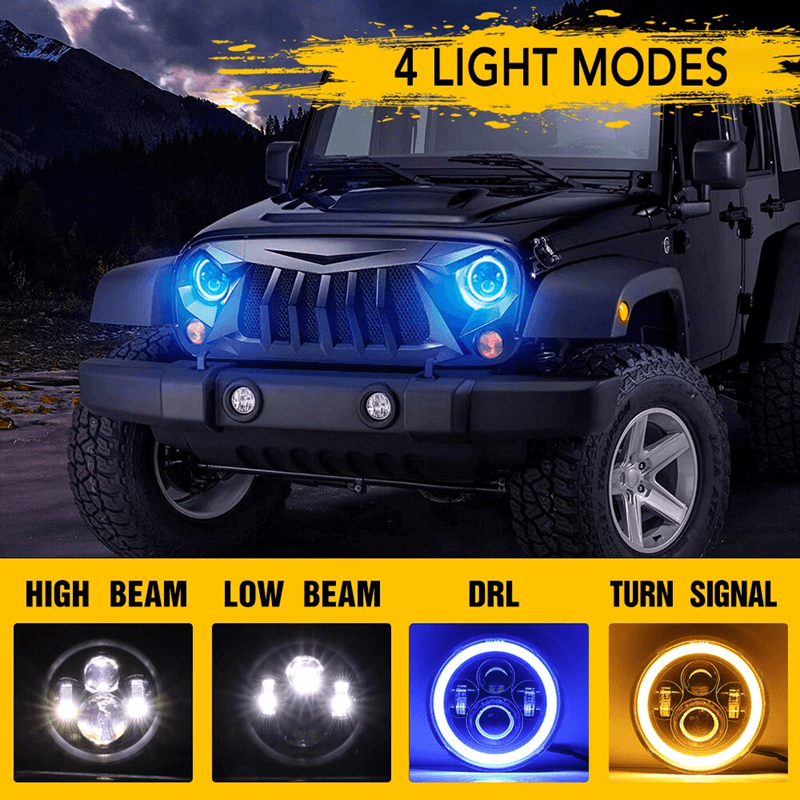

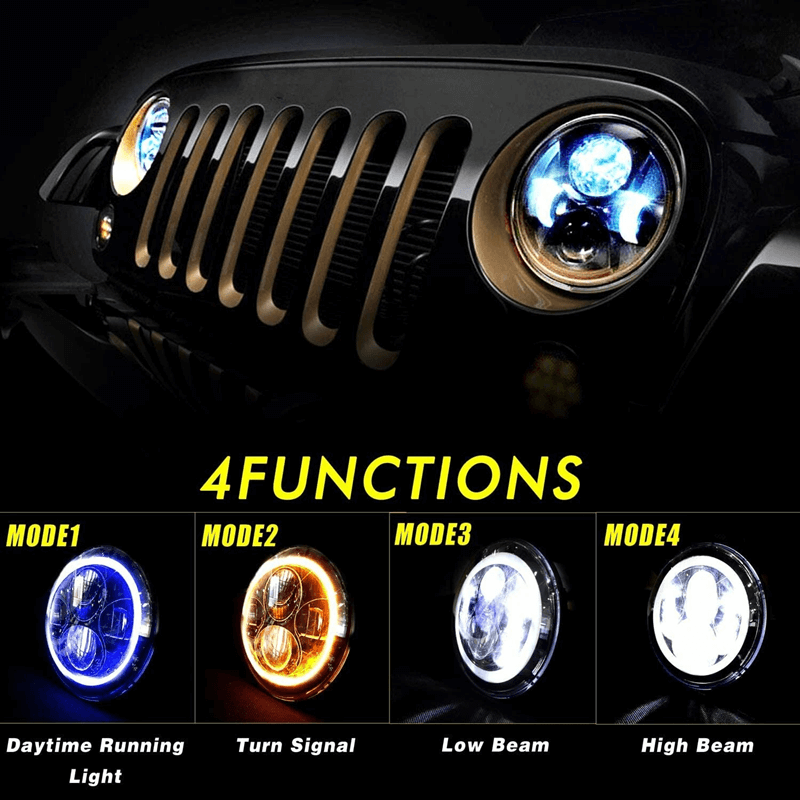

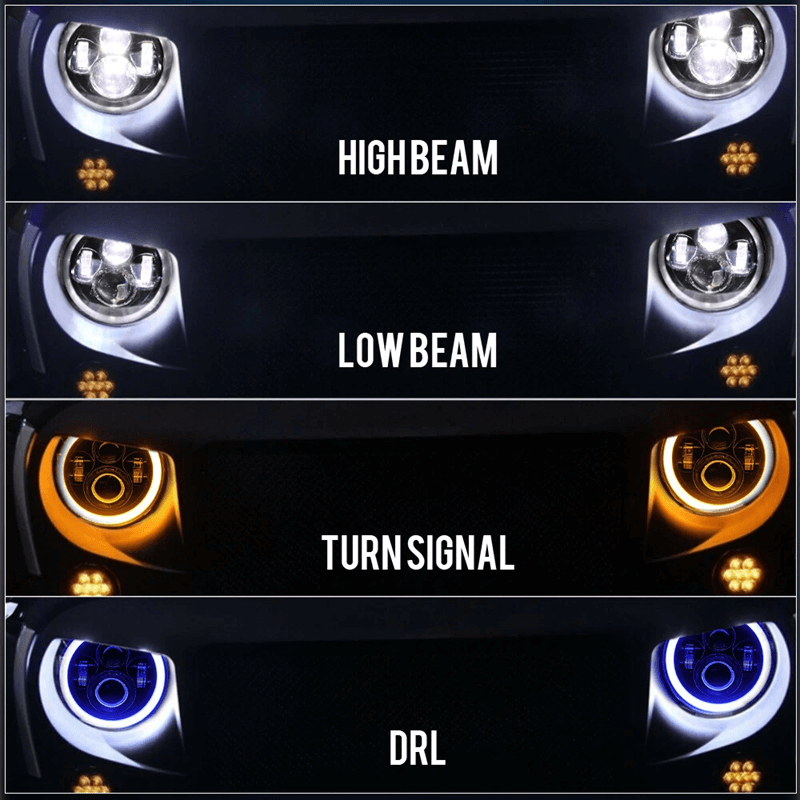

FOUR FUNCTIONS / ONE MATCHED PAIR
Know exactly
what lights up.
Match each mode to the image below. Halo functions use separate leads.
TOP LEFTHigh beam
For open, dark stretches.
TOP RIGHTLow beam
For everyday driving.
BOTTOM LEFTWhite halo / DRL
A clean daytime outline.
BOTTOM RIGHTAmber turn
Connect the turn-signal lead.
RGB effects personalize the accent lighting; the main white illumination works separately.

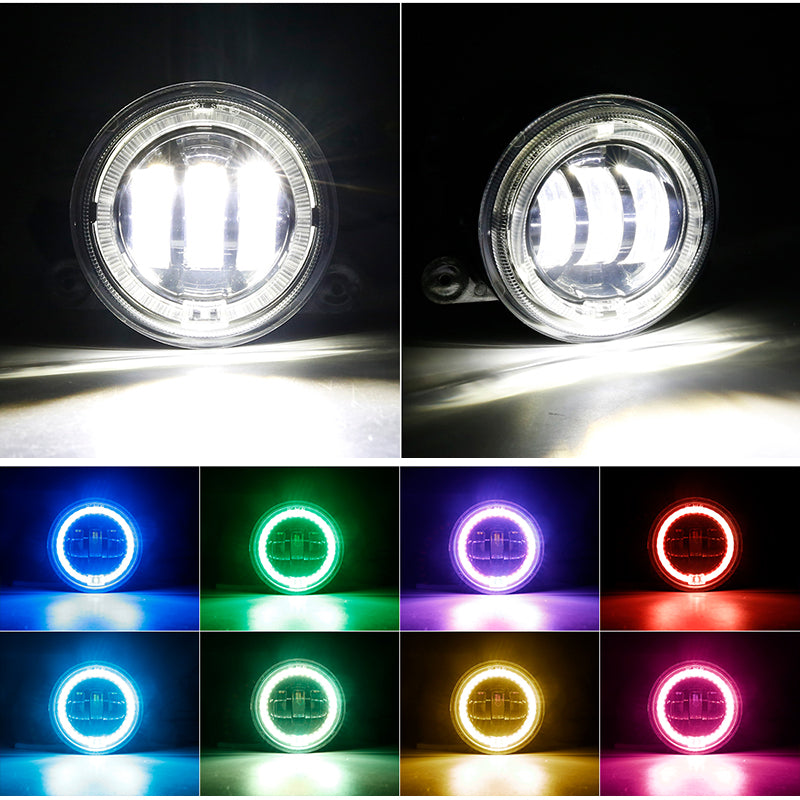

MATCHING 4-INCH FOG LIGHTS
Finish the look.
Fill in the foreground.
White fog illumination lights the foreground from the bumper. RGB halos complete the coordinated look.
6000KWhite fog illumination
1,800 lmListed fog-light output
- CREE XTE LED light source.White illumination in a 4-inch assembly.
- Built around the bumper position.Die-cast aluminum, a PC lens and integrated mounts.
- White fog / DRL + RGB accent.Driving light and coordinated accents in one pair.
In fog, use low beams and appropriate fog lighting. High beams can reflect back and reduce visibility.
The last step makes a difference.
Test both lamps, secure the mounts and set the beam aim using your vehicle instructions.
02 / YOUR RGB SIGNATUREFour halos. Your color.16 million colors · App + remote · Music & custom effects+

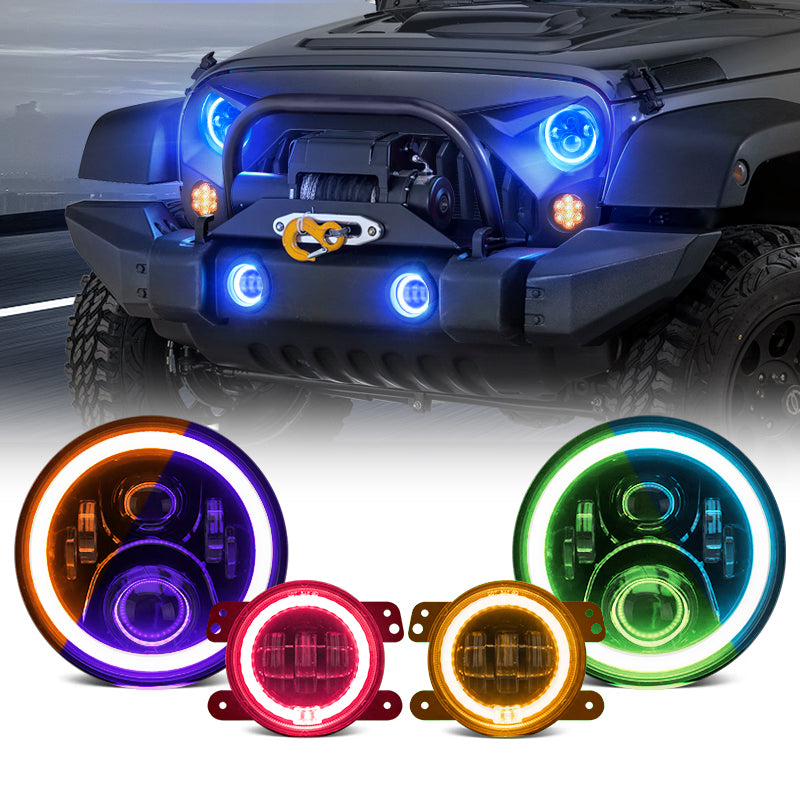

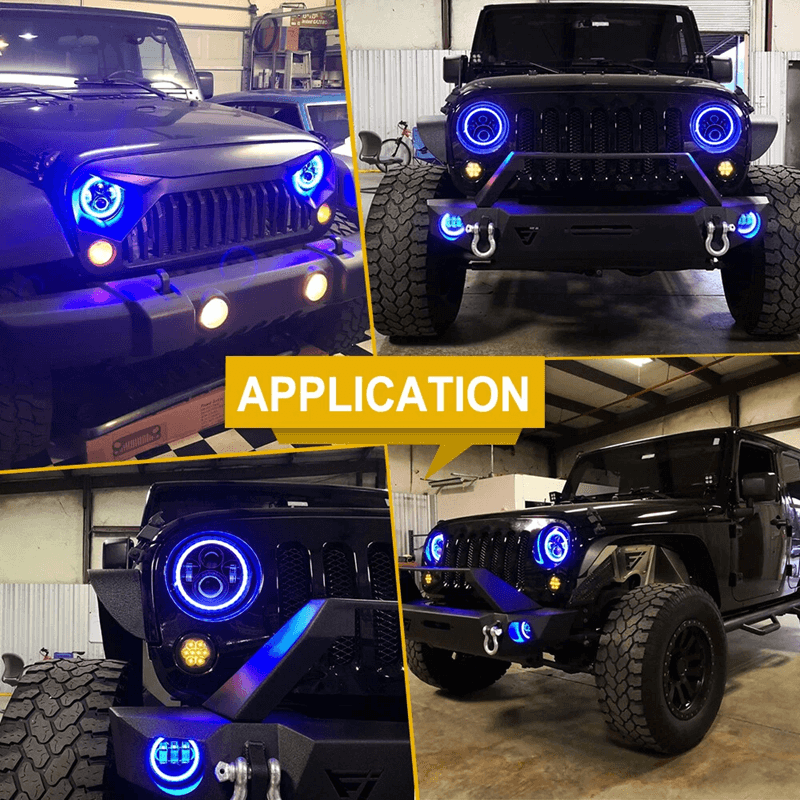

02 / YOUR JEEP, RECOGNIZABLY YOURS
One signature.
From grille to bumper.
Match your paint, wheels or next Jeep meet. One controller synchronizes color and effects across all four halos.
Build a look that feels complete.
- Matching halos across four positions.Carry your lighting style from grille to bumper.
- Depth in the detail.The 3D RGB lens creates a layered halo glow.
- One coordinated system.Change all four halos through one control box.
BLUETOOTH APP + REMOTE CONTROL
Your palette.
Your patterns.
Your playlist.
Use Bluetooth app control on iPhone or Android, plus remote-control support.
01
Pick a color. Choose from 16 million colors and adjust brightness.
02
Make it move. Select 155 dynamic modes, flashing effects or create and modify DIY patterns.
03
Let the music lead. Use music sync to add movement to your parked display.
04
Set the timing. Use timer settings and automatic effects in the controller app.
Scan your controller’s QR code for its app. RGB colors and animated effects are for show / off-road use. Use permitted road lighting.
Official product videoOpen on YouTube ↗
See the whole upgrade.
LED Factory Mart’s original product film shows the headlight and fog-light kit.
03 / WEATHER & PROTECTIONRain. Dust. The detour.IP67 headlights · IP68 fog lights · Vent + PC lens+
03 / BUILT FOR THE CONDITIONS OUTSIDE
Rain on the commute.
Dust on the detour.
Sealed housings and protected optics help withstand rain, dust and changing conditions.
Protection behind the lens.
Sealed housings protect the lighting from road spray, dust and muddy conditions.
IP67Headlight protection
IP68Fog-light protection
- Keep water and dust outside.Separate ratings for each lamp type.
- Ready for temperature changes.The fog lights list a working range of −40°C to 80°C.
- Made for everyday movement.Rugged housings resist vibration during driving.
Protect the controller and connectors. Lamp ratings do not cover the complete installed system.
Clarity behind the color.
- A way for moisture to escape.The rear vent helps reduce condensation. Keep it clear.
- A tougher front surface.Polycarbonate helps resist impact and scratches.
- A vivid RGB finish.Brightening coating and layered optics enhance RGB color.

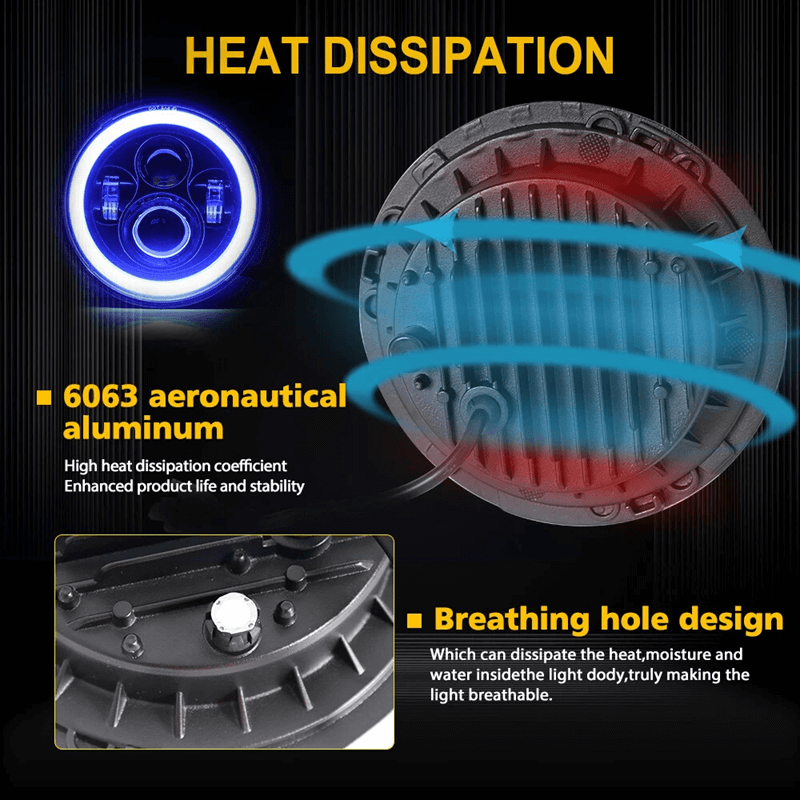

04 / THE DETAILS BEHIND THE LOOKManage heat. Protect light.Aluminum heat sink · EMC · 50,000+ hour LED rating+
04 / THE DETAILS BEHIND THE LOOK
Manage the heat.
Protect the light.

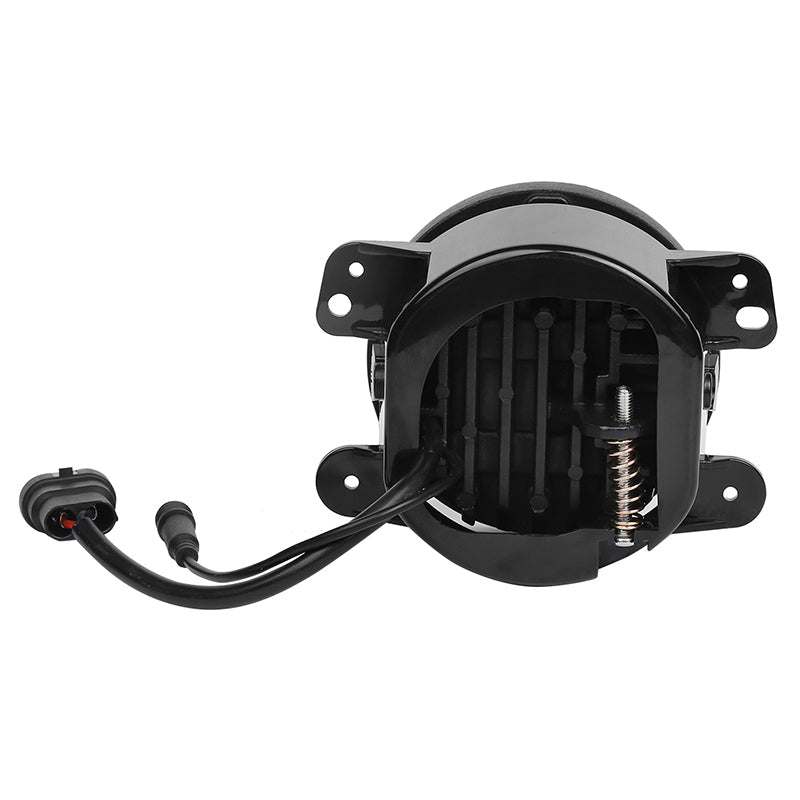

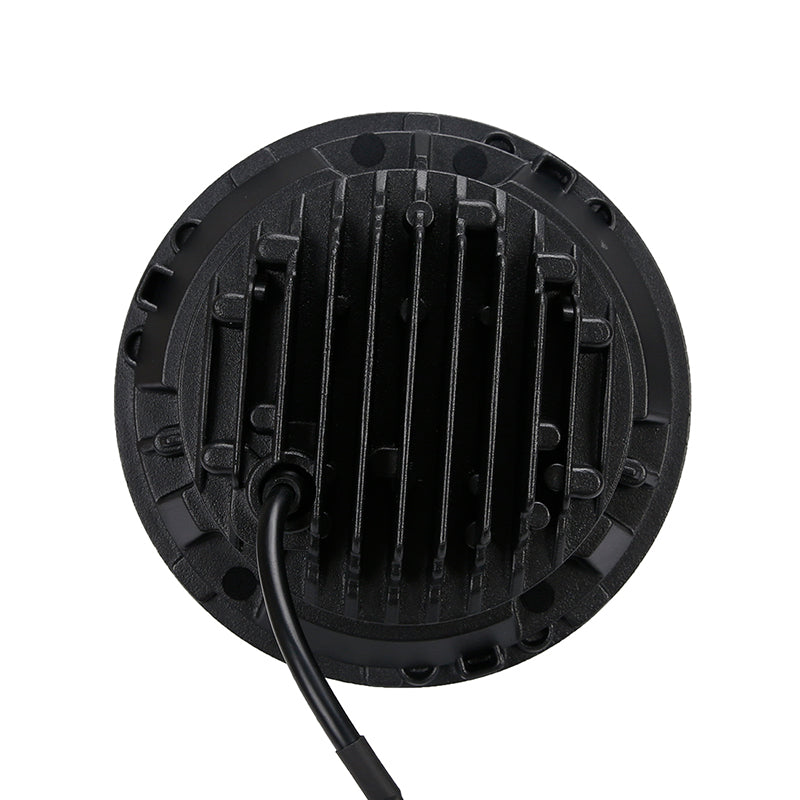

- Finned die-cast aluminum.Rear fins transfer heat away from the LEDs.
- Built-in EMC circuitry.Helps reduce interference, common flicker and compatibility issues.
- 50,000+ hours.Estimated headlight LED life; actual life varies with use and installation.
Vehicle electrical systems vary. Some applications may still need an additional anti-flicker adapter.
05 / CHECK YOUR JEEPMade for JK / JKU.2007–2018 · 2 & 4 door · Check special bumper brackets+
05 / CHECK THE PLATFORM & BUMPER
Made for your JK.
Check the details first.
7-inch headlights and 4-inch fog lights for 2007–2018 Wrangler JK / JKU, 2-door and 4-door.
2018 JK and JL are different.
Confirm your platform. JL / JT use a different kit and mounting arrangement.
Hard Rock / 10th Anniversary
Additional SP-JK337 fog-light brackets are required, sold separately.
View the bracket reference ↗Factory LEDs or a modified bumper?
Confirm retaining hardware, connectors and fog-light mounts with support.
06 / INSTALLATION & CONNECTIONSSee the install first.Installation video · Wiring diagram · H4 / H13 adapters+

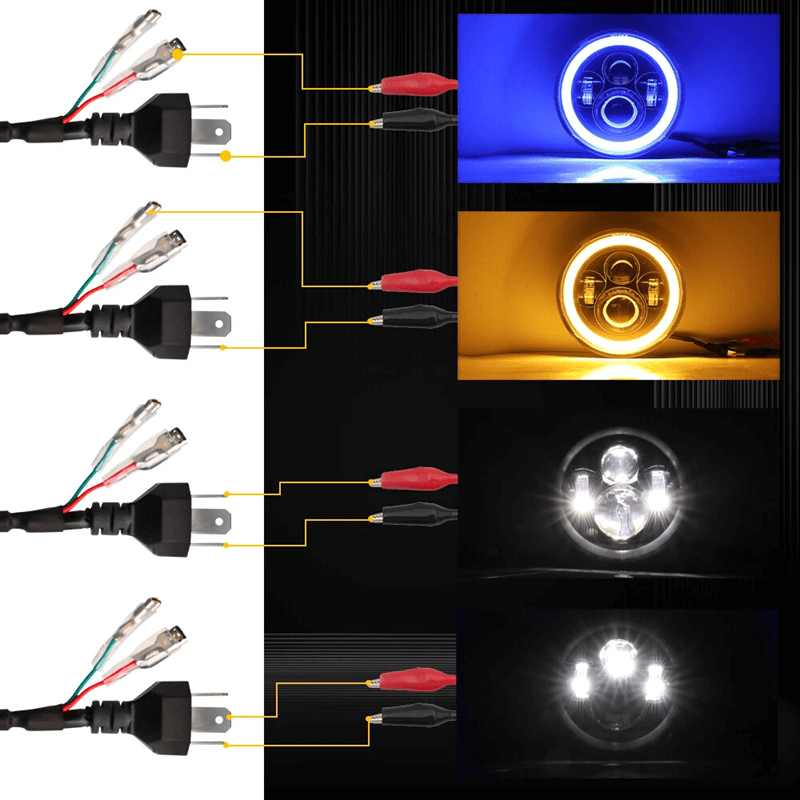

Wiring diagram & app pairing
06 / INSTALLATION & CONNECTIONS
See every connection.
Start with confidence.
H4 / H13 connectors simplify the main lamp swap. Plan additional RGB-controller, power, ground and turn-signal wiring.
One controller.
Four connected halos.
The diagram shows all four halos connecting to one control box.
Scan the controller QR code. Enable Bluetooth and app permissions, then pair in the matching app.
Follow your kit’s instructions and allow time to route and secure the complete harness.
Open original wiring instructions ↗Watch the installation guide.
JK headlight + fog-light installationOpen on YouTube ↗
Four steps to plan the installation
- 01 / CHECK
Match the mounts.
Confirm the headlight retaining hardware, plugs and fog-light brackets.
- 02 / CONNECT
Fit the main lights.
Install the lamp assemblies and connect the main-light adapters as instructed.
- 03 / ROUTE
Wire the controller.
Follow the supplied diagram for power, ground, halo and turn-signal connections.
- 04 / TEST
Pair, test and aim.
Pair the controller app, test all functions and set the beam aim before driving.
07 / ONE COORDINATED UPGRADEFour lights. One kit.Headlights + fogs · Controller · Adapters · Full specifications+

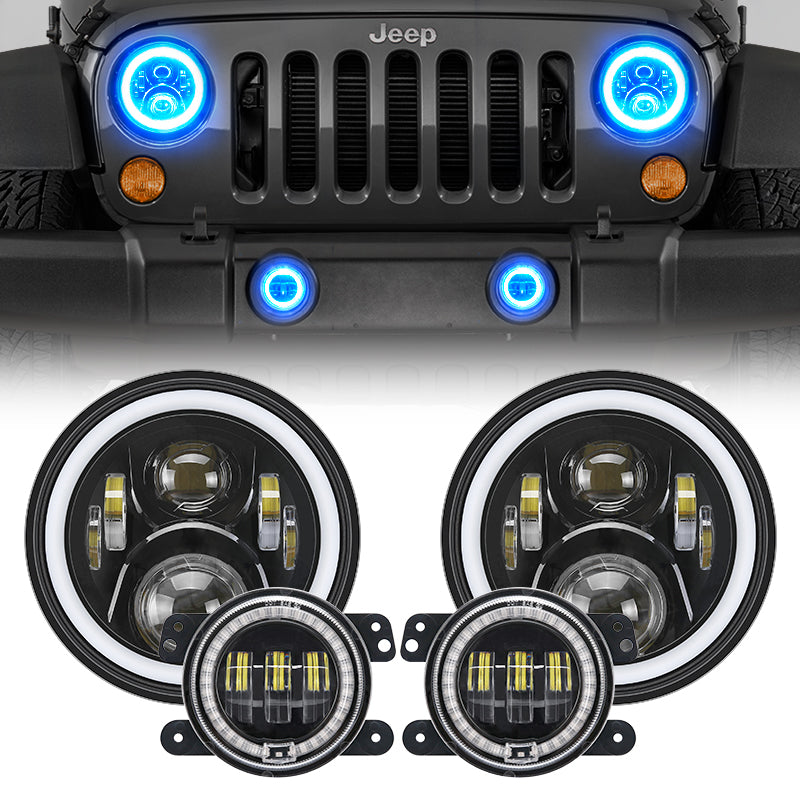

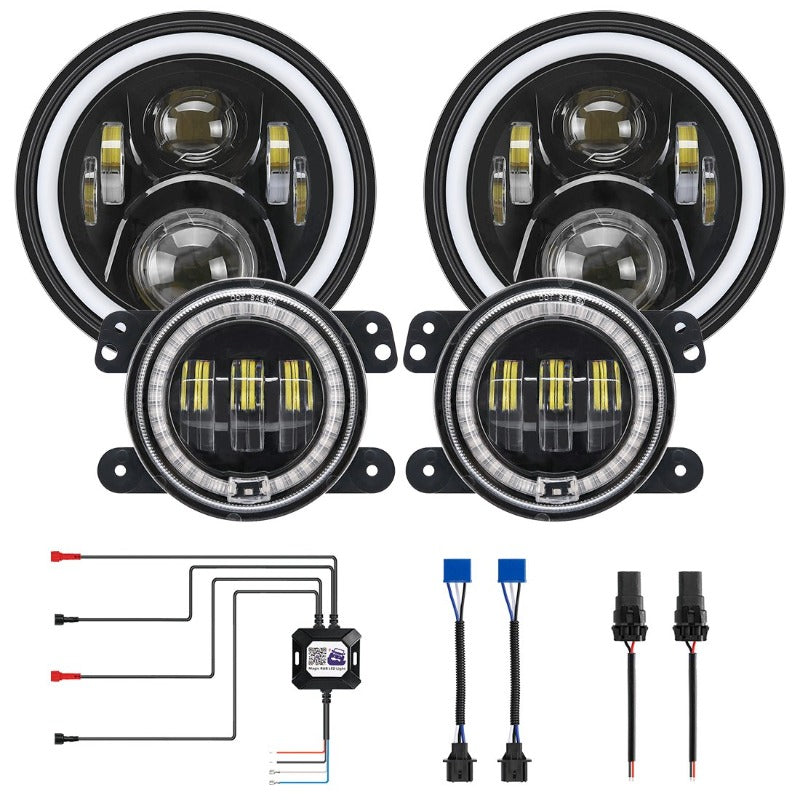

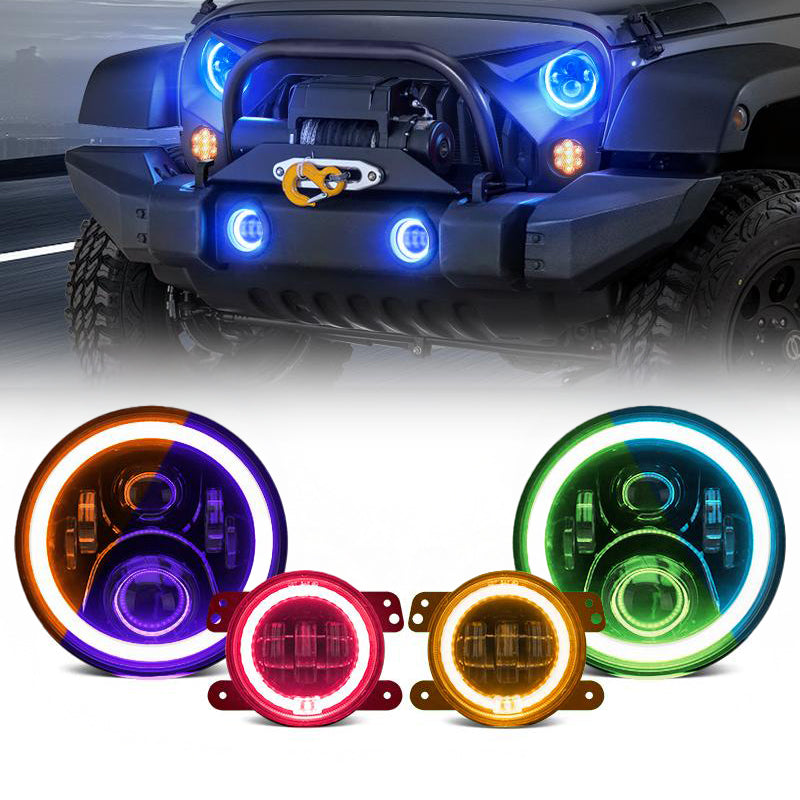

07 / THE COMPLETE FRONT-END KIT
Four lights.
One upgrade.

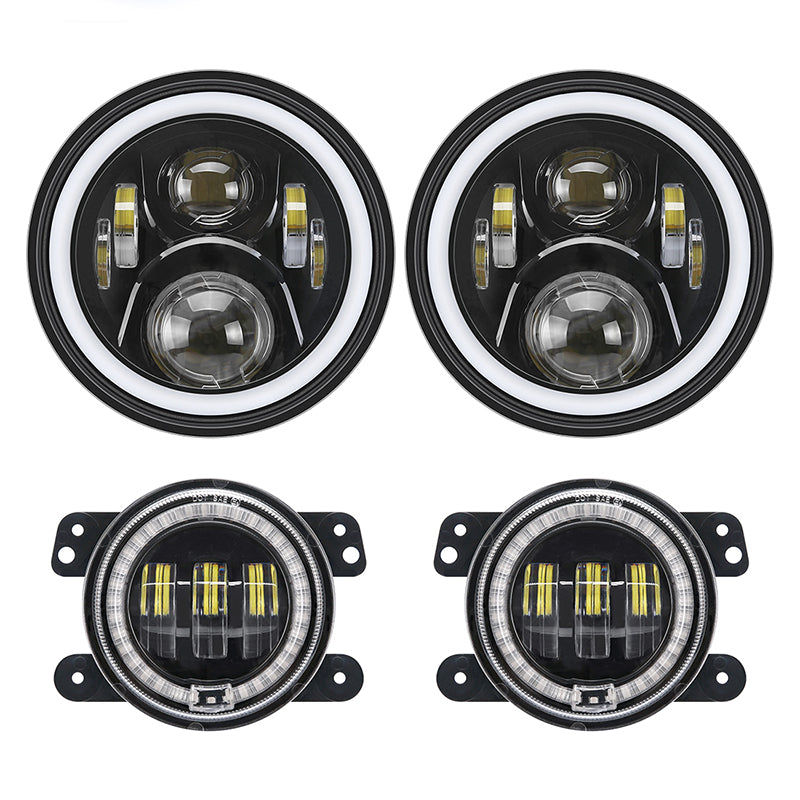

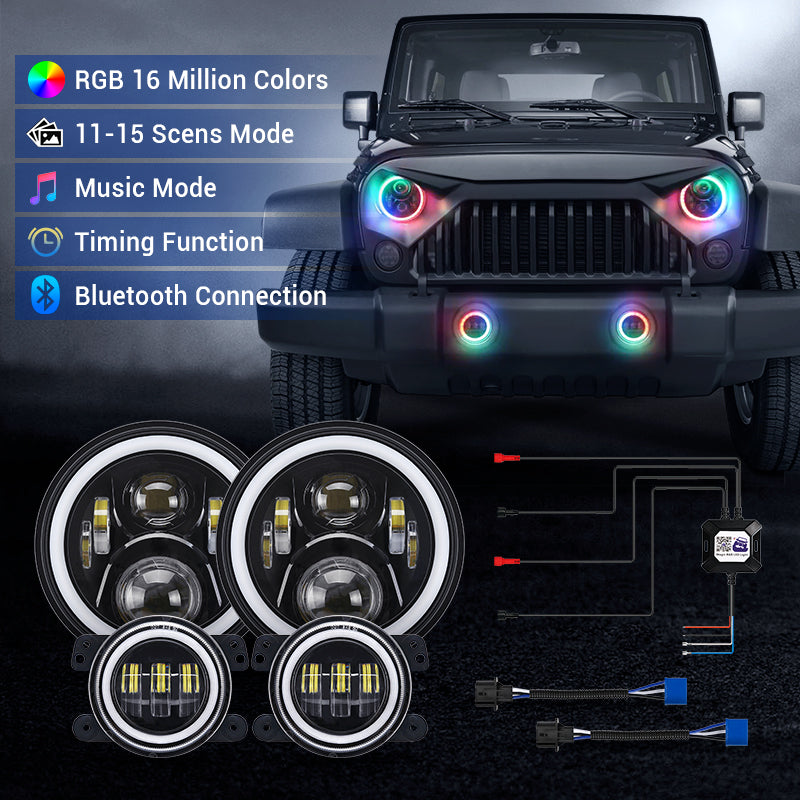

- 2 ×7-inch LED headlights with RGB halos
- 2 ×4-inch LED fog lights with RGB halos
- 1 ×Shared RGB control box
- +H4 / H13 main-light adapters and connection components
- +Installation instructions
App and remote control are supported. Confirm remote hardware with your kit version. Special bumper brackets are separate.
Full headlight & fog-light specifications

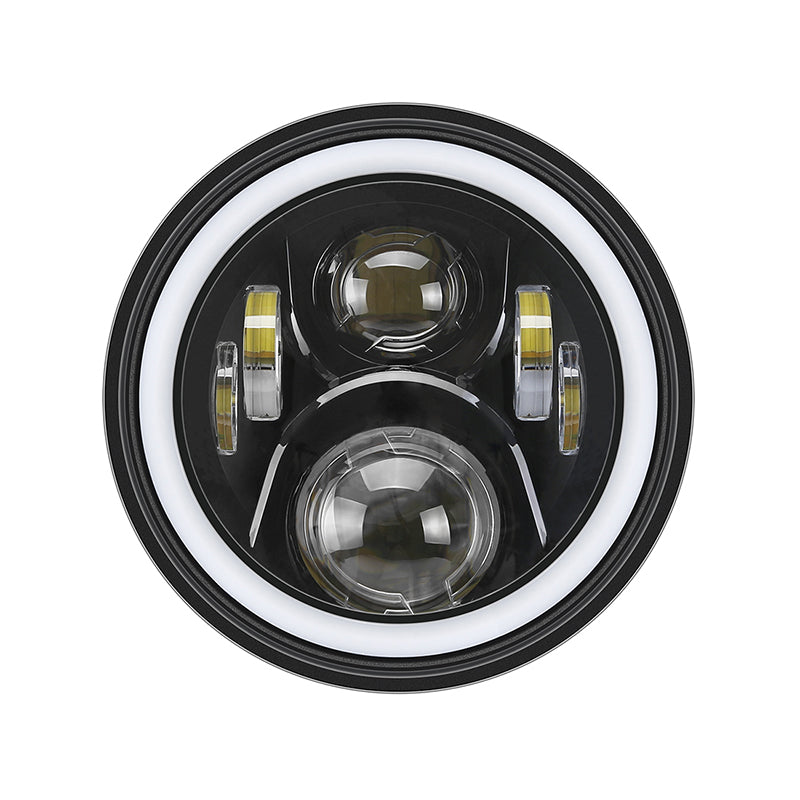

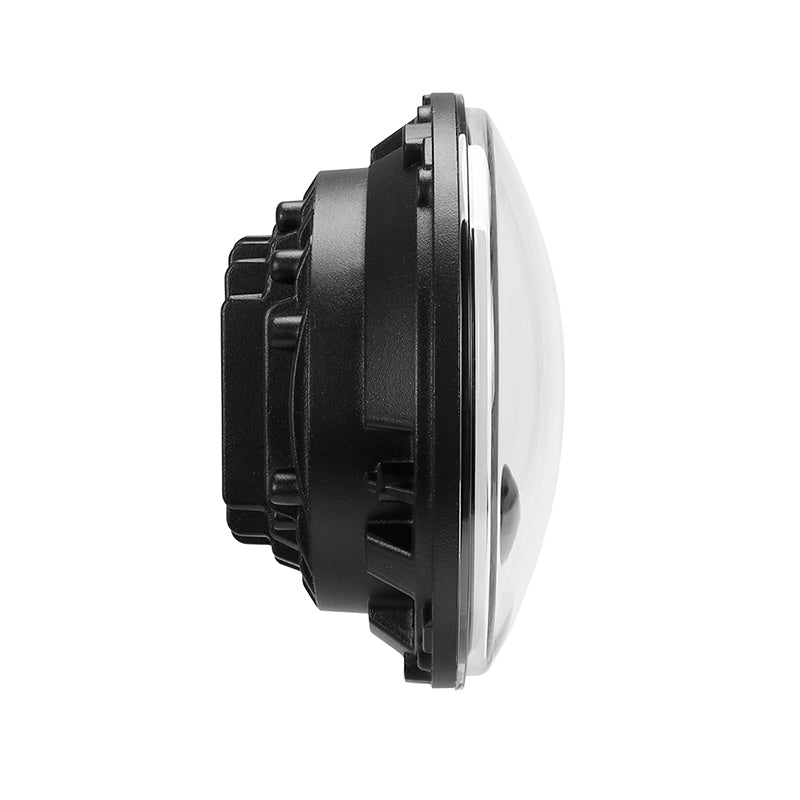

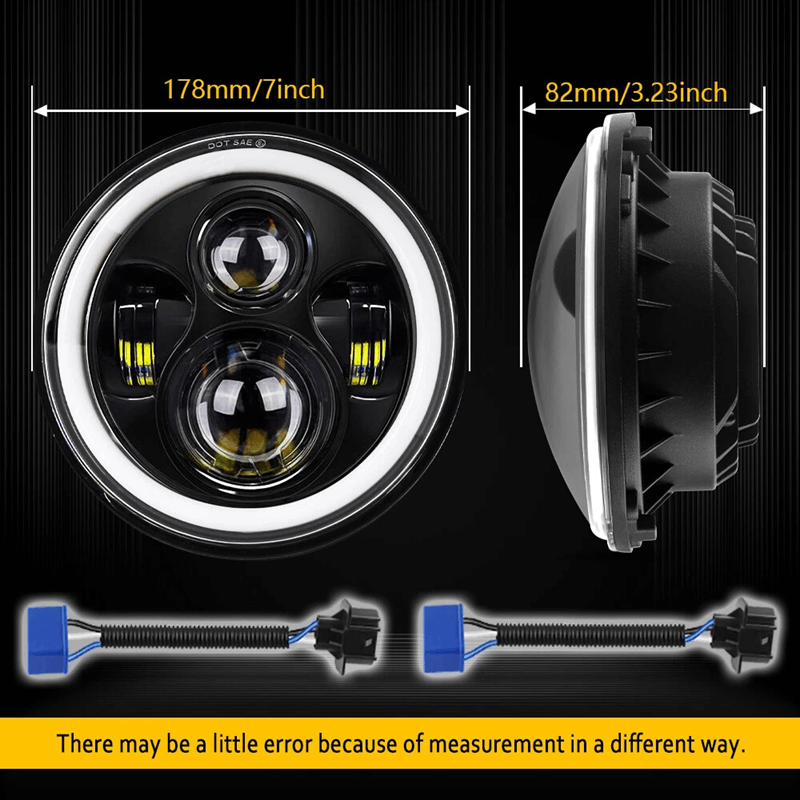

7-inch LED headlights
- Lighting
- High / low beam, white halo / DRL, amber turn signal, RGB halo
- Listed power
- 40W high / 30W low
- Listed output
- 8,000 lm high / 5,000 lm low per headlight kit*
- White color temperature
- 6000K
- Input voltage
- DC 9–32V
- Construction
- Die-cast aluminum + polycarbonate lens
- Protection / service life
- IP67 / 50,000+ hours estimated
- Connections
- H4 / H13; built-in EMC

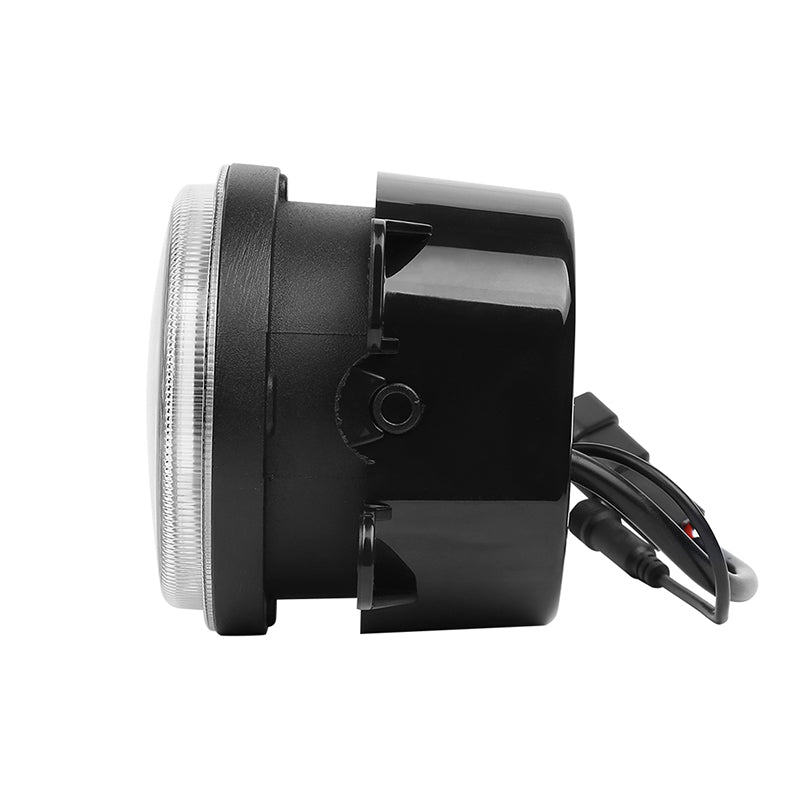

4-inch RGB fog lights
- Functions
- White fog illumination, DRL halo, RGB effects
- Size
- 4 × 3.25 inches
- Listed power / output
- 30W / 1,800 lm*
- LED / white temperature
- CREE XTE / 6000K
- Input voltage
- 12–30V; 13.5V operating voltage listed
- Construction
- Black die-cast aluminum + polycarbonate
- Protection / temperature
- IP68 / −40°C to 80°C
- Estimated service life
- 50,000 hours
*Advertised manufacturer / storefront ratings. Fog output is listed without specifying one lamp or pair.
SUPPORT BEYOND THE INSTALL
Confidence in the next step.
- 1–7 days
- Estimated delivery
- 30 days
- Return window
- 2 years
- Warranty coverage
Delivery varies by stock and destination. Return and warranty terms apply. For fitment help, share your year, platform and connector photos.
THE DETAILS BEFORE THE UPGRADE
Before the
first drive.
Fitment, control and installation details that help you get the most from the kit.
Which app should I download?
Scan the controller or instruction QR code for the correct iOS / Android app. Enable Bluetooth and permissions, check controller power and follow the pairing steps.
What if I see flicker or the app does not connect?
Check power, ground and connectors. Built-in EMC helps with interference and flicker; some vehicles need an extra adapter. For app pairing, check permissions and disconnect another paired phone.
What do the DOT, SAE and E-mark references mean?

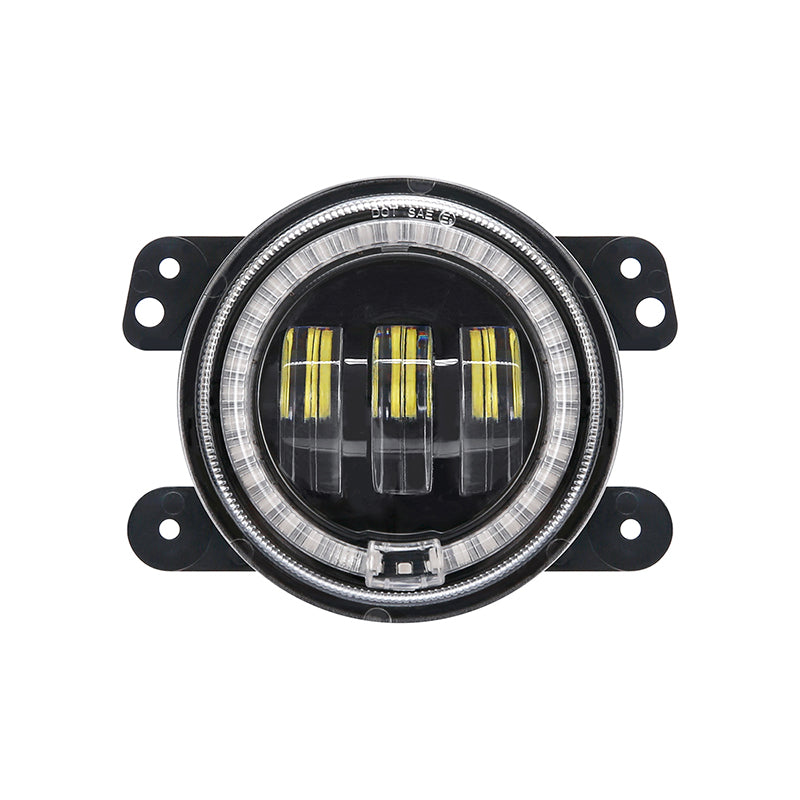

The listing references DOT, SAE and E-mark; close-up images show lens markings. These do not make every RGB color or flashing mode road legal. Ask support for documentation for your lamps and location.
How do delivery, returns and support work?
Delivery is estimated at 1–7 days. Tracking follows dispatch; carriers vary. Return and warranty terms apply. Contact support@ledfactorymart.com for fitment, installation or coverage help.
