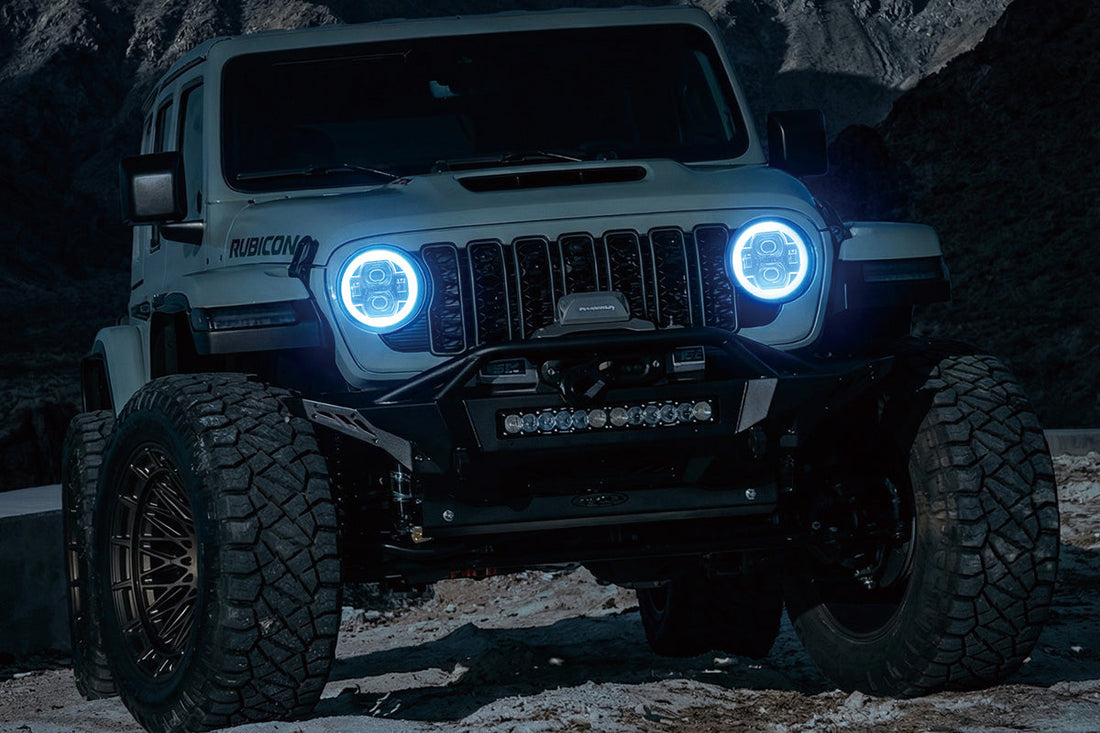

Installation Guide – 9" RGBW Headlights & RGBW Fog Lights

For 2018–2025 Jeep Wrangler JL & Gladiator JT

Before You Begin

Turn off the vehicle and disconnect the battery.

Prepare the necessary tools: screwdriver set, trim clip removal tool, etc.

Lay out all components and ensure the wiring harnesses and connectors are complete and undamaged.

Step 1 — Remove the Front Grille

(Image Example: Removing the front grille)

1. Open the hood.

2. Remove all the plastic clips along the top of the gril

3. Gently pull the grille outward from the bottom to release the lower clips.

Step 2 — Remove the Factory Headlights

(Image Example: Removing screws from the stock headlight)

1. Remove the screws securing the factory headlights.

2. Unplug the factory wiring connector.

3. Take out the headlight assembly from the housing.

Step 3 — Install the New 9" RGBW Headlights

(Image Example: Positioning the new headlight into place)

1. Align the new headlight with the factory mounting position.

2. Connect the plug-and-play harness to the original vehicle socket.

3. Connect the RGBW module’s control wire to the headlight’s RGBW harness.

4. Secure the new headlight using the original screws.

Step 4 — Connect the RGBW Controller

(Image Example: Wiring diagram for controller installation)

1. Mount the RGBW controller behind the grille in a dry and stable location.

2. Connect the left and right headlights to the corresponding ports on the controller.

3. Organize the wiring away from heat sources and moving parts.

4. Connect the RGBW module’s positive and negative wires to the vehicle’s battery control panel
   (Red = positive, Black = negative).

Step 5 — Reinstall the Front Grille

(Image Example: Reinstalling the front grille)

1. Align the lower grille clips and press them back into place.

2. Reinstall all upper clips.

3. Close the hood.

Installation Complete!

Your 9" RGBW headlights and RGBW fog lights are now successfully installed and ready for use.
