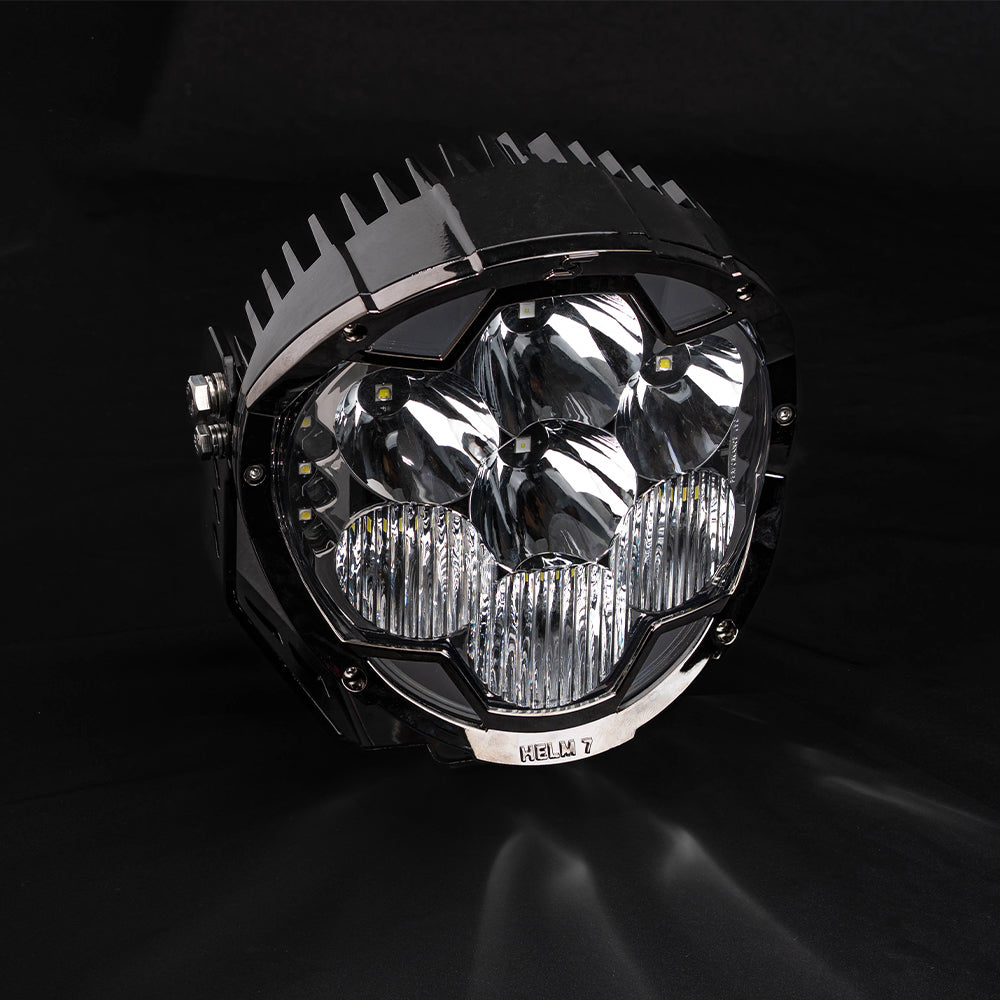

Helm 7" LED Pod Lights for Off-Road – 217° Ultra-Wide Beam 2030ft Range

Helm 7" LED Pod Lights for Off-Road – 217° Ultra-Wide Beam 2030ft Range

SP-CR074-1

Precio habitual $409.90
Precio de oferta $409.90 Precio habitual $536.55
Los gastos de envío se calculan en la pantalla de pago.

Description

The HELM 7" LED Pod Lights are engineered for serious off-road performance, combining forward-projecting main beams with integrated side lighting for an exceptional 217° usable illumination angle. Delivering up to 13,346 lumens and a long-range reach of 2030 ft (619 m), these lights dramatically improve visibility on dark trails and demanding terrain. Built with a hard-coated polycarbonate lens, powder-coated cast aluminum housing, and IP68/IP69K waterproof protection, HELM pod lights are designed to withstand extreme environments. Featuring amber DRL, removable face covers, and stainless steel hardware, they offer both rugged durability and customizable style for Jeeps, trucks, and off-road vehicles.

Specification

Lens & Housing
Lens Color: Clear
Lens Material: Hard-Coated Polycarbonate
Housing Material: ADC12 Powder-Coated Cast Aluminum
Housing Color: Matte Black
Bezel: Replaceable / Color-Customizable
Ingress Protection: IP68 / IP69K
Lighting Performance
Lighting Type: Forward Projecting + Side Illumination
Beam Pattern: Spot / Driving Light + Amber DRL
Usable Beam Angle: 217° Ultra-Wide Coverage
Total Lumens: Up to 13,346 lm
Lighting Distance: 1 lux @ 619 m (2030 ft)
10 m Illuminance: Up to 5060 lux
Peak Beam Intensity: Up to 506,000 cd

LED Configuration
Front LEDs: 7 LEDs (Long-range trail illumination)
Side LEDs: 6 LEDs (3 per side for expanded visibility)
LED Technology: High-Performance LED
Color Temperature: ~6000K (White)
Amber DRL: Integrated

Electrical
Wattage:
High Beam: 123W (initial) / 86.6W (stable)
Low Beam: 84.2W (initial) / 63.8W (stable)
Rated Power: 120W
Voltage: 12V / 24V
Lifespan: Up to 50,000 hours
Mounting & Wiring
Mounting Hardware: Included
Bracket Material: Stainless Steel
Wiring Harness: Included
Connector Type: DT4
Switch Wire Length: 9.8 ft
Durability & Certification
Operating Temperature: -40°F to 149°F
Certifications: ROHS / CE / FCC / EMC
Warranty: 5-Year Limited Warranty

Fitment

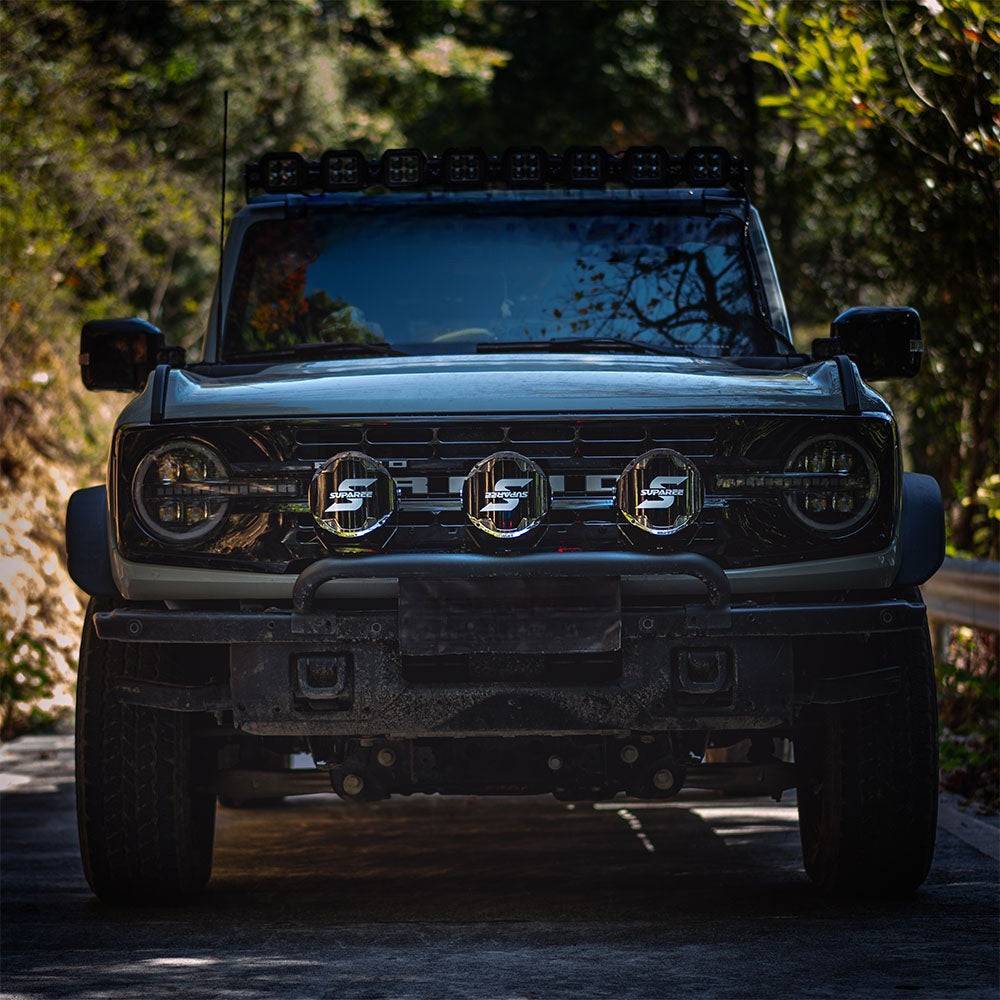

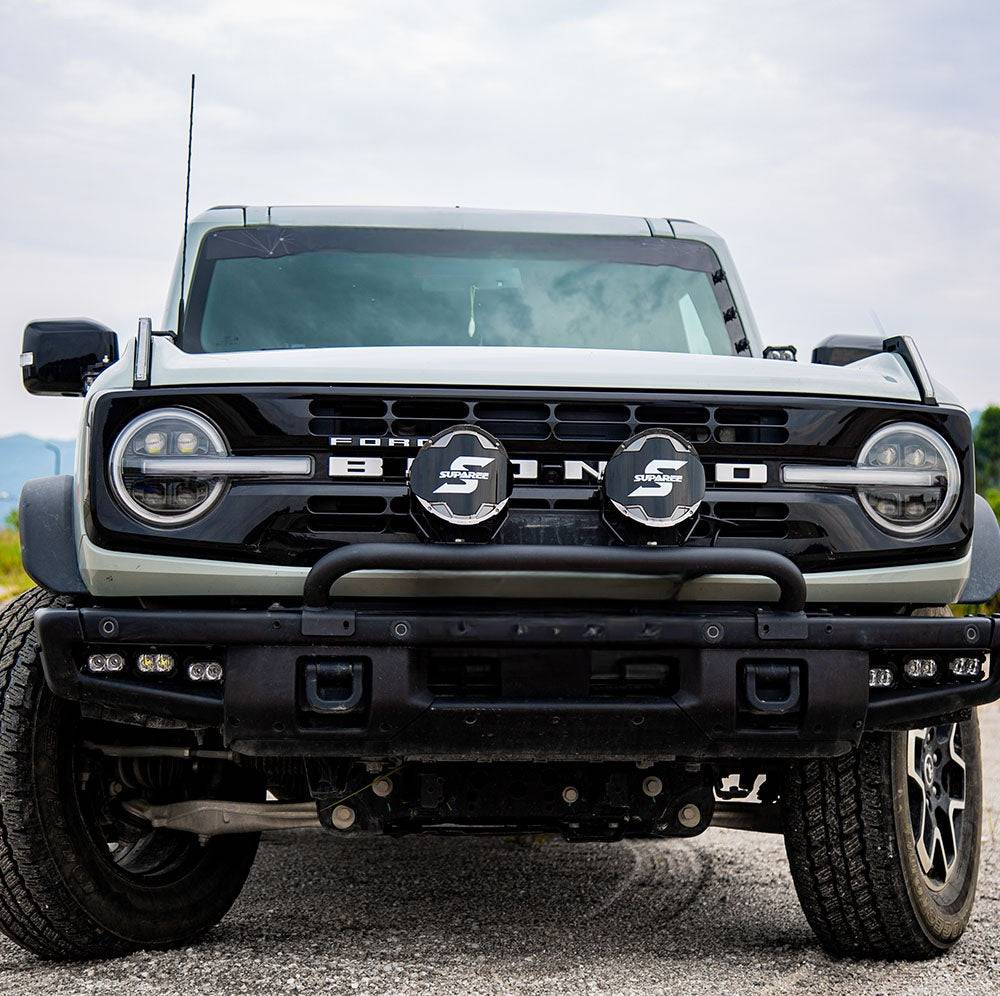

This HELM 7″ LED Pod Light is designed as a universal fit off-road lighting solution and is compatible with a wide range of vehicles. It can be easily mounted on most bumpers, A-pillars, roof racks, light bars, and aftermarket brackets.

Compatible Vehicles & Applications Include:
Jeep Wrangler / Gladiator / Cherokee
Ford Bronco
Toyota Tacoma / 4Runner / Tundra
Chevrolet Silverado / Colorado
GMC Sierra / Canyon
RAM 1500 / 2500 / 3500
Nissan Frontier / Titan
Off-road trucks, UTVs, ATVs, SUVs
Roof racks, bull bars, bumpers, auxiliary mounts

Fitment Notes:
Universal mounting hardware included
Works on 12V and 24V systems
Adjustable stainless steel brackets for flexible installation angles

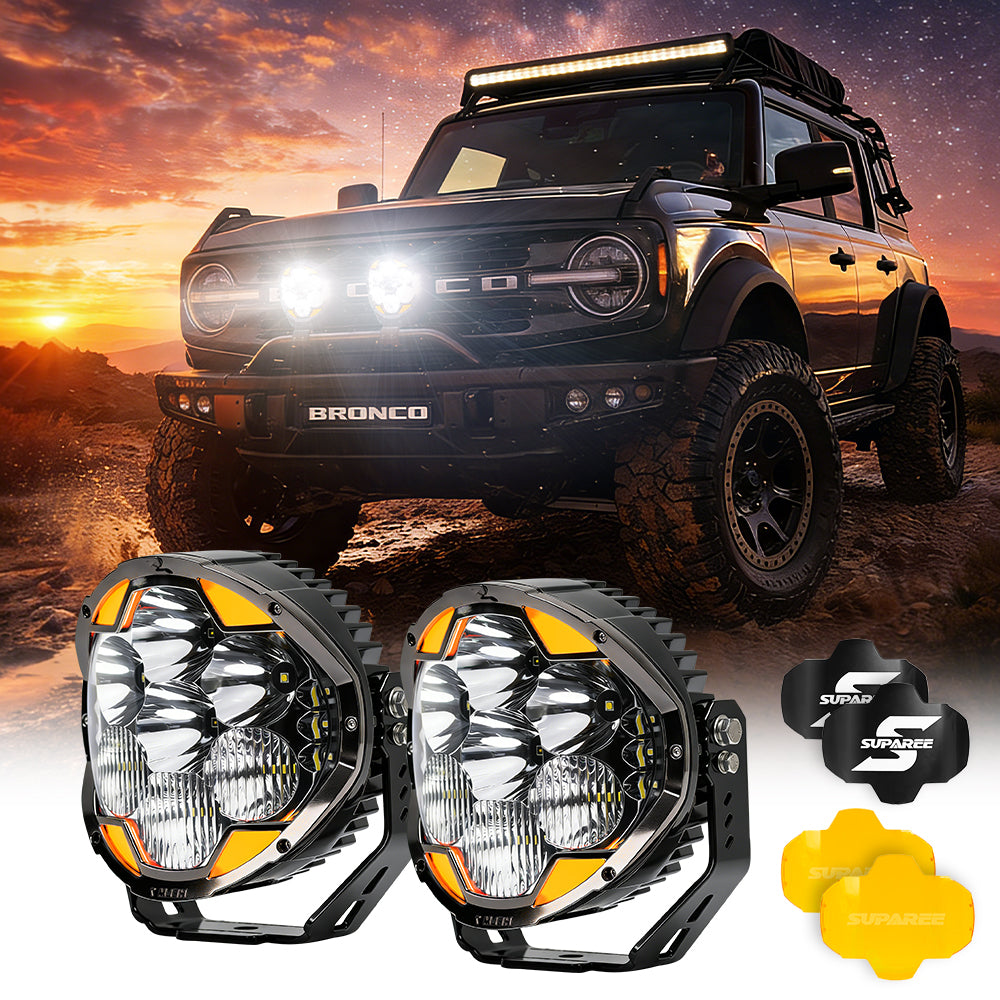

What’s included?

2 × HELM 7" LED Pod Lights
2 × Black Covers
2 × Amber Covers
2 × Stainless Steel Adjustable Brackets with full hardware set (M8, M6, M12 bolts + wrench)
1 × Wiring Harness (9.8 ft) with multifunction switch
1 × User Manual (Click to view)

FAQs

Q1: Why does LEDFACTORYMART sell Suparee products? Are they genuine?
A:
Suparee is an in-house brand under the same corporate group as LEDFACTORYMART, specializing in professional work lights. All Suparee products sold on LEDFACTORYMART are 100% authentic, manufactured and quality-controlled under the same standards, and backed by full warranty support.
We guarantee authenticity — any verified counterfeit product will be compensated ten times.

Q2: What applications is this 7″ LED pod light designed for?
A: Designed as a universal off‑road auxiliary light, suitable for vehicles like Jeeps, trucks, SUVs, and overland builds. It can be mounted on A‑pillars, bumpers, roof racks, or custom mounts for enhanced forward and peripheral illumination.

Q3: What optical design does this light use and what are its advantages?
A: Utilizes a dual‑layer focus optical system combining forward spot LEDs for long‑range illumination and side LEDs for broader coverage, enhancing trail visibility both far ahead and to the sides.

Q4: What are the brightness and beam characteristics?
A: Delivers up to 13,346 lumens total output with a usable beam out to approximately 677 yards (~619 m) at 1 lux, and about 217° effective beam spread, making it ideal for both long‑distance and wide peripheral illumination.

Q5: Does this light support multiple beam modes?
A: Yes. Provides dual‑output modes (high and low) that can be controlled via a switch or wiring logic to match different terrain and lighting requirements.

Q6: Why does this light perform well in harsh conditions?
A: Advanced LED emitters and focused optics improve penetration through dust, fog, and rain, while integrated amber DRL enhances visibility where white light alone may struggle.

Q7: Does it feature daytime running lights (DRL)?
A: Yes, it includes an integrated amber DRL to improve daytime visibility and act as a safety accent light.

Q8: Is installation difficult? Is it plug‑and‑play?
A: Comes with complete harness and adjustable mounting brackets. It supports standard 12V/24V power input and plug‑in wiring for easy installation. Some mounts may require drilling to secure brackets.

Q9: How is electrical compatibility and interference resistance?
A: Built‑in EMC protection minimizes interference or flicker. For high‑power use, it is recommended to use a relay and proper fuse protection.

Q10: What is the waterproof and dustproof rating?
A: Rated IP68/IP69K, with a sealed aluminum housing and polycarbonate lens, suitable for rain, mud, dust, and high‑pressure wash environments.

Q11: How is heat dissipation managed?
A: The aluminum housing and heat sink design dissipate heat efficiently, maintaining stable LED temperatures and consistent performance.

Q12: What is the expected lifespan of the LEDs?
A: LEDs are rated for about 50,000+ hours, with stable output over long durations.

Q13: Can running multiple lights at once stress the vehicle’s electrical system?
A: Each light draws significant power, and multiple units may benefit from external relays or power management to ensure stable supply without overloading the vehicle harness.

Q14: Is the light durable in rugged off‑road environments?
A: Yes, the rugged housing and shock‑resistant design improve durability. However, avoid direct impact with sharp objects or repeated heavy hits.

Q15: What are the shipping and tracking arrangements?
A: Orders typically arrive within 2–5 business days after dispatch. Tracking information is provided for real‑time monitoring.

Q16: What warranty and payment security are offered?
A: A 5‑year warranty covers non‑user defects. Payments are processed securely with encryption and no payment details are stored.

Formas de pago
  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Helm 7" LED Pod Lights for Off-Road – 217° Ultra-Wide Beam 2030ft Range

$409.90

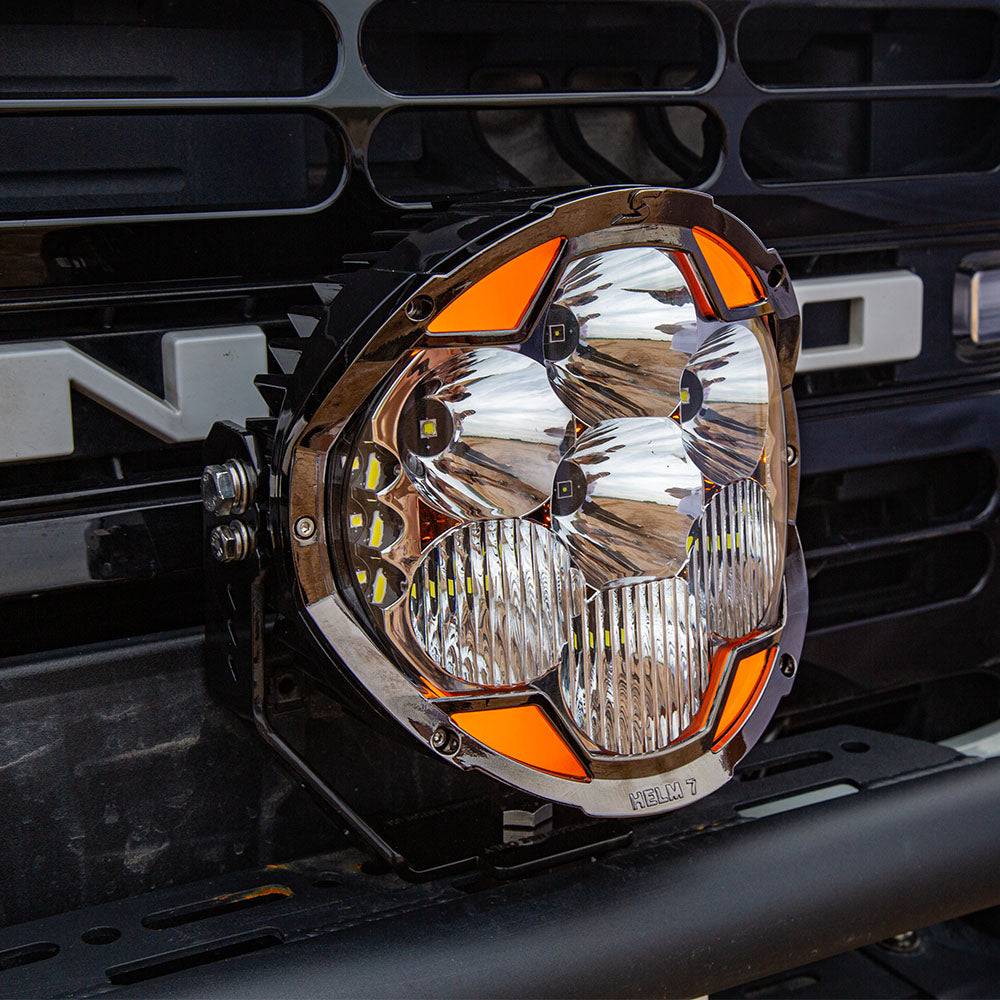

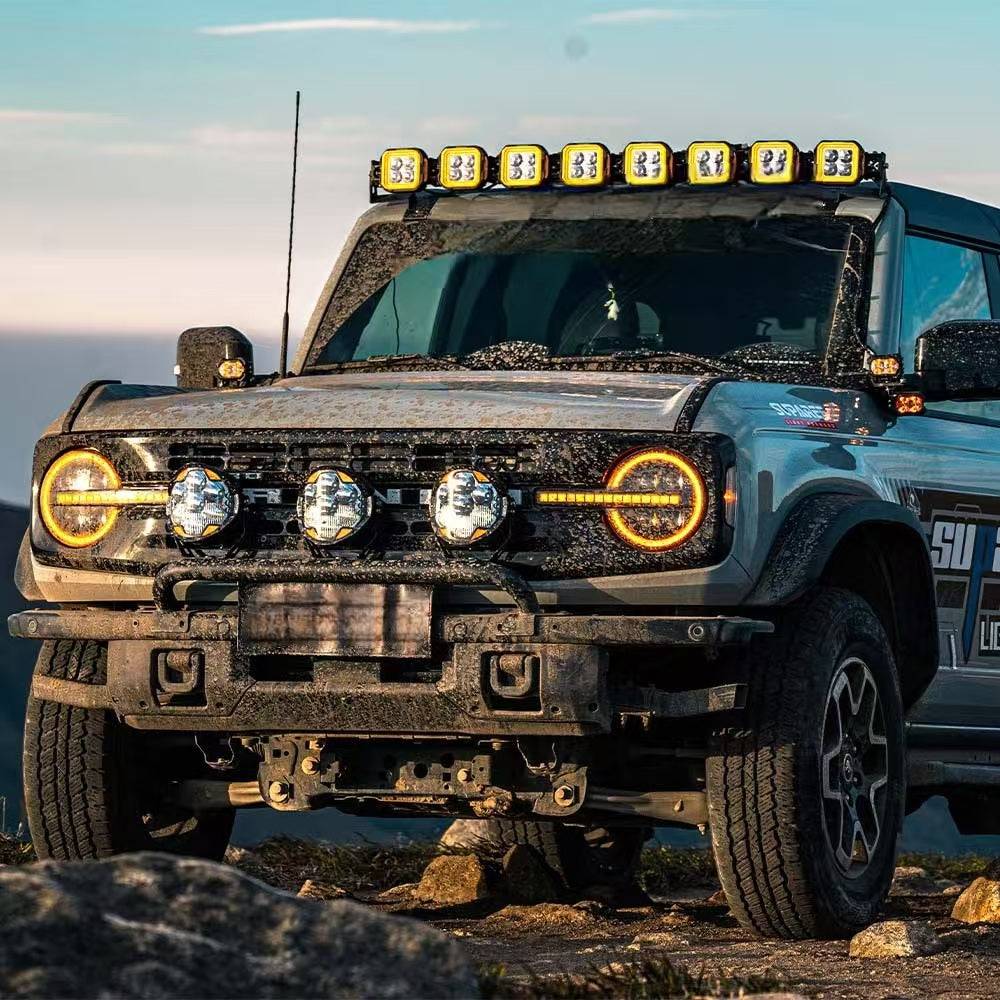

high performance 7 inch LED lighting pods with 13346 lumens and long distance beam

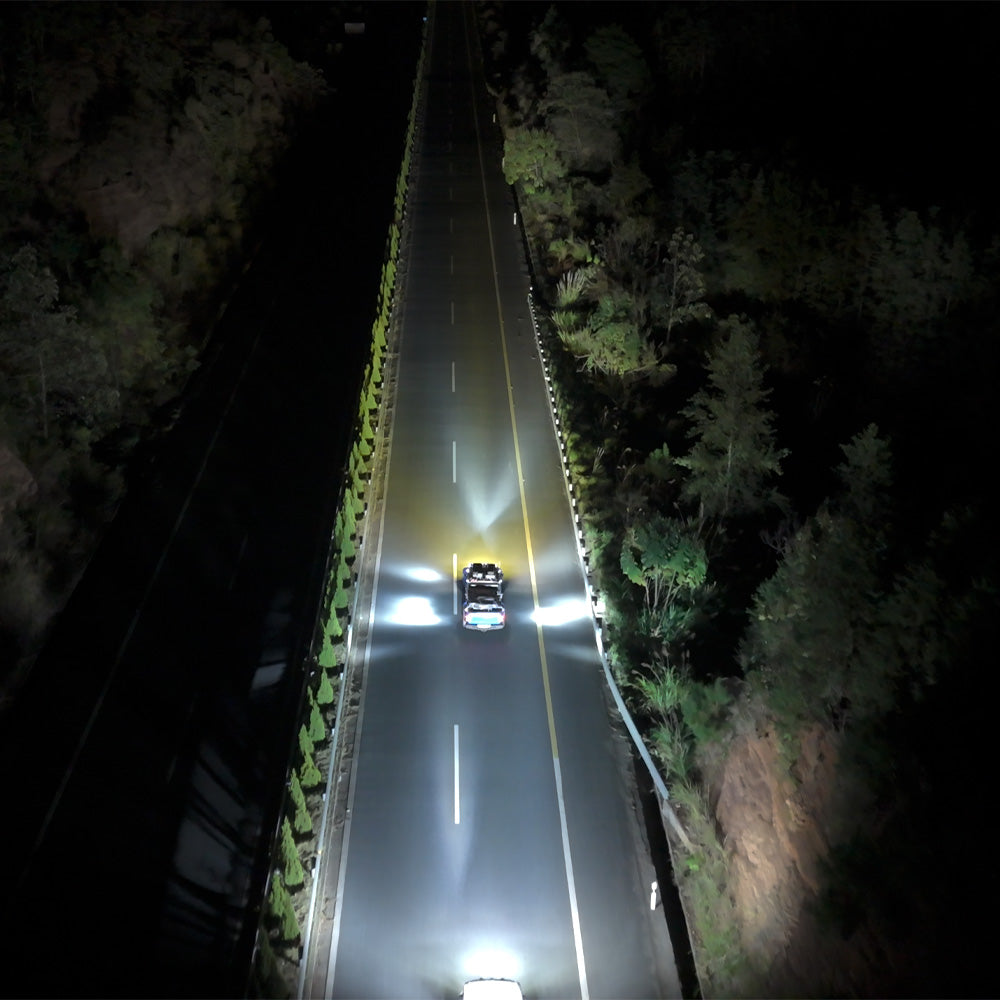

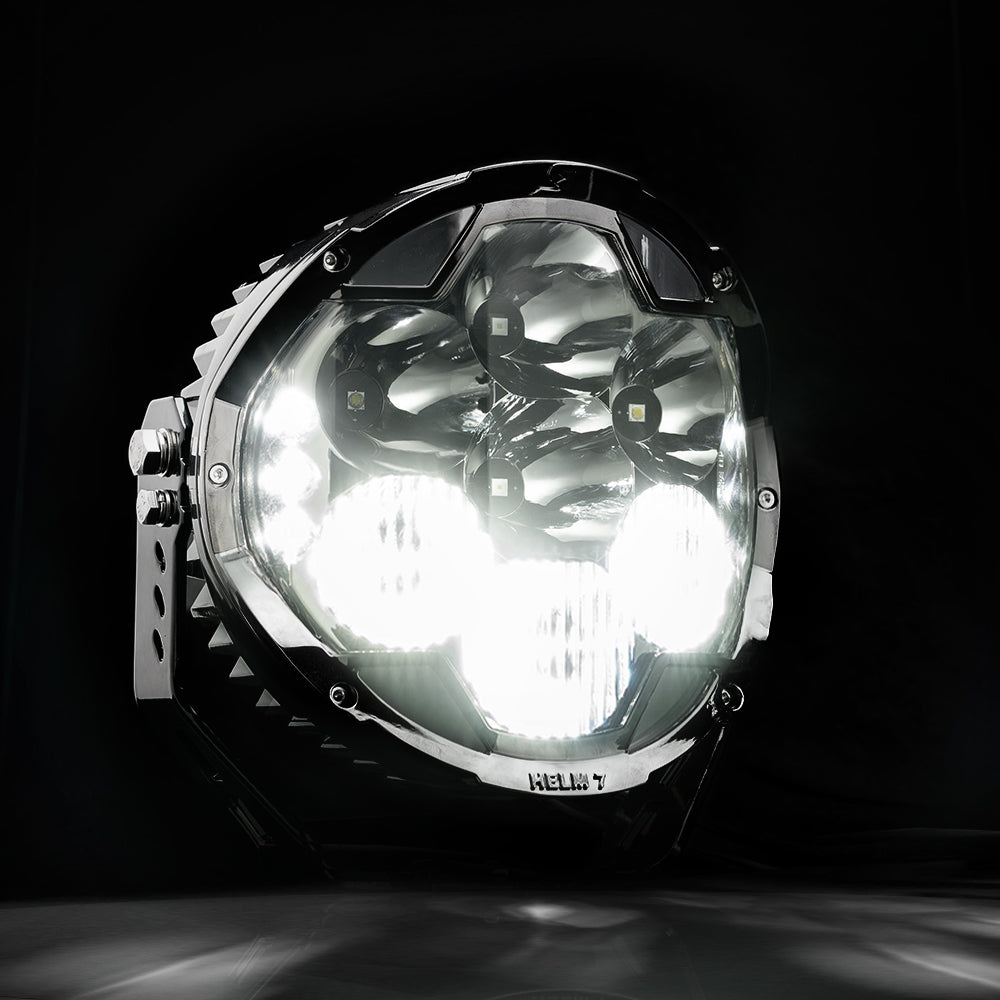

Ultra-Bright Long-Range Illumination

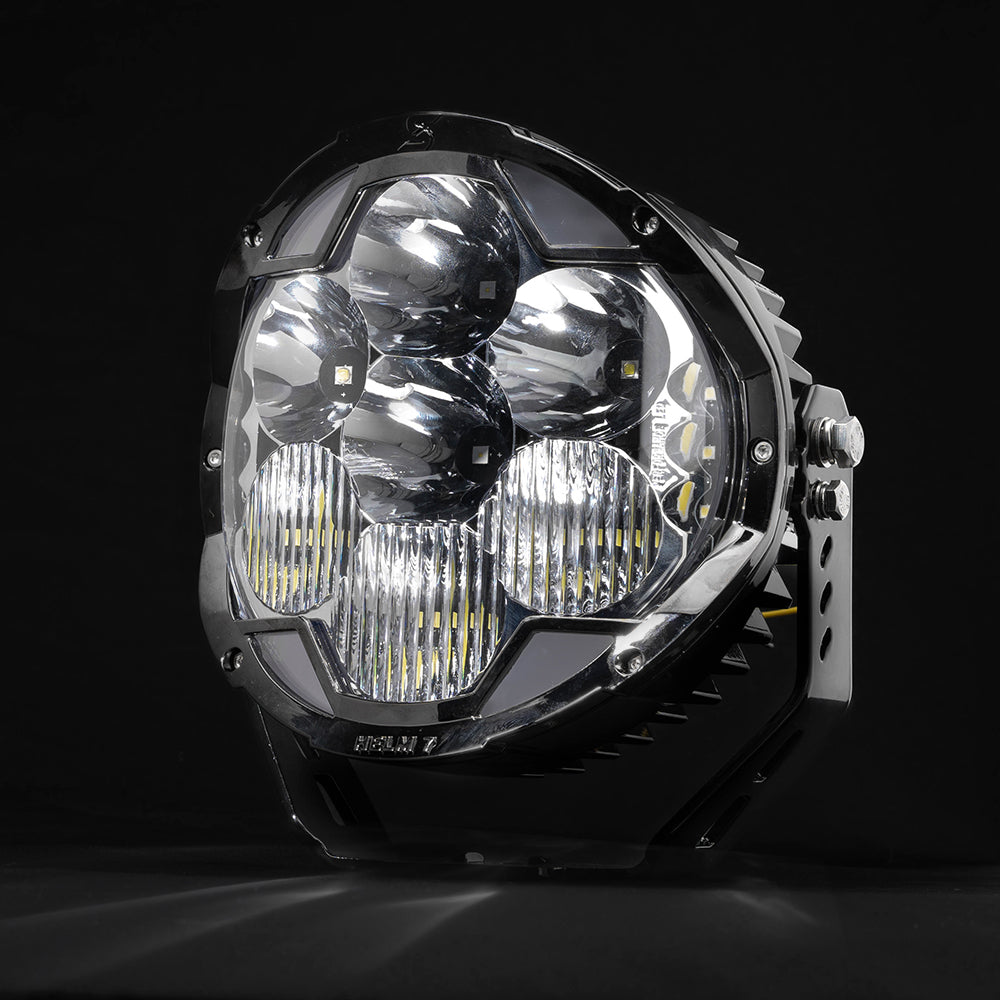

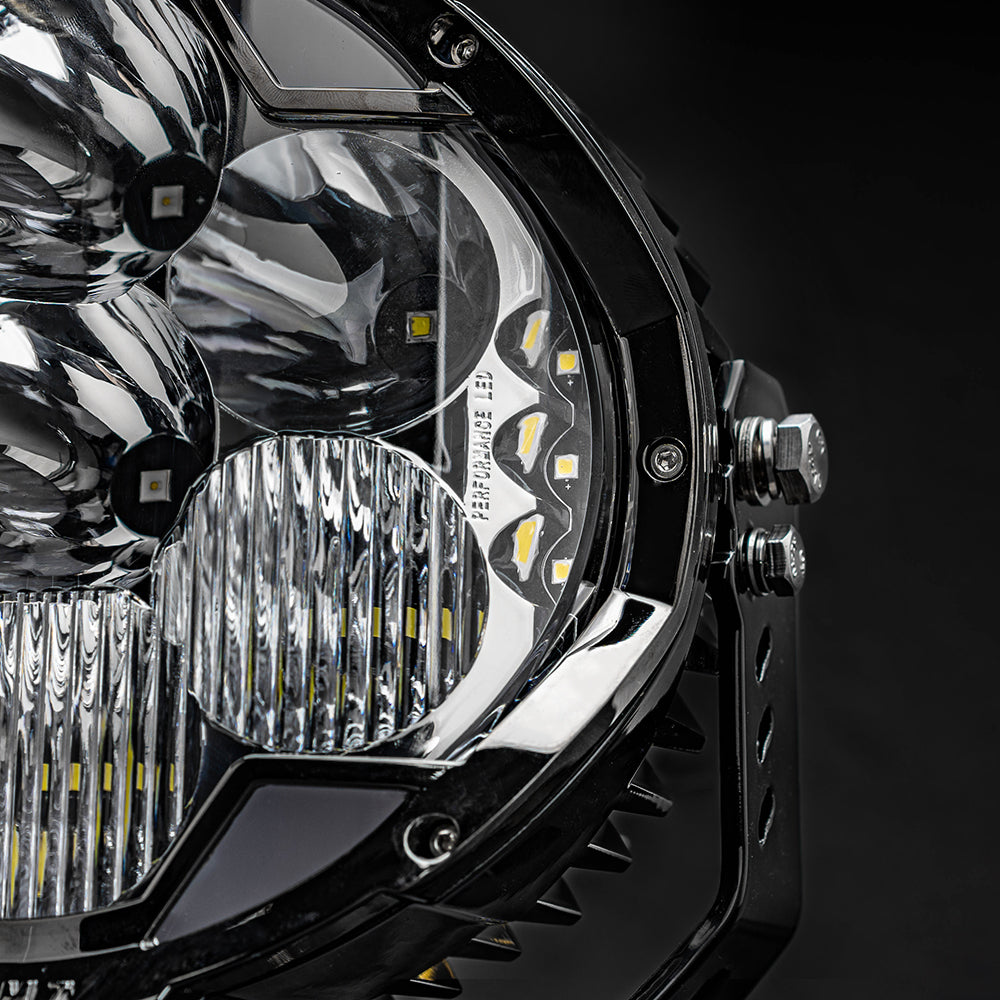

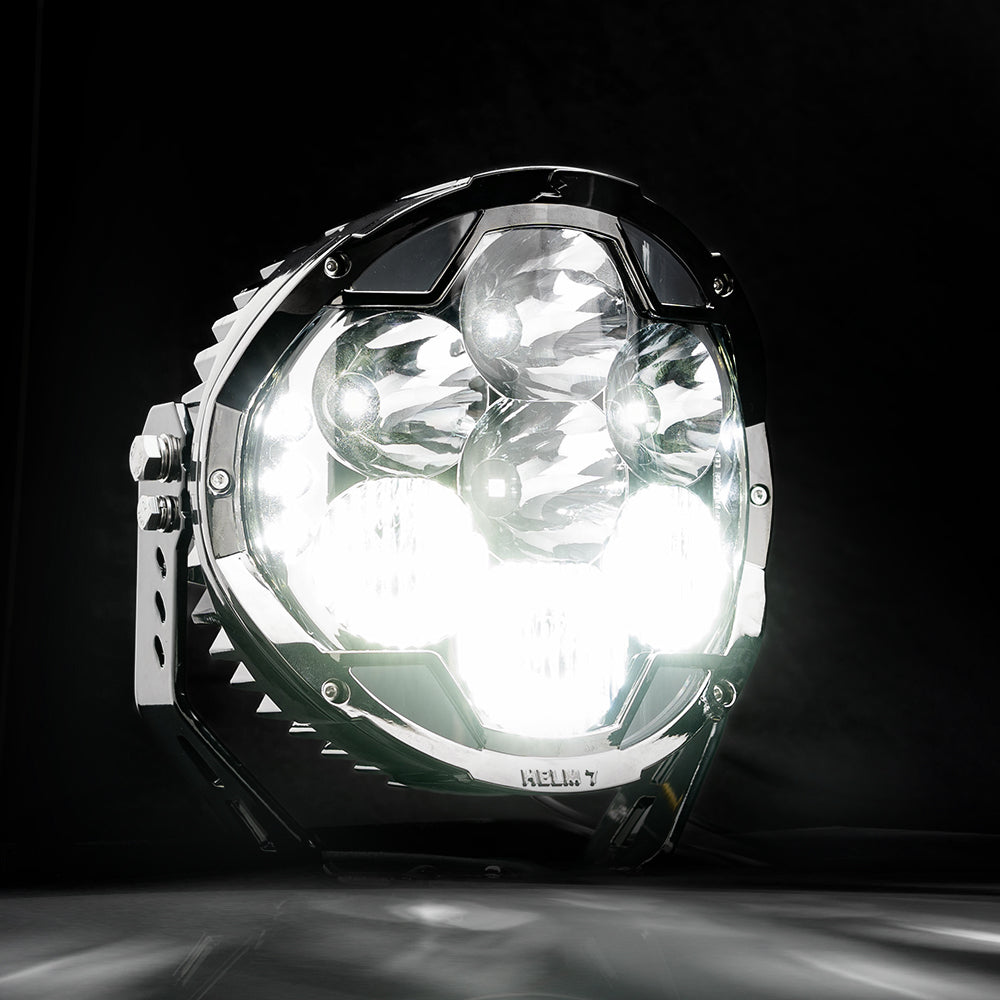

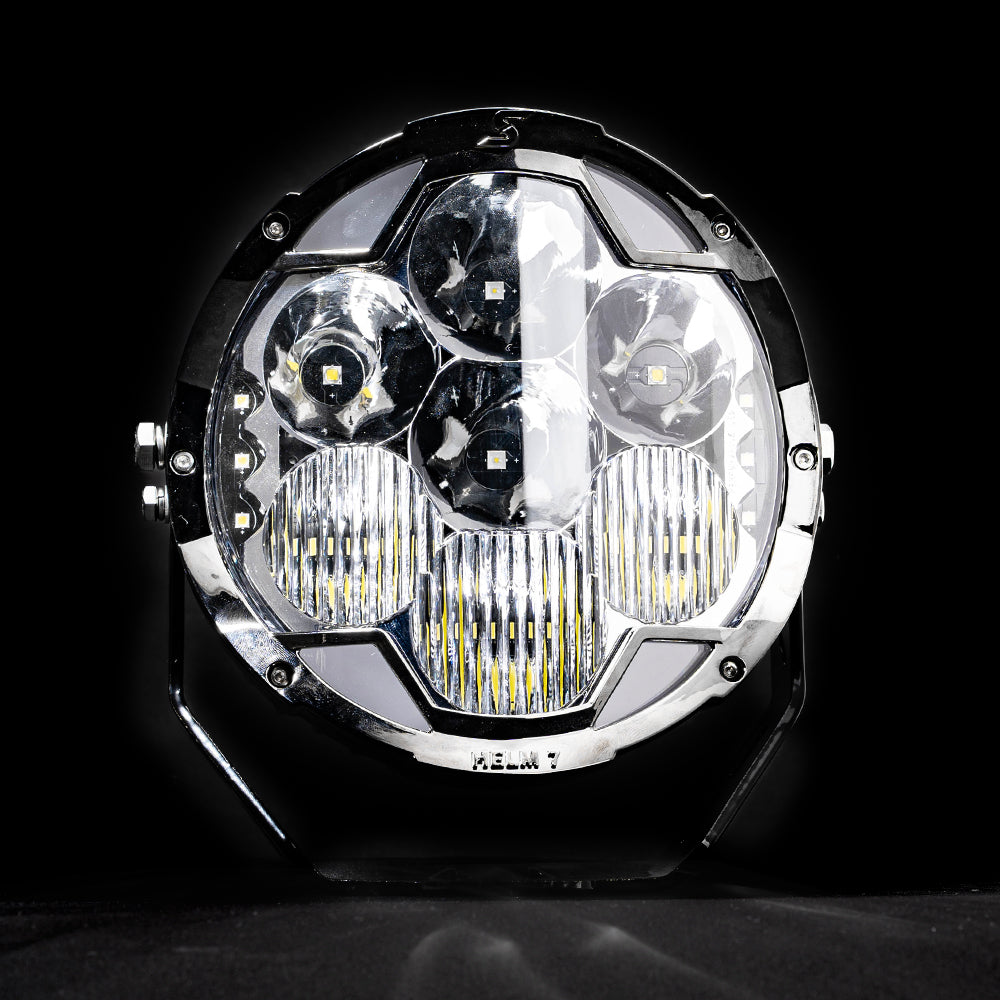

The HELM 7″ LED Pod Light features 7 forward-facing LEDs and 6 side LEDs (3 per side), delivering up to 13,346 lumens of brightness with a maximum beam distance of 2,030 ft (619 m). It achieves a peak beam intensity of 506,000 candela and 5,060 lux at 10 meters, covering an ultra-wide 217° beam angle. Engineered for professional off-road lighting, it’s ideal for extreme fleet vehicles, recreational enthusiasts, and professional adventurers alike.

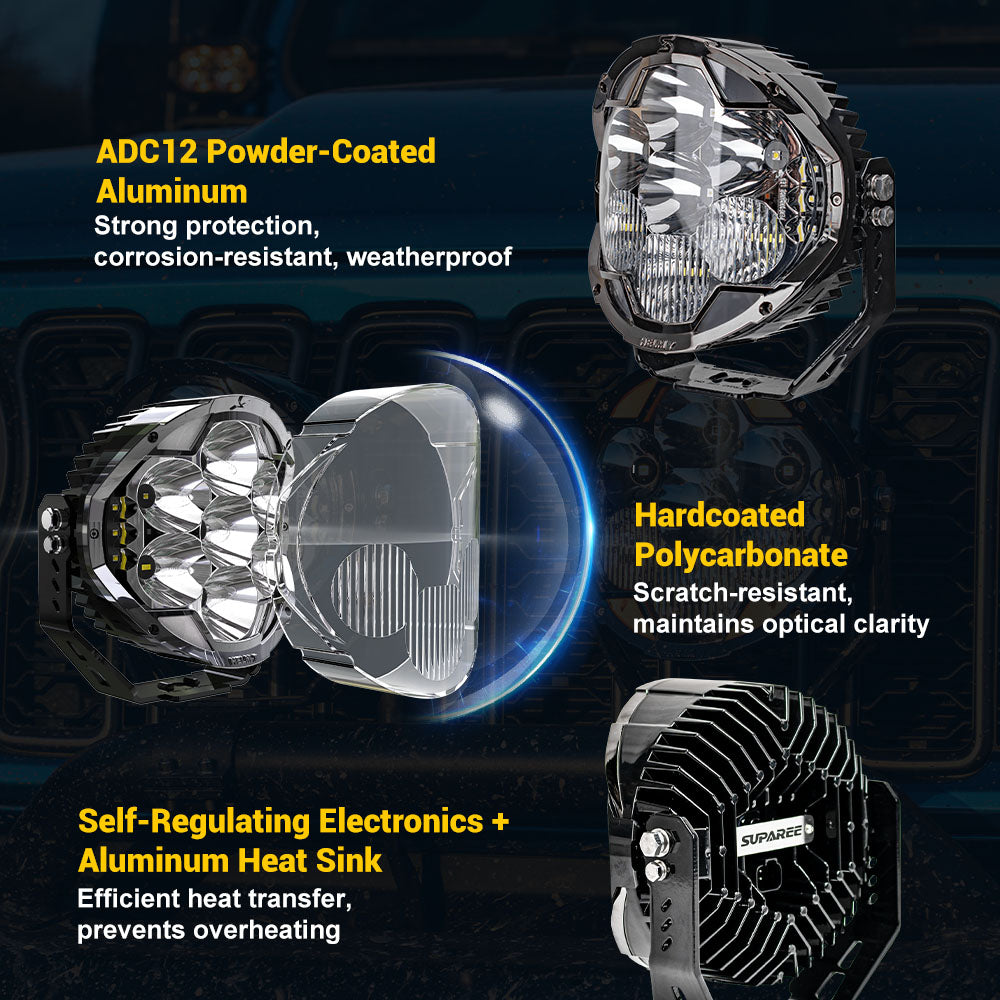

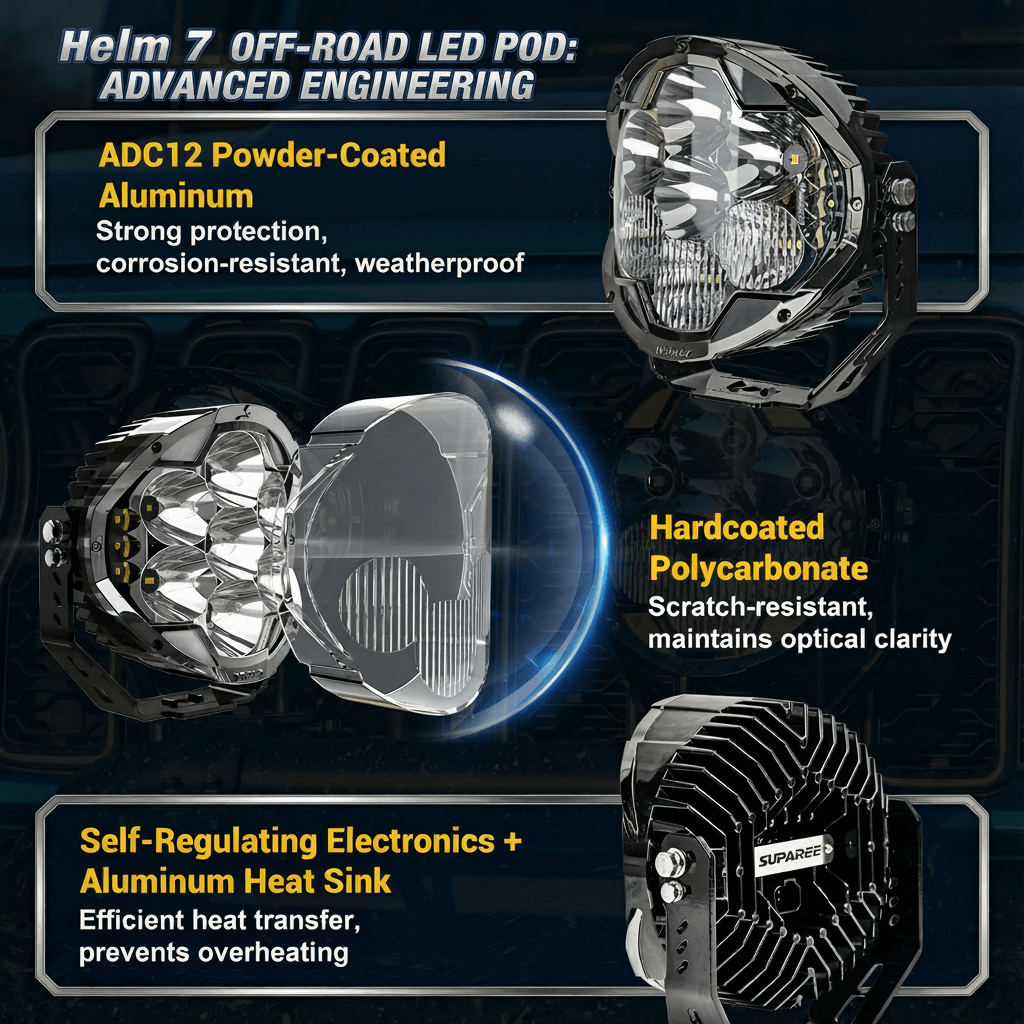

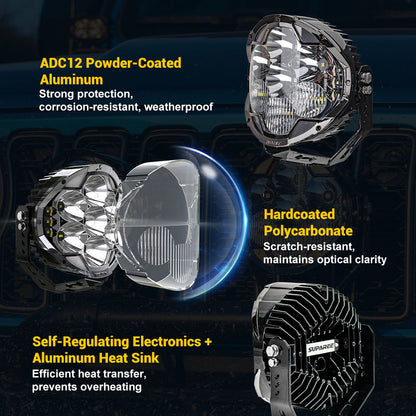

Durable Powder-Coated Aluminum Housing

The light body is made of ADC12 powder-coated cast aluminum with hard-coated polycarbonate lens, providing impact and scratch resistance. Rated IP68/IP69K waterproof and dustproof, it withstands high-pressure water spray and extreme temperatures (-40°F to 149°F), ensuring long-term reliability and performance in harsh off-road environments.

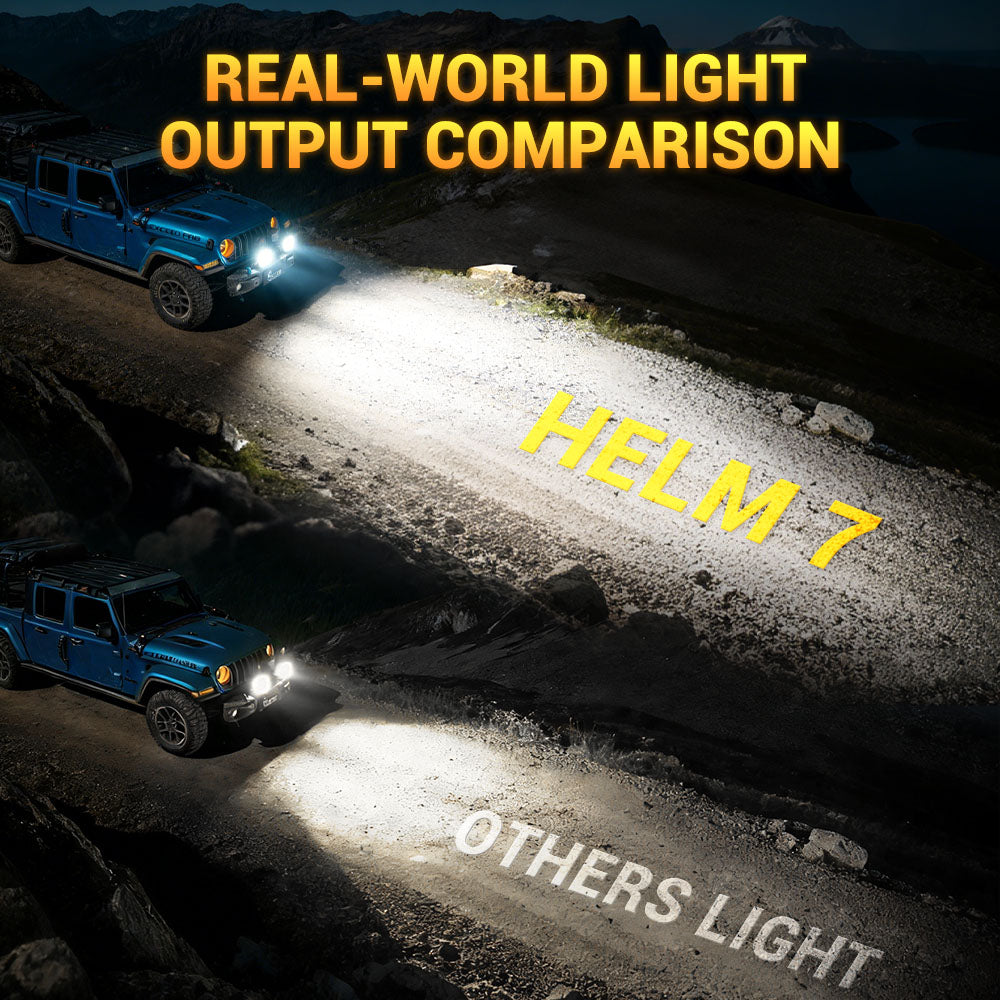

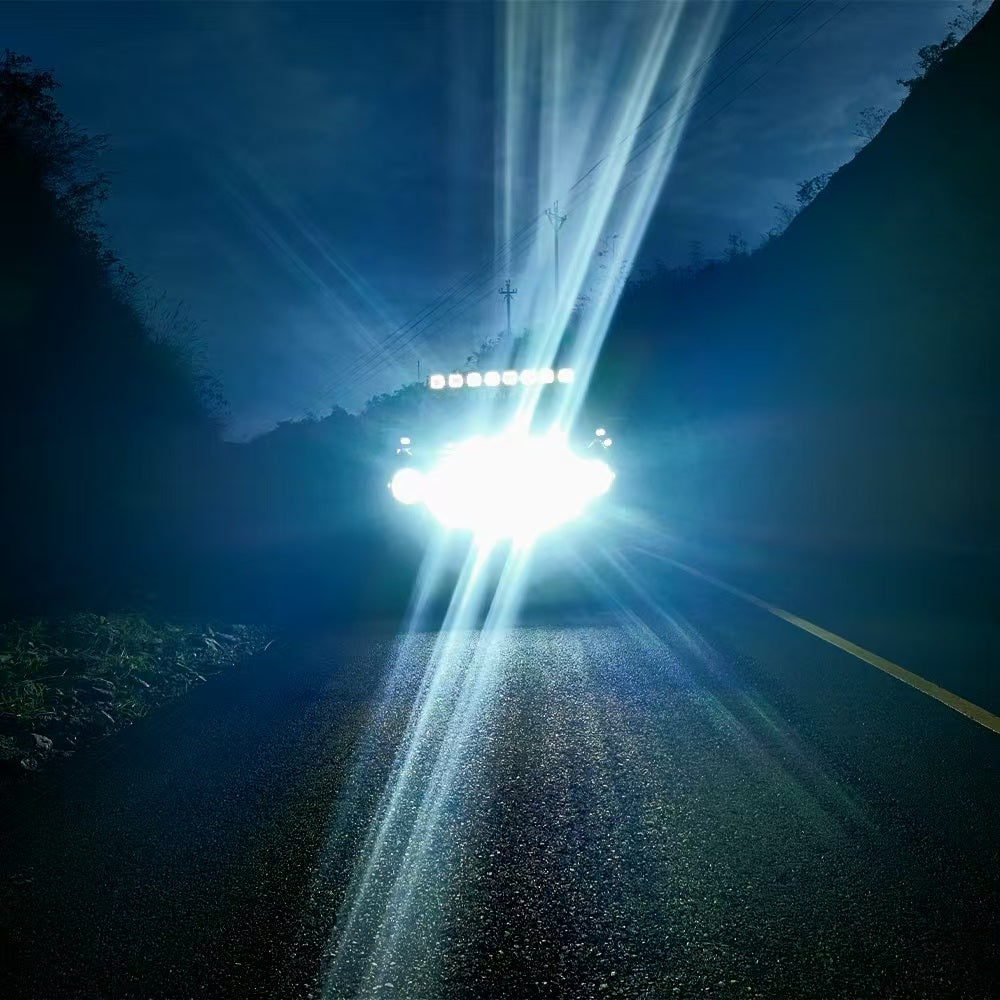

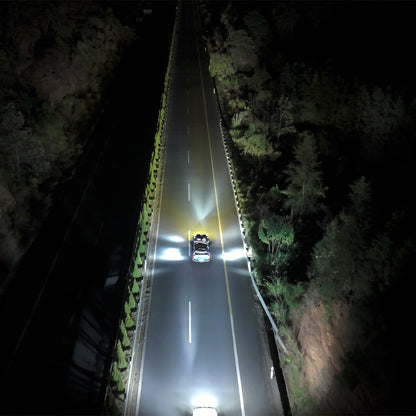

Covers 95% of Forward Lighting Needs

One HELM 7 changes everything ahead.
With HELM 7 installed, the road forward is fully illuminated, with clarity where it matters most.
Without it, blind spots, breaks in visibility, and uncertainty remain.
One deliberate upgrade is all it takes to redefine the confidence you rely on at night.
In many off-road situations, it outperforms factory headlights in both brightness and coverage.

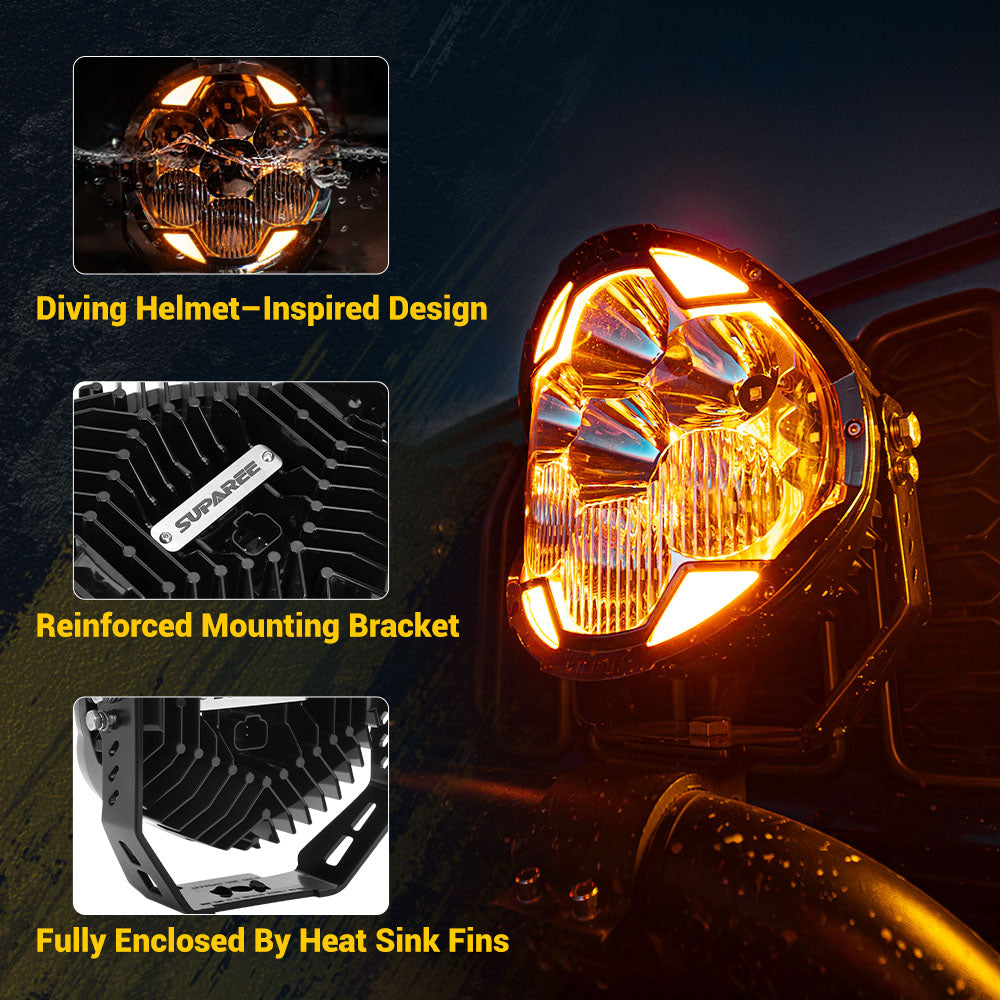

Superior Thermal Management System

Built-in auto-regulating electronics and aluminum heat sinks provide a total surface area of 271,000 mm² for efficient heat dissipation. This keeps LEDs cool, maintains stable high and low beam output, and extends the light's lifespan up to 50,000 hours, ensuring professional-grade performance even during extended off-road use.

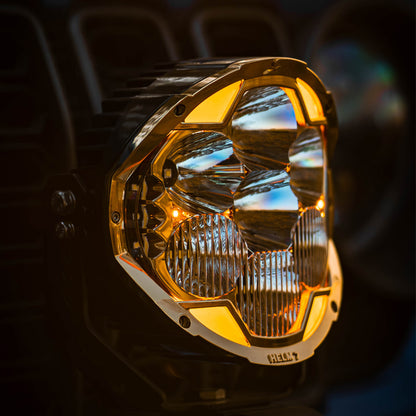

Industrial-Grade Integrated Structural Design

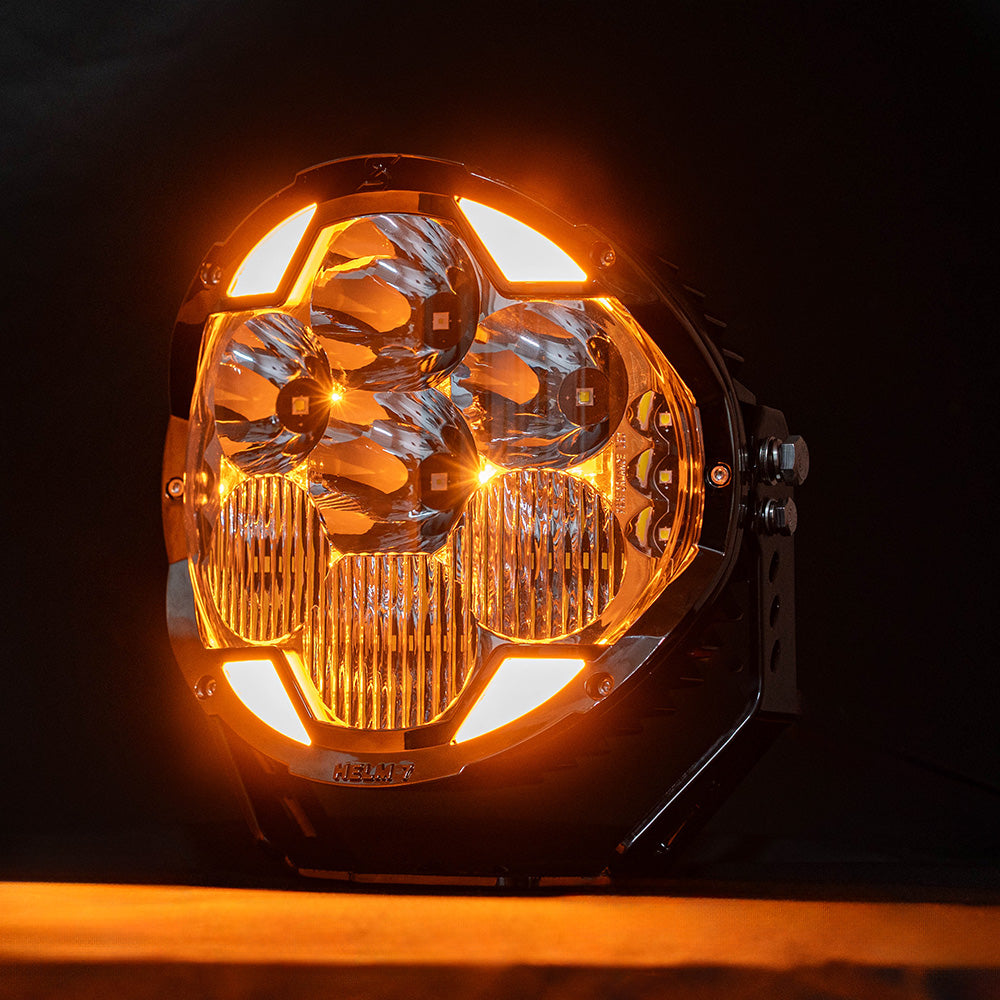

Clear and Distinctive. The amber daytime running lights significantly enhance vehicle visibility in low-light conditions while adding a unique yet refined look to the front end. Paired with a gold chrome outer ring, this is a flagship product from the premium industrial series.

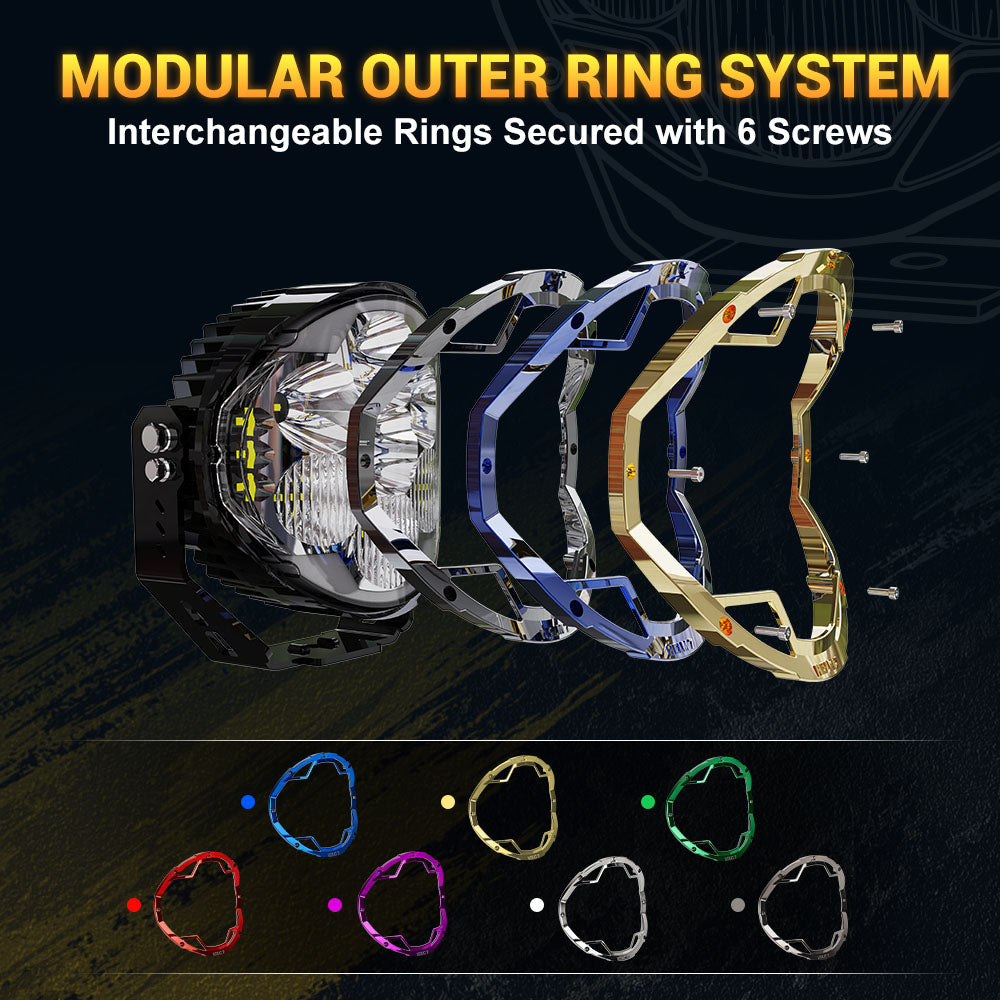

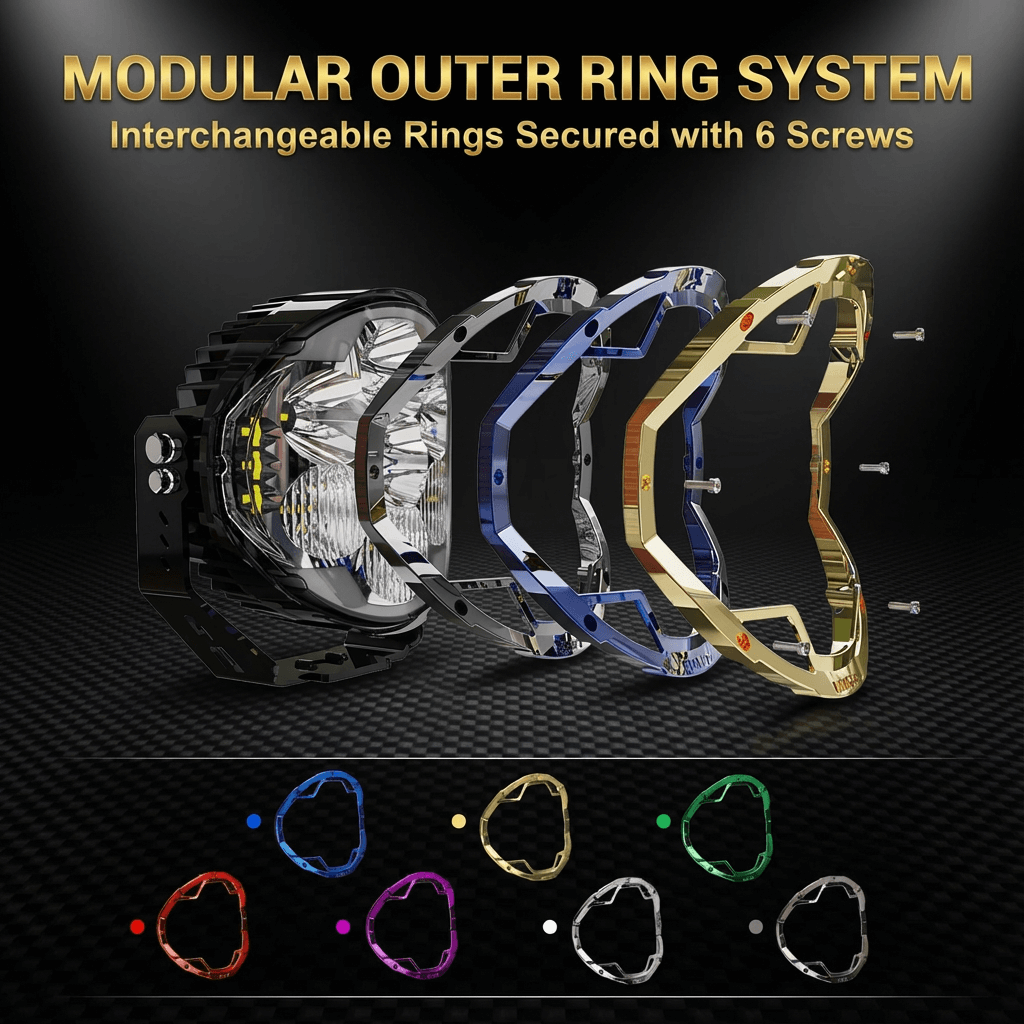

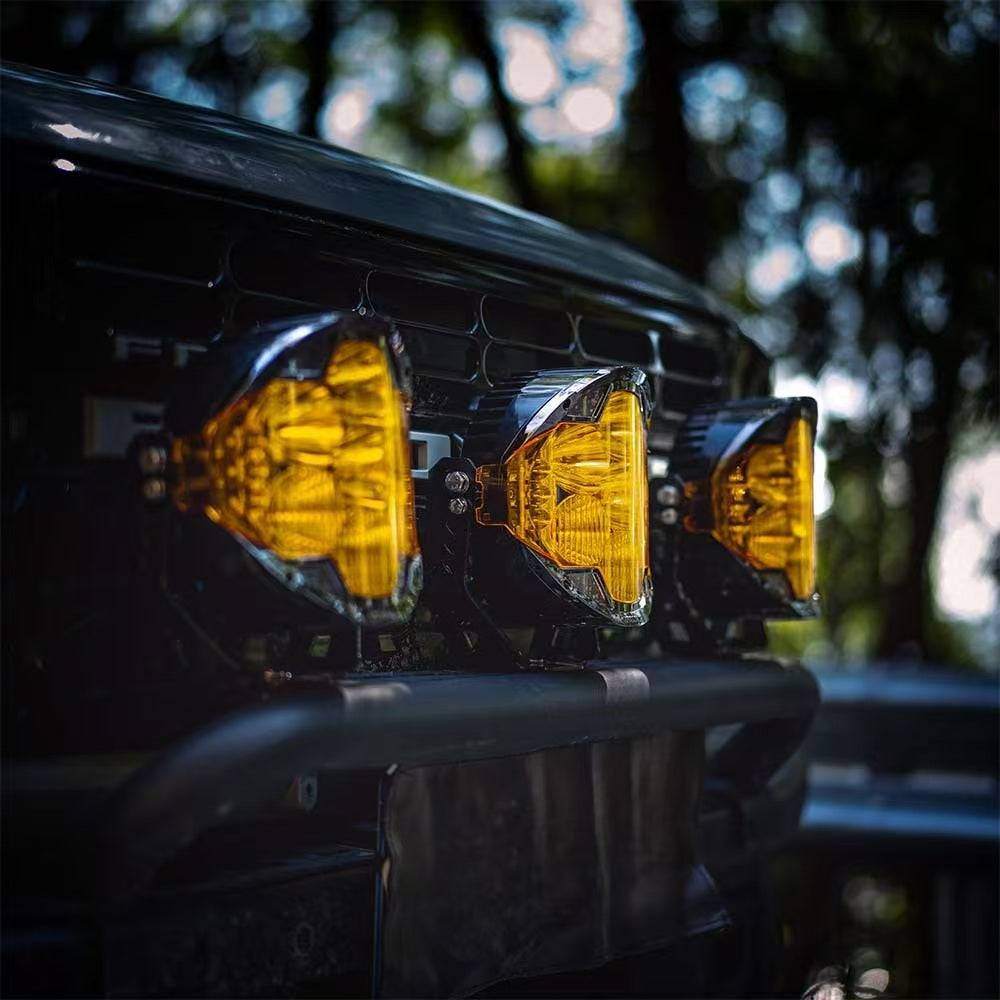

Customizable Covers and Appearance

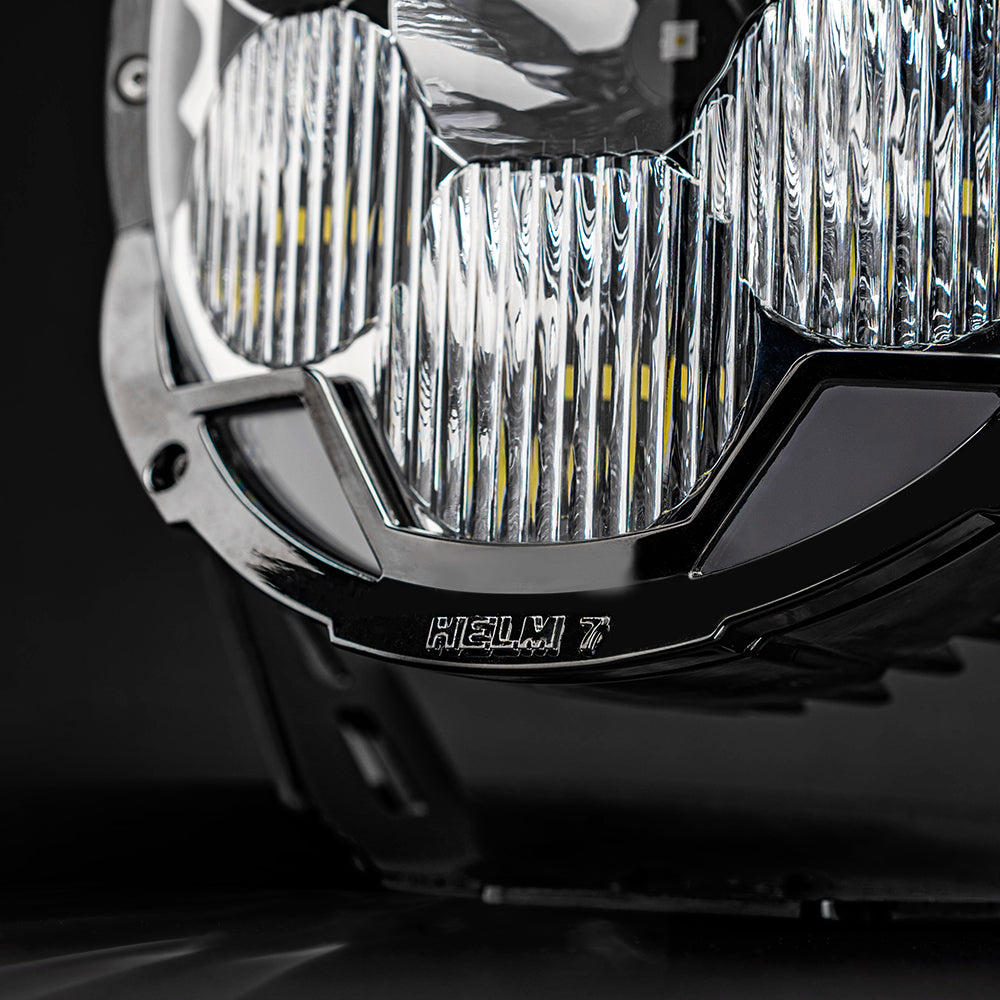

The product comes with removable black and amber panels for hassle-free driving. It also features a high-quality chrome removable outer ring and a detachable rear emblem, adding extra customization options. Pair different rings with your vehicle’s color for a more striking appearance. This personalizable lighting system lets you stand out at car meetups.

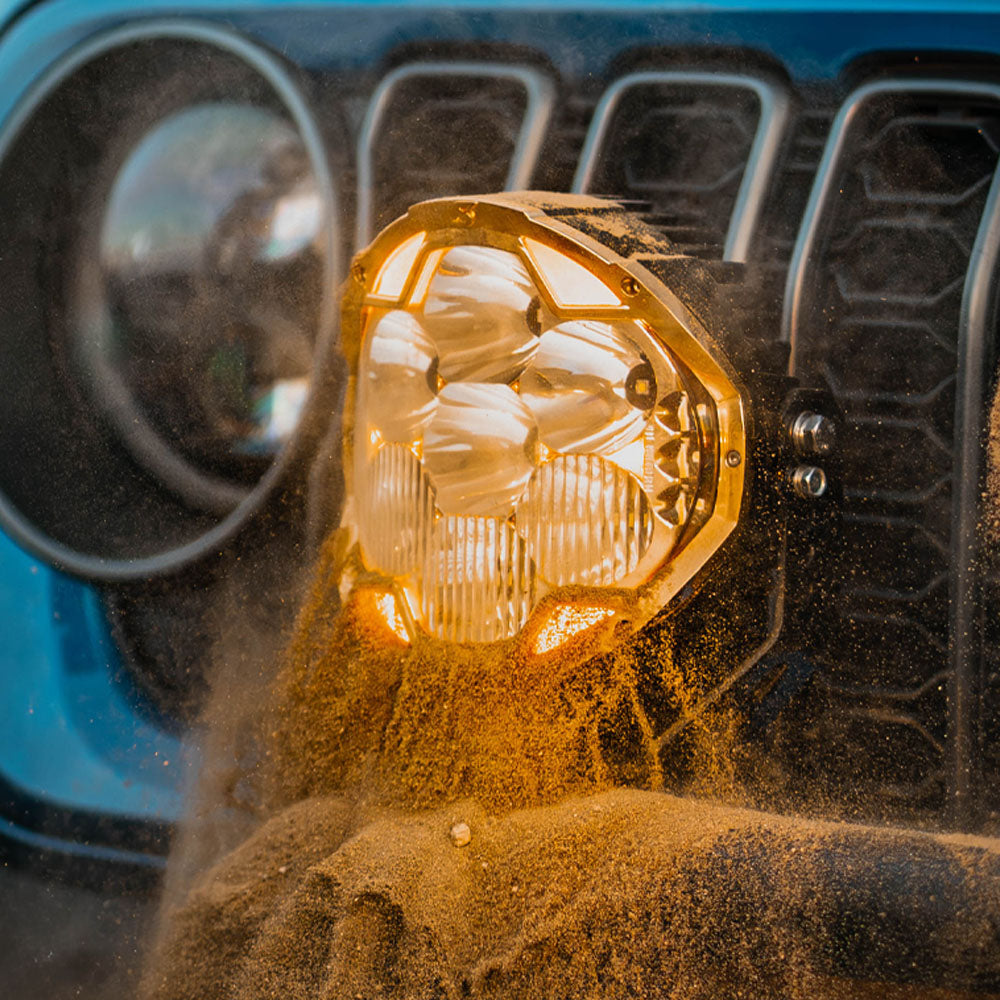

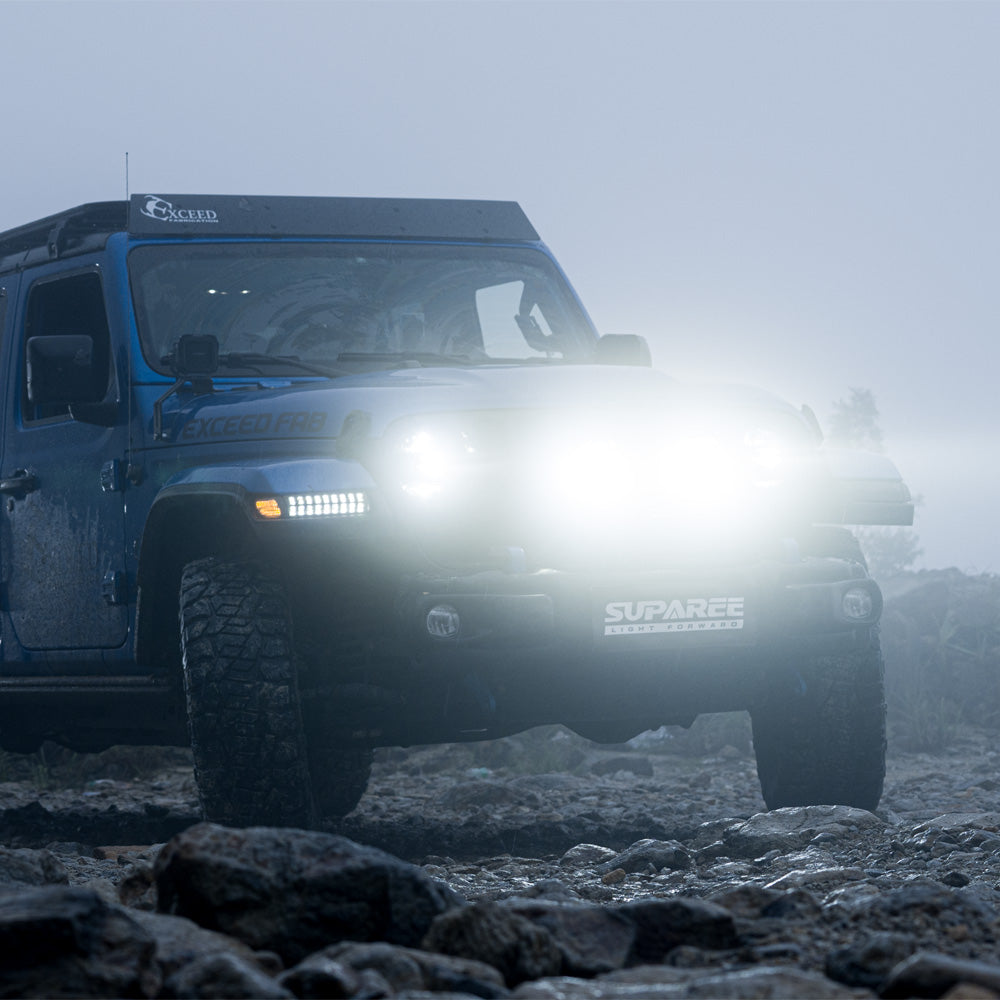

All-Weather Protection

With IP68/IP69K waterproof and dustproof rating, the HELM 7 can withstand high-pressure water jets and full submersion. It performs reliably in extreme temperatures from -40°F to 149°F, handling rain, snow, mud, and intense heat—HELM 7 never lets you down.

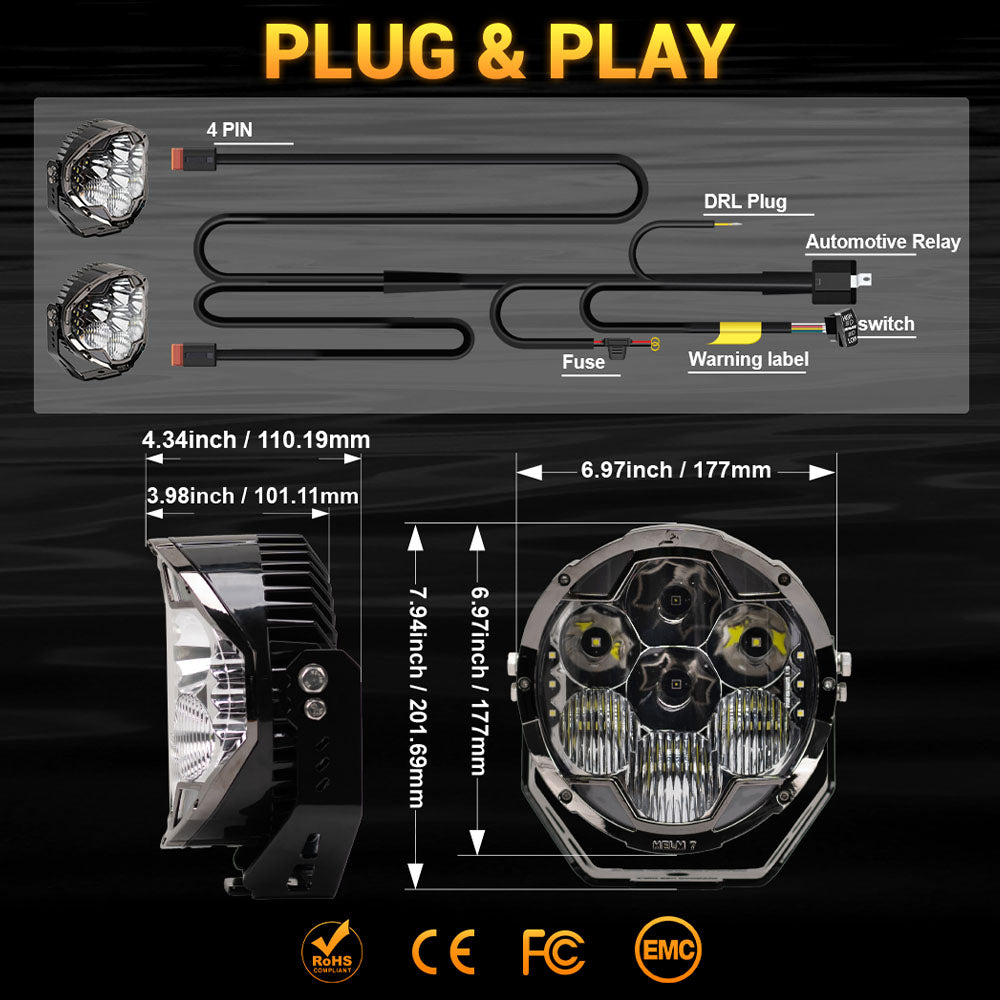

Complete Kit, Ready to Install

The kit includes 2 LED pod lights, black and amber panel covers, heavy-duty stainless steel brackets, a wiring harness with multifunction switch, and a user manual. An additional upgraded professional wiring harness is also included, designed for multi-light setups or complex installations to meet the needs of advanced users. All necessary installation accessories are included, plug-and-play ready, compatible with off-road vehicles, SUVs, UTVs, and ATVs, allowing you to enjoy professional off-road lighting immediately without any extra purchases.
