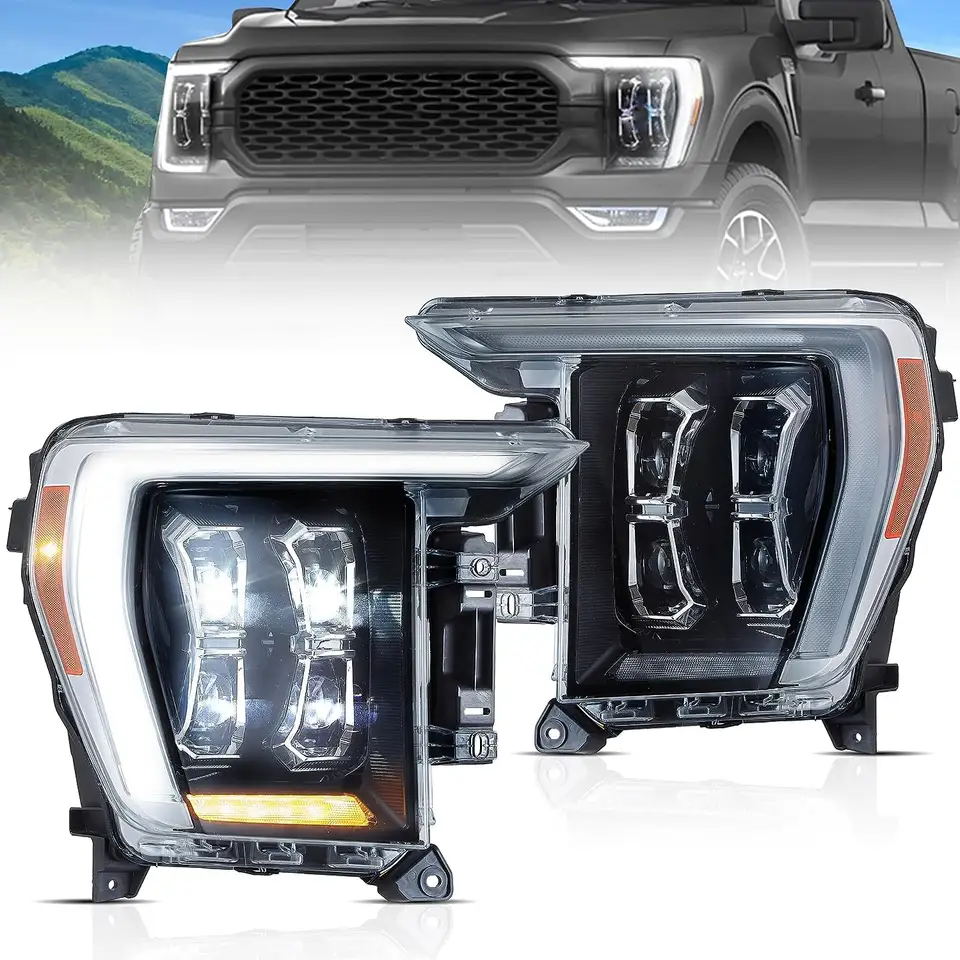

• Led headlight pair with black housings, white DRLs and amber turn signals

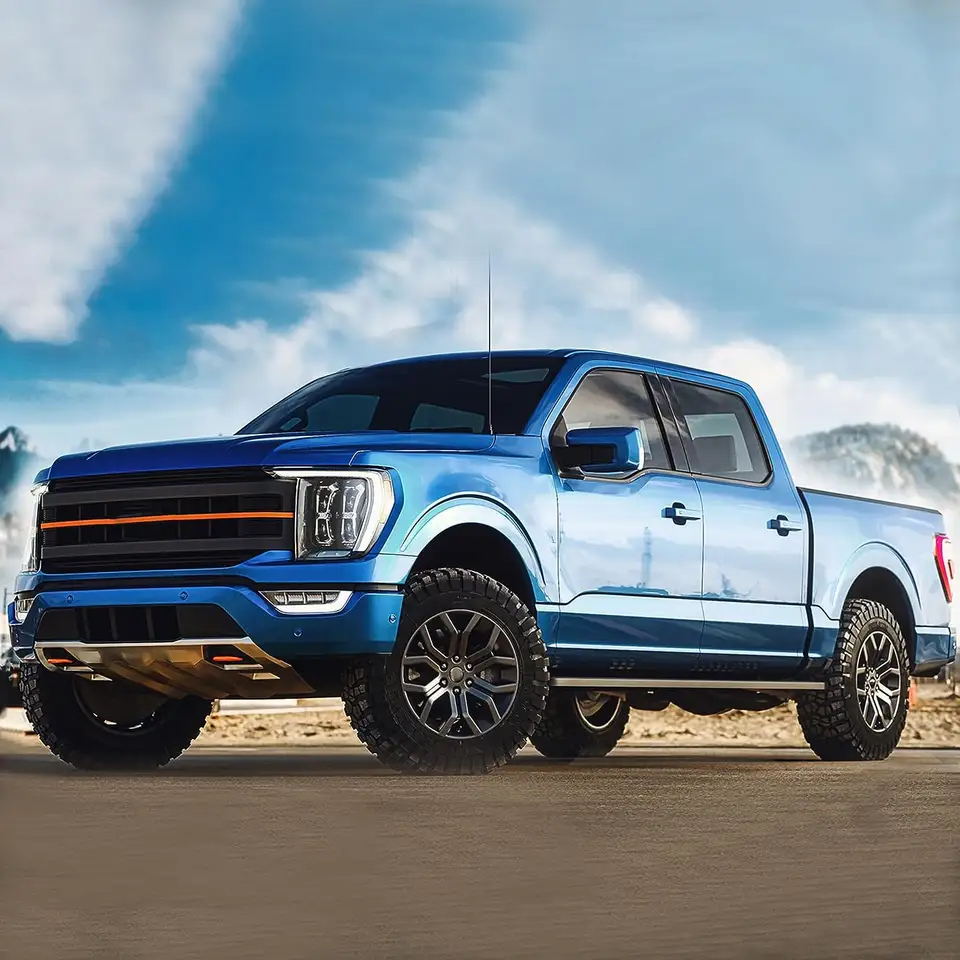

  • Blue 2021–2023 Ford F-150 shown with LED headlights
  • Left and right Ford LED headlight assemblies with an installed F-150 inset
  • Close-up views of Ford F-150 projector elements, white light guide and amber turn signal
  • led headlight weather illustration labeled IP67 waterproof, dust-proof and shock-proof
  • Rear of Ford F-150 headlight with main plug, ACC plug, lighting connections and beam adjusters
  • led headlight showing amber turn signal, high and low beam, unlit housing, side marker and white DRL

LED Projector Headlights for 2021–2023 Ford F150 – White DRL & Sequential Turn Signals

SP-LFMVL055

$949.99
$949.99
LED Projector Headlights for 2021–2023 Ford F150 – White DRL & Sequential Turn Signals

$949.99
LED FACTORY MART / F-150FULL LED COLLECTION

2021–2023 FORD F150 LED HEADLIGHTS

A bold front.
A clear
purpose.

Give your truck a defined new look with Ford F150 LED headlights for 2021–2023. Full LED projectors, diamond-white DRLs and sequential amber turns come together in one matching pair.

Check your F-150 fitment

For the 14th-generation F-150. Match your original headlight type and connectors before fitting.

Installed LED headlight design on a Ford F-150.
ROAD LIGHTING
Full LED
Integrated high & low beam
DAYTIME SIGNATURE
Diamond white
Distinctive perimeter DRL
TURN INDICATION
Amber sweep
Sequential LED turn signal
WEATHER PROTECTION
IP67
Water & dust resistance

MAKE THE UPGRADE COUNT

Built into the shape.
Distinct in the details.

These Ford F150 headlights follow the truck’s stepped front-end shape. Sculpted projector elements and a black housing create a layered, deliberate look—even with the lights off.

One coordinated assembly.

Road lighting, daytime running lights and turn indication come together behind one lens.

A complete visual refresh.

A matching left-and-right pair changes the front-end signature as a whole. The listed smoked lens and black housing keep the finish restrained.

Black housing, white daytime signature and integrated amber indication.

BUILT AROUND THE DRIVE

Focused light.
From dusk to dark.

These Ford F150 projector headlights use integrated LEDs for both low and high beam. Projector optics focus the light on the road ahead, while a complete LED assembly takes separate bulb selection out of the upgrade.

  • Low beam for everyday night drivingUse the normal driving beam and set its aim to your truck after installation.
  • High beam for open, unlit roadsAdditional forward illumination when traffic and road conditions allow.
  • Lighting built into the assemblyNo separate halogen or HID headlight bulbs to purchase.

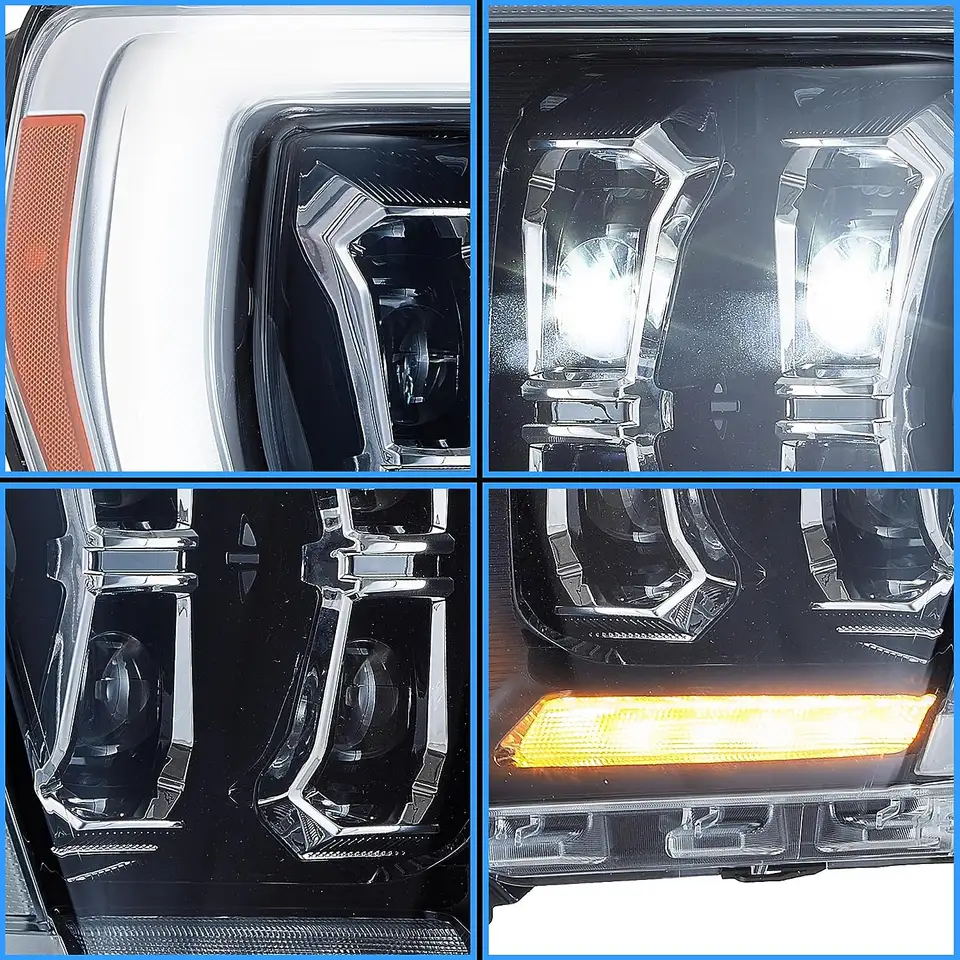

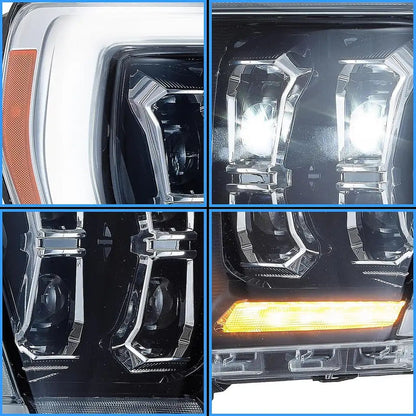

Projector, light-guide and turn-signal details.
Low-beam road lighting illustration.
LOW BEAM

The daily drive home.

A dedicated driving mode for your regular nighttime journeys.

High-beam road lighting illustration.
HIGH BEAM

The open-road setting.

Switch back to low beam when approaching or following other vehicles.

Full LEDHigh and low beam functions
Projector opticsFocused forward illumination
No separate bulbsComplete headlight assemblies

A SIGNATURE WITH A PURPOSE

Recognizable
at a glance.

The perimeter light and amber signal give each function its own clear visual character.

  • Diamond-white daytime running lightA crisp outline follows the lamp’s angular shape and defines the front of the truck.
  • Sequential amber turn signalAn amber sweep communicates your change of direction.
  • Amber side markerThe outer marker adds a separate point of light at the edge of the assembly.

This headlight set uses white DRLs and amber turns. It does not include a startup animation.

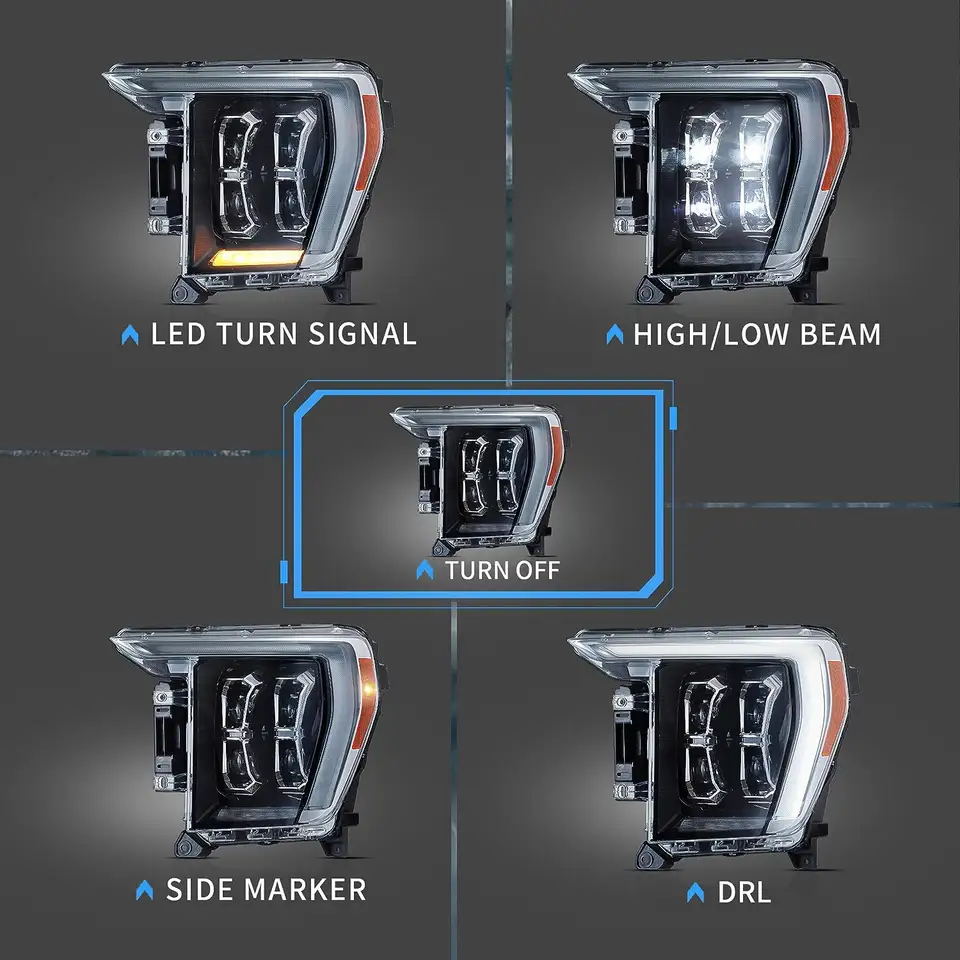

Lighting functions shown on the same assembly.

READY FOR EVERYDAY EXPOSURE

Rain on the road.
Dust along the way.

From a wet commute to a dusty turnout, protection behind the lens matters as much as the look in front of it.

IP67Water & dust
protection
  • Sealed lamp constructionHelps keep water and dust away from the components inside the assembly.
  • PC / ABS constructionThe materials listed for the lamp support a durable vehicle-lighting assembly.
  • Shock-resistant designBuilt for the vibration and movement of vehicle use.

Keep connections properly sealed during installation. Weather resistance does not replace correct wiring, aiming or maintenance.

Illustration of water, dust and shock protection.

THE DETAILS BEHIND THE LENS

Match the plugs.
Set the aim.

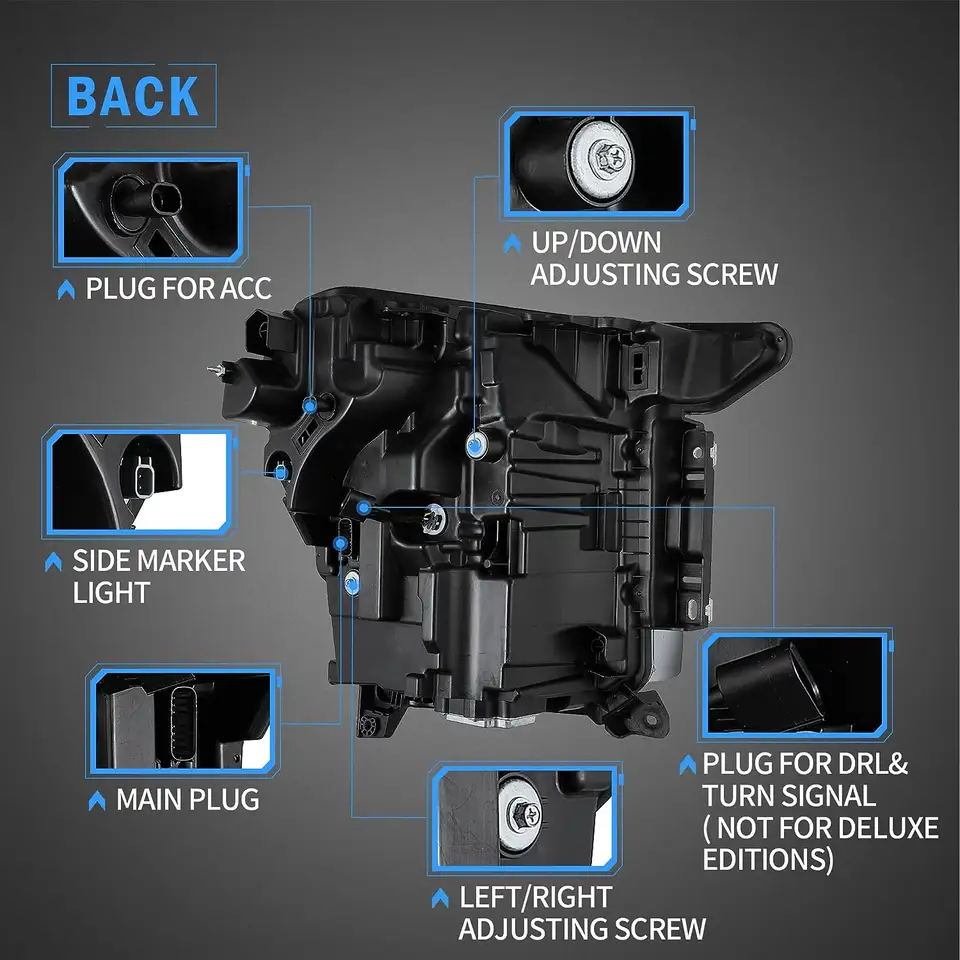

F150 headlight adjustment starts at the rear of the assembly. The main plug, lighting connections and beam adjusters are grouped where your installer can identify them.

Vehicle-style connections.

Compare the main harness, ACC connection and lighting plugs with your original lamp and the supplied guide.

Adjust after installation.

Up/down and left/right adjusters let your installer set the beam direction for your truck.

The illustrated DRL / turn connection is marked for selected configurations. Confirm the wiring version for your trim; factory adaptive or leveling functions need a separate compatibility check.

Rear connections and horizontal / vertical beam adjustment points.

PLAN THE UPGRADE

A clear plan.
A considered install.

Plan your F150 LED headlight installation around the original vehicle connections. Professional installation is recommended to confirm the harness, fit the assemblies and aim the beam correctly.

  1. MATCH

    Check the original lamps.

    Confirm model year, original lighting type, part number and rear connector.

  2. CONNECT

    Follow the supplied guide.

    Use the wiring and adapters specified for your exact lamp and vehicle configuration.

  3. TEST

    Check every function.

    Test DRL, turn signals, side markers, low beam and high beam before final assembly.

  4. AIM

    Finish the job properly.

    Secure the harness and mounting points, then adjust the beam aim before driving.

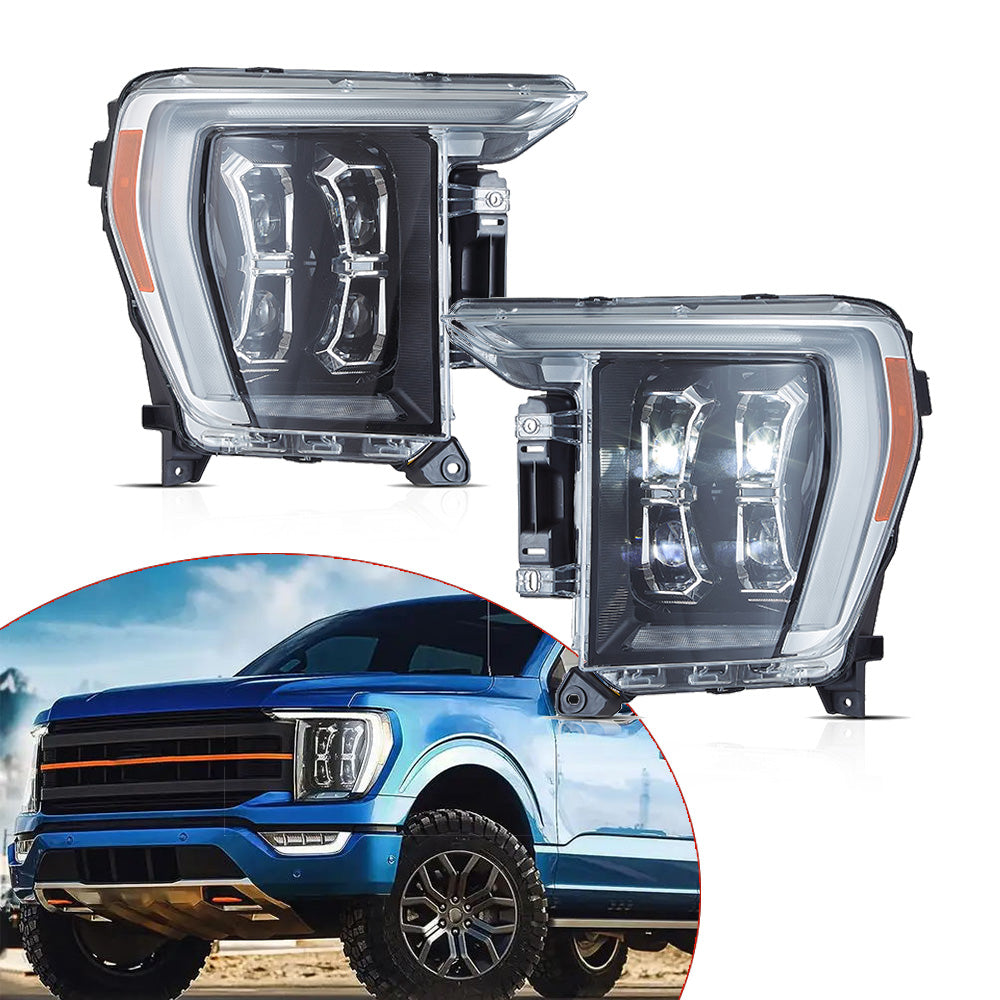

THE COMPLETE PAIR

A matched pair.
A complete new look.

Each Ford F150 headlight assembly is supplied as part of a matching left-and-right pair. Upgrade both sides together for a coordinated front-end finish and matching lighting functions.

  • 1Left LED headlight assembly
  • 1Right LED headlight assembly
  • LEDIntegrated high & low beam—no separate bulbs needed

Check your supplied components against the packing list before fitting. Other vehicle accessories shown in photos are not included.

One left-and-right pair of complete LED headlight assemblies.

FITMENT FIRST

The year is a start.
The lamp matters too.

Designed for the 2021–2023, 14th-generation Ford F-150. Match the original lighting configuration and connector to the exact set you order.

Raptor, factory LED / adaptive lighting and modified wiring require confirmation of the exact configuration. F-150 Lightning and 2024+ facelift trucks are outside the application covered here.

YOUR TRUCK

2021–2023 model years

  • 2021 F150 headlights
  • 2022 F150 headlights
  • 2023 F150 headlights

Confirm the generation, trim and original headlight type.

YOUR ORIGINAL LAMP

Compare the connector.

Check the rear plug and original part number. A matching year alone does not identify the wiring.

YOUR VERSION

Left-hand-drive application.

Designed for left-hand-drive vehicles. Confirm the correct lamp for your vehicle and market.

Full product specifications
Application
2021–2023 Ford F-150, 14th generation
Quantity
Left + right headlight pair
High / low beam
Full LED projector; no separate bulbs
Daytime running light
Diamond-white LED
Turn / side marker
Sequential amber LED / amber
Startup animation
Not included
Listed lens / housing
Smoked / black
Listed materials
PC, ABS
Voltage / listed power
12V / 35W (rating basis not specified)
Protection
IP67; dust and shock resistance listed
Beam adjustment
Up/down and left/right adjusters
Listed item weight
27.56 lb
Package dimensions
26.18 × 20.87 × 10.83 in
Warranty & support
Refer to LED Factory Mart’s current product warranty terms
Original part-number references

Compare these supplier-listed references with your original lamp. Part numbers support the fitment check; they do not confirm adapter requirements or retention of factory functions.

OEM left / right (halogen)
ML3Z13008K / ML3Z13008J
Partslink left / right (halogen)
FO2502409 / FO2503409
Partslink left / right (LED dual projector)
FO2502418 / FO2503418

THE QUESTIONS BEFORE THE UPGRADE

Know what
you are fitting.

The details that help you choose with confidence.

Is this a bulb kit or a complete headlight?
It is a pair of complete headlight assemblies with integrated LED high and low beam, DRL, turn signal and side marker functions. Separate headlight bulbs are not needed.
Does it fit every 2021–2023 F-150?
Confirm your exact trim, original lamp type and connector. Raptor and factory LED / adaptive configurations need a specific fitment check before ordering. This page covers the 2021–2023 application, not F-150 Lightning or the 2024+ facelift.
Does it have startup animation or RGB control?
No. This headlight set has diamond-white daytime running lights and sequential amber turn signals. It does not include a startup animation or RGB color control.
Is installation plug-and-play?
The supplier describes connections that match the original lamps. Confirm the harness and any required adapters for your original lighting configuration first. Professional installation and final beam aiming are recommended.
What does the IP67 rating mean here?
The lamp assembly has an IP67 protection rating against water and dust, along with a shock-resistant design. Properly sealed connections and correct installation remain essential. The rating does not describe visibility through fog or the protection of exposed wiring.
Are factory adaptive or leveling functions retained?
Do not assume those functions carry over. Share your original lamp part number and connector photos with support to verify compatibility with this headlight set.
What warranty, delivery and returns apply?
Refer to LED Factory Mart’s current product warranty terms, shipping information and return policy for your order. Contact our support team if you need help before ordering.
