HELM 7″ Off-Road LED Pod Lights with 217° Ultra-Wide Beam & 2030ft Reach

HELM 7″ Off-Road LED Pod Lights with 217° Ultra-Wide Beam & 2030ft Reach

SP-CR074

Regular price $409.89
Sale price $409.89 Regular price $536.55
Shipping calculated at checkout.

Description

The HELM 7" LED Pod Lights are engineered for serious off-road performance, combining forward-projecting main beams with integrated side lighting for an exceptional 217° usable illumination angle. Delivering up to 13,346 lumens and a long-range reach of 2030 ft (619 m), these lights dramatically improve visibility on dark trails and demanding terrain. Built with a hard-coated polycarbonate lens, powder-coated cast aluminum housing, and IP68/IP69K waterproof protection, HELM pod lights are designed to withstand extreme environments. Featuring amber DRL, removable face covers, and stainless steel hardware, they offer both rugged durability and customizable style for Jeeps, trucks, and off-road vehicles.

Specification

Lens & Housing
Lens Color: Clear
Lens Material: Hard-Coated Polycarbonate
Housing Material: ADC12 Powder-Coated Cast Aluminum
Housing Color: Matte Black
Bezel: Replaceable / Color-Customizable
Ingress Protection: IP68 / IP69K
Lighting Performance
Lighting Type: Forward Projecting + Side Illumination
Beam Pattern: Spot / Driving Light + Amber DRL
Usable Beam Angle: 217° Ultra-Wide Coverage
Total Lumens: Up to 13,346 lm
Lighting Distance: 1 lux @ 619 m (2030 ft)
10 m Illuminance: Up to 5060 lux
Peak Beam Intensity: Up to 506,000 cd

LED Configuration
Front LEDs: 7 LEDs (Long-range trail illumination)
Side LEDs: 6 LEDs (3 per side for expanded visibility)
LED Technology: High-Performance LED
Color Temperature: ~6000K (White)
Amber DRL: Integrated

Electrical
Wattage:
High Beam: 123W (initial) / 86.6W (stable)
Low Beam: 84.2W (initial) / 63.8W (stable)
Rated Power: 120W
Voltage: 12V / 24V
Lifespan: Up to 50,000 hours
Mounting & Wiring
Mounting Hardware: Included
Bracket Material: Stainless Steel
Wiring Harness: Included
Connector Type: DT4
Switch Wire Length: 9.8 ft
Durability & Certification
Operating Temperature: -40°F to 149°F
Certifications: ROHS / CE / FCC / EMC
Warranty: 5-Year Limited Warranty

Fitment

This HELM 7″ LED Pod Light is designed as a universal fit off-road lighting solution and is compatible with a wide range of vehicles. It can be easily mounted on most bumpers, A-pillars, roof racks, light bars, and aftermarket brackets.

Compatible Vehicles & Applications Include:
Jeep Wrangler / Gladiator / Cherokee
Ford Bronco
Toyota Tacoma / 4Runner / Tundra
Chevrolet Silverado / Colorado
GMC Sierra / Canyon
RAM 1500 / 2500 / 3500
Nissan Frontier / Titan
Off-road trucks, UTVs, ATVs, SUVs
Roof racks, bull bars, bumpers, auxiliary mounts

Fitment Notes:
Universal mounting hardware included
Works on 12V and 24V systems
Adjustable stainless steel brackets for flexible installation angles

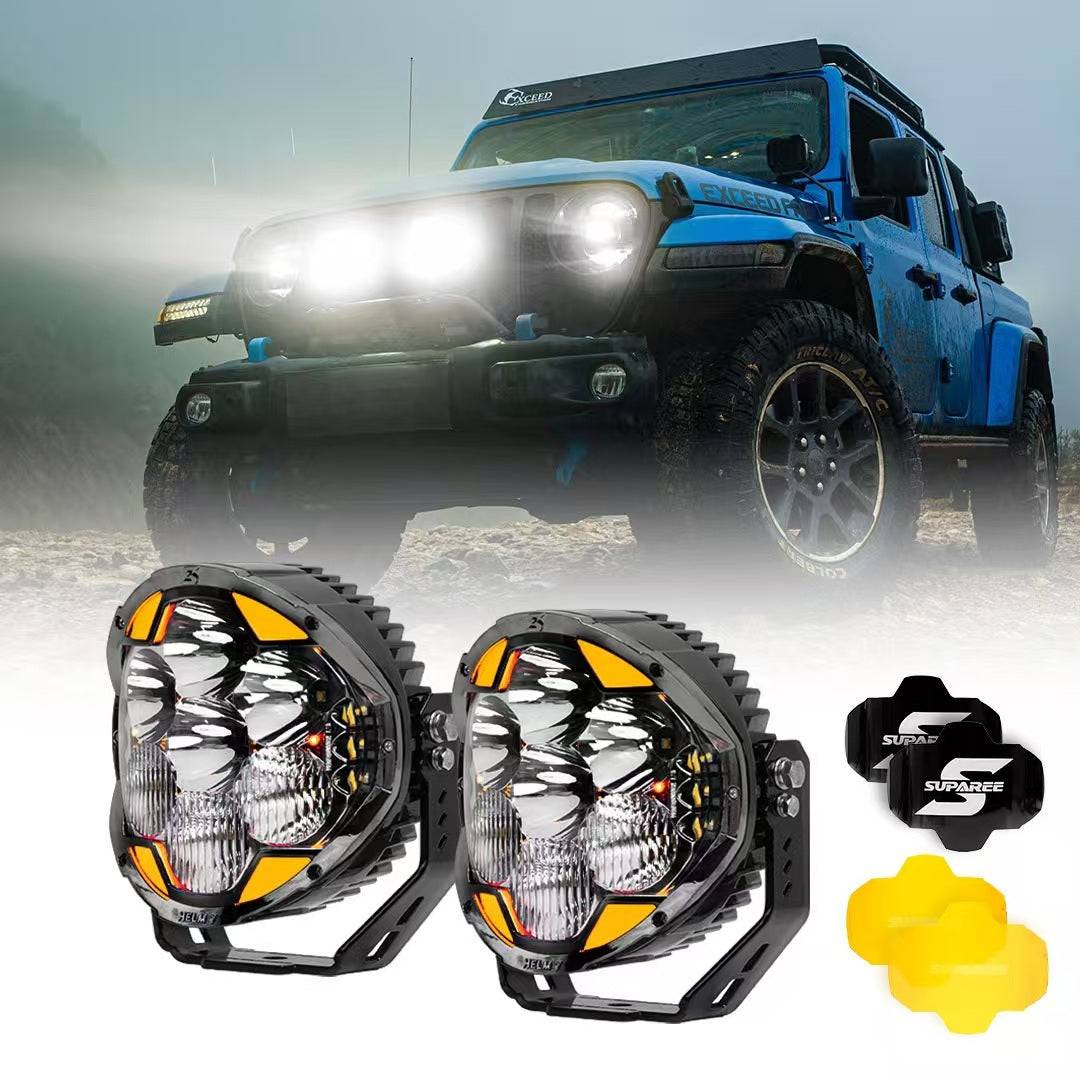

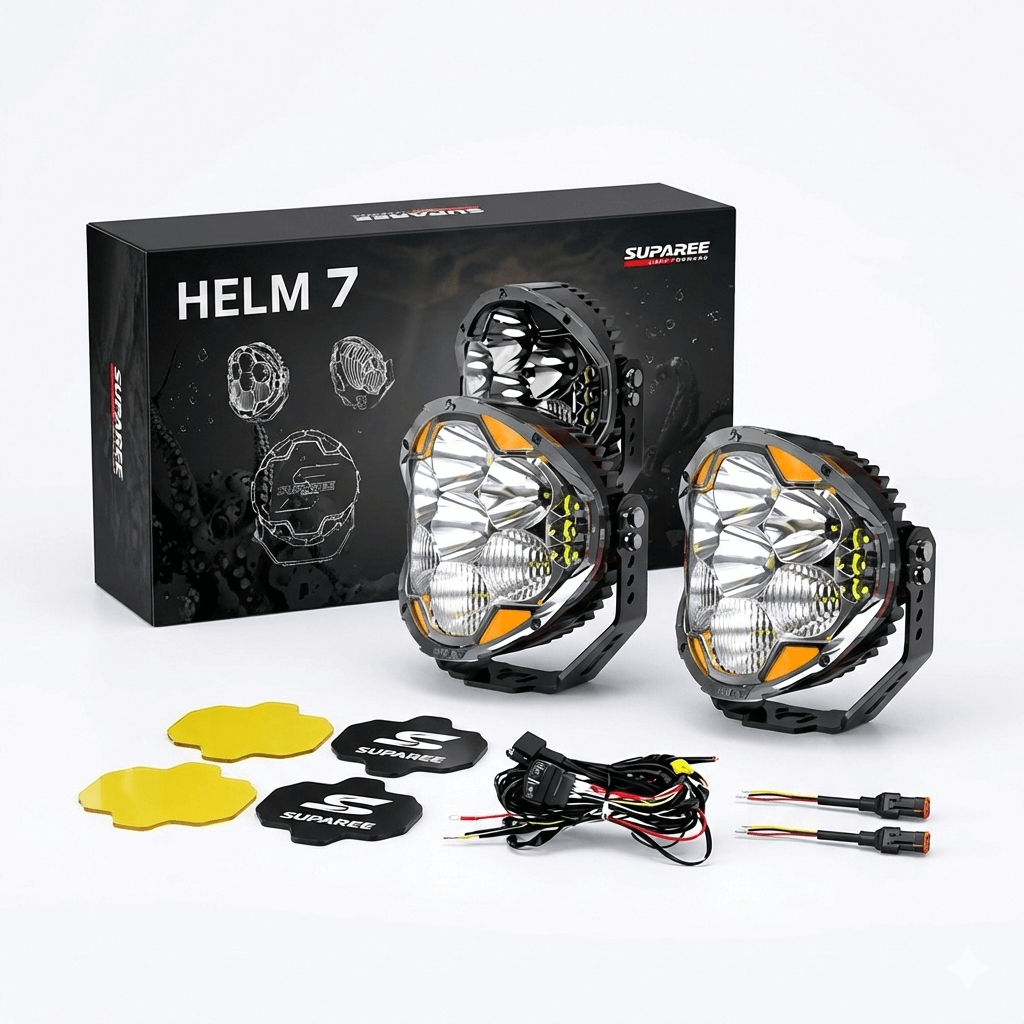

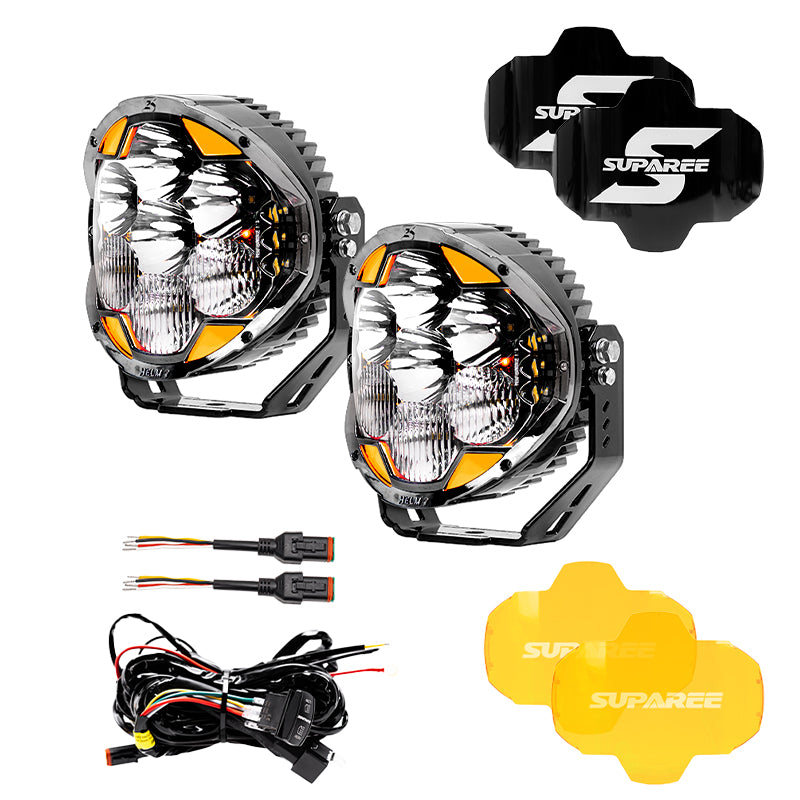

What’s included?

2 × HELM 7" LED Pod Lights

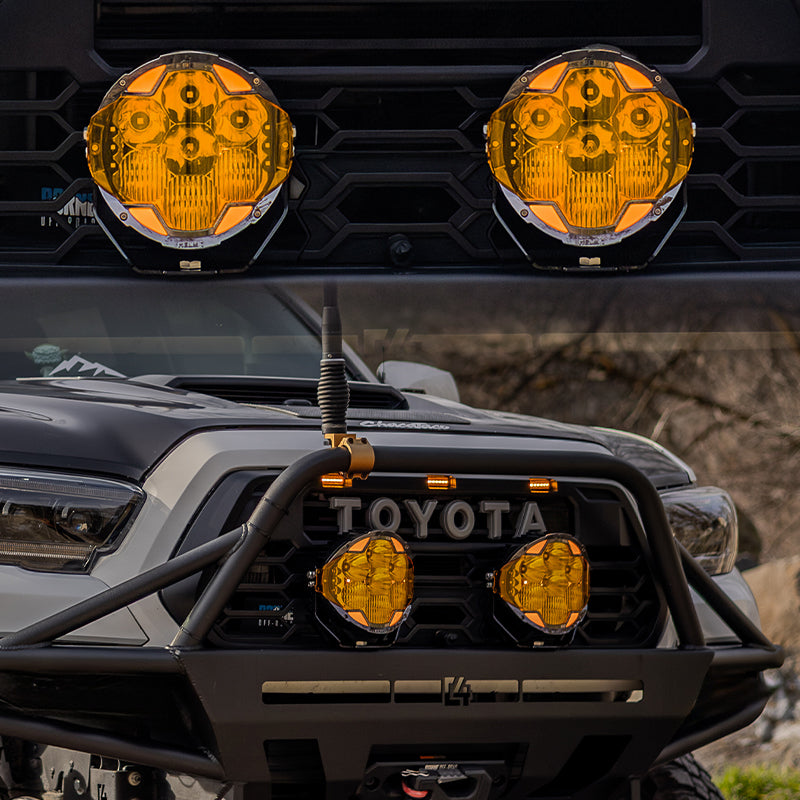

2 × Black Covers
2 × Amber Covers
2 × Stainless Steel Adjustable Brackets with full hardware set (M8, M6, M12 bolts + wrench)
1 × Wiring Harness (9.8 ft) with multifunction switch
1 × User Manual (Click to view)

FAQs

Q1: Why does LEDFACTORYMART sell Suparee products? Are they genuine?
A:
Suparee is an in-house brand under the same corporate group as LEDFACTORYMART, specializing in professional work lights. All Suparee products sold on LEDFACTORYMART are 100% authentic, manufactured and quality-controlled under the same standards, and backed by full warranty support.
We guarantee authenticity — any verified counterfeit product will be compensated ten times.

Q2: What applications is this 7″ LED pod light designed for?
A: Designed as a universal off‑road auxiliary light, suitable for vehicles like Jeeps, trucks, SUVs, and overland builds. It can be mounted on A‑pillars, bumpers, roof racks, or custom mounts for enhanced forward and peripheral illumination.

Q3: What optical design does this light use and what are its advantages?
A: Utilizes a dual‑layer focus optical system combining forward spot LEDs for long‑range illumination and side LEDs for broader coverage, enhancing trail visibility both far ahead and to the sides.

Q4: What are the brightness and beam characteristics?
A: Delivers up to 13,346 lumens total output with a usable beam out to approximately 677 yards (~619 m) at 1 lux, and about 217° effective beam spread, making it ideal for both long‑distance and wide peripheral illumination.

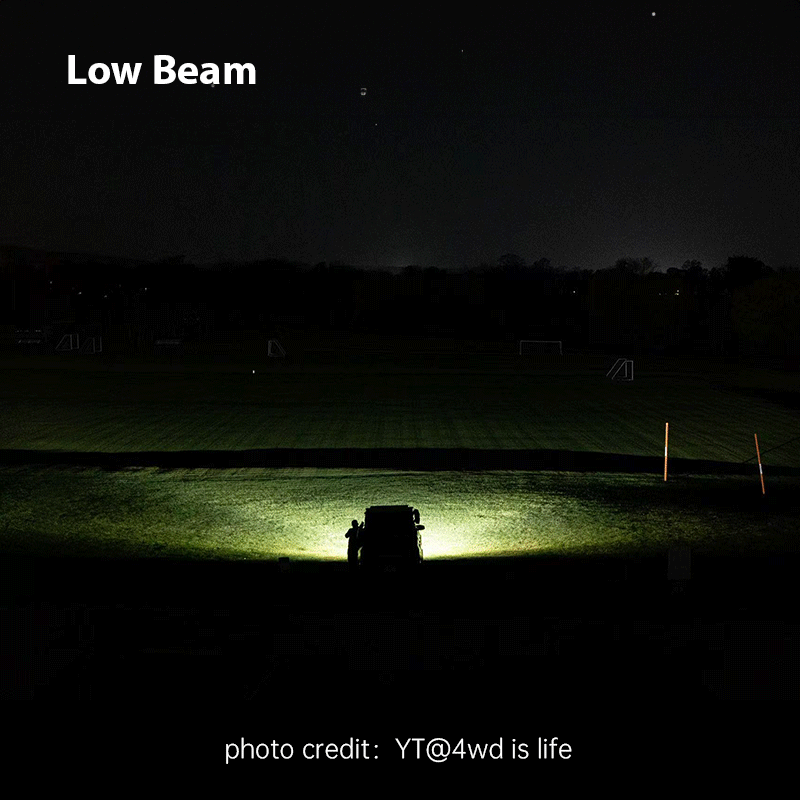

Q5: Does this light support multiple beam modes?
A: Yes. Provides dual‑output modes (high and low) that can be controlled via a switch or wiring logic to match different terrain and lighting requirements.

Q6: Why does this light perform well in harsh conditions?
A: Advanced LED emitters and focused optics improve penetration through dust, fog, and rain, while integrated amber DRL enhances visibility where white light alone may struggle.

Q7: Does it feature daytime running lights (DRL)?
A: Yes, it includes an integrated amber DRL to improve daytime visibility and act as a safety accent light.

Q8: Is installation difficult? Is it plug‑and‑play?
A: Comes with complete harness and adjustable mounting brackets. It supports standard 12V/24V power input and plug‑in wiring for easy installation. Some mounts may require drilling to secure brackets.

Q9: How is electrical compatibility and interference resistance?
A: Built‑in EMC protection minimizes interference or flicker. For high‑power use, it is recommended to use a relay and proper fuse protection.

Q10: What is the waterproof and dustproof rating?
A: Rated IP68/IP69K, with a sealed aluminum housing and polycarbonate lens, suitable for rain, mud, dust, and high‑pressure wash environments.

Q11: How is heat dissipation managed?
A: The aluminum housing and heat sink design dissipate heat efficiently, maintaining stable LED temperatures and consistent performance.

Q12: What is the expected lifespan of the LEDs?
A: LEDs are rated for about 50,000+ hours, with stable output over long durations.

Q13: Can running multiple lights at once stress the vehicle’s electrical system?
A: Each light draws significant power, and multiple units may benefit from external relays or power management to ensure stable supply without overloading the vehicle harness.

Q14: Is the light durable in rugged off‑road environments?
A: Yes, the rugged housing and shock‑resistant design improve durability. However, avoid direct impact with sharp objects or repeated heavy hits.

Q15: What are the shipping and tracking arrangements?
A: Orders typically arrive within 2–5 business days after dispatch. Tracking information is provided for real‑time monitoring.

Q16: What warranty and payment security are offered?
A: A 5‑year warranty covers non‑user defects. Payments are processed securely with encryption and no payment details are stored.

Payment methods
  • American Express
  • JCB
  • Mastercard
  • PayPal
  • Visa
HELM 7″ Off-Road LED Pod Lights with 217° Ultra-Wide Beam & 2030ft Reach

$409.89

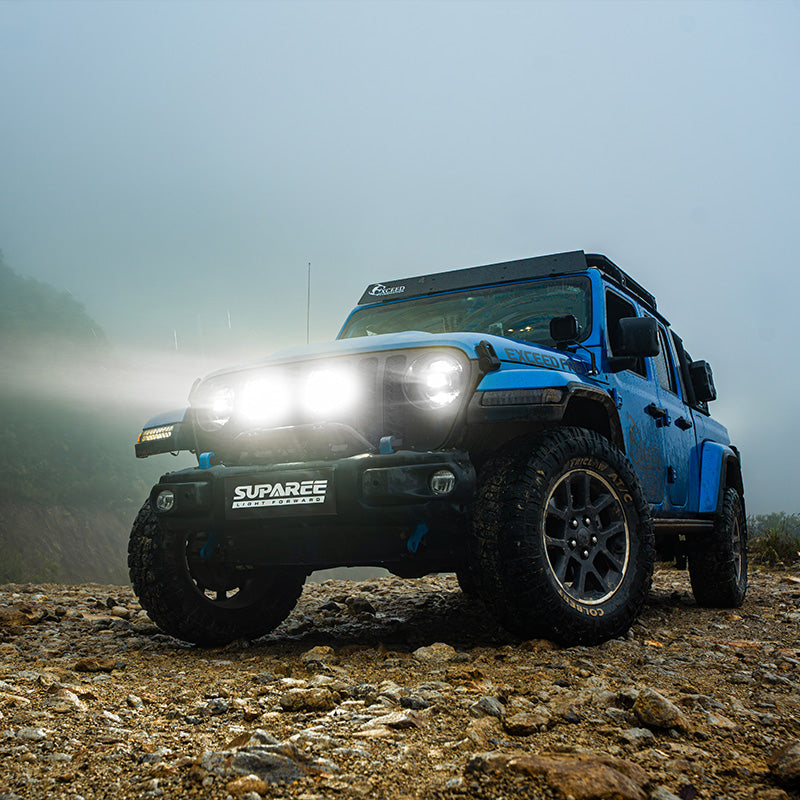

13,346 Lumens & 619-Meter Precision Projection

Powered by premium Luminus LED chips, the Helm 7 unleashes a blinding 13,346 lumens to grant you absolute control over the road ahead. Its engineered spot and flood hybrid beam pattern pushes the effective visibility range to an astounding 2,030 feet (619 meters). This immense longitudinal depth of field buys you crucial reaction time during high-speed desert runs or tight trail navigation.

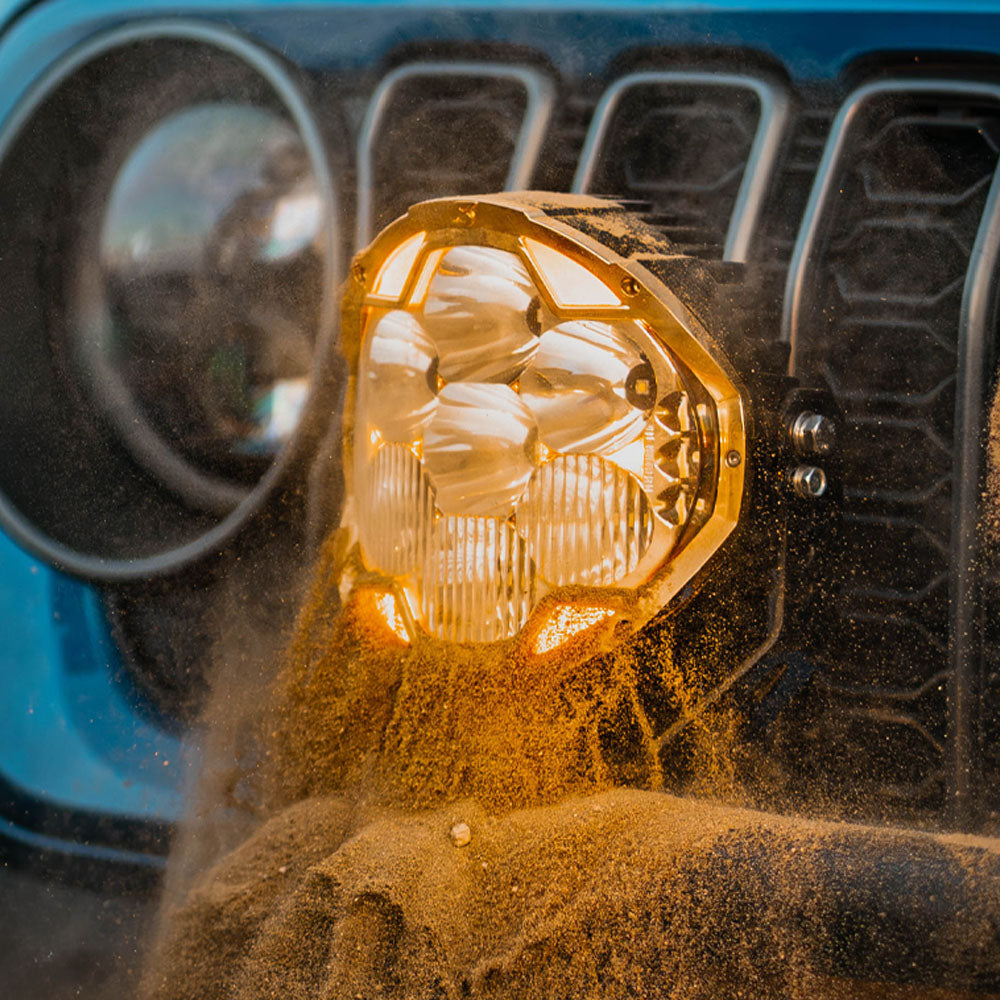

high performance 7 inch LED lighting pods with 13346 lumens and long distance beam

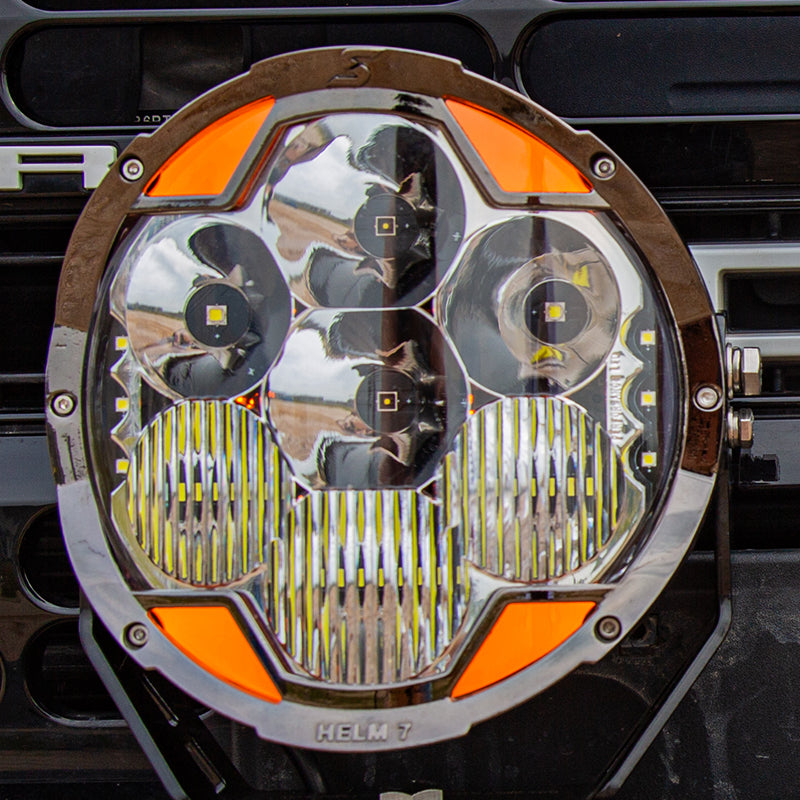

217° Ultra-Wide Illumination

Eliminate dangerous off-road blind spots instantly with our innovative "7 Forward + 6 Side" LED optical array. While the forward-facing LEDs extend your reach, three dedicated side-facing chips on each pod stretch the usable light to a massive 217 degrees. This ultra-wide coverage completely illuminates trail shoulders, hidden rocks, and ditches near your A-pillars for safer cornering.

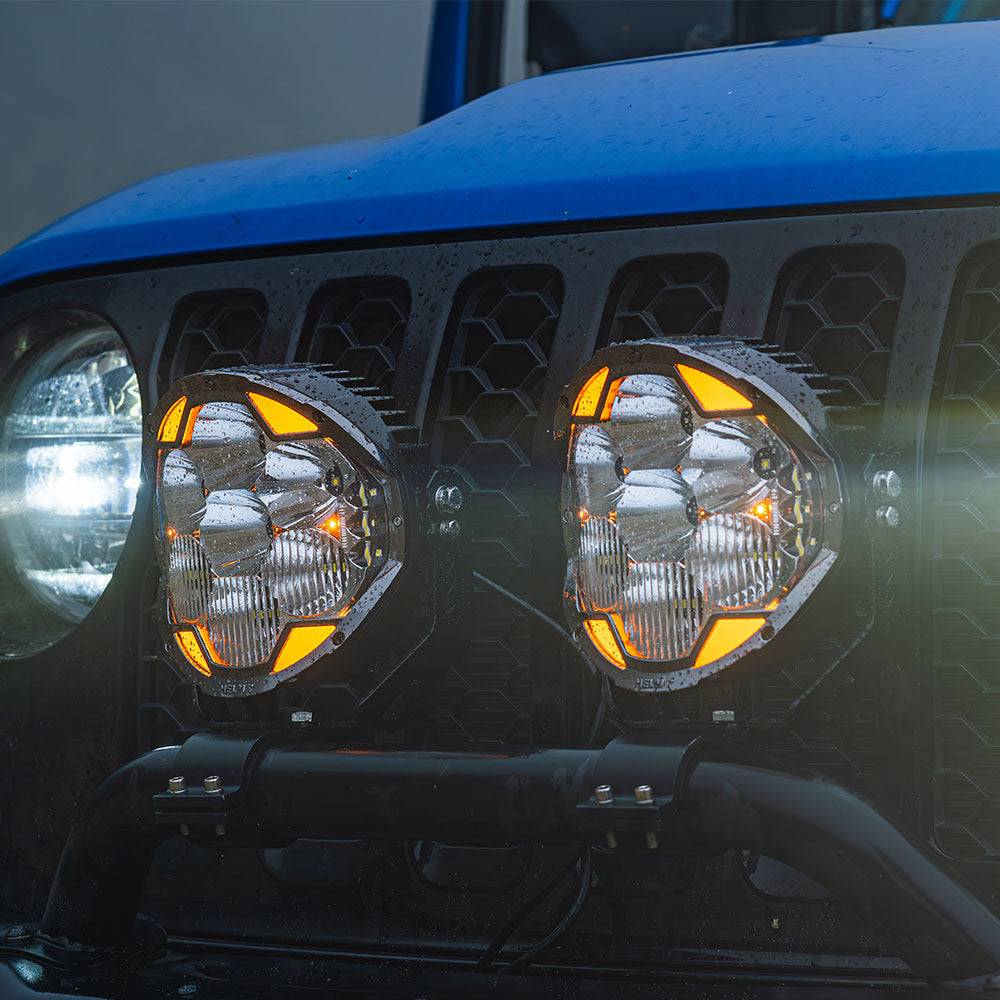

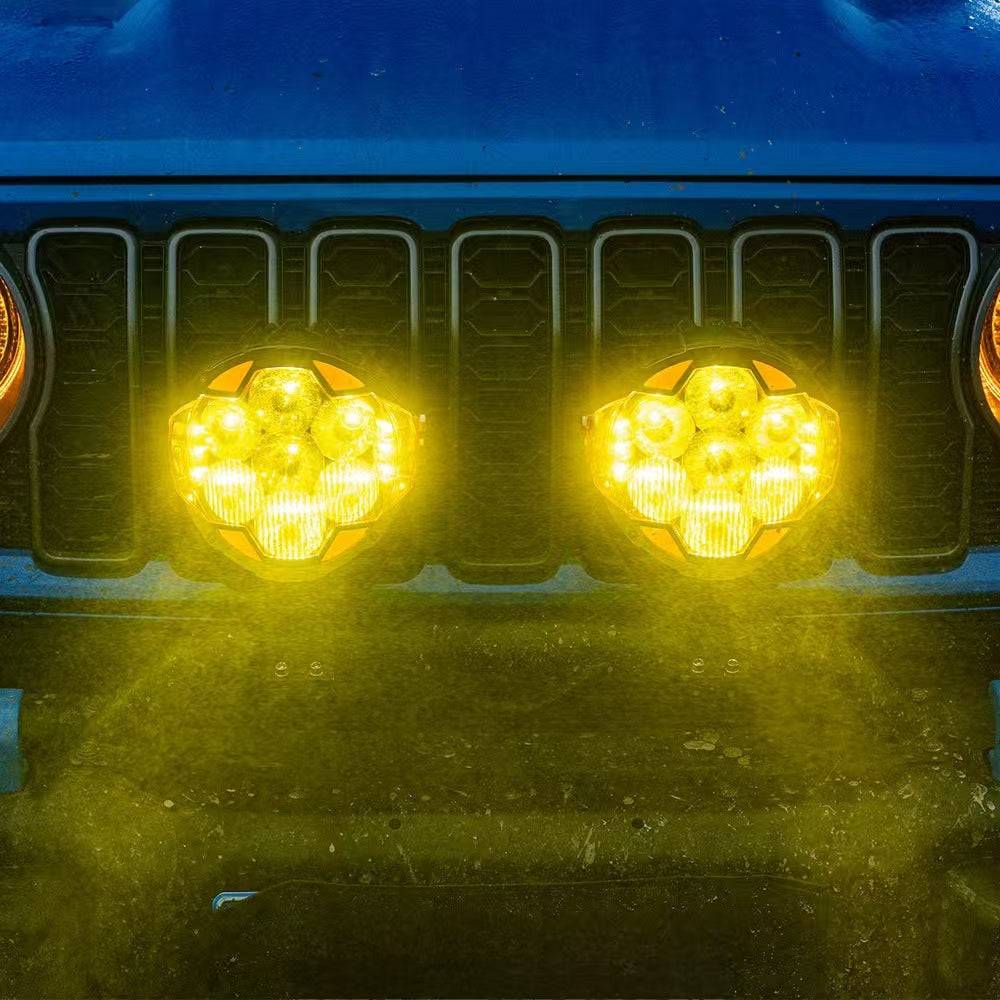

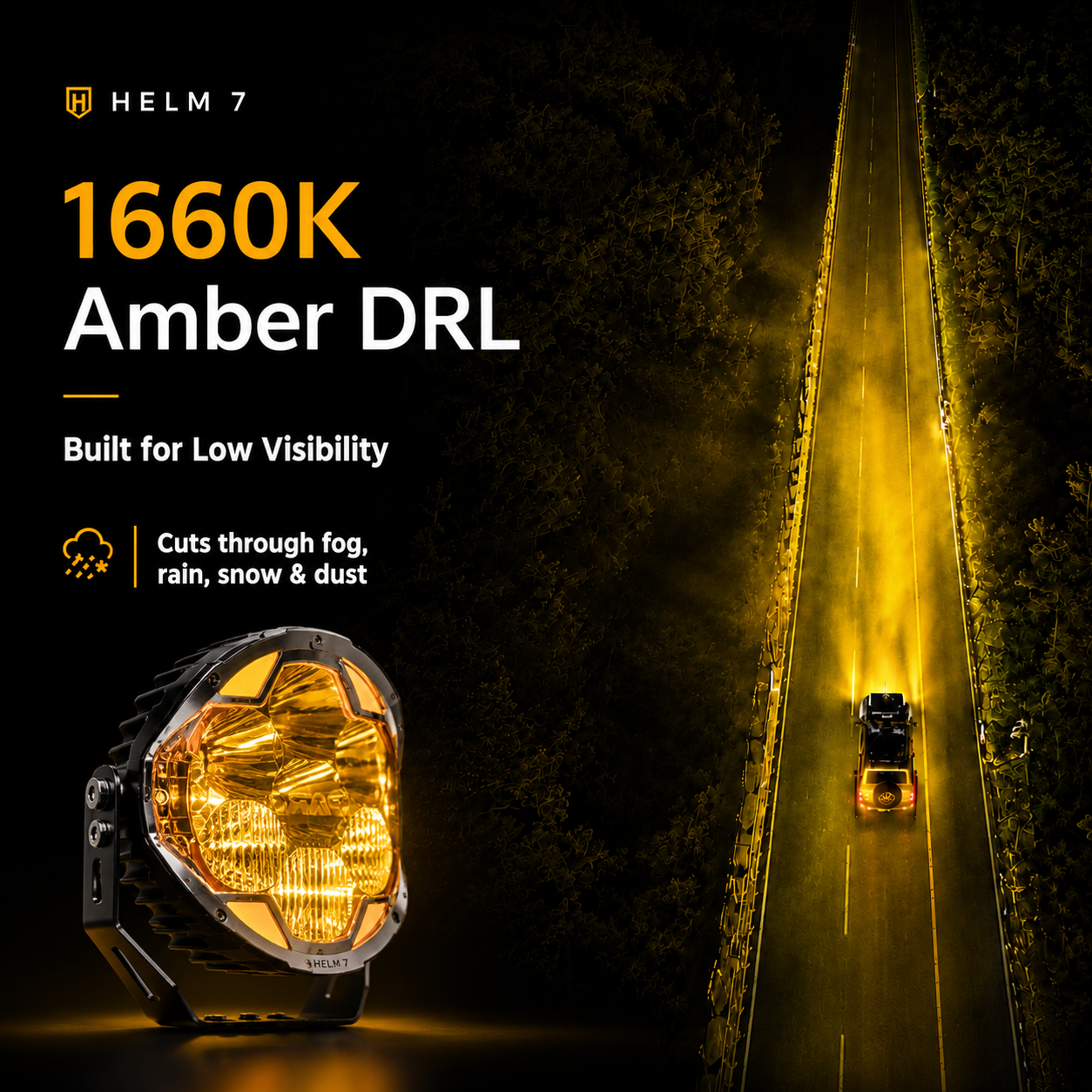

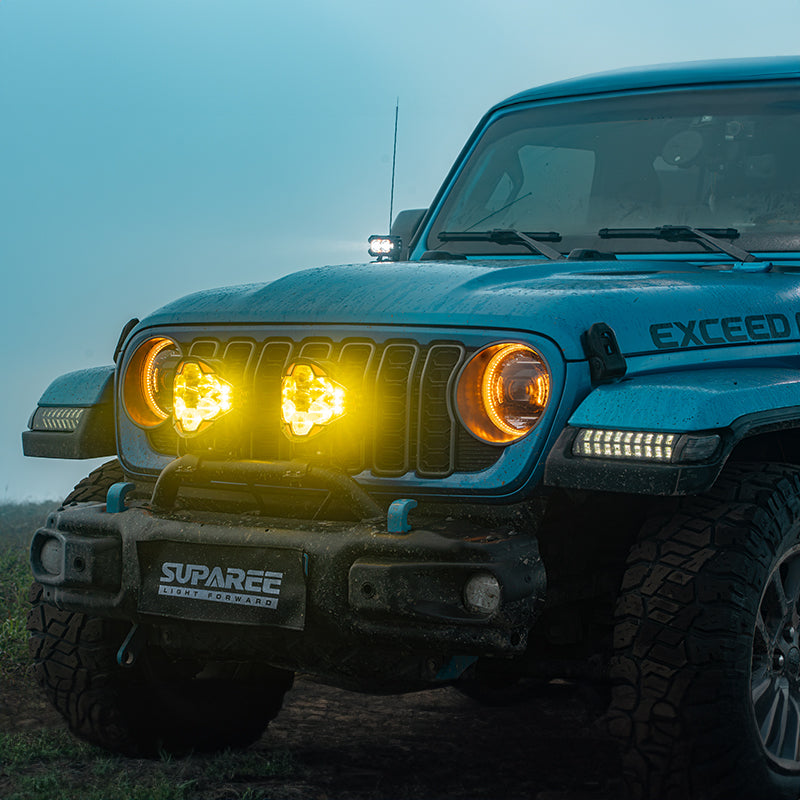

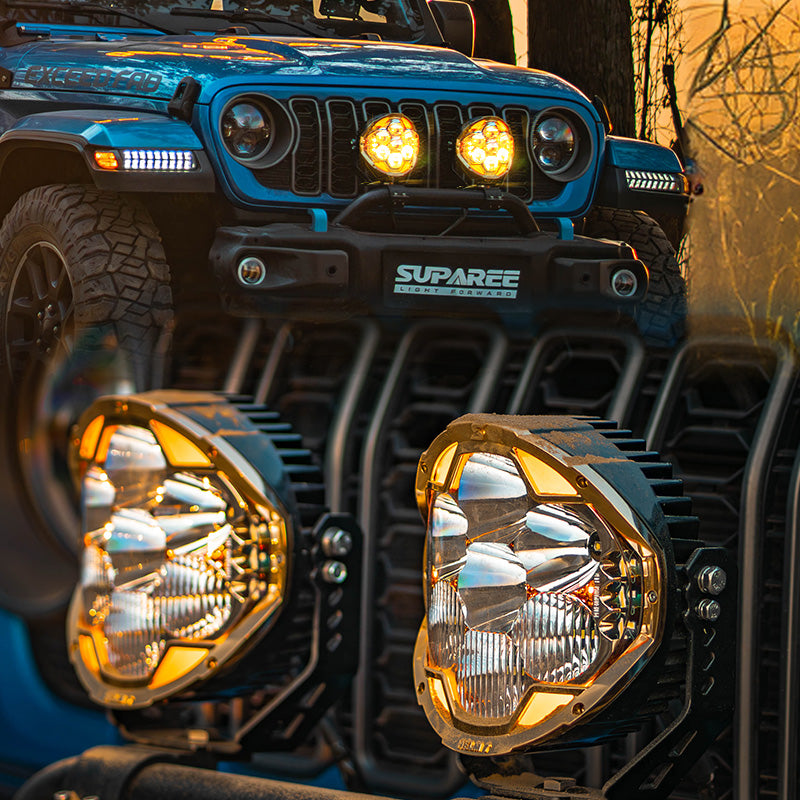

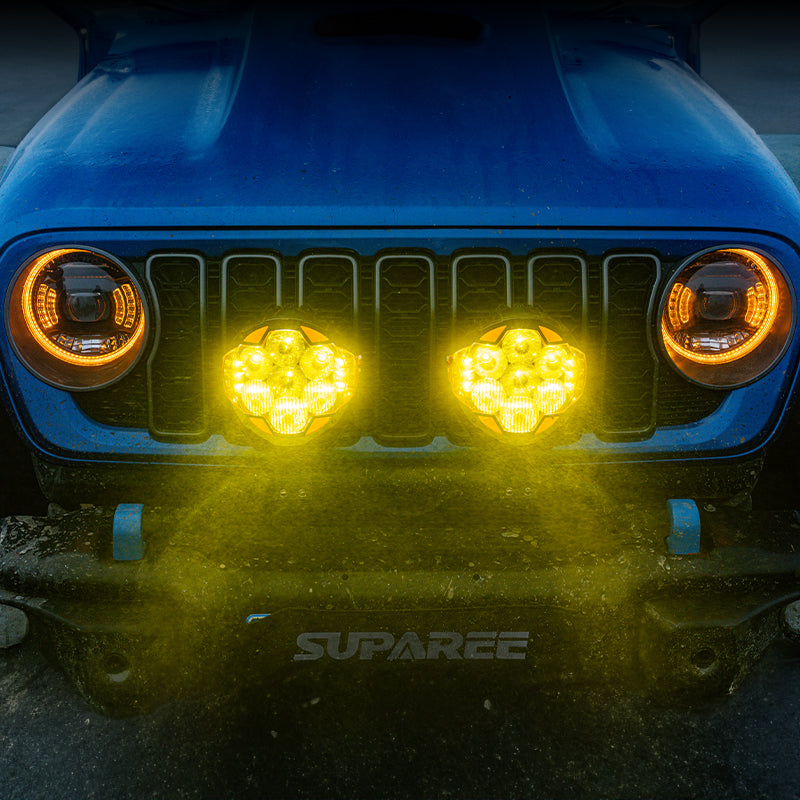

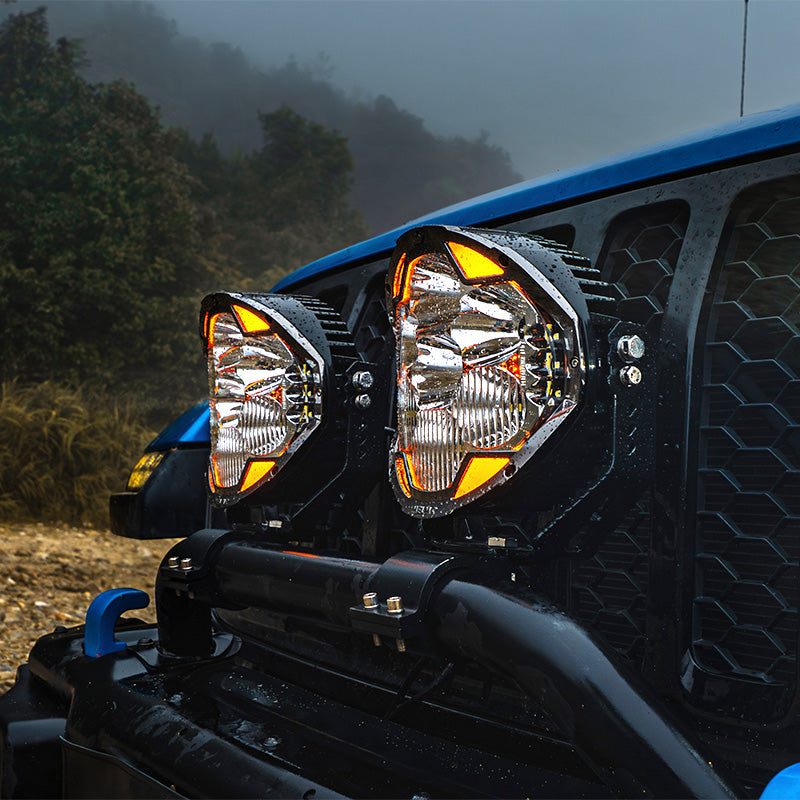

Purpose-Built 1660K Amber DRL

Cut through the most severe weather conditions with the purpose-built 1660K Amber Daytime Running Light (DRL). Unlike pure white light that causes blinding glare in dust, fog, or snow, this low-color-temperature amber spectrum delivers superior physical penetration. It ensures your rig remains highly visible to oncoming traffic while providing a clear, guided sightline during aggressive convoy driving.

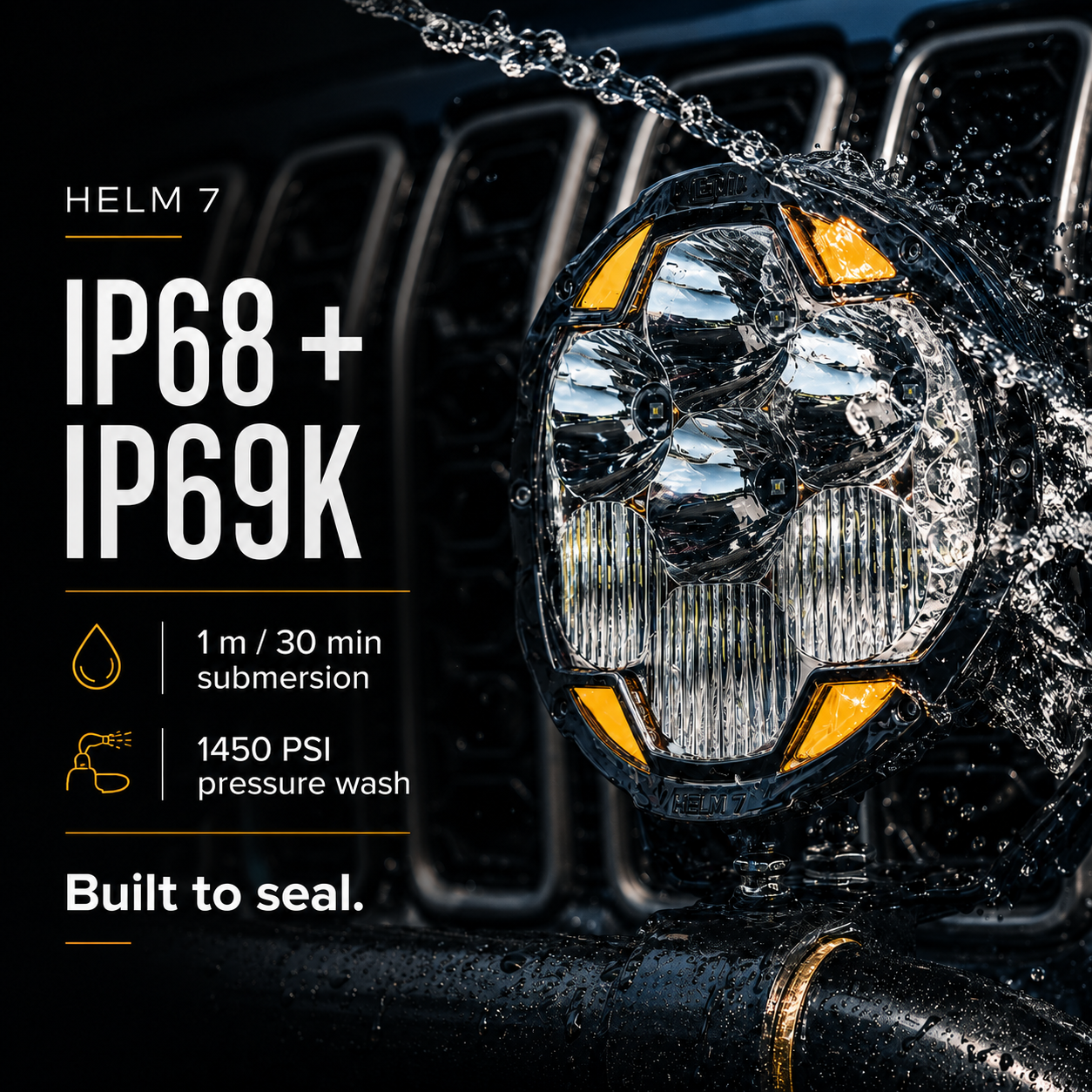

IP68 & IP69K Dual Certification

Equip your rig with extreme sealing engineering that easily surpasses both IP68 and IP69K military-grade certifications. The Helm 7 can be fully submerged in 36 inches of water for 30 minutes and withstand the brute force of a 1,450 PSI industrial pressure washer. Say goodbye to internal condensation and water intrusion, allowing you to wash away the mud with absolute confidence.

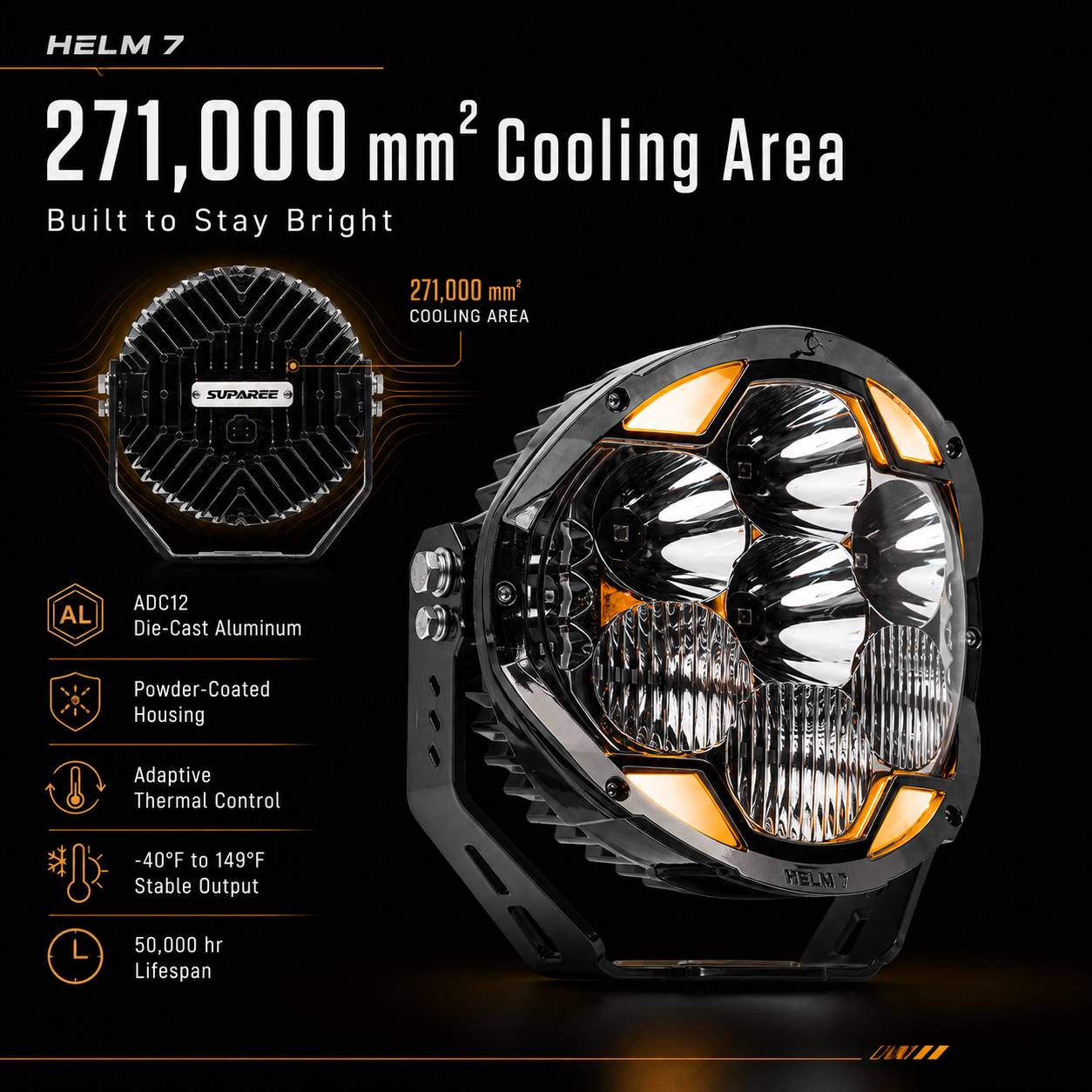

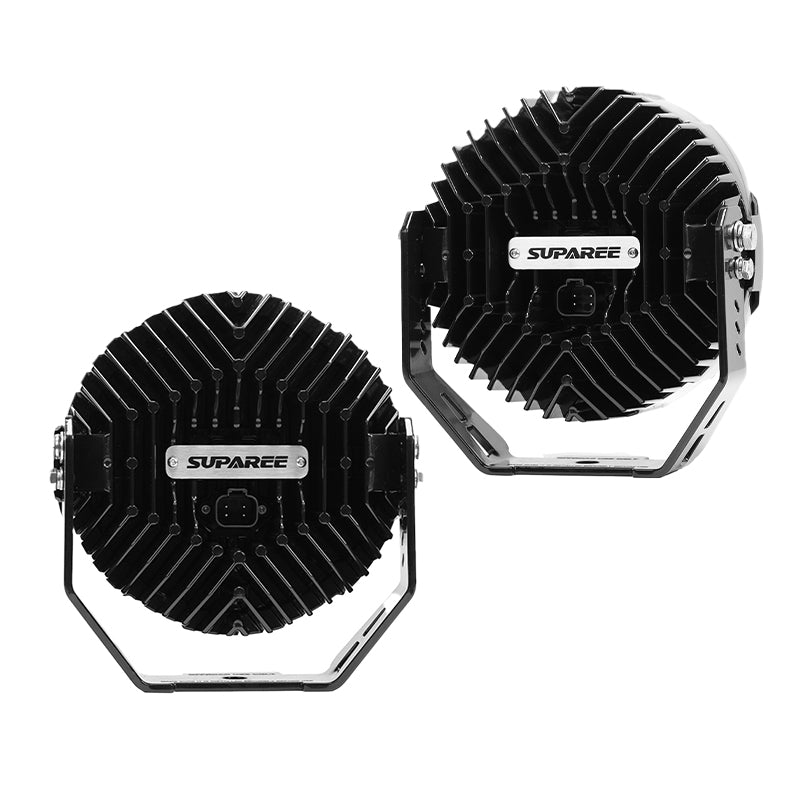

271,000mm² Cooling Area & 50,000-Hour Lifespan

Sustaining massive lumen output requires superior thermal management, delivered here by a powder-coated ADC12 cast aluminum housing. Precision rear fins create a massive 271,000mm² heat sink, while self-regulating electronics dynamically optimize cooling from -40℉ to 149℉. This guarantees a rugged, fade-free 50,000-hour operational lifespan without any compromise in brightness.

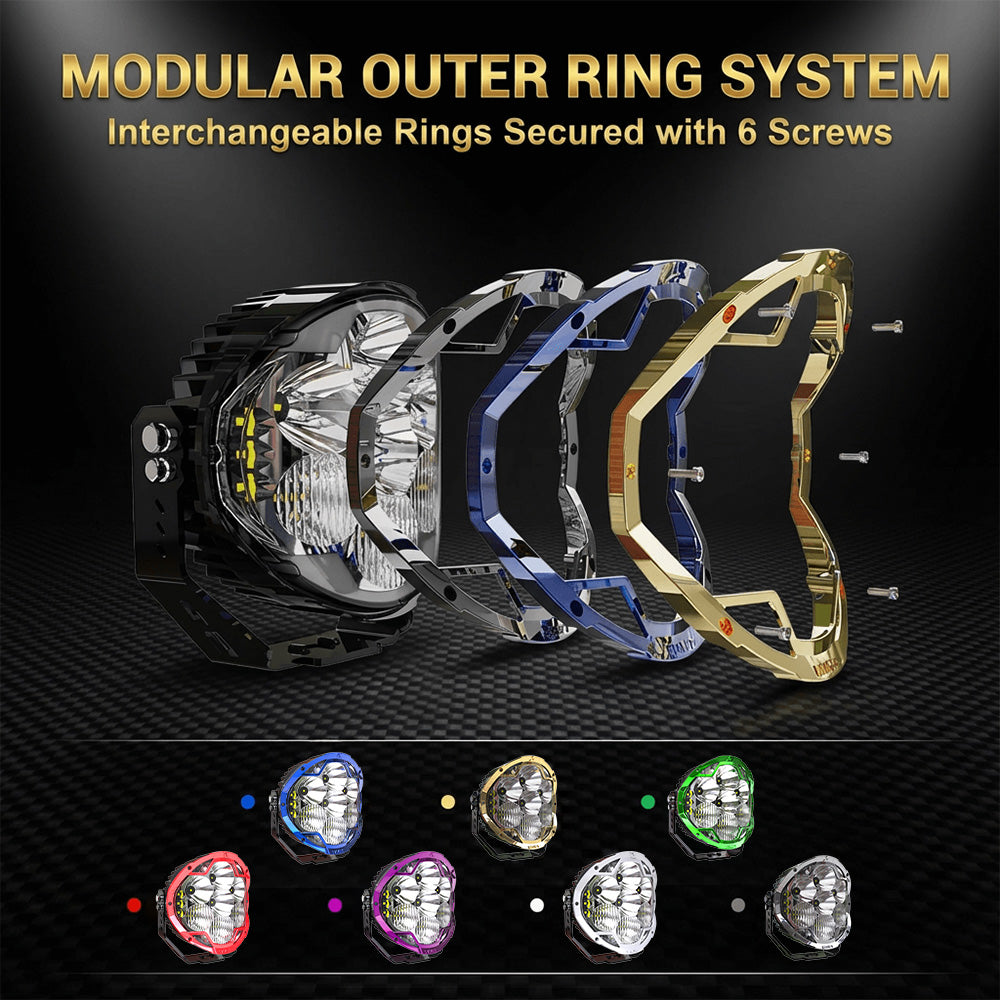

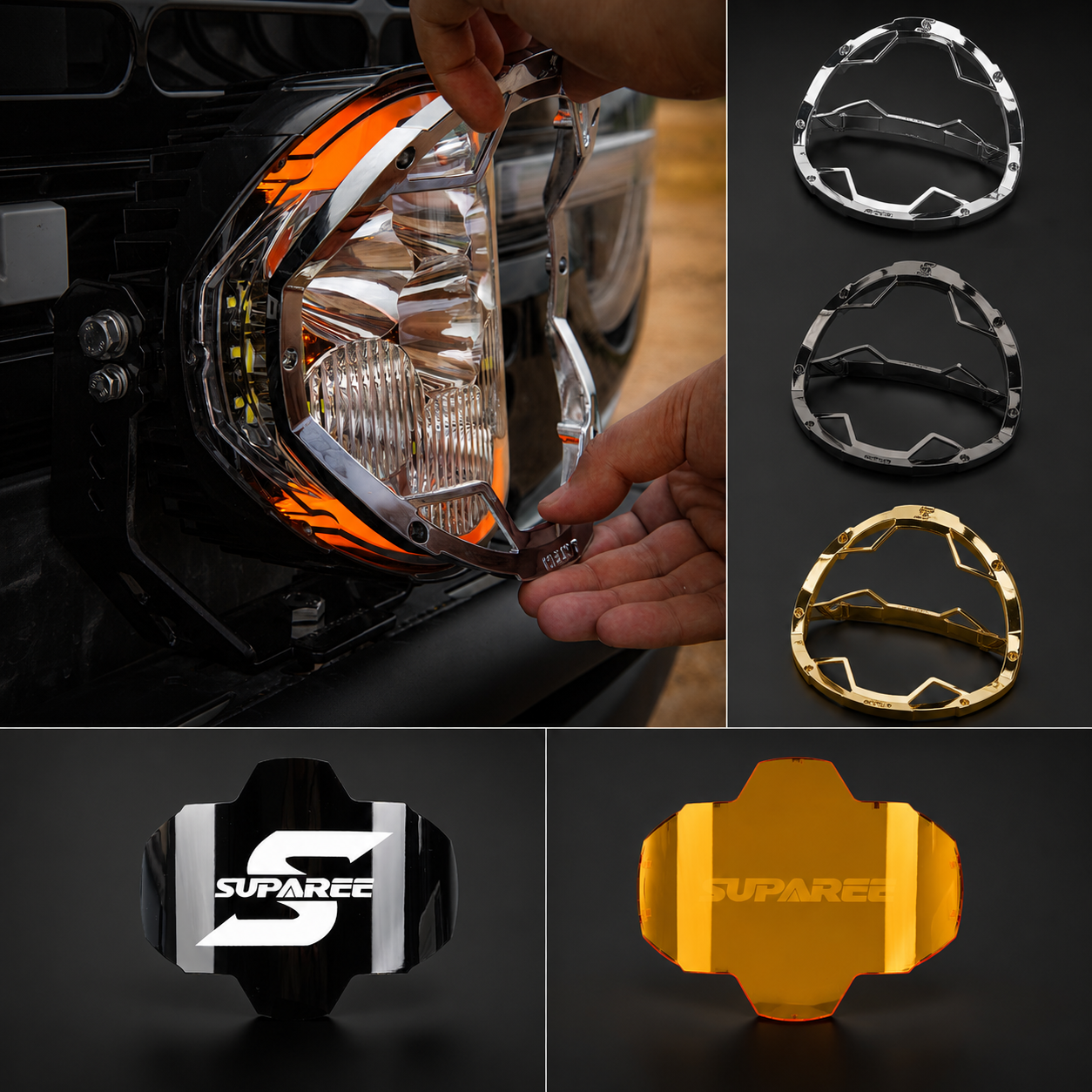

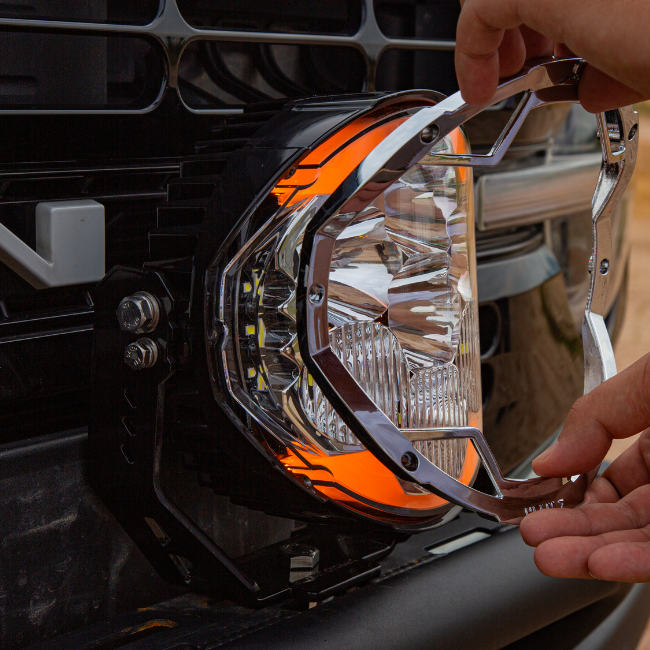

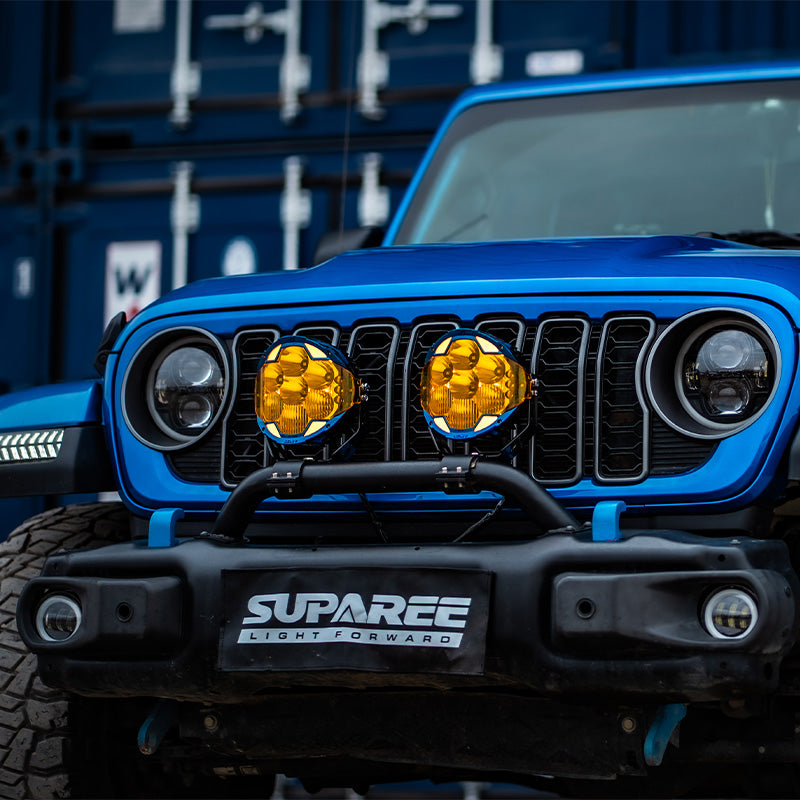

Highly Customizable to Match Your Build

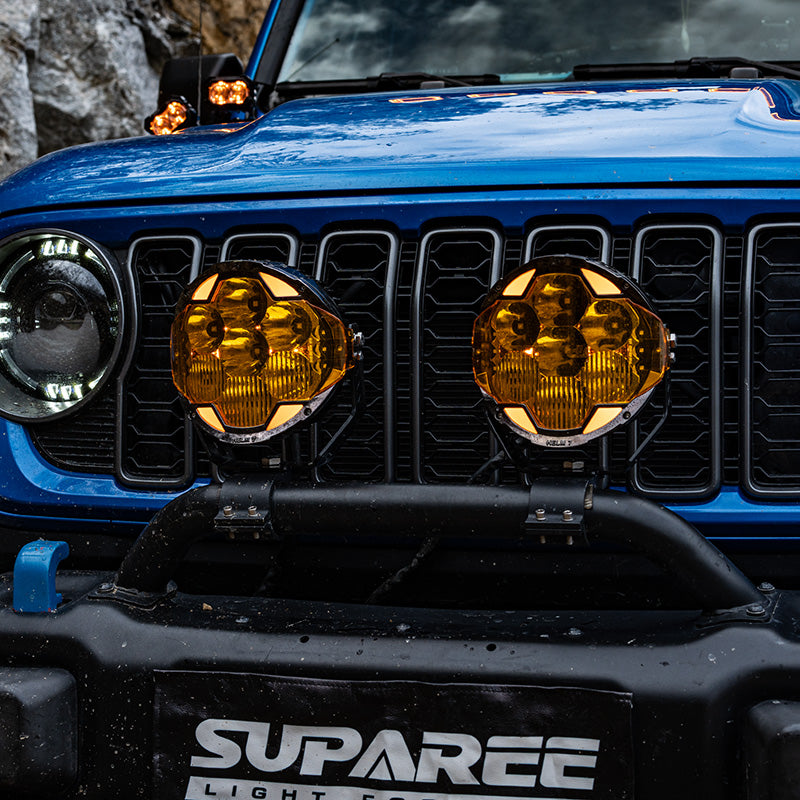

Make a bold statement with a highly customizable design that seamlessly matches your vehicle's specific livery and styling. The front metal bezels and stainless steel logos are fully removable for custom painting, offering unprecedented personalization. Furthermore, each set includes interchangeable black and amber heavy-duty covers, allowing you to adapt your visual style and functionality on the fly.

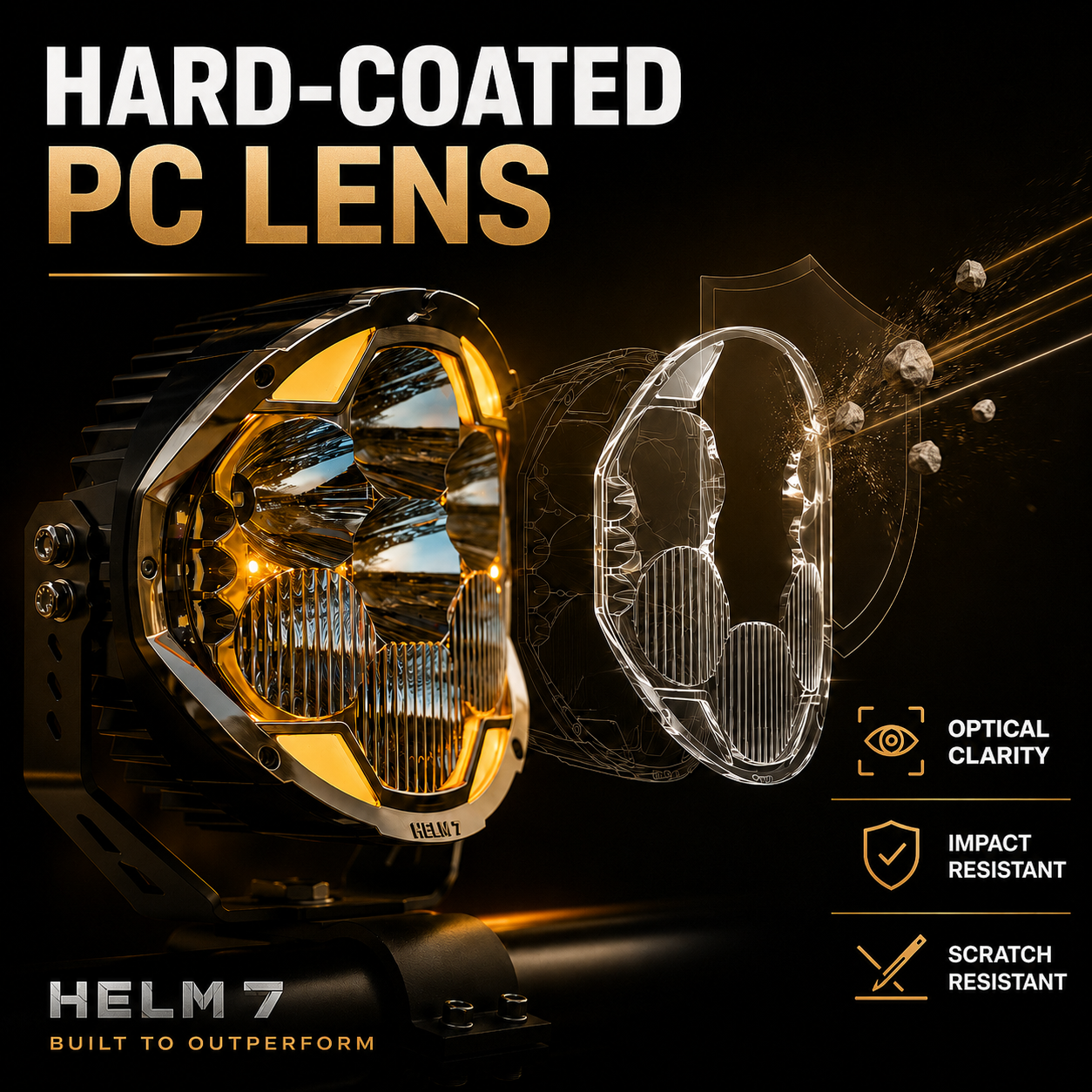

Hard-Coated Polycarbonate Lens

Protect your precision LED chips with a heavy-duty, hard-coated polycarbonate lens built for the harshest environments. This advanced polymer completely outperforms cheap acrylics by merging the highest level of optical clarity with extreme impact resistance. It serves as an unbreakable physical barrier, effortlessly shrugging off high-speed gravel, trail debris, and sweeping tree branches.

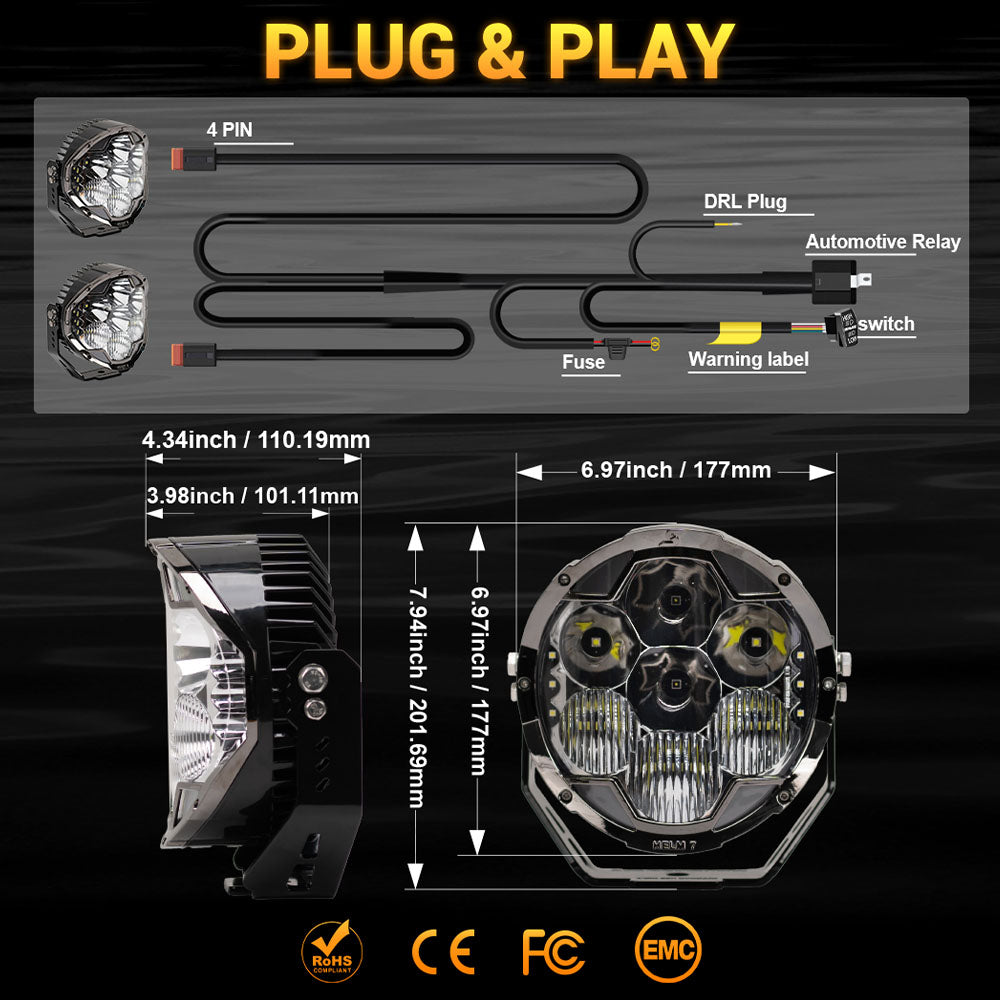

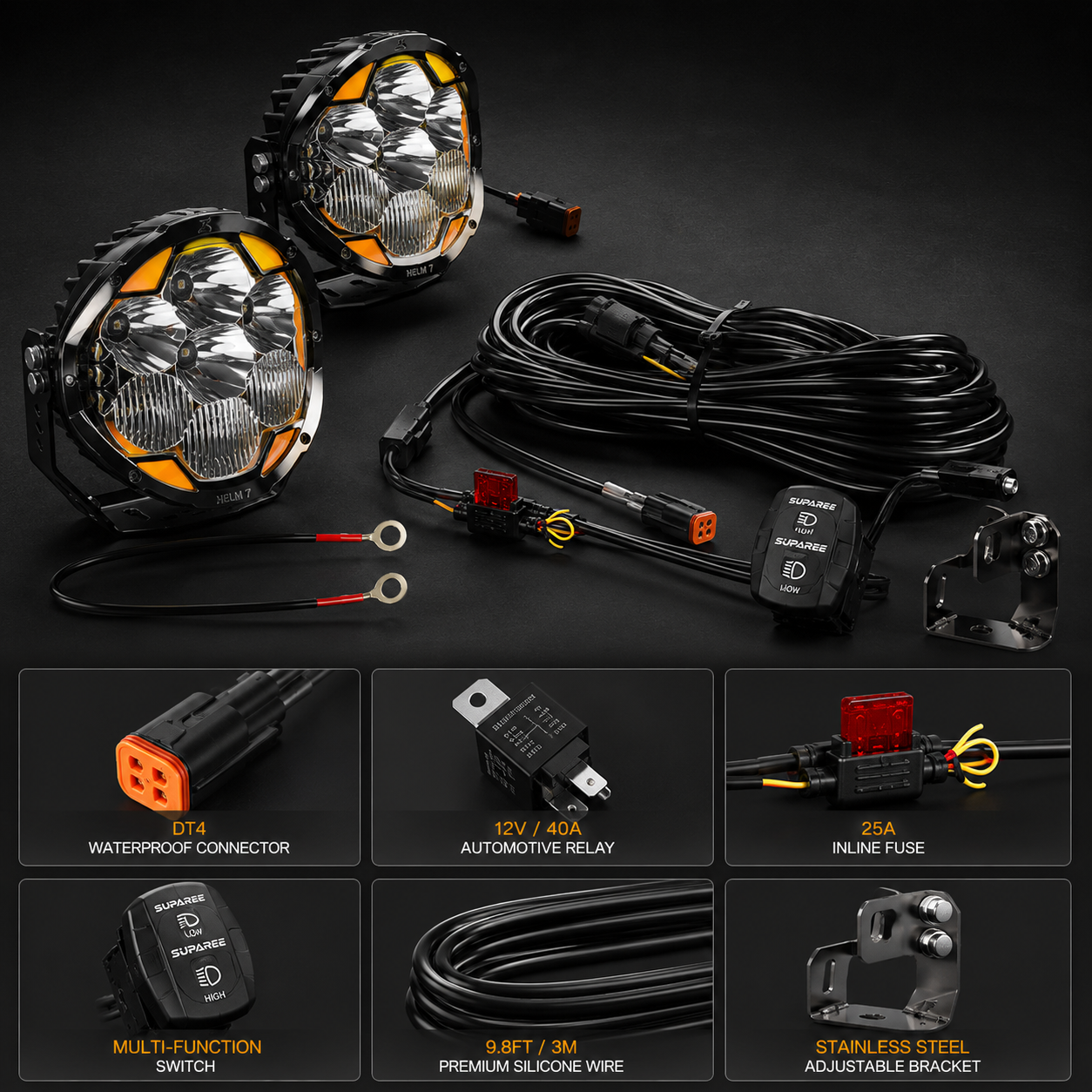

True Plug-and-Play Installation

Skip the frustration of piecing together your own wiring with our complimentary 9.8-foot, premium silicone dual-output harness. This complete industrial-grade kit integrates a heavy-duty 40A relay, a 25A fuse, highly waterproof DT4 connectors, and a multi-function switch. Combined with sturdy stainless steel adjustable brackets, you achieve a flawless, factory-grade setup straight out of the box.
