SKU:  SP-CL683

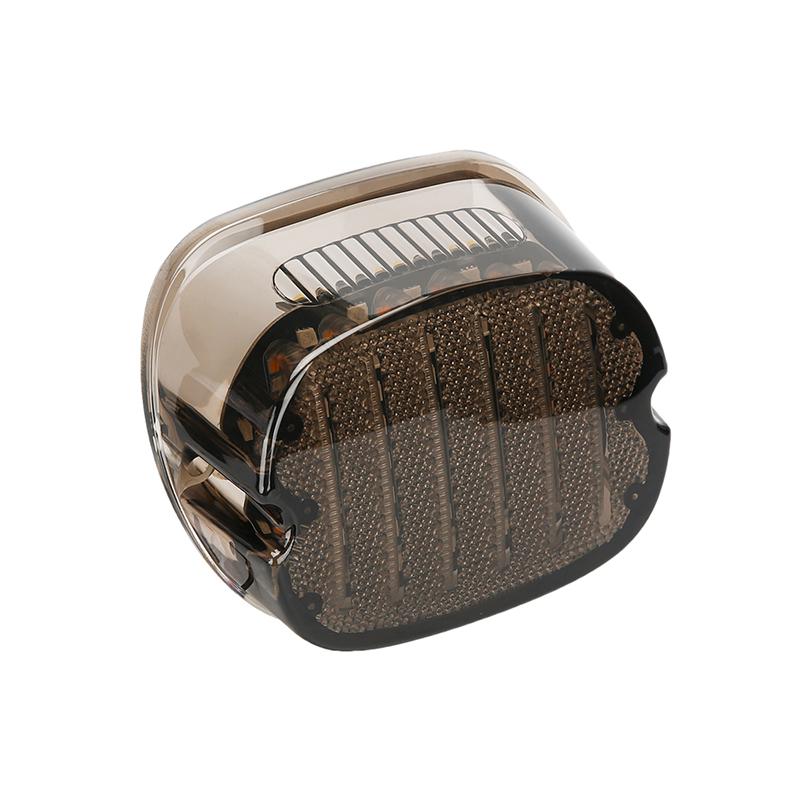

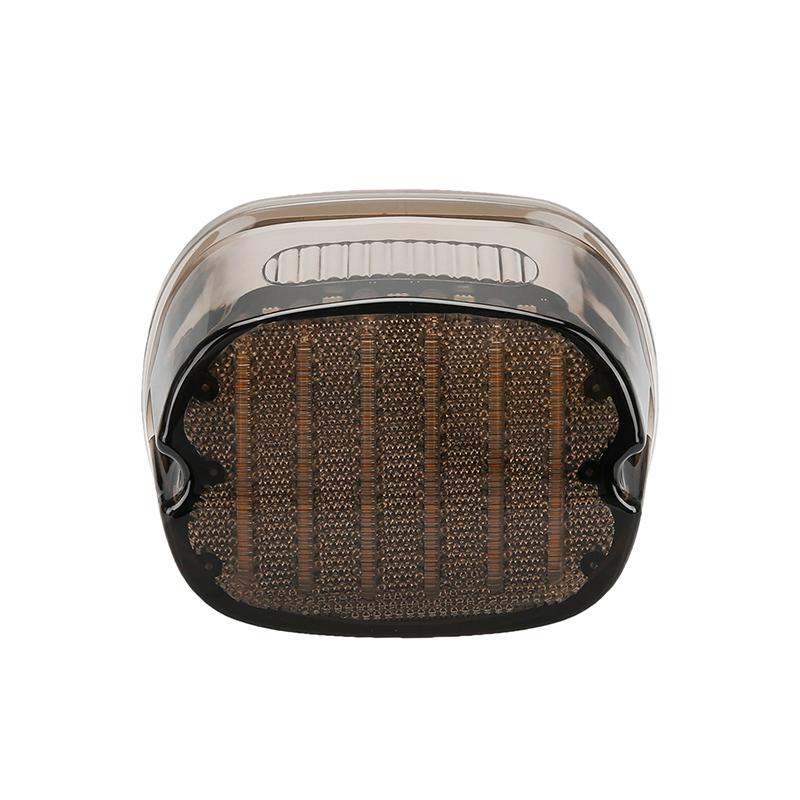

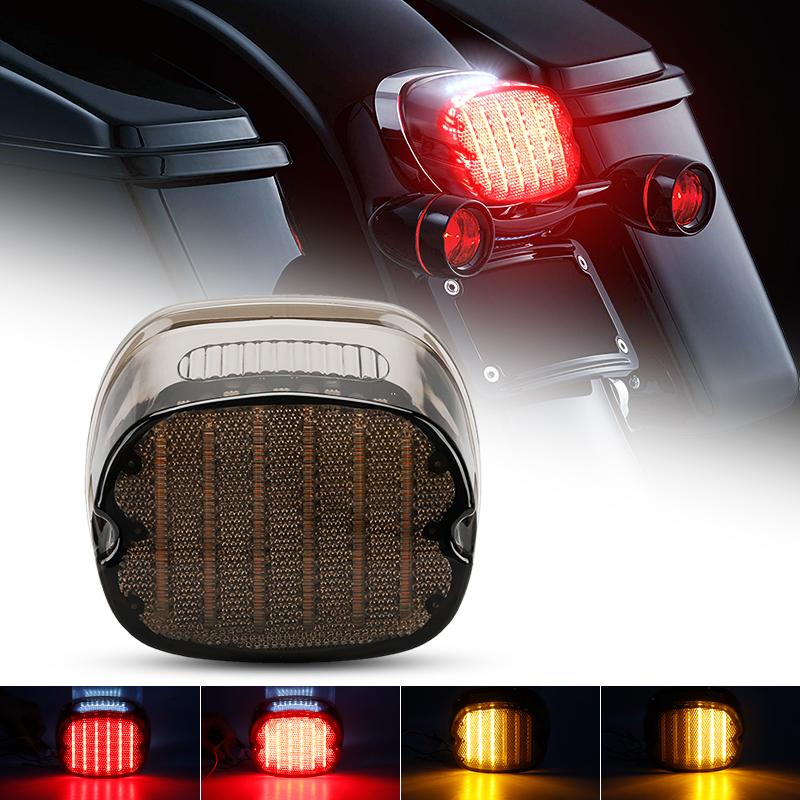

Rear LED Brake Tail Light Upgrade with Turn Signal Lights & License Plate Lights


Features:

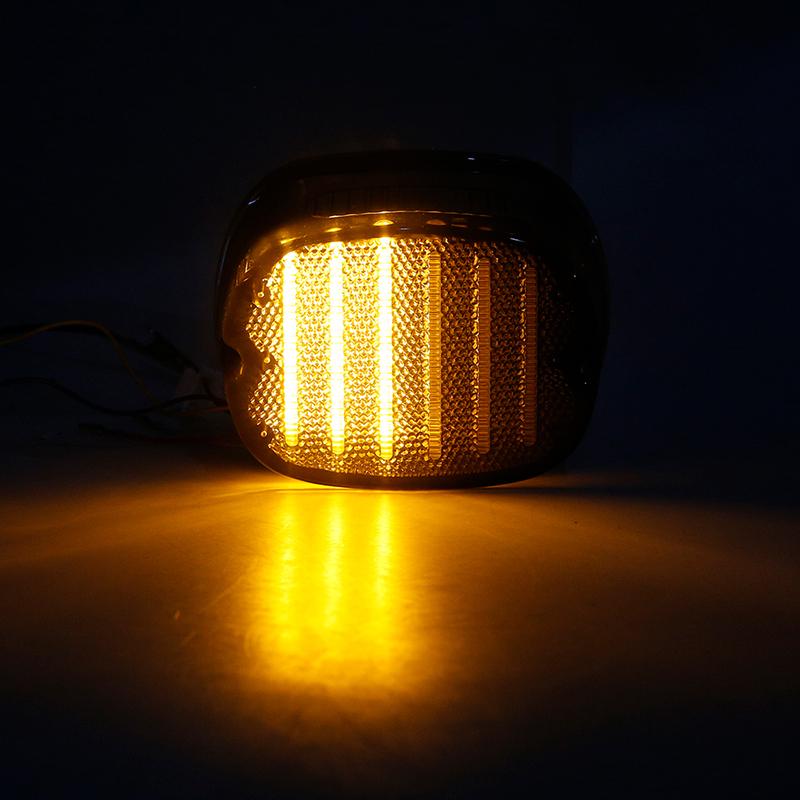

  • Take your safety to the next level. Nothing catches the eye of traffic behind you like the LED tail light with running light/brake light/turn signal light(turn left/right), additional white license plate light. Super bright display indicator with high intensity LEDs chips. Completely built into the light, no wiring is needed.

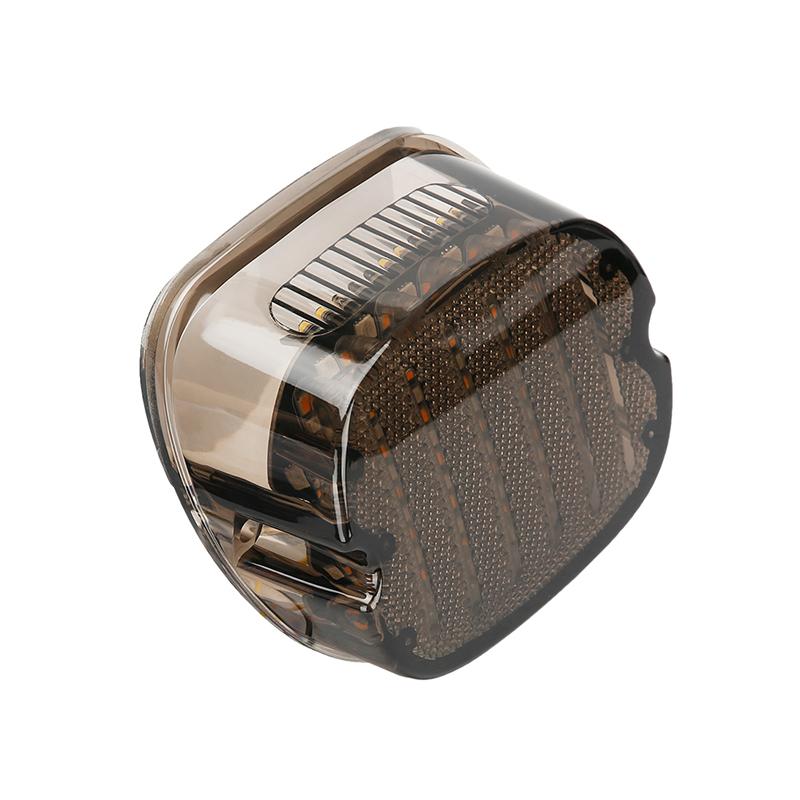

  • Newest Fashion Style: Newest Upgrade Harley LED tail light with a clean uniform appearance, perfect fits factory bezel without gap. Lay down type, upgrade the rear of your bike to a low profile style, smoked lens give your Davidson tail light a great stealthy look, makes your motorcycle more attractive.
  • Wide Application: These Harley LED tail light fits Harley Sportster 883, Sportster 1200, Dyna, Road Glides, Road Kings, Tour Glides, Softail; All 2002-2010 FXST Models (except 2002-2007 FXSTD, 2007-2009 FXSTSSE, 2008-2010 FXCW/C); 1991-2010 Electra Glides (except 2005 FLHTCSE, 2009 FLHT Standard); All 1991-2010 FLST Models (except 1991-2000 FLSTF, 2005-2010 FLSTN, 1997-2003 FLSTS, 2005-2007 FLSTSC; If you are not sure whether your model can be fit in, please feel free to contact us.
  • Easy to Install: Come with white connector for wiring running light and brake light, makes the installation easier. White Wire for Running Light, Red Wire for Brake Light, Blue Wire for Left Turning, Yellow Wire for Right Turning, Black Wire for Ground(Negative). Insert the White and Red wire(Running and Brake Light) into the corresponding position of the white connector, then directly plug in. Cutting and splicing the Blue / Yellow wire to motorcycle's rear turn signal light(Left / Right).

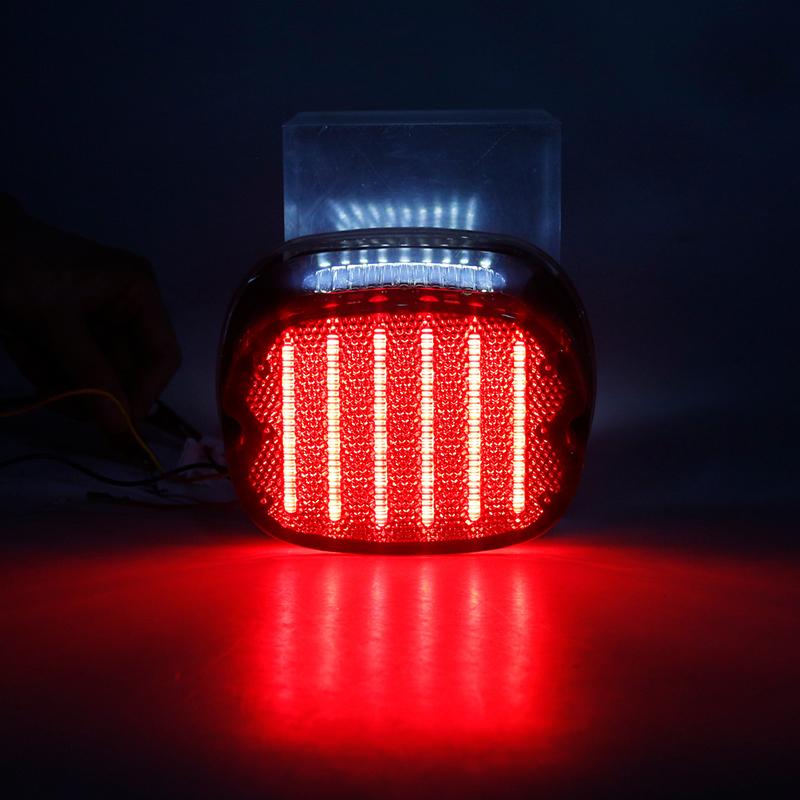

  • One Year Warranty: The perfect upgrade for your Harley Davidson. Be seen from 3X farther away. Extremely bright running and brake light. High quality ABS housing. Stay safer, be seen from farther, light up the night.

Specification:

  • Voltage: 12V DC

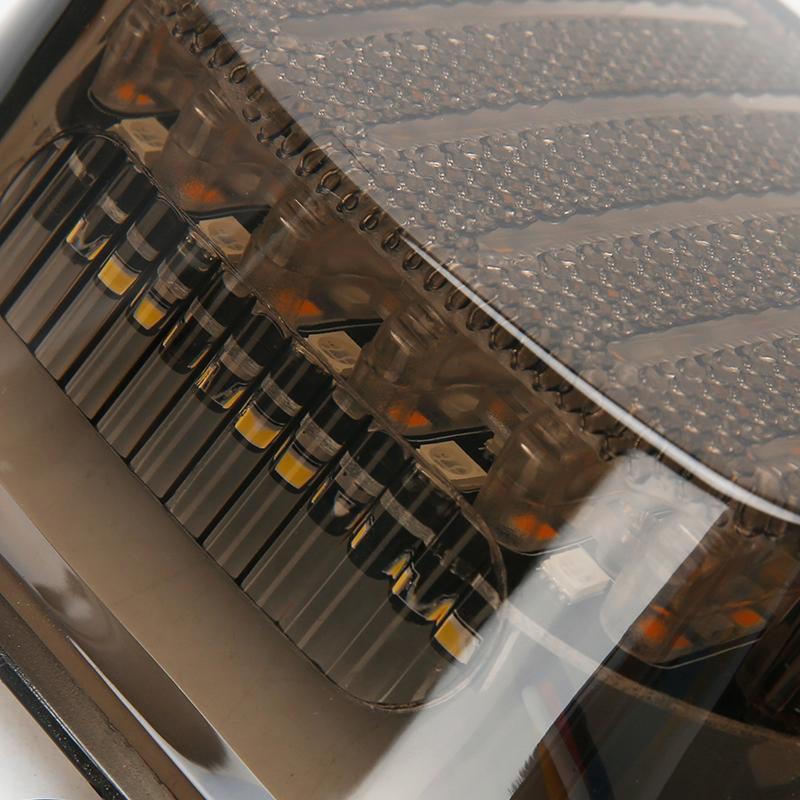

  • LED Chip: 121PCS LED Chips
  • Material: ABS Plastic

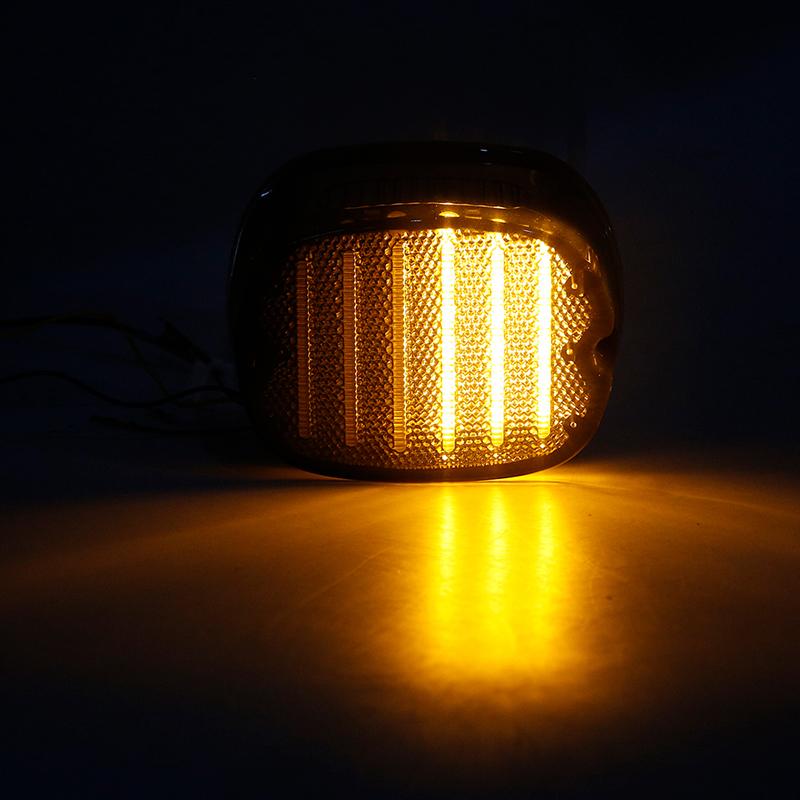

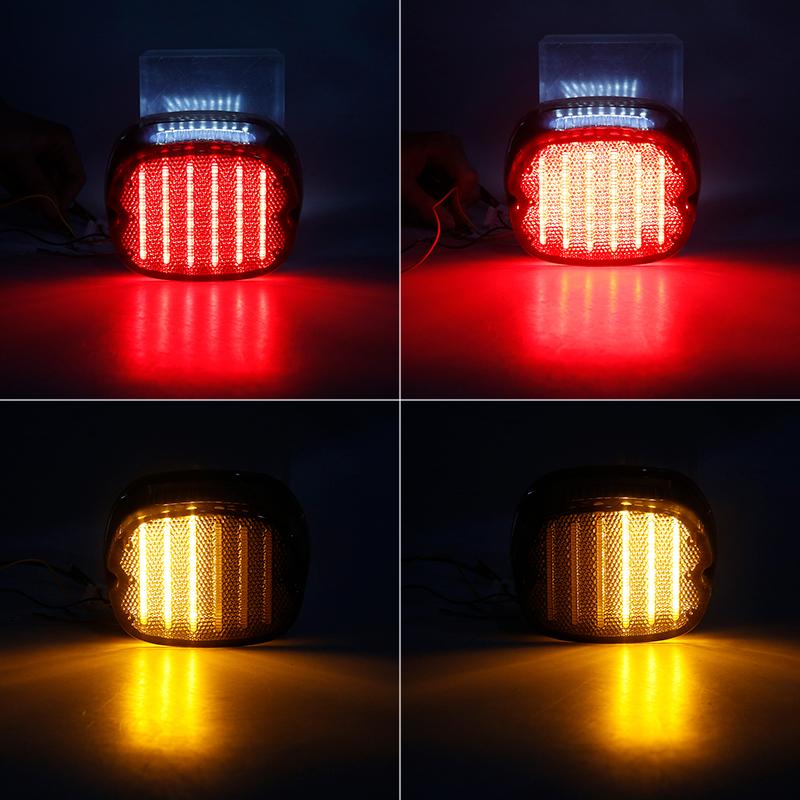

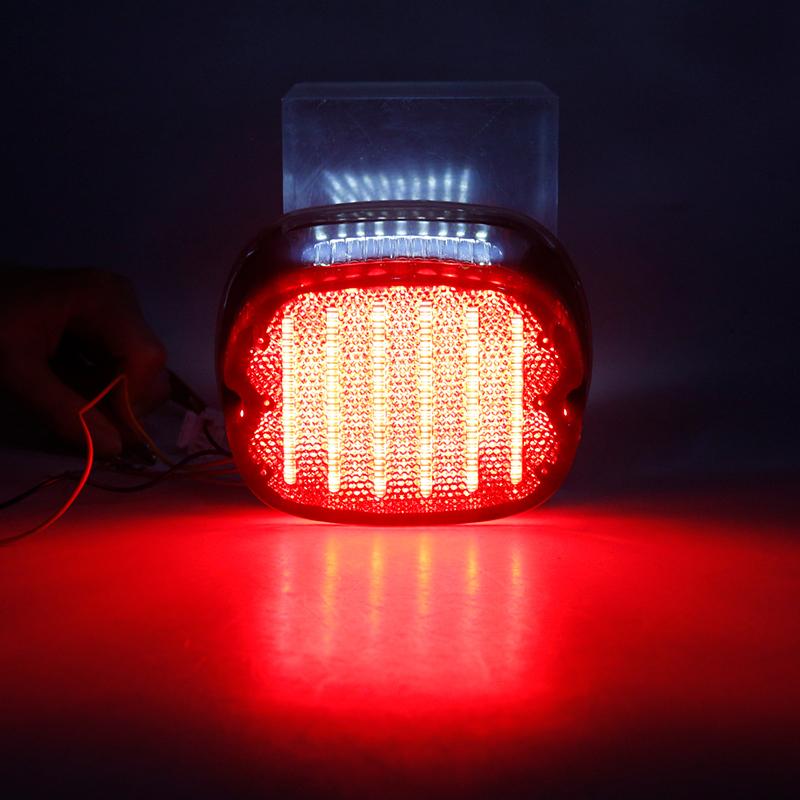

  • Functions: Running, Braking, Turn Signal, License Plate Light

Wire Diagram:

  • Black Wire for Negative
  • White Wire for Running
  • Red Wire for Braking
  • Yellow Wire for Turn Right
  • Blue Wire for Turn Left

Application:

  • 2006-2011 Sportster SuperLow XL 1200L
  • 1999-2019 Sportster Custom XL 1200C
  • 1999-2003 Sportster Sport XL 1200S
  • 2004-2007 Sportster Roadster 1200R
  • 2004-2006 Harley Sportster XL883
  • 1999-2009 Sportster Custom - XL 883C
  • 2011-2019 Sportster SuperLow - XL 883L
  • 1999-2010 Dyna Super Glide FXD
  • 1999-2017 Dyna Low Rider FXDL
  • 2006-2008 Dyna Street Bob (EFI)-FXDB
  • 2008-2013 Dyna Fat Bob-FXDF
  • 1993–2005, 2007–2008, 2016 FXDWG Dyna Wide Glide
  • 1999-2009 Electra Glide Standard
  • 1999-2006 Electra Glide Ultra Classic Injected
  • 2006-2016 Heritage Softail FLSTF
  • 1999-2009 Road Glide FLTR
  • 1999-2016 Road King FLHR
  • 1999-2017 Softail Fat Boy FLSTF
  • 2010-2016 Softail Fat Boy Lo FLSTFB
  • 1999-2016 Softail Night Train FXSTB
  • 2006-2013 Street Glide - FLHX
Notes: Do Not fits models with exclusive tail light like XL 1200X, XL883N, Dyna wide glide.



Connector for Brake and Running Light & Wiring Turn Signal:

  • Please check the position of your bike's running and brake light that on the socket first before inserting the wire to the connector.
  • Insert the white and red wire into white connector, then insert the plug into the motorcycle factory socket.
  • Cutting and splicing the turn signal wire to the bike's turn signal function according to your needs.

Tips: Some earlier Harley models may not blink or hyper flash on the turn signal light. So if all the LEDs are working, but the turn signal does not blink or hyper flash, then you will need a load equalizer(not included) to fix this problem. Please click and order LED Load Resistor.
