9'' Advanced Matrix High-Performance LED Headlight For Jeep Wrangler JL & Gladiator JT
SP-CL1563
No se pudo cargar la disponibilidad de retiro
White light. Amber signals.
6000K White
Amber Turn
Anti-Flicker
Wire DRL + turn
2020+ JT
US lower 48 · over $79.99
Conditions apply
SP-CL1563 / 9-INCH MATRIX SERIES
A sharper look.
A clearer road.
Dual-projector white light for the road ahead. A clean daytime signature. Amber indication when you turn. Give your Jeep a purposeful upgrade, day and night.
2018+ Wrangler JL / JLU
2020+ Gladiator JT
Pair of 9-inch LED headlight assemblies
- Dual lensTwo projectors in each assembly
- 6000KWhite road illumination
- White + amberDRL and turn indication
- IP67Published water & dust rating
01 / FORM WITH A PURPOSE
Two projectors.
One unmistakable face.
The twin lenses, circular light signature and horizontal elements give the familiar Jeep headlight a more defined look. Black-and-chrome details add depth even when the lights are off.
A complete 9-inch assembly.
Projector optics, white DRL and amber turn indication are built into the headlight itself.
Designed around the light pattern.
The dual-projector layout supports focused low-beam illumination and a stronger high-beam field for open, dark roads.
02 / MAKE THE ROAD EASIER TO READ
See the lane.
Read what lies ahead.
For the drive home, an unlit back road or the route to camp, balanced white illumination helps you see the road surface and its edges. Choose the beam that suits the conditions.
Output ratings are for the headlight pair. They are manufacturer-listed values, not independent measurements.
Move between low and high beam with a balanced lighting pattern and responsive LED switching.
A defined cutoff.
A more considered beam.
The Z-shaped low-beam cutoff creates a clear upper edge to the light pattern. Correct aiming helps keep useful light on the road and control glare toward oncoming traffic.
High beam opens up the central field for longer forward visibility when the road is clear. Recheck aiming after changes to ride height or vehicle load.
03 / FOUR FUNCTIONS, CLEARLY DEFINED
White for the road.
Amber for your next move.
One integrated assembly handles forward lighting, a white daytime signature and amber turn indication. The four views show each function in the same headlight.
High beam
White illumination for open, dark roads.
Low beam
Focused white light with a defined cutoff.
White DRL
A distinct daytime outline around the twin lenses.

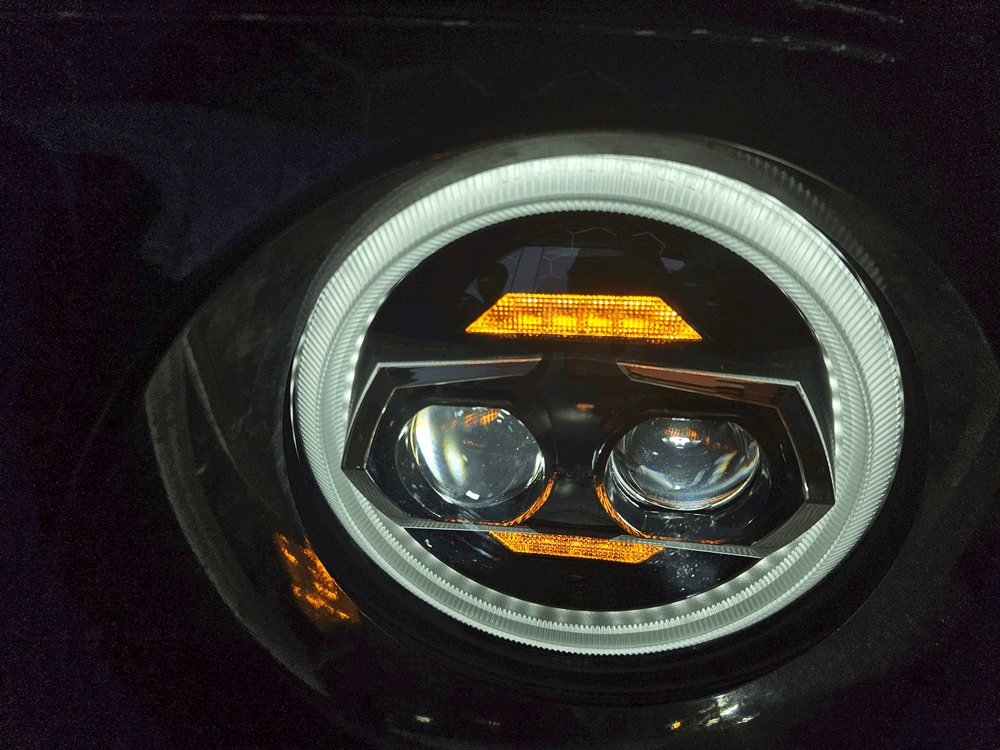

Amber turn
Amber flashing when the signal connection is activated.
A SIGNAL THAT BELONGS TO THE DESIGN
A clean signature.
A clear indication.
The white daytime running light switches to amber flashing for turn indication, then returns to white when signaling ends.
The result is a coordinated front-end detail with a clear purpose every time you indicate.
Connect the dedicated DRL and turn leads as instructed to enable these functions. The product’s amber state is turn indication.
04 / PROTECTION FOR CHANGING CONDITIONS
Built for more
than a dry forecast.
Rain on the commute. Dust along the trail. Cold starts after a night outdoors. Sealed construction helps protect the lighting components through everyday road and trail exposure.
- IP67 water & dust protection.The published rating supports the lamp’s resistance to water ingress and dust.
- Cold and heat tolerance.Listed operating range: −25°C to 65°C. Check seals and connections after demanding conditions.
- Ready for vibration and road debris.A durable assembly and protective lens serve the demands of daily driving and uneven surfaces.
Protect wiring connections during installation. Avoid prolonged submersion and direct high-pressure washing.
05 / THE DETAILS BEHIND THE LIGHT
Manage moisture.
Move heat away.
The rear vent design helps release moisture, while the housing’s cooling surfaces help manage LED temperature. Together, they support clear optics and consistent light output over time.
Venting that helps reduce fogging.
Moisture-release vents help manage condensation. They do not guarantee a permanently fog-free lamp in every climate.
A protective lens up front.
The polycarbonate front lens helps resist scratches and outdoor debris. The listed optical construction uses PMMA and PC materials.
Heat management for lasting use.
The finned rear profile increases cooling surface area. The published LED service-life estimate is over 50,000 hours.
Efficient LED optics and thermal management support useful light from a compact assembly. Actual power draw and service life depend on operating mode and conditions.
06 / UNDERSTAND THE INSTALL BEFORE YOU START
See the fit.
Follow the connections.
Watch the original LED Factory Mart installation video, then use the connector and dimension guide below to plan your upgrade.
- 01 / CHECK
Match your Jeep.
Check the model, original headlight connector and mounting points before removing the existing lamps.
- 02 / CONNECT
Plug in the main lights.
The main connector handles high beam, low beam and ground.
- 03 / ENABLE
Connect DRL and turn.
Use the separate function leads and supplied instructions for the white DRL and amber signal.
- 04 / TEST & AIM
Finish with alignment.
Test every function, secure the wiring and set the beam aim for your Jeep’s ride height.
A main plug.
Dedicated function leads.
The supplied diagram separates the high / low beam connector from the DRL and turn-signal wires. Main-light plug-in installation still includes connections for those extra functions.
The front, mounting-ear height and side depth are shown together so you can check clearance before fitting.
Listed CANBUS compatibility, voltage regulation and anti-flicker circuitry help support stable operation. If a warning or flicker remains, check the power, ground and connections before contacting support.
The original guide lists approximately 1–2 hours for typical installation; experience and vehicle modifications affect the time required.
07 / A PAIR, WITH THE FITTING PARTS
Know what
arrives in the box.

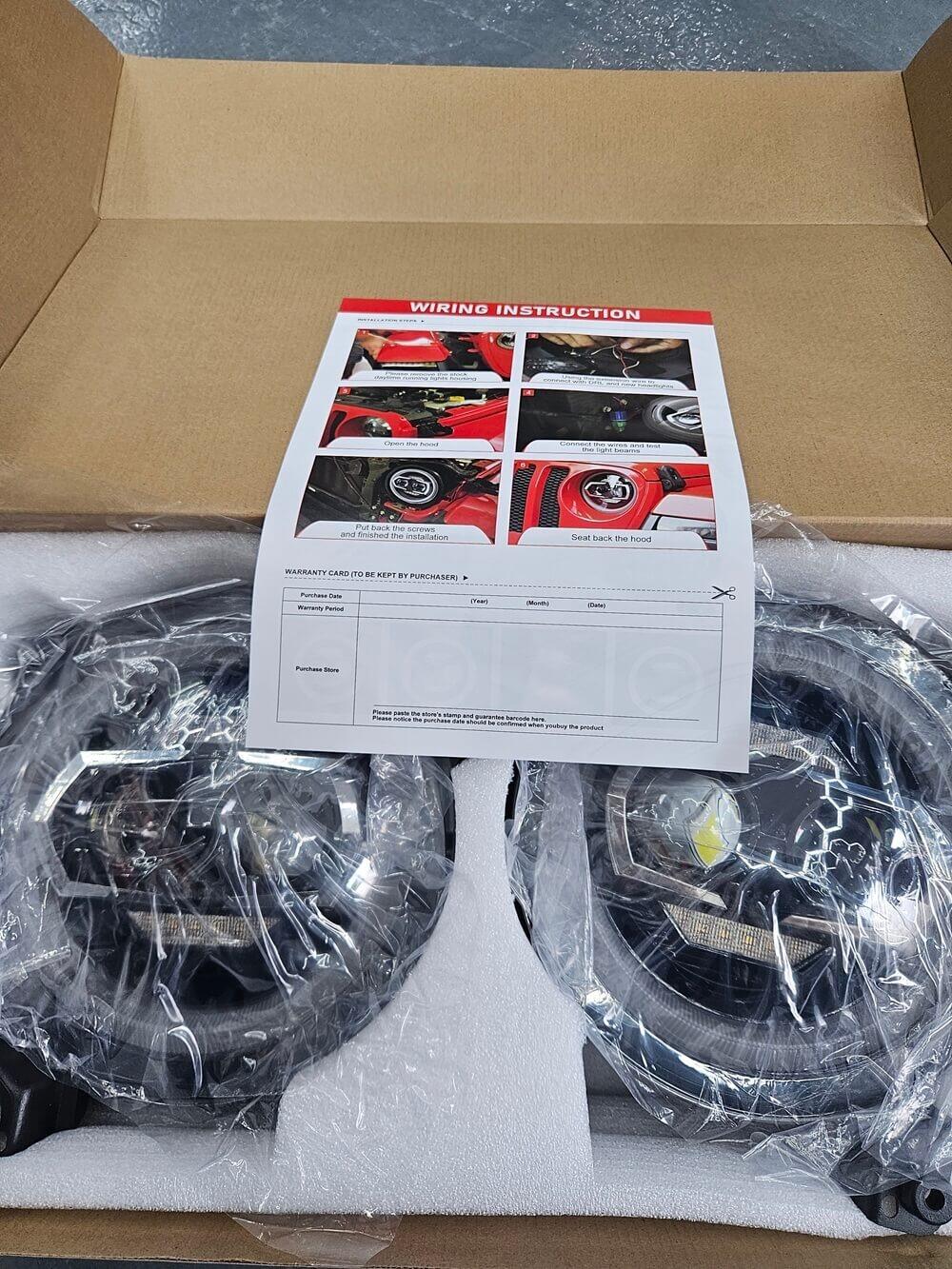

Two complete headlight assemblies and the wiring and mounting hardware pictured here.
- 2 ×9-inch LED headlights
- 2 setsFunction wiring leads
- 6 eachScrews, springs and washers
- 4 ×Wiring connector pieces
Follow the supplied instruction manual for component placement and connections. Vehicle accessories in the installation photos are not included.

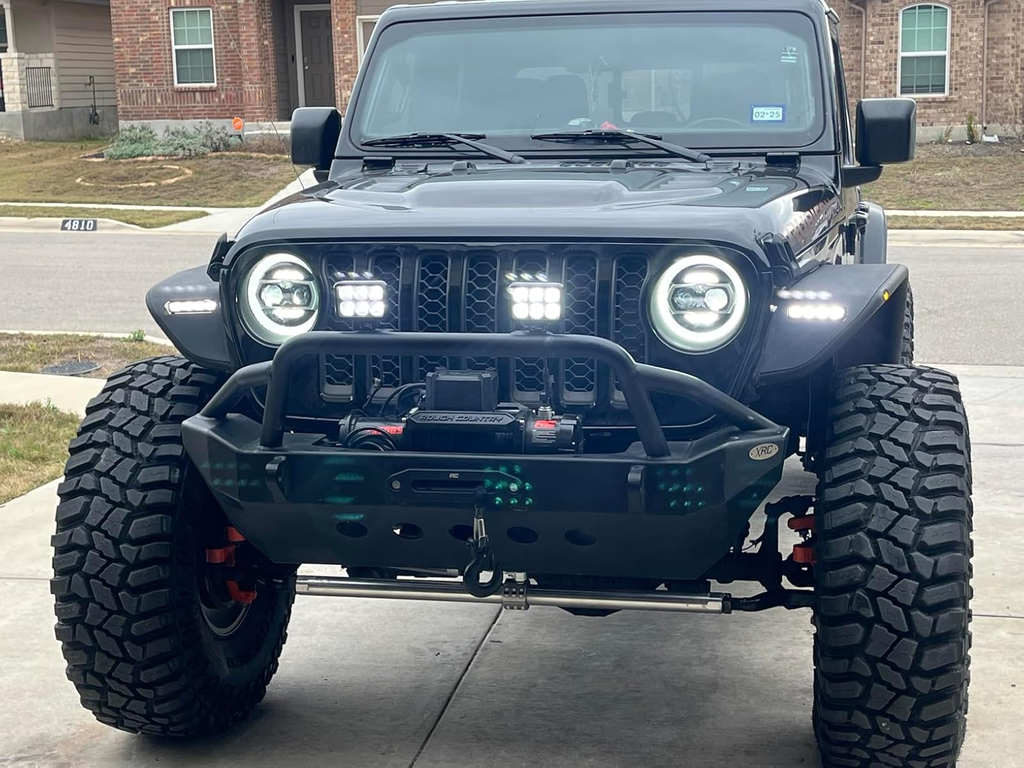

08 / BUILT AROUND THE JL AND JT
A familiar fit.
A different front end.
Designed for the 9-inch headlight position on Wrangler JL / JLU and Gladiator JT models.
Wrangler JL / JLU
JL-platform Sport, Sport S, Sahara, Rubicon and MOAB trims are listed.
Gladiator JT
Purpose-built sizing for the JT headlight position.
For original LED-equipped vehicles or modified wiring, confirm the connector and function wiring with support before fitting. A 2018 Wrangler must be a JL, not a JK.
Technical specifications
- SKU / quantity
- SP-CL1563 / 2 headlight assemblies
- Optical design
- 9-inch, dual projector; PMMA + PC optical construction
- Low / high beam
- 8,000 / 16,000 lm per pair, listed
- Headlight white
- 6000K
- Signal functions
- White DRL / amber flashing turn indication
- Finish
- Black and chrome
- Power / voltage
- 61W per unit / 9–16V
- Operating temperature
- −25°C to 65°C
- Protection
- IP67, published rating
- LED service life
- Over 50,000 hours, estimated
- Shown dimensions
- 229mm width; 245mm overall mounting height; 100mm overall depth
- Electronics
- CANBUS compatibility, voltage regulation and anti-flicker circuitry listed
Published ratings and drawing dimensions. Verify mounting clearances and connections on your vehicle; actual results depend on installation and operating conditions.
